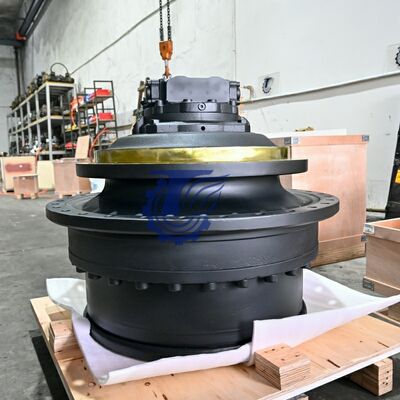

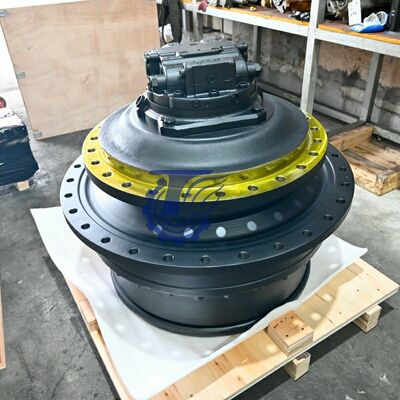

Hitachi Construction Machinery EX1800-3 Final Drive Assembly Final Drive / Travel Motor 4336314 4396991 9124448 travel motor EXCAVATORS FINAL DRIVE ASSEMBLY FINAL DRIVE MOTOR HIGH QUALITY

The Final Drive Assembly (Part Nos. 4336314 / 4396991 / 9124448) for the Hitachi EX1800-3 hydraulic mining excavator is an ultra-large-displacement, ultra-high-torque travel propulsion unit engineered for large-scale open-pit mining, overburden removal, mass earthmoving, and major infrastructure projects in the 180-ton machine class. This assembly integrates a massive axial piston hydraulic motor with a heavy-duty multi-stage planetary reduction gearbox, delivering extreme tractive effort and dependable track performance under the most punishing sustained load conditions found in large-tonnage open-pit mining and bulk excavation operations.

• North America & Europe: Engineered for large-scale open-pit mining, quarrying, and heavy civil infrastructure projects, with reinforced housings and heavy-duty sealing to withstand extreme temperature fluctuations, highly abrasive materials, and continuous high-cycle production operation.
• Southeast Asia & Oceania: Equipped with heavy-duty floating seals that resist ingress of highly abrasive laterite soils, clay, and tropical mud common in large-scale mining, quarrying, and major earthworks projects in high-humidity environments.
• Middle East & Africa: High-temperature seals and corrosion-resistant materials protect against sand erosion, thermal stress, and airborne particulate contamination in extreme arid desert and semi-arid conditions, ensuring reliable performance in the most hostile environments.

• Ultra-Large High-Torque Motor: The high-displacement swashplate piston motor delivers immense starting torque and precise speed control, enabling confident tracking on steep haul ramps, soft overburden, and highly uneven terrain typical of 180-ton-class mining and mass excavation operations.
• Heavy-Duty Multi-Stage Planetary Reduction: The gearbox employs case-hardened, precision-ground alloy steel planetary gears with induction-hardened shafts and high-capacity bearings, ensuring uniform load distribution across multiple reduction stages and maximizing service life between major rebuilds.
• Complete Assembly Integration: Supplied as a fully assembled final drive with the travel motor pre-mounted, reducing installation time, minimizing on-site assembly errors, and getting the machine back into production faster.
• Heavy-Duty Structural Integrity: The high-strength ductile iron housing features massive reinforced ribbing and stress-relieved construction to resist structural fatigue under continuous shock loading from tramming over rough quarry floors and haul roads.
• Precision OEM Replacement Fit: All mounting bolt patterns, pilot diameters, spline connections, and hydraulic port locations match original Hitachi specifications, enabling straightforward installation with minimal machine downtime.

• Hydraulic System Care: Routinely inspect case drain lines for restrictions, kinks, or blockages. Maintain strict hydraulic fluid cleanliness standards and replace return filters at prescribed intervals.
• Gear Oil Management: Fill the planetary housing with recommended extreme-pressure gear oil. Change oil every 250-500 operating hours under normal conditions, and every 250 hours in severe applications. Perform regular oil sampling and analysis.
• Mounting Bolt Protocol: When reinstalling, always fit new high-strength bolts meeting specified grade. Apply thread locking compound and torque to factory specifications.
• Pre-Operation Priming Procedure: Before initial startup or after final drive replacement, fill the motor housing with clean hydraulic oil to purge trapped air pockets. Run at low idle for several minutes, cycling tracks forward and reverse.

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District. With nearly 15 years of experience, we specialize in engineering machinery hydraulics and are committed to delivering practical solutions.

Manufacturing Facility Exterior

Factory Production Line

Trade Show Exhibition

Professional Team

For large items, we use sturdy plywood crates secured with metal fasteners. Products are cushioned with bubble wrap and secured with wooden braces, with special attention given to protecting vulnerable parts. External reinforcement includes high-strength PET plastic strapping and waterproof wrapping.

Secure Product Packaging Example

• One-stop solution provider for all hydraulic component needs
• High-quality products at competitive prices
• Exceptional customer service and support
• Large inventory, short delivery times, and long warranty periods
• Professional expertise with accurate part number identification
