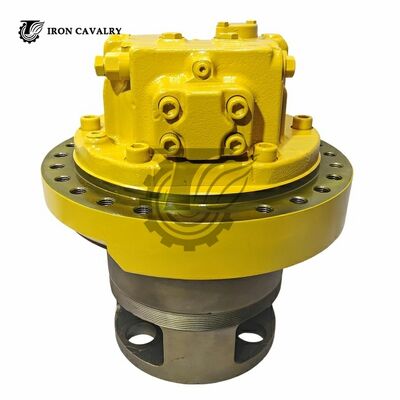

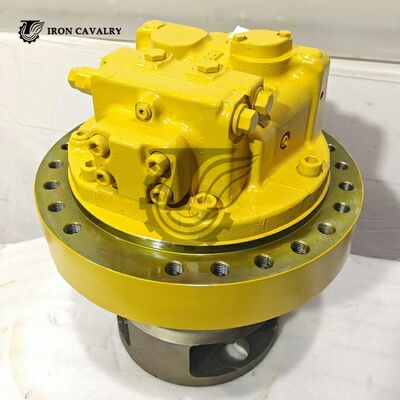

Komatsu D38P-1 D38E-1 D38EP-1 Final Drive Unit 1209147H91 | High-Torque Planetary Reduction Gearbox | Heavy-Duty Dozer Traction Assembly

These D38 series swamp bulldozers operate in challenging low-ground-pressure environments worldwide, and our final drives are configured for region-specific conditions:

• North America & Europe: Configured with reinforced seal packs and corrosion-resistant housing coatings to withstand continuous operation in wetland reclamation, peat bog development, and soft soil pipeline construction projects
• Southeast Asia & Oceania: Equipped with heavy-duty Duo-Cone floating seals and stainless steel hardware to prevent contamination from abrasive peat soils, acidic swamp water, and tropical mud in plantation development and mangrove reclamation applications
• Japan & East Asia: Tuned to match the low-ground-pressure hydraulic control characteristics of swamp dozer platforms, providing smooth travel modulation and precise maneuvering capability in saturated terrain and rice paddy operations

• Compact High-Torque Design: Optimized planetary gear ratio delivers maximum drawbar pull for navigating deep mud and soft peat while maintaining a compact housing profile that fits within the D38's narrow, low-ground-pressure track frame without clearance issues
• Swamp-Terrain Durability: Heavy-duty radial piston motor design provides reliable low-speed torque output and smooth operation in high-slip conditions, reducing the risk of track spin damage in soft underfoot conditions
• Structural Integrity: Induction-hardened sun gears, carburized planetary pinions, and corrosion-resistant ductile iron housing resist fatigue and structural stress during repetitive loading in swamp clearing and soft terrain dozing operations
• Direct OEM Replacement: All mounting bolt patterns, hydraulic port locations, and pilot line orientations match original Komatsu specifications for straightforward replacement without undercarriage modifications or adapter plates

• Hydraulic System Care: Routinely inspect case drain line backpressure; sustained readings above 5 kg/cm² indicate internal motor wear requiring teardown inspection. Replace hydraulic return filters every 200 operating hours in swamp conditions to prevent water contamination and abrasive particle circulation through travel motor circuits
• Gear Oil Management: Drain and replenish planetary gearbox oil every 300 operating hours under normal swamp conditions, or every 150 hours in severe mud, high-moisture, or acidic water environments. Use SAE 80W-90 API GL-5 gear oil; inspect drained oil for water contamination as a routine diagnostic measure
• Floating Seal Inspection: Periodically inspect Duo-Cone seal areas for leakage during every service interval. Swamp operation accelerates seal wear due to abrasive silt and organic debris; replace seals at first sign of oil weeping to prevent internal contamination
• Pre-Operation Priming Procedure: Before initial engine start following final drive replacement, completely fill the travel motor housing with clean ISO VG 46 hydraulic oil through the uppermost port. Rotate the output sprocket manually in both directions to expel trapped air from piston chambers, then verify oil level before startup to prevent dry-start damage to piston shoes and valve plate surfaces

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District. With nearly 15 years of experience, we specialize in engineering machinery hydraulics and are committed to delivering practical solutions and upholding our responsibilities.

Manufacturing Facility Exterior

Factory Production Line

Trade Show Exhibition

Professional Team

Our efficient execution and rigorous manufacturing approach ensure our products meet over 95% of original performance specifications. This commitment has built widespread trust in the industry.

We maintain a ready inventory of over 500 assembly types, providing access to more than 6,000 different parts. Hydraulic pump, control valve, travel, and swing assemblies are our core products, with particular expertise in large mining excavator components and hard-to-find items.

For large items, we use sturdy plywood crates secured with metal fasteners. Products are cushioned with bubble wrap and secured with wooden braces, with special attention given to protecting vulnerable parts. External reinforcement includes high-strength PET plastic strapping and waterproof wrapping.

Secure Product Packaging Example

• One-stop solution provider for all hydraulic component needs
• High-quality products at competitive prices
• Exceptional customer service and support
• Large inventory, short delivery times, and long warranty periods
• Professional expertise with accurate part number identification
