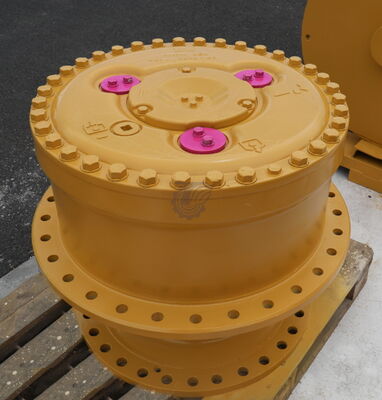

CAT D9 D9N D9R D9T Final Drive Group 185 7593 Heavy-Duty Mining Dozer Planetary Reducer

The Final Drive Group Assembly (P/N 185 7593, CA1857593, 1857593) is the heavy-duty power delivery core engineered exclusively for Caterpillar’s D9 large track-type tractor fleet. Operating at the very end of the power train assembly, this component satisfies the most critical role on the machine: providing final gear reduction and massively multiplying torque to deliver the immense mechanical drawbar pull required for heavy bulldozing and ripping operations. It is a direct match for the D9, D9N, D9R, D9T, and D9 GC series models.

Maximizing Drawbar Tractive Force for Extreme Overburden The Caterpillar D9 series represents the structural backbone of heavy-duty production dozing, ripping, and site reclamation globally. Utilizing Caterpillar's signature elevated sprocket (high-drive) design, these tractors efficiently isolate steering clutches, brakes, and final drives from abrasive ground mud, roller frames, and brutal direct shock impacts. Even with this advanced layout, the internal planetary gears of the 185 7593 drive group bear the brunt of transforming extreme engine horsepower into massive mechanical drawbar pull.

Over thousands of heavy operating cycles—whether punching out massive slot dozing runs or tearing through frozen overburden—the relentless forward-to-reverse shuttle transitions subject the internal planet pinions and carriers to immense shearing forces. Our premium replacement final drive gearboxes are engineered to solve common failure points like subsurface gear pitting and bearing race fatigue. Manufactured with precision-ground gear profiles and deep-case induction hardening, this unit guarantees consistent power delivery and ensures zero straight-line tracking drift across unpredictable terrain.

• North America & Australia: Built for high-frequency uptime in aggregate quarries, heavy civil infrastructure projects, and coal mines where 24/7 reliability directly impacts material move rates.

• South America & Africa: Optimized with precision-lapped heavy-duty mechanical floating seals that prevent fine silica dust, red clay, and gold/copper ore particles from entering the gear oil bath.

• Harsh Climates & CIS Regions: Built with optimized housing metallurgy that retains exceptional core ductility and prevents brittle cracking during high-load cold starts in severe sub-zero mining environments.

The High-Viscosity Lubrication Rule: Heavy mining bulldozers run significantly hotter and deal with extreme tooth-to-tooth micro-welding forces that standard excavator final drives never see. Always use specialized premium CAT FDAO (Final Drive and Axle Oil) or its equivalent high-performance drivetrain lubricant. Never mix standard hydraulic fluid or multi-purpose gear oil into the 185 7593 gear case.

• S.O.S. Scheduled Oil Sampling: Draw fluid samples every 250 operational hours to monitor parts-per-million (PPM) counts of iron, copper, and lead. A sudden spike in copper typically flags a deteriorating thrust washer, which must be addressed before causing destructive gear misalignment.

• Magnetic Drain Plug Inspections: Clean and analyze the magnetic plug at every oil change interval. While ultra-fine metallic silt is normal wear, distinct metallic flakes or chunking indicate subsurface spalling has begun—the asset must be shut down immediately to preserve the expensive planetary carriers from destruction.

• Sprocket Hardware Lifecycle: The massive torque generated by the D9 demands perfect track segment bolt integrity. Never reuse old segment bolts. Always use new Grade 12.9 hardware, torque strictly to factory specifications, and execute the final torque-turn sequence to prevent loose segments from tearing out the final drive hub threads.

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District, approximately an hour from Baiyun International Airport. We have been a dedicated specialist in engineering machinery hydraulics for nearly 15 years.

Driven by our core values of "Pragmatism and Progress," we are committed to delivering practical solutions and upholding our responsibilities. This principle-driven approach defines all our operations and client partnerships.

In China's excavator hydraulic assembly sector, our efficient execution and rigorous approach to manufacturing every product to meet over 95% of original performance specifications have built widespread trust. This has made us a destination for industry peers and clients seeking knowledge and reliable supply.

Our capability is backed by a ready inventory of over 500 assembly types, providing access to more than 6,000 different parts. Hydraulic pump, control valve, travel, and swing assemblies are our core products, with a distinct advantage in large mining excavator components and hard-to-find items.

Our 4,000-square-meter factory in Guangzhou is equipped for professional manufacturing, precision assembly, rigorous testing, and quality certification, ensuring reliable performance and timely delivery for every order.

For large items, we use sturdy plywood crates secured with metal fasteners for added stability. Inside, the products are cushioned with bubble wrap and secured with wooden braces, while special attention is given to protecting vulnerable parts. Externally, the crates are reinforced with high-strength PET plastic strapping and wrapped in highly waterproof black film.

• One-stop solution provider for all your hydraulic component needs
• High-quality products at competitive prices
• Exceptional customer service that makes you feel at home
• Large inventory, short delivery times, and long warranty periods
• Professional expertise with accurate part number identification for excavator components
