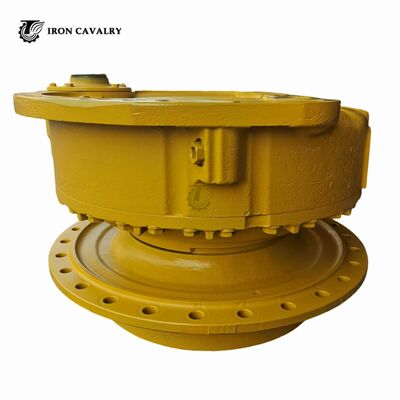

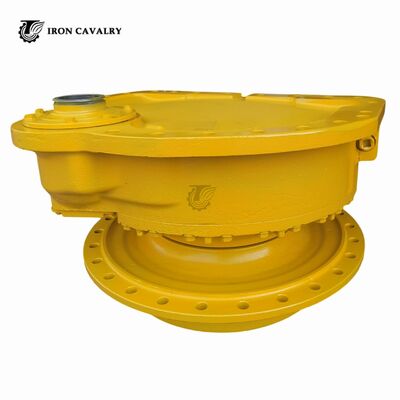

195-27-00740 / 195-27-00760 Final Drive Group for Komatsu D375A-5

The 195-27-00740 and 195-27-00760 Final Drive Assemblies are heavy-duty planetary gear reduction units engineered specifically for the Komatsu D375A-5 crawler dozer, operating in the 70-80 ton machine class. These assemblies integrate a high-displacement axial piston motor with a reinforced four-stage planetary gear train enclosed in a one-piece forged steel housing, delivering exceptional sprocket torque and structural rigidity for extreme dozing, ripping, and land-clearing applications.

Komatsu D375A-5 dozers are deployed in demanding global environments, and our final drives are specifically optimized for regional conditions:

• Canada & Russia Oil Sands Operations: Features upgraded chrome-plated piston bores and cold-weather seal compounds to withstand extreme low-temperature startup and abrasive bituminous sand conditions
• Australia & Chile Hard Rock Mining: Incorporates deep-case carburized planetary gears and induction-hardened sun shafts to resist spalling and fatigue under continuous high-impact ripping loads
• Southeast Asia & Indonesia Coal Overburden: Equipped with reinforced floating seals and corrosion-resistant housing coatings to prevent ingress of acidic mud and moisture in tropical high-humidity environments

• Reinforced One-Piece Housing: Forged alloy steel housing with integrated stress-relieving geometry resists structural cracking and torsional deflection during severe side-loading and rock dozing operations
• Precision Direct Fitment: All mounting bolt patterns, pilot diameters, and hydraulic port locations exactly match original Komatsu specifications, enabling seamless bolt-on replacement without adapter plates or line modifications
• Enhanced Internal Lubrication: Optimized oil flow channels within the planet carrier assembly ensure consistent forced lubrication to all gear meshes and tapered roller bearings, even under extreme operating angles
• Multi-Stage Contamination Protection: Heavy-duty dual-cone floating seals combined with a secondary dust wiper lip provide superior protection against fine silica, clay, and water ingress in the harshest undercarriage conditions

• Case Drain Line Condition: Ensure the motor case drain line is routed independently to tank with no restrictions or shared connections. Sustained back pressure above 10 psi will cause rapid output shaft seal failure. Inspect magnetic drain plugs and filter elements every 250 hours.
• Gear Oil Change Interval: Replace planetary gear oil at 250 hours for initial break-in, then every 500 hours or quarterly. Use extreme pressure gear oil SAE 80W-90 or Komatsu AX 80W-90. Monitor drained oil for copper particles indicating bushing wear or steel fragments indicating gear distress.
• Sprocket Hub Bolt Replacement Protocol: Always install new bolts with high-strength thread locking compound upon reassembly. Clean bolt holes thoroughly with compressed air to remove oil residue. Tighten in a diagonal sequence to the specified torque of 1,200 ± 50 N*m.
• Pre-Start Motor Priming Procedure: Before initial startup after installation or extended downtime, fill the motor housing completely with clean hydraulic oil through the uppermost case port until oil steadily flows from the drain port. Crank the engine with the fuel shutoff disabled for 10-15 seconds to circulate oil, then start and idle for 3-5 minutes before engaging track drive to prevent piston seizure.

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District. With nearly 15 years of experience, we specialize in engineering machinery hydraulics and are committed to delivering practical solutions and upholding our responsibilities.

Our efficient execution and rigorous manufacturing approach ensure our products meet over 95% of original performance specifications. This commitment has built widespread trust in the industry.

We maintain a ready inventory of over 500 assembly types, providing access to more than 6,000 different parts. Hydraulic pump, control valve, travel, and swing assemblies are our core products, with particular expertise in large mining excavator components and hard-to-find items.

For large items, we use sturdy plywood crates secured with metal fasteners. Products are cushioned with bubble wrap and secured with wooden braces, with special attention given to protecting vulnerable parts. External reinforcement includes high-strength PET plastic strapping and waterproof wrapping.

• One-stop solution provider for all hydraulic component needs
• High-quality products at competitive prices
• Exceptional customer service and support
• Large inventory, short delivery times, and long warranty periods
• Professional expertise with accurate part number identification
