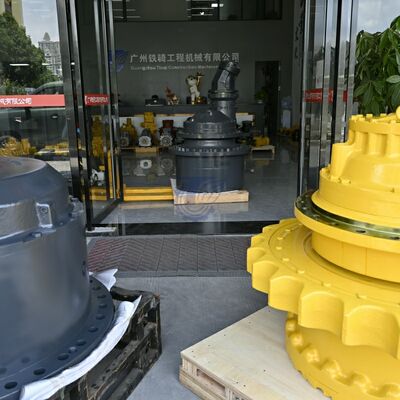

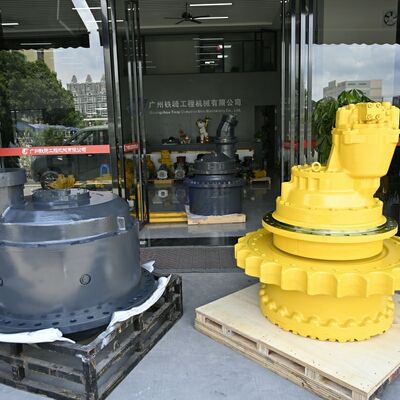

970224101 90212316 Final Drive Assembly for Liebherr R9350 R9400 Ultra-Class Mining Excavator Travel Gearbox

The Final Drive and Planetary Gearbox Assembly (970224101 & 90212316) is a heavy-duty power transmission component engineered for Liebherr R9350 and R9400 ultra-class mining excavators. Designed for machines in the 300 to 400-ton range, this assembly is built to handle staggering torque loads, providing the massive tractive effort required for continuous operation in open-pit mines, high-volume quarrying, and extreme overburden removal projects.

Moving the Giants: Engineering for Extreme Reliability The Liebherr R9350 and R9400 are the backbones of large-scale mining operations. When an excavator weighs nearly 400 tons, the final drive is under constant, immense structural stress. The 970224101 / 90212316 assembly is designed to eliminate "travel fatigue" and ensure the machine maintains its synchronized tracking and climbing ability on steep pit ramps.

In a mining environment, a gearbox failure doesn't just mean a stopped machine; it means a bottleneck for the entire haul truck fleet. Our premium aftermarket reducers are manufactured with induction-hardened gears and precision-lapped sun gears. This high-precision manufacturing minimizes internal heat buildup and prevents the tooth pitting that leads to catastrophic internal fragmentation.

• The R9350/R9400 series operates in the most extreme climates on earth. Our drive assemblies are optimized for:

  • Australia & North America (Pilbara / Oil Sands): Optimized for high-intensity, 24/7 production cycles where machines must operate at maximum duty cycle with minimal scheduled downtime.

  • Africa & South America (Congo, Chile, Peru): Features reinforced "Mining-Grade" floating seals to protect internal components from the abrasive mineral dust and tropical moisture common in copper and gold mining.

  • CIS Regions (Russia, Kazakhstan): Metallurgical properties are optimized for "Arctic Grade" performance, ensuring the housing remains ductile and crack-resistant during high-torque cold starts in sub-zero temperatures.

  • Central Asia: Engineered with advanced thermal cooling properties to maintain oil viscosity during long shifts in high-ambient desert temperatures.

For ultra-class machinery, maintenance is about preventative forensics:

• SOS (Scheduled Oil Sampling): For the 970224101 drive, regular oil analysis is non-negotiable. Watch for spikes in iron or copper levels; catching a bearing issue early can save the entire planetary set.

• The Magnetic Plug Rule: Clean and inspect magnetic plugs at every service. Fine "fuzz" is normal wear; distinct metal flakes are a "red flag" indicating that the planetary carrier or sun gear needs immediate inspection.

• Floating Seal Vigilance: In mining, any oil leak is an entry point for grit. If you see oil weeping between the sprocket and the track frame, replace the seal immediately to avoid a "dry-run" failure that can cost hundreds of thousands in repairs.

• Torque Protocols: Always use new Grade 10.9 or 12.9 bolts for mounting. Use a calibrated torque multiplier to meet Liebherr’s specific "Angle-Torque" requirements, preventing bolt stretch and flange damage.

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District, approximately an hour from Baiyun International Airport. We have been a dedicated specialist in engineering machinery hydraulics for nearly 15 years.

Driven by our core values of "Pragmatism and Progress," we are committed to delivering practical solutions and upholding our responsibilities. This principle-driven approach defines all our operations and client partnerships.

In China's excavator hydraulic assembly sector, our efficient execution and rigorous approach to manufacturing every product to meet over 95% of original performance specifications have built widespread trust. This has made us a destination for industry peers and clients seeking knowledge and reliable supply.

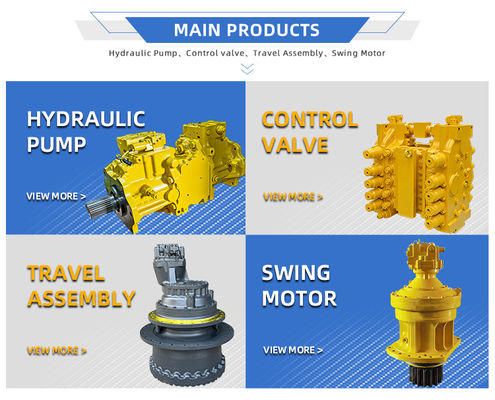

Our capability is backed by a ready inventory of over 500 assembly types, providing access to more than 6,000 different parts. Hydraulic pump, control valve, travel, and swing assemblies are our core products, with a distinct advantage in large mining excavator components and hard-to-find items.

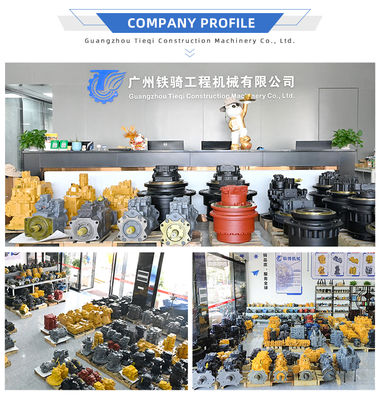

Our 4,000-square-meter factory in Guangzhou is equipped for professional manufacturing, precision assembly, rigorous testing, and quality certification, ensuring reliable performance and timely delivery for every order.

For large items, we use sturdy plywood crates secured with metal fasteners for added stability. Inside, the products are cushioned with bubble wrap and secured with wooden braces, while special attention is given to protecting vulnerable parts. Externally, the crates are reinforced with high-strength PET plastic strapping and wrapped in highly waterproof black film.

• One-stop solution provider for all your hydraulic component needs
• High-quality products at competitive prices
• Exceptional customer service that makes you feel at home
• Large inventory, short delivery times, and long warranty periods
• Professional expertise with accurate part number identification for excavator components
