139-9531 2432-8160 4328565 130-2447 Main pump and 207-4708 0R-7410 Hydraulic piston pump suitable for cat M315 M317
| Place of Origin | China |
|---|---|
| Brand Name | IRON CAVALRY |
| Certification | CE， ISO |
| Model Number | 139-9531 2432-8160 4328565 130-2447 Main pump and 207-4708 0R-7410 Hydraulic piston pump suitable for Caterpillar M315 M317 |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable price |
| Packaging Details | Wooden case or as required |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union,T/T |
| Supply Ability | 300pcs /Month |
Product Details
| Product Name | 139-9531 2432-8160 4328565 130-2447 Main Pump And 207-4708 0R-7410 Hydraulic Piston Pump Suitable For Caterpillar M315 M317 | Applicable Machine Model： | M313 M315 M317 |
|---|---|---|---|
| Applicable Industries： | Mechanical Repair Shops, Retail, Construction, Energy, Mining | Category | Hydraulic Pump |
| Condition： | NEW/REBUILT | Brand | IRON CAVALRY |
| Highlight | TQ M315 Excavator Hydraulic Pump,2432-8160 Hydraulic Pump,4328565 Piston Pump |
||
Product Description

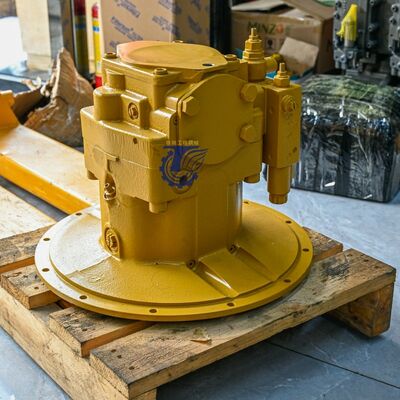

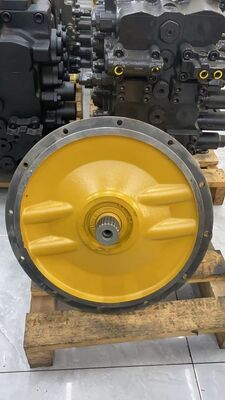

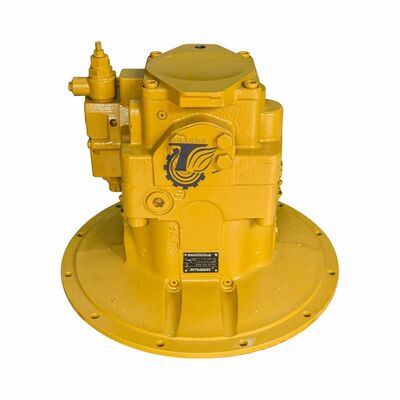

139-9531 2432-8160 4328565 130-2447 Main pump and 207-4708 0R-7410 Hydraulic piston pump suitable for Caterpillar M315 M317
| Category | Hydraulic Pump |
| Brand | IRON CAVALRY |
| Place of Origin | CHINA |
| Condition | Original & OEM |
| Warranty | 12 months |
| MOQ | 1 piece |
| Production Capacity | 1000 pieces per month |
| Standard or Nonstandard | Standard |
| Payment Terms | L/C, T/T, Western Union, Trade Assurance |
| Delivery Time | 1-3 days (depending on order) |
| Means of Transport | By Sea, Air or DHL/FEDEX/TNT/EMS |
Product Images
Compatible Parts for M315D Wheeled Excavator
| Position | Part Number | Quantity | Part Name |
|---|---|---|---|
| 1 | 382-1152 Y | [1] | ROTATING GP-PUMP |
| 2 | 253-6010 Y | [1] | HEAD GP-PUMP |
| 3 | 439-0478 Y | [1] | VALVE GP-PUMP CONTROL |
| 4 | 146-6553 Y | [1] | ACTUATOR GP-PUMP (MAXIMUM ANGLE) |
| 5 | 178-2823 Y | [1] | ACTUATOR GP-PUMP (MINIMUM ANGLE) |
| 6 | 430-9488 Y | [1] | DRIVE & MTG GP-PUMP |
| 7 | 117-5716 | [4] | PIN |
| 8 | 174-9972 | [2] | PIN |
| 9 | 191-3539 | [2] | NUT-SEAL |
| 10 | 9T-3928 | [4] | PLUG AS |
| 187-8001 | [1] | SEAL (EACH INCLUDES) | |
| 11 | 117-5718 M | [4] | BOLT-SOCKET HEAD (M18X2.5-THD) |
| 12 | 9M-5024 | [1] | SEAL-O-RING |
| 13 | 9S-8008 | [3] | PLUG (1-1/16-12-THD) |
| 14 | 3D-2824 | [3] | SEAL-O-RING |
| 15 | 125-8601 | [2] | PIN-SPRING |
| 16 | 9S-8004 | [1] | PLUG (9/16-18-THD) |
| 17 | 3J-1907 | [1] | SEAL-O-RING |
Professional Overview
Introducing our latest addition: The Main Hydraulic Piston Pump assembly specifically engineered for Caterpillar M315 and M317 Wheeled Excavators. These heavy-duty pumps (Part No. 139-9531 / 207-4708) are designed to restore the factory-standard hydraulic force and precision to your M-series machines.
Whether you are performing a complete system overhaul or replacing a worn unit, our new pumps offer a cost-effective, high-durability alternative to expensive dealer options, without compromising on performance.
Technical Specifications & Cross-Reference
To ensure a perfect fit, this pump is compatible with the following Caterpillar part numbers:
-
Main Pump Assembly: 139-9531, 2432-8160, 4328565, 130-2447
-
Piston Pump Units: 207-4708, 0R-7410 (Reman Reference)
-
Machine Models: CAT M315, CAT M315C, CAT M317, CAT M318 (Verify by SN)
Key Features
-
Optimized for Wheeled Excavators: Specifically tuned for the unique load-sensing requirements of the M315/M317 series, ensuring smooth travel and rapid arm movements.
-
Superior Material Quality: Constructed with high-strength forged steel housing and precision-lapped internal rotary groups to minimize friction and heat.
-
100% Interchangeability: Designed to the exact OEM "drop-in" specifications. No modifications to hydraulic lines or mounting brackets are required.
-
Rigorous Quality Control: Each pump is tested on a high-pressure dynamic test bench to ensure it meets or exceeds flow and pressure output standards.
Why Choose Our M315/M317 Pump?
-
Reduce Downtime: We understand that every hour your wheeled excavator is down costs money. We maintain ready-to-ship inventory for these critical CAT models.
-
Expert Support: Not sure if this fits your serial number? Our technical team can verify compatibility within minutes.
-
Warranty Protection: All new hydraulic pumps come with a standard 12-month performance warranty.

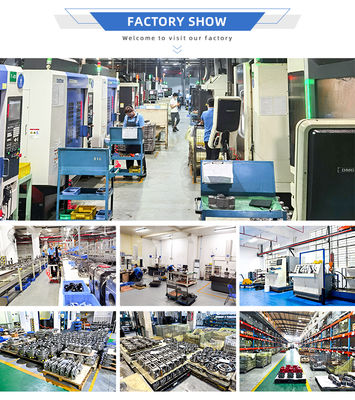

About Our Company
Guangzhou Tieqi Engineering Machinery Co., Ltd. ("IRON CAVALRY") is strategically located in Guangzhou's Huangpu District, approximately one hour from Baiyun International Airport. With nearly 15 years of specialization in engineering machinery hydraulics, we have built a reputation for excellence and reliability.
Our Core Values
Driven by our core values of "Pragmatism and Progress," we are committed to delivering practical solutions and upholding our responsibilities. This principle-driven approach defines all our operations and client partnerships.
Technical Leadership & Standards
In China's excavator hydraulic assembly sector, our efficient execution and rigorous manufacturing approach ensure that every product meets over 95% of original performance specifications, building widespread trust among our clients.
Our Packaging
For large items, we use sturdy plywood crates secured with metal fasteners for added stability. Inside, products are cushioned with bubble wrap and secured with wooden braces, with special attention given to protecting vulnerable parts. Externally, crates are reinforced with high-strength PET plastic strapping and wrapped in highly waterproof black film.
Why Choose Us?
- Comprehensive one-stop solutions for all hydraulic needs
- High-quality products at competitive prices
- Exceptional customer service that makes you feel valued
- Large inventory, short delivery times, and long warranty periods
- Professional expertise with accurate part number identification for excavator components
