Name: 39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
Brand: Guangzhou Tieqi Construction Machinery Co., Ltd.
SKU: 39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL

Applicable Machine Model：: HYUNDAI HX340SL HX330L SWING REDUCTION GEAR

Applicable Industries：: Mechanical Repair Shops, Retail, Construction, Energy, Mining

Category: SWING GEARBOX

Condition: NEW/REBUILT

Brand: TQ

Highlight:

HX340SL HX330L SWING REDUCTION GEAR

HYDRAULIC SWING MOTOR SWING REDUCTION GEAR

39K9-12100 SWING REDUCTION GEAR

Basic Infomation

Place of Origin: China

Brand Name: TQ

Certification: CE,ISO

Model Number: 39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL

Payment & Shipping Terms

Packaging Details: Wooden case or as required

Delivery Time: 5-8 Weekdays

Payment Terms: Western Union,T/T

Supply Ability: 300pcs /Month

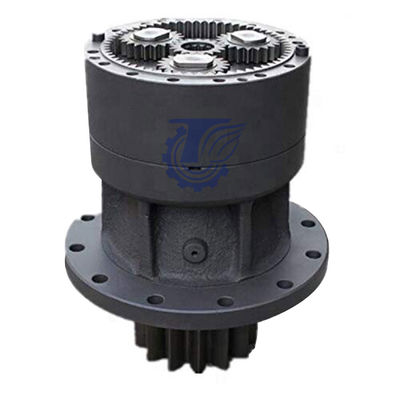

Gallery

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL

Product Description

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL

PRODUCT DESCRIPTION
Model:39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL	category: SWING REDUCTION GEAR
Brand: TQ	Place of Origin:Other Country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 0

Pos.	Part No	Qty	Parts name	Comments
*.	38K9-10150	[1]	SWING MOTOR ASSY	SEE 4100
*-2.	39K9-12100	[1]	SWING REDUCTION GEAR
1	39Q8-12110	[1]	GEAR RING
2	39K9-12120	[1]	DRIVE SHAFT
3	39K9-12130	[1]	BEARING-SPH.ROLLER	MAIN
4	39Q8-12140	[1]	BEARING-SPH.ROLLER	SUB
5	39Q8-12150	[1]	PLATE-THRUST
6	39Q8-12160	[1]	RING-SNAP
7	39Q8-12170	[1]	COVER
8	S017-120306	[12]	BOLT-HEX
9	39Q8-12180	[1]	CASING
10	S632-290001	[1]	O-RING
11	S109-100306	[12]	BOLT-SOCKET
NK12.	39Q8-12201	[1]	CARRIER NO.2
NK13.	39Q8-12211	[4]	GEAR-PLANETARY NO.2
NK14.	39Q8-12220	[4]	BEARING-NEEDLE NO.2
NK15.	39Q8-12231	[8]	WASHER-THRUST NO.2
NK16.	39Q8-12240	[4]	PIN-CARRIER NO.2
NK17.	S472-910404	[4]	PIN-SPRING
K18.	39Q8-12251	[1]	GEAR-SUN NO.2
NK19.	39Q8-12261	[1]	PLATE-THRUST NO.2
NK20.	39Q8-12281	[1]	CARRIER NO.1
NK21.	39Q8-12291	[3]	GEAR-PLANETARY NO.1
NK22.	39Q8-12300	[3]	BEARING-NEEDLE NO.1
NK23.	39Q8-12311	[6]	WASHER-THRUST NO.1
NK24.	39Q8-12320	[3]	PIN-CARRIER NO.1
NK25.	S472-800404	[3]	PIN-SPRING NO.1
K26.	39Q8-12331	[1]	GEAR-SUN NO.1
NK27.	39Q8-12341	[1]	PLATE-THRUST NO.1
28	39Q8-12350	[1]	SLEEVE
29	S632-140001	[1]	O-RING
30	39Q6-12350	[1]	SEAL-OIL
31	39Q6-41450	[2]	PIN-PARALLEL
32	S109-18050D	[14]	BOLT-SOCKET
33	39K9-12360	[1]	NAME PLATE
34	39Q6-41800	[2]	RIVET
35	P220-430204	[1]	PLUG-HEX
K.	39Q8-12270	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K.	39Q8-12190	[1]	CARRIER ASSY KIT 2	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 1

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 2

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 3

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 4

39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL 5

Why choose us?

1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?

2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?

3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?

4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.

5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
