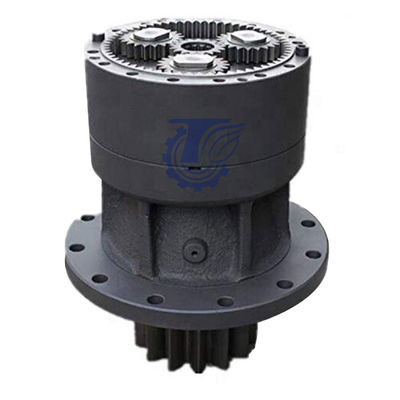

39K6-12101 FOR HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
| Place of Origin | China |
|---|---|
| Brand Name | TQ |
| Certification | CE,ISO |
| Model Number | 39K6-12101 FOR HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable price |
| Packaging Details | Wooden case or as required |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union,T/T |
| Supply Ability | 300pcs /Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 39K6-12101 FOR HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL | Applicable Machine Model： | HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR |
|---|---|---|---|
| Applicable Industries： | Mechanical Repair Shops, Retail, Construction, Energy, Mining | Category | SWING GEARBOX |
| Condition | NEW/REBUILT | Brand | TQ |
| Highlight | HYUNDAI HX220NL SWING REDUCTION GEAR,HYUNDAI HX220SL SWING REDUCTION GEAR,HYUNDAI HX220L SWING REDUCTION GEAR |
||
Product Description
39K6-12101 FOR HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model:39K6-12101 FOR HYUNDAI HX220SL HX220L HX220NL SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING REDUCTION GEAR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 39K6-10150 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 1 |
| *. | 39K6-10151 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 1 |
| *. | 38K6-10150 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *. | 38K6-10151 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *-2. | 39K6-12100 | [1] | SWING REDUCTION GEAR | |
| *-2. | 39K6-12101 | [1] | SWING REDUCTION GEAR | |
| 1 | 39Q6-12110 | [1] | GEAR-RING | |
| 2 | 39K6-12120 | [1] | SHAFT-DRIVE | |
| 3 | 39Q6-12130 | [1] | BEARING-TAPER.MAIN | |
| 4 | 39Q6-12140 | [1] | BEARING-TAPER | |
| 5 | 39Q6-12150 | [1] | NUT-RING | |
| 6 | 39Q6-12161 | [1] | PLATE-LOCK | |
| 7 | S017-120166 | [4] | BOLT-HEX | |
| 8 | 39Q6-12171 | [1] | CASING | |
| 8 | 39Q6-12172 | [1] | CASING | |
| 9 | S109-100306 | [10] | BOLT-SOCKET | |
| K10. | 39Q6-12190 | [1] | CARRIER 2 | |
| K11. | 39Q6-12200 | [3] | GEAR-PLANETARY 2 | |
| K12. | 39Q6-12210 | [6] | BEARING-NEEDLE 2 | |
| K13. | 39Q6-12220 | [6] | WASHER-THRUST 2 | |
| K14. | 39Q6-12230 | [3] | PIN-CARRIER 2 | |
| K15. | S472-800364 | [3] | PIN-SPRING | |
| K16. | 39Q6-12240 | [1] | GEAR-SUN 2 | |
| K17. | 39Q6-12260 | [1] | CARRIER 1 | |
| K18. | 39Q6-12271 | [3] | GEAR-PLANETARY 1 | |
| K19. | 39Q6-12280 | [3] | BEARING-NEEDLE 1 | |
| K20. | 39Q6-12290 | [3] | WASHER-THRUST 1,UPP | |
| K21. | 39Q6-12300 | [3] | WASHER-THRUST 1,LOW | |
| K22. | 39Q6-12310 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600364 | [3] | PIN-SPRING | |
| K24. | 39Q6-12320 | [1] | GEAR-SUN 1 | |
| K25. | 39Q6-12330 | [2] | PLATE-THRUST | |
| 26 | 39Q6-12340 | [1] | SLEEVE | |
| 27 | S631-120001 | [1] | O-RING | |
| 28 | 39Q6-12350 | [1] | SEAL-OIL | |
| 29 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 30 | S109-16045D | [12] | BOLT-SOCKET | |
| 31 | 39K6-12360 | [1] | NAME PLATE | |
| 31 | 39K6-12361 | [1] | NAME PLATE | |
| 32 | 39Q6-41800 | [2] | RIVET | |
| 33 | P220-430204 | [1] | PLUG-HEX | |
| *-1. | 39K6-11100 | [1] | SWING MOTOR UNIT | TYPE 1 |
| *-1. | 38K6-11100 | [1] | SWING MOTOR UNIT | TYPE 2 |
| *-1. | 38K6-11100 | [1] | SWING MOTOR UNIT | TYPE 2 |
| K1. | 39Q6-12180 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K2. | 39Q6-12250 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
