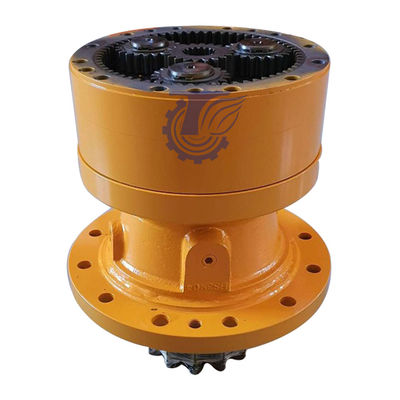

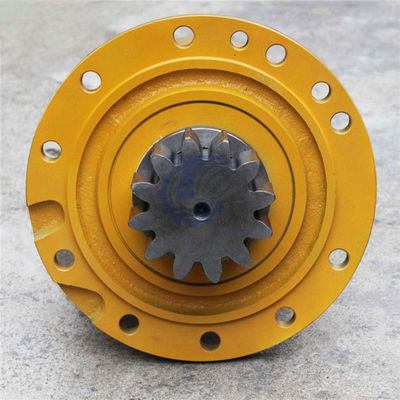

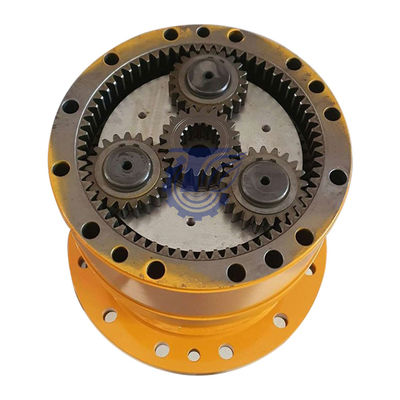

31Q6-10141 FOR HYUNDAI R220LC-9S HX160L HX180L R210LC9BC RB160LC9S SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model:31Q6-10141 FOR HYUNDAI R220LC-9S HX160L HX180L R210LC9BC RB160LC9S SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING REDUCTION GEAR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31Q6-10140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10141AR | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00403 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 4 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00032 | [1] | SEAL-OIL | |
| 6 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00404 | [1] | PLATE-THRUST | |
| 8 | XKAQ-00753 | [1] | CARRIER ASSY 2 | NOT SHOWN |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 11 | XKAQ-00643 | [3] | PIN ASSY 2 | NOT SHOWN |
| 12 | XKAQ-00070 | [3] | PIN 2 | INLC 13 |
| N13. | XKAQ-00291 | [1] | BUSHING 2 | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00048 | [3] | PIN-SPRING | |
| 16 | XKAQ-00755 | [1] | GEAR-SUN 2 | |
| 17 | XKAQ-00754 | [1] | CARRIER ASSY 1 | NOT SHOWN |
| 18 | XKAQ-00531 | [1] | CARRIER 1 | |
| 19 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 20 | XKAQ-00415 | [3] | PIN 1 | |
| 21 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 22 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 23 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 24 | XKAQ-00041 | [3] | RING-STOP | |
| 25 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 26 | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00529 | [1] | GEAR-RING | |
| 28 | XKAQ-00977 | [1] | GEAR-PINION | |
| 29 | XKAQ-00074 | [1] | RING-STOP | |
| 30 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 32 | XKAQ-00031 | [1] | PLATE-COVER | |
| 33 | XKAQ-00064 | [8] | BOLT-HEX | |
| 34 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 35 | XKAQ-00042 | [2] | BOLT-HEX | |
| 36 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 37 | XKAQ-00049 | [1] | PLUG | |
| 38 | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
