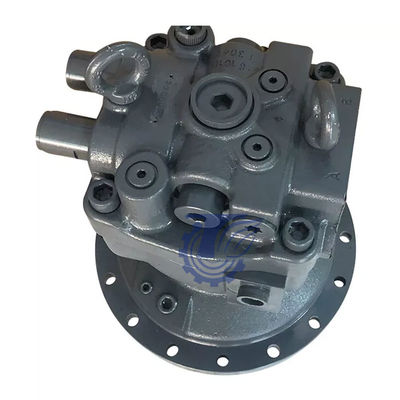

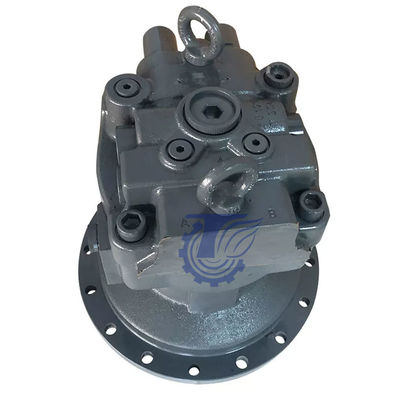

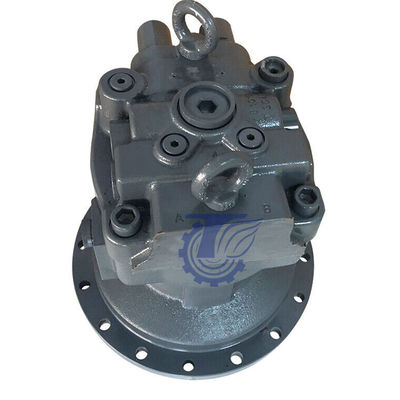

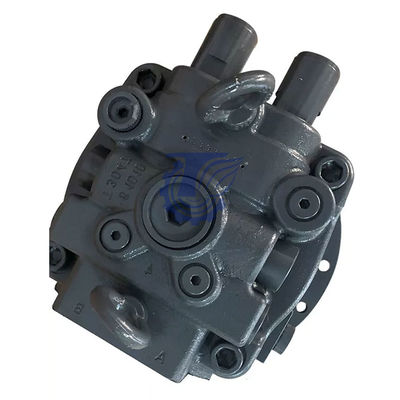

38K9-11100 38K9-10150 FOR HYUNDAI HX340SL R220VS R350VS EXCAVATORS PARTS HYDRAULIC SWING MOTOR SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model:38K9-11100 38K9-10150 FOR HYUNDAI HX340SL R220VS R350VS EXCAVATORS PARTS HYDRAULIC SWING MOTOR SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL | category: SWING MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 38K9-10150 | [1] | SWING MOTOR ASSY | |
| *-1. | 38K9-11100 | [1] | SWING MOTOR | |
| 1 | 39Q8-11110 | [1] | CASING | |
| K2. | 39Q6-11660 | [1] | SEAL-OIL | |
| 3 | 39Q8-11120 | [1] | SHAFT | |
| 4 | S601-040004 | [1] | RING-SNAP | |
| 5 | 39Q8-11130 | [1] | BEARING-ROLLER(R/GEAR) | |
| K6. | 39Q8-11140 | [1] | BEARING-ROLLER(COVER) | |
| 7 | 39Q6-11150 | [1] | PLATE-SWASH | |
| NK8. | 39Q6-11180 | [1] | BLOCK-CYLINDER | |
| NK9. | 39Q6-41290 | [9] | SPRING | |
| NK10. | 39Q8-11170 | [1] | GUIDE-BALL | |
| NK11. | 39Q6-11210 | [1] | PLATE-RETAINER | |
| NK12. | 39Q6-11220 | [9] | PISTON ASSY | |
| 13 | 39Q6-41361 | [5] | PLATE-FRICTION | |
| 14 | 39Q6-41370 | [5] | PLATE-SEPARATED | |
| 15 | 39Q6-11250 | [1] | PISTON-PARKING | |
| 16 | 39Q8-11180 | [26] | SPRING | |
| K17. | S471-800454 | [1] | PIN-SPRING | |
| K18. | Y172-043004 | [1] | O-RING | |
| K19. | Y172-041004 | [1] | O-RING | |
| 20 | 39KB-11270 | [1] | PLATE-VALVE | |
| K21. | S471-800254 | [2] | PIN-SPRING | |
| K22. | Y172-042004 | [1] | O-RING | |
| K23. | 39Q6-11281 | [1] | CASING A-VALVE | |
| K24. | 39Q6-11290 | [2] | VALVE-CHECK | |
| K25. | 39Q6-11300 | [2] | SPRING-CHECK VALVE | |
| K26. | 39Q6-11671 | [2] | PLUG | |
| K27. | S631-040004 | [2] | O-RING | |
| K28. | 39Q6-41750 | [3] | PLUG | |
| K29. | S631-011004 | [3] | O-RING | |
| K30. | 39K9-11190 | [2] | RELIEF VALVE ASSY | |
| K31. | 39Q8-11300 | [2] | ANTI ROTATING VLV ASSY | |
| K32. | 39Q6-11500 | [2] | PLUG | |
| K33. | S631-012004 | [2] | O-RING | |
| K34. | S631-018004 | [2] | O-RING | |
| 35 | 39Q6-11510 | [1] | VALVE ASSY-TIME DELAY | |
| 36 | 39Q6-11602 | [1] | GAUGE ASSY-LEVEL | |
| 37 | S109-180456 | [2] | BOLT-SOCKET | |
| 38 | S109-180556 | [4] | BOLT-SOCKET | |
| 39 | P220-430202 | [1] | PLUG-HEX | |
| K40. | 38K9-11320 | [1] | NAME PLATE | |
| K41. | 39Q6-41800 | [2] | RIVET | |
| K. | 39Q8-11150 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q6-11170 | [1] | CYLINDER BLOCK KIT | SEE ILLUST |
| K. | 39Q8-11160 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q6-11700 | [1] | SEAL KIT | SEE ILLUST |
| K. | 38K9-11710 | [1] | VALVE CASING KIT | SEE ILLUST |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4110 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
