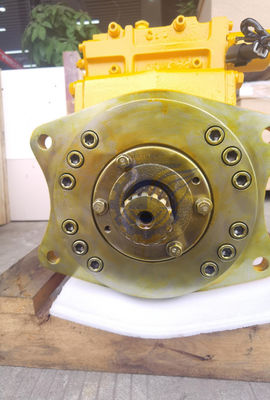

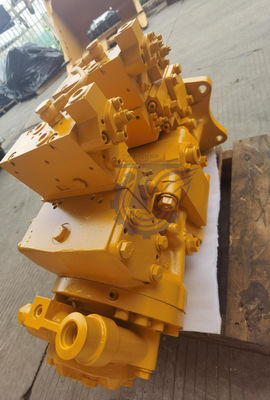

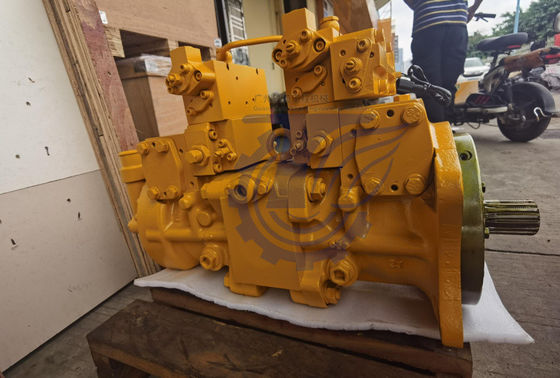

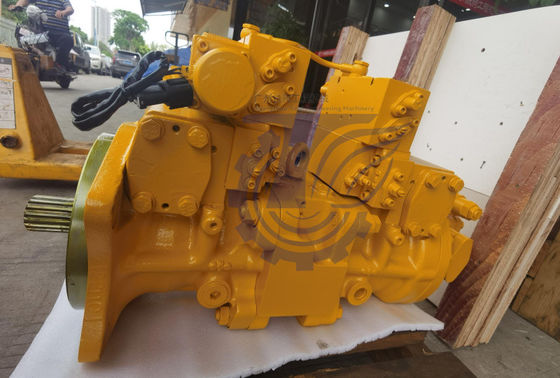

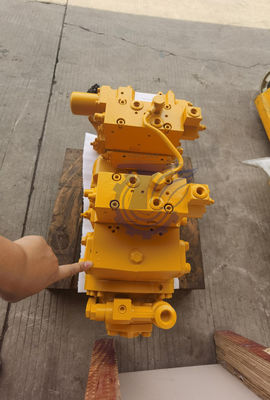

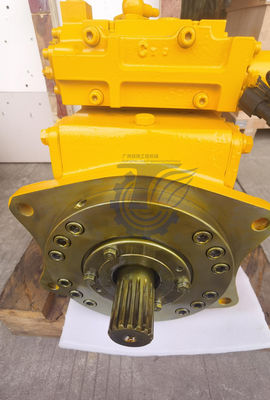

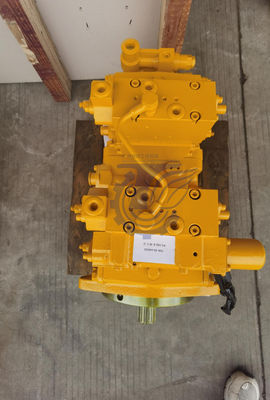

708-25-04032 708-25-04031 708-25-04132 FOR KOMATSU PC150-5 PC180LC-5K PW170-5K EXCAVATORS Parts HYDRAULIC PUMP MAIN PUMP PUMP DEVICE AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 708-25-04032 708-25-04031 708-25-04132 FOR KOMATSU PC150-5 PC180LC-5K PW170-5K EXCAVATORS Parts HYDRAULIC PUMP MAIN PUMP PUMP DEVICE AFTERMARKET ORIGINAL | category: Hydraulic Pump | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 708-25-04032 | [1] | PUMP ASSY Komatsu | 178 kg. | |
| analogs:["7082504031", "7082504132"] | ||||
| 708-25-04031 | [1] | PUMP ASSY Komatsu | 178 kg. | |
| analogs:["7082504032", "7082504132"] | ||||
| [-1] | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-15A0. | |||
| 1 | 708-25-04132 | [1] | PUMP SUB ASSY Komatsu | 178 kg. |
| analogs:["7082504032", "7082504031"] | ||||
| 1 | 708-25-04131 | [1] | PUMP SUB ASSY Komatsu | 178 kg. |
| analogs:["7082504032", "7082504031", "7082504132"] | ||||
| 2 | 708-25-06131 | [1] | SERVO VALVE ASSY,FRONT Komatsu | 17.82 kg. |
| 3 | 708-25-06231 | [1] | SERVO VALVE ASSY,REAR Komatsu China | |
| analogs:["7082506631"] | ||||
| 4 | 04020-00616 | [4] | PIN Komatsu | 0.004 kg. |
| 5 | 708-25-19130 | [8] | BOLT Komatsu China | |
| 6 | 01643-50823 | [8] | WASHER Komatsu | 0.01 kg. |
| analogs:["0164370823"] | ||||
| 7 | 704-24-28240 | [1] | PUMP ASSY Komatsu | 7.86 kg. |
| 8 | 708-25-32730 | [1] | COUPLING Komatsu China | |
| 9 | 708-25-22961 | [1] | COLLAR Komatsu China | |
| 10 | 704-28-02710 | [1] | O-RING Komatsu | 0.002 kg. |
| 11 | 01010-81260 | [2] | BOLT Komatsu China | 0.069 kg. |
| analogs:["0101051260"] | ||||
| 12 | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 13 | 708-25-04311 | [1] | RELIEF VALVE ASSY Komatsu | 0.303 kg. |
| 14 | 708-25-29220 | [1] | TEE Komatsu China | |
| 15 | 07040-11007 | [1] | PLUG Komatsu | 0.014 kg. |
| 16 | 07002-01023 | [1] | O-RING Komatsu China | 0.025 kg. |
| analogs:["0700211023"] | ||||
| 17 | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["0700212434", "0700213434"] | ||||
| 18 | 708-25-29110 | [1] | HOSE Komatsu China | |
| 19 | 07235-10422 | [2] | ELBOW Komatsu | 0.195 kg. |
| 20 | 07002-02034 | [2] | O-RING Komatsu China | 0.94 kg. |
| analogs:["0700002034", "0700212034", "0700012034"] | ||||
| 21 | 708-25-19120 | [1] | FLANGE Komatsu China | |
| 22 | 720-68-15240 | [1] | FILTER Komatsu | 0.003 kg. |
| 23 | 07000-02021 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["0700012021"] | ||||
| 24 | 01010-80820 | [2] | BOLT Komatsu | 0.013 kg. |
| analogs:["801014067", "0101050820", "801015086"] | ||||
| 26 | 706-46-53260 | [2] | PLUG Komatsu | 0.03 kg. |
| 27 | 07002-01423 | [2] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700211423"] | ||||
| 28 | 708-25-29140 | [1] | TUBE Komatsu China | |
| 29 | 706-46-53180 | [2] | BOLT,EYE Komatsu | 0.028 kg. |
| 30 | 07000-02012 | [4] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700012012", "7082E11790"] |
| Pos. | Part No | Qty | Parts name | Comments |
| 708-25-04032 | [1] | PUMP ASSY Komatsu | 178 kg. | |
| analogs:["7082504031", "7082504132"] | ||||
| 708-25-04031 | [1] | PUMP ASSY Komatsu | 178 kg. | |
| analogs:["7082504032", "7082504132"] | ||||
| [-1] | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-15A0. | |||
| 708-25-04132 | [1] | PUMP SUB ASSY Komatsu | 178 kg. | |
| analogs:["7082504032", "7082504031"] | ||||
| 708-25-04131 | [1] | PUMP SUB ASSY Komatsu | 178 kg. | |
| analogs:["7082504032", "7082504031", "7082504132"] | ||||
| 708-25-00380 | [1] | CASE ASSY,REAR Komatsu China | ||
| analogs:["7082522120"] | ||||
| 3 | 07044-12412 | [1] | PLUG Komatsu | 0.09 kg. |
| analogs:["0704402412", "R0704412412"] | ||||
| 4 | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["0700212434", "0700213434"] | ||||
| 5 | 720-68-19870 | [1] | PLUG Komatsu | 0.03 kg. |
| 6 | 07002-01223 | [1] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700211223"] | ||||
| 7 | 708-25-12340 | [1] | O-RING Komatsu | 0.006 kg. |
| 708-25-00061 | [1] | CRADLE ASSY,REAR Komatsu China | ||
| analogs:["7082500060"] | ||||
| 708-25-00530 | [1] | CRADLE SUB ASSY,REAR Komatsu China | ||
| 10 | 708-25-23411 | [1] | CAM,ROCKER Komatsu | 2.26 kg. |
| 11 | 708-25-14121 | [1] | SLIDER Komatsu | 0.1 kg. |
| 12 | 708-25-12330 | [1] | JOINT Komatsu | 0.025 kg. |
| 13 | 07000-12015 | [1] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700002015"] | ||||
| 13 | 708-25-13930 | [1] | O-RING Komatsu | 0.001 kg. |
| analogs:["07000F2015", "0700022015"] | ||||
| 14 | 708-25-12390 | [12] | BOLT Komatsu China | |
| 15 | 708-25-12360 | [2] | PLATE Komatsu China | |
| 16 | 04020-00820 | [4] | PIN Komatsu | 0.056 kg. |
| analogs:["802540092"] | ||||
| 17 | 01010-80816 | [4] | BOLT Komatsu | 0.022 kg. |
| analogs:["0101050816", "801015084"] | ||||
| 18 | 708-2L-22150 | [1] | BEARING Komatsu | 0.6 kg. |
| analogs:["7082L32150", "7082E12152", "7082512731"] | ||||
| 19 | 708-25-05010 | [1] | WASHER KIT Komatsu | 0.037 kg. |
| 20 | 708-25-12790 | [1] | RING,SNAP Komatsu | 0.006 kg. |
| 21 | 708-25-12970 | [1] | RING Komatsu | 0.012 kg |
