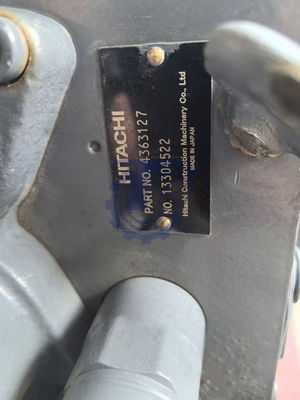

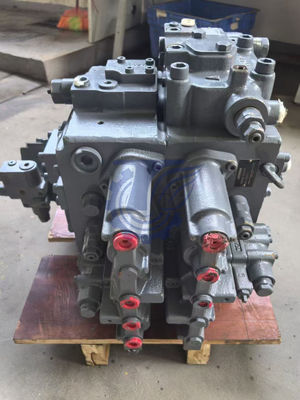

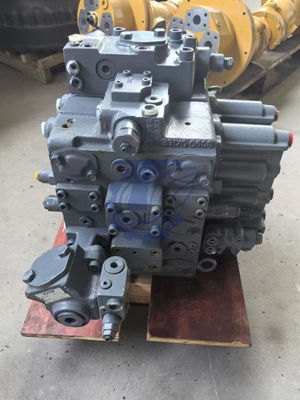

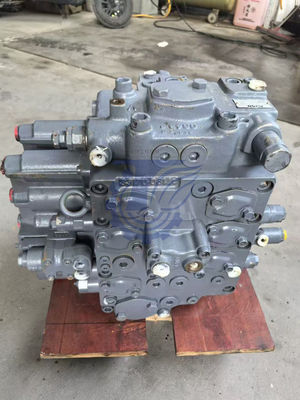

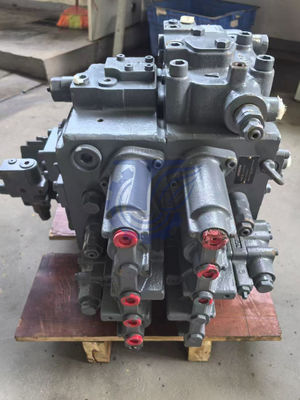

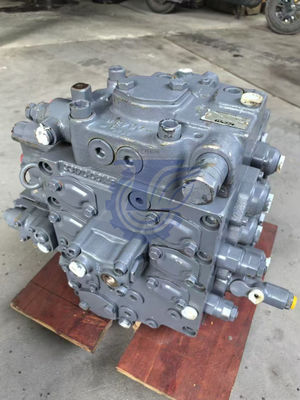

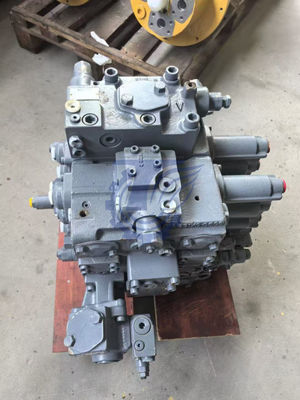

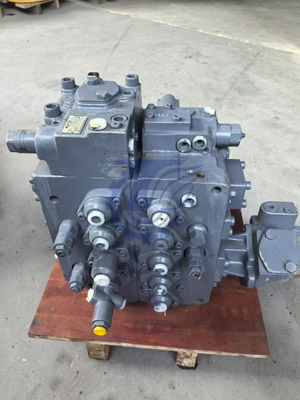

4363127 FOR HITACHI EX300-5 EX350H-5 EX370-5M EX385USR EX345USR(LC) EX370HD-5 EXCAVATOR PARTS HYDRAULIC MAIN CONTROL VALVE AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION |
||
| Model: 4363127 FOR HITACHI EX300-5 EX350H-5 EX370-5M EX385USR EX345USR(LC) EX370HD-5 EXCAVATOR PARTS HYDRAULIC MAIN CONTROL VALVE AFTERMARKET ORIGINAL | category: Hydraulic Pump |
|
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 4363127 | [1] | VALVE;CONTROL (1/6) | 0718900.This PART NO. Consists of all parts shown in VALVE;CONTROL(1/6) to (6/6). | |
| 101 | +++++++ | [1] | CASING | |
| 102 | +++++++ | [1] | CASING | |
| 154 | 0718901 | [1] | PLUG | |
| 160 | 0263019 | [6] | PLUG | |
| 164 | 4509180 | [6] | O-RING | |
| 201 | 0718902 | [1] | COVER | |
| 202 | 0718903 | [1] | COVER | |
| 203 | 0718904 | [5] | COVER | |
| 204 | 0718905 | [2] | COVER | |
| 205 | 0718906 | [1] | COVER | |
| 208 | 0718907 | [1] | COVER | |
| 252 | 0718908 | [2] | VALVE | |
| 257 | 0718909 | [1] | PLATE | |
| 261 | A811055 | [10] | O-RING | |
| 263 | 4506407 | [11] | O-RING | |
| 264 | A811040 | [8] | O-RING | |
| 273 | 0130520 | [32] | BOLT;SOCKET | |
| 301 | +++++++ | [1] | SPOOL | |
| 302 | +++++++ | [1] | SPOOL | |
| 303 | +++++++ | [1] | SPOOL | |
| 304 | +++++++ | [1] | SPOOL | |
| 305 | +++++++ | [1] | SPOOL | |
| 306 | +++++++ | [1] | SPOOL | |
| 307 | +++++++ | [1] | SPOOL | |
| 308 | +++++++ | [1] | SPOOL | |
| 309 | +++++++ | [1] | SPOOL | |
| 310 | +++++++ | [1] | SPOOL | |
| 328 | +++++++ | [2] | SPRING | |
| 329 | +++++++ | [2] | SPRING | |
| 331 | +++++++ | [4] | SEAT;SPRING | |
| 332 | +++++++ | [16] | SEAT;SPRING | |
| 333 | +++++++ | [2] | BOLT | |
| 334 | +++++++ | [2] | STOPPER | |
| 335 | +++++++ | [7] | STOPPER | |
| 336 | +++++++ | [8] | BOLT | |
| 339 | +++++++ | [1] | STOPPER | |
| 371 | +++++++ | [7] | SPRING | |
| 372 | +++++++ | [7] | SPRING | |
| 373 | +++++++ | [1] | SPRING | |
| 374 | +++++++ | [1] | SPRING | |
| 553 | 0718910 | [1] | PLUG | |
| 555 | 0718911 | [1] | PLUG | |
| 556 | 0718912 | [1] | PLUG | |
| 559 | 0718913 | [1] | PLUG | |
| 560 | 4154233 | [1] | O-RING | |
| 620 | 0384401 | [4] | BOLT;SOCKET | |
| 621 | M340650 | [4] | BOLT;SOCKET |
| Pos. | Part No | Qty | Parts name | Comments |
| 4363127 | [1] | VALVE;CONTROL (2/6) | 0719000.This PART NO. Consists of all parts shown in VALVE;CONTROL(1/6) to (6/6). | |
| 101B. | +++++++ | [1] | CASING | |
| 102B. | +++++++ | [1] | CASING | |
| 103B. | +++++++ | [1] | CASING | |
| 161B. | 4506420 | [1] | O-RING | |
| 162B. | 4028265 | [1] | O-RING | |
| 163B. | 4506416 | [3] | O-RING | |
| 164B. | 4506407 | [2] | O-RING | |
| 165B. | 4506408 | [2] | O-RING | |
| 166B. | 4506429 | [1] | O-RING | |
| 167B. | 970860 | [2] | O-RING | |
| 201B. | 0719002 | [1] | PLUG | |
| 202B. | 0719003 | [1] | PLUG | |
| 203B. | 0719004 | [2] | PLUG | |
| 204B. | 0719005 | [1] | PLUG | |
| 258 | 0719001 | [1] | VALVE;HOLDING | |
| 311B. | 0719006 | [1] | POPPET | |
| 321B. | 0719007 | [1] | SPRING | |
| 511B. | +++++++ | [1] | SPOOL | |
| 512B. | 0719008 | [1] | SPRING | |
| 541B. | 0719009 | [1] | BUSHING | |
| 601B. | 0719010 | [1] | VALVE;RELIEF | |
| 633B. | 0719011 | [1] | PISTON | |
| 634B. | 0719012 | [1] | PISTON | |
| 701B. | 0218824 | [4] | BOLT;SOCKET | |
| 702B. | M341232 | [8] | BOLT;SOCKET |
| Pos. | Part No | Qty | Parts name | Comments |
| 4363127 | [1] | VALVE;CONTROL (3/6) | 0719100A.This PART NO. Consists of all parts shown in VALVE;CONTROL(1/6) to (6/6). | |
| 151 | 0719004 | [4] | PLUG | |
| 153 | 0697911 | [1] | PLUG | |
| 154 | 0718901 | [1] | PLUG | |
| 155 | 0719101 | [2] | PLUG | |
| 159 | 0451028 | [3] | PLUG | |
| 161 | 4506408 | [4] | O-RING | |
| 164 | 4509180 | [1] | O-RING | |
| 165 | 0443404 | [2] | O-RING | |
| 167 | 4506418 | [3] | O-RING | |
| 206 | 0719102 | [1] | COVER | |
| 207 | 0719103 | [1] | COVER | |
| 209 | 0719104 | [2] | FLANGE | |
| 253 | 0719105 | [1] | VALVE | |
| 256 | 0719106 | [1] | FLANGE | |
| 273 | 0130520 | [4] | BOLT;SOCKET | |
| 511 | 0719107 | [4] | POPPET | |
| 515 | 0719108 | [2] | POPPET | |
| 516 | 0719109 | [1] | POPPET | |
| 521 | 0719110 | [4] | SPRING | |
| 522 | 0719111 | [2] | SPRING | |
| 523 | 0719112 | [1] | SPRING | |
| 525 | 0719113 | [1] | SPACER | |
| 551 | 0719114 | [3] | PLUG | |
| 552 | 0719115 | [1] | PLUG | |
| 561 | 4506424 | [5] | O-RING | |
| 563 | 985099 | [1] | O-RING | |
| 565 | A811030 | [2] | O-RING | |
| 602 | 0719116 | [1] | VALVE;RELIEF | |
| 603 | 0719117 | [1] | VALVE;RELIEF | |
| 611 | 0719118 | [1] | VALVE | |
| 972 | 4515013 | [8] | BOLT;SOCKET | |
| 973 | 0237903 | [4] | BOLT;SOCKET | |
| 974 | 0719116 | [2] | VALVE;RELIEF | |
| 974 | 0719119 | [2] | PLUG |
