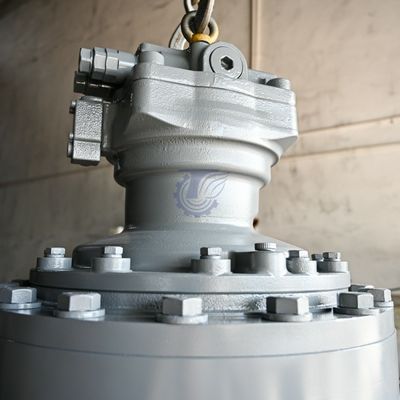

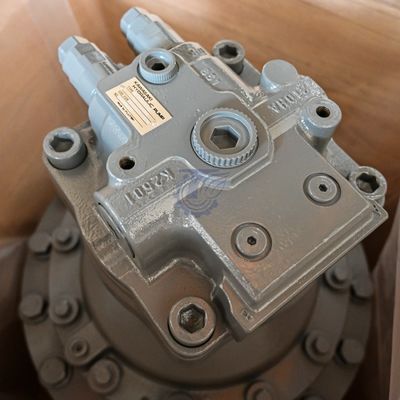

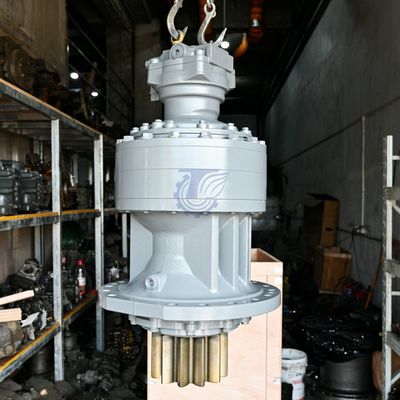

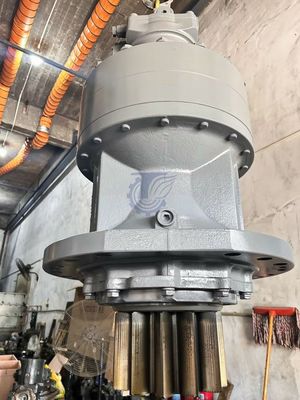

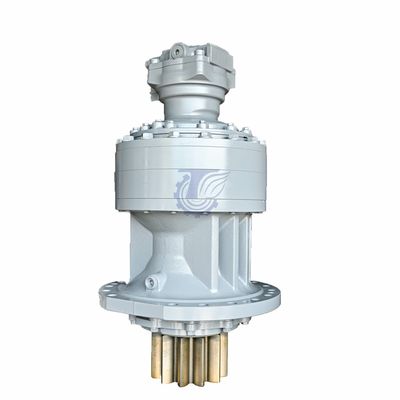

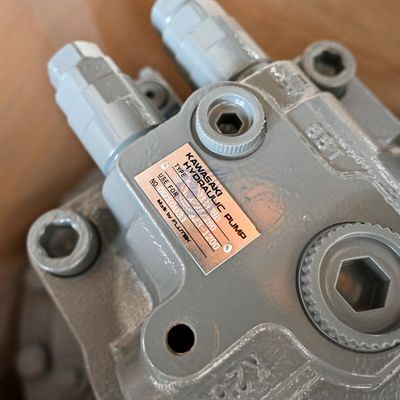

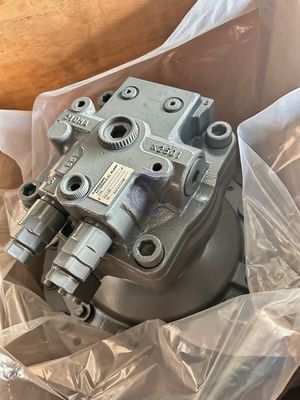

4668923 YA000055485 For Hitachi EX1200-6 EXCAVATORS PARTS Hydraulic Swing Motor Aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 4668923 YA000055485 For Hitachi EX1200-6 EXCAVATORS PARTS Hydraulic Swing Motor Aftermarket Original | category: Hydraulic Pump |
|
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 4668923 | [1] | MOTOR;OIL | ||
| 11 | 0365401 | [9] | PISTON SUB | |
| 011A. | +++++++ | [1] | PISTON | |
| 011B. | +++++++ | [1] | SHOE | |
| 20 | 0983301 | [1] | CASING SUB | |
| 020A. | +++++++ | [1] | CASING | |
| 020B. | +++++++ | [2] | PIN | |
| 31 | 0960201 | [1] | VALVE | |
| 031A. | 0976203 | [1] | CASING | |
| 031B. | 0788803 | [1] | PLUNGER | |
| 031C. | 0788818 | [1] | SPRING | |
| 031D. | 0196987 | [1] | BALL;STEEL | |
| 031E. | 0629404 | [1] | PLUG | |
| 031F. | 4506412 | [1] | O-RING | |
| 031G. | 4506406 | [1] | O-RING | |
| 031H. | 957366 | [1] | O-RING | |
| 031I. | 1192601 | [2] | PLUG | |
| 33 | 0218824 | [3] | BOLT;SOCKET | |
| 51 | 1192602 | [2] | VALVE;RELIEF | |
| 051A. | A811030 | [1] | O-RING | |
| 101 | 0803003 | [1] | SHAFT | |
| 106 | 0365405 | [3] | SPACER | |
| 111 | 1192603 | [1] | CYLINDER | |
| 113 | 0365407 | [1] | BUSHING | |
| 114 | 0365408 | [1] | SPRING | |
| 116 | 0365409 | [12] | ROD;PUSH | |
| 117 | 0365410 | [1] | SPACER | |
| 118 | 0365411 | [1] | SPACER | |
| 123 | 0803005 | [1] | RETAINER | |
| 124 | 0365413 | [1] | PLATE | |
| 131 | 0719603 | [1] | PLATE;VALVE | |
| 301 | 0983302 | [1] | CASING | |
| 304 | 0365416 | [1] | COVER | |
| 351 | 0803007 | [2] | PLUNGER | |
| 355 | 0803008 | [2] | SPRING | |
| 390 | +++++++ | [1] | PLATE | |
| 391 | 0625509 | [2] | PIN | |
| 401 | 0365417 | [4] | BOLT;SOCKET | |
| 432 | 991345 | [2] | RING;RETAINING | |
| 433 | 0747305 | [1] | RING;RETAINING | |
| 437 | 973069 | [1] | RING;RETAINING | |
| 438 | 931346 | [1] | RING;RETAINING | |
| 443 | 0983303 | [1] | BRG.;ROL. | |
| 444 | 0747306 | [1] | BRG.;NEEDLE | |
| 468 | 0629404 | [2] | PLUG | |
| 469 | 0803009 | [2] | PLUG | |
| 471 | A811110 | [1] | O-RING | |
| 472 | 0496103 | [1] | O-RING | |
| 487 | 957366 | [2] | O-RING | |
| 488 | 984614 | [2] | O-RING | |
| 491 | 0251914 | [1] | SEAL;OIL | |
| 702 | 0803010 | [1] | PISTON | |
| 706 | 0365326 | [1] | O-RING | |
| 707 | 0365427 | [1] | O-RING | |
| 712 | 0747307 | [16] | SPRING;BRAKE | |
| 742 | 0365428 | [3] | PLATE | |
| 743 | 0365429 | [4] | PLATE |
| Pos. | Part No | Qty | Parts name | Comments |
| 9303679 | [1] | T.MISSION (SWING) | ||
| 9303679 | [1] | T.MISSION (SWING) | ||
| 0 | 1033704 | [1] | HOUSING | |
| 0 | 1033704 | [1] | HOUSING | |
| 1 | 4239711 | [1] | BRG.;SPH.ROL. | |
| 1 | 4239711 | [1] | BRG.;SPH.ROL. | |
| 3 | 2053668 | [1] | SHAFT;PROP. | |
| 3 | 2053668 | [1] | SHAFT;PROP. | |
| 4 | 3107013 | [1] | SLEEVE | |
| 4 | 3107013 | [1] | SLEEVE | |
| 5 | 4204644 | [4] | MAGNET | |
| 5 | 4204644 | [4] | MAGNET | |
| 6 | J460514 | [4] | SCREW;SEMS | |
| 6 | J460514 | [4] | SCREW;SEMS | |
| 7 | A810180 | [1] | O-RING | |
| 7 | A810180 | [1] | O-RING | |
| 9 | 2053666 | [1] | COVER | |
| 9 | 2053666 | [1] | COVER | |
| 10 | 4700709 | [1] | SEAL;OIL | |
| 10 | 4700709 | [1] | SEAL;OIL | |
| 11 | J901650 | [10] | BOLT | |
| 11 | J901650 | [10] | BOLT | |
| 12 | A590916 | [10] | WASHER;SPRING | |
| 12 | A590916 | [10] | WASHER;SPRING | |
| 14 | 4363408 | [1] | BRG.;SPH.ROL. | |
| 14 | 4363408 | [1] | BRG.;SPH.ROL. | |
| 15 | 4511549 | [1] | RING;RETAINING | |
| 15 | 4511549 | [1] | RING;RETAINING | |
| 17 | 2053807 | [1] | GEAR;INTERNAL | |
| 17 | 2053807 | [1] | GEAR;INTERNAL | |
| 20 | 2053665 | [1] | CARRIER | |
| 20 | 2053665 | [1] | CARRIER | |
| 21 | 3108347 | [4] | GEAR;PLANETARY | |
| 21 | 3108347 | [4] | GEAR;PLANETARY | |
| 22 | 4657123 | [8] | PLATE;THRUST | |
| 22 | 4657123 | [8] | PLATE;THRUST | |
| 23 | 4452484 | [8] | BRG.;NEEDLE | |
| 23 | 4452484 | [8] | BRG.;NEEDLE | |
| 24 | 4657106 | [4] | PIN | |
| 24 | 4657106 | [4] | PIN | |
| 25 | 4197125 | [4] | PIN;SPRING | |
| 25 | 4197125 | [4] | PIN;SPRING | |
| 26 | 4239866 | [1] | PLATE;THRUST | |
| 26 | 4239866 | [1] | PLATE;THRUST | |
| 27 | 4660601 | [4] | SPACER | |
| 27 | 4660601 | [4] | SPACER | |
| 28 | 3108345 | [1] | GEAR;SUN | |
| 28 | 3108345 | [1] | GEAR;SUN | |
| 29 | 2053667 | [1] | GEAR;INTERNAL | |
| 29 | 2053667 | [1] | GEAR;INTERNAL | |
| 31 | 2053664 | [1] | CARRIER | |
| 31 | 2053664 | [1] | CARRIER | |
| 32 | 3108346 | [3] | GEAR;PLANETARY | |
| 32 | 3108346 | [3] | GEAR;PLANETARY | |
| 33 | 4452483 | [3] | BRG.;NEEDLE | |
| 33 | 4452483 | [3] | BRG.;NEEDLE | |
| 34 | 4644567 | [6] | PLATE;THRUST | |
| 34 | 4644567 | [6] | PLATE;THRUST | |
| 35 | 4657105 | [3] | PIN | |
| 35 | 4657105 | [3] | PIN | |
| 36 | 4404947 | [3] | PIN;SPRING | |
| 36 | 4404947 | [3] | PIN;SPRING | |
| 37 | 4194454 | [1] | PLATE;THRUST | |
| 37 | 4194454 | [1] | PLATE;THRUST | |
| 39 | 3108344 | [1] | GEAR;SUN | |
| 39 | 3108344 | [1] | GEAR;SUN | |
| 41 | 2027642 | [1] | COVER | |
| 41 | 2027642 | [1] | COVER | |
| 42 | J932218 | [16] | BOLT | |
| 42 | J932218 | [16] | BOLT | |
| 43 | 4089822 | [16] | WASHER | |
| 43 | 4089822 | [16] | WASHER | |
| 48 | +++++++ | [1] | NAME-PLATE | |
| 48 | +++++++ | [1] | NAME-PLATE | |
| 49 | M492564 | [2] | SCREW;DRIVE | |
| 49 | M492564 | [2] | SCREW;DRIVE |
| Pos. | Part No | Qty | Parts name | Comments |
| 9303693 | [1] | SWING DEVICE (REAR) | ||
| 0 | 9303679 | [1] | T.MISSION (SWING) | |
| 2 | 4668923 | [1] | MOTOR;OIL (SWING) | |
| 3 | 959499 | [1] | RING;RETAINING | |
| 4 | 4239862 | [12] | SPACER | |
| 5 | 4609019 | [12] | BOLT;SEMS | |
| 8 | 4388529 | [1] | PIPE | |
| 9 | 4343365 | [1] | CAP | |
| 11 | 4293873 | [1] | PIPE | |
| 12 | 3060175 | [1] | GAUGE;LEVEL | |
| 15 | 428028 | [2] | CORK | |
| 16 | 425175 | [2] | CORK | |
| 20 | 94-1504 | [1] | ELBOW;S | |
| 21 | 4157686 | [1] | HOSE | |
| 22 | 94-1304 | [1] | ADAPTER;S | |
| 23 | 4193832 | [1] | VALVE;BALL | |
| 24 | 9767985 | [1] | MANIFOLD | |
| 27 | 4187322 | [1] | PLUG |
