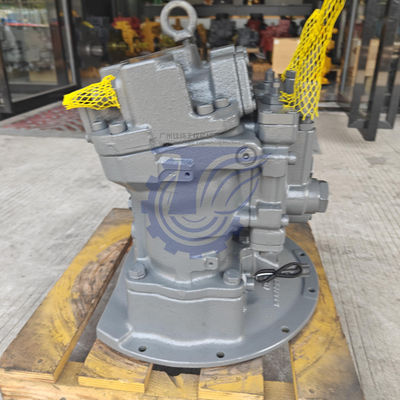

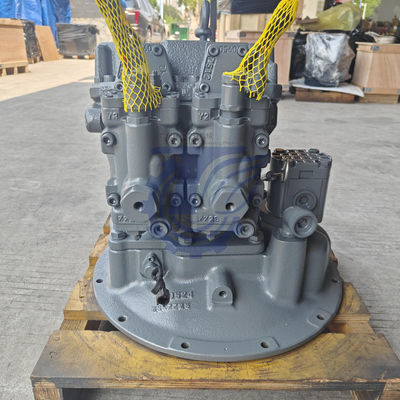

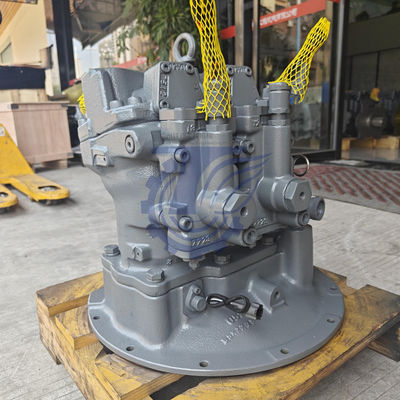

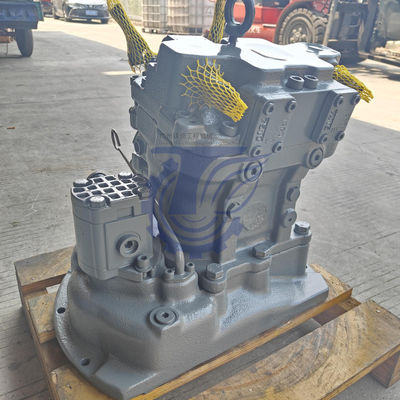

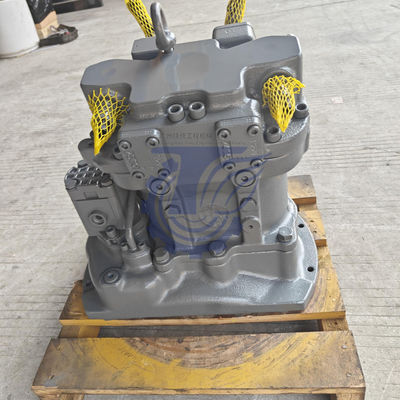

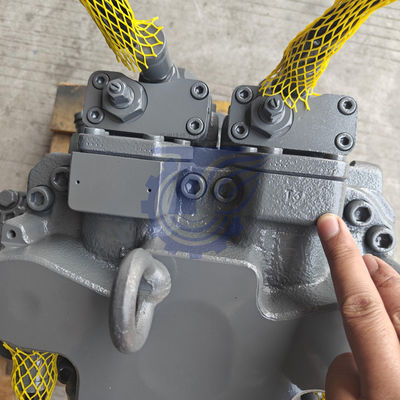

9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 9149201 9147343 For Hitachi EX120-5 EX130H-5 EX130K-5 EX135USR Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE Aftermarket Original | category: Hydraulic Pump |
|
| Brand: Hitachi | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| (9149201) | [1] | PUMP DEVICE | ||
| 9147343 | [1] | PUMP DEVICE | I 9149201 <for assembly of machine>;9147343A | |
| 1 | 1020524 | [1] | CASING;GEAR | |
| 3 | 3070066 | [1] | GEAR;PILOT | |
| 4 | 3055594 | [1] | SHAFT;GEAR | |
| 5 | 958740 | [2] | BRG.;BALL | |
| 6 | 962002 | [1] | RING;RETAINING | |
| 7 | 991725 | [1] | RING;RETAINING | |
| 10 | +++++++ | [1] | PUMP;UNIT | 9147342A |
| 12 | M492564 | [2] | SCREW;DRIVE | |
| 13 | 3074659 | [1] | NAME-PLATE | |
| 14 | 3070062 | [1] | GEAR | |
| 15 | 3070063 | [1] | GEAR | |
| 16 | 962002 | [2] | RING;RETAINING | |
| 18 | 4099290 | [2] | PIN;SPRING | |
| 21 | J901445 | [6] | BOLT | |
| 22 | A590914 | [6] | WASHER;SPRING | |
| 23 | 8060011 | [1] | PACKING | |
| 25 | 4340328 | [1] | SEAL;OIL | |
| 26 | 930451 | [1] | RING;RETAINING | |
| 28 | 4276918 | [1] | PUMP;GEAR | 0450900B |
| 30 | M341028 | [2] | BOLT;SOCKET | |
| 31 | 984054 | [2] | WASHER;SPRING | |
| 32 | 4114402 | [2] | WASHER | |
| 34 | 94-0649 | [1] | ELBOW | |
| 36 | 4234782 | [1] | PLUG | |
| 37 | 4242263 | [1] | GAUGE;LEVEL | |
| 39 | 9745521 | [1] | PIPE | |
| 40 | 9742779 | [1] | PACKING | |
| 41 | M340816 | [2] | BOLT;SOCKET | |
| 43 | 9134111 | [1] | PLUG | |
| 43A. | 4509180 | [1] | O-RING | |
| 45 | 4265372 | [1] | SENSOR;REVOL. | |
| 46 | 4306888 | [1] | O-RING | |
| 47 | A590106 | [1] | WASHER;PLANE | |
| 48 | M340616 | [1] | BOLT;SOCKET | |
| 53 | 4278547 | [1] | ADAPTER | |
| 53A. | 4506418 | [1] | O-RING | |
| 54 | 9134110 | [1] | PLUG | |
| 54A. | 957366 | [1] | O-RING | |
| 55 | 4179837 | [2] | FITTING;PIPE | |
| 55A. | 957366 | [1] | O-RING | |
| 56 | 3071962 | [1] | PIPE | |
| 57 | 9736515 | [2] | CLAMP | |
| 58 | J900830 | [1] | BOLT | |
| 59 | A590908 | [1] | WASHER;SPRING | |
| 63 | 4340275 | [1] | COUPLING | |
| 63A. | 4366376 | [1] | HUB | |
| 63B. | 4334899 | [2] | SCREW;SET | |
| 63C. | 4101345 | [4] | PIN;SPRING | |
| 63D. | 4334892 | [4] | INSERT | |
| 63E. | 4334894 | [4] | BOLT;SOCKET | |
| 63F. | 4334891 | [1] | ELEMENT | |
| 65 | 4055311 | [1] | CLIP;BAND |
| Pos. | Part No | Qty | Parts name | Comments |
| +++++++ | [1] | PUMP;UNIT | 9147342A | |
| 1 | 1020513 | [1] | CASING;PUMP | |
| 3 | 2036963 | [1] | DISC;DRIVING | |
| 4 | 2036965 | [1] | DISC;DRIVING | |
| 6 | 4339254 | [2] | BRG.;ROL. | |
| 7 | 4348299 | [2] | RING | |
| 8 | 4338325 | [2] | BRG.;ROL. | |
| 9 | 4180790 | [2] | NUT;BRG. | |
| 10 | 4331993 | [1] | RING;THRUST | |
| 12 | 4340358 | [2] | SEAL;OIL | |
| 13 | 4086775 | [2] | RING;RETAINING | |
| 15 | 4233165 | [2] | PLUG | |
| 16 | 957366 | [2] | O-RING | |
| 18 | 9742464 | [14] | PISTON | |
| 21 | 4339296 | [2] | SHAFT;CENTER | |
| 22 | 4198956 | [2] | PIN | |
| 23 | 4180786 | [2] | SPRING;COMPRES. | |
| 25 | 2036958 | [2] | ROTOR | |
| 27 | 2036441 | [1] | VALVE | |
| 28 | 2037013 | [1] | VALVE | |
| 29 | 4179179 | [4] | PIN | |
| 31 | 3069960 | [2] | LINK | |
| 32 | 9724756 | [4] | LEVER | |
| 33 | 4179177 | [4] | PIN | |
| 34 | 4179176 | [2] | PIN | |
| 35 | 4146370 | [12] | RING;RETAINING | |
| 36 | 4200227 | [2] | PIN | |
| 37 | 4355872 | [2] | LEVER | |
| 38 | 4358324 | [2] | PLATE;LOCK | |
| 39 | J900616 | [4] | BOLT | |
| 41 | 1020401 | [1] | HEAD | |
| 42 | 3068226 | [2] | PISTON;SERVO | |
| 43 | 4330909 | [2] | PIN | |
| 44 | 4179838 | [2] | SCREW;SET | |
| 46 | 4355081 | [2] | O-RING | |
| 47 | 4330951 | [2] | STOPPER | |
| 50 | 4355080 | [2] | O-RING | |
| 51 | 4330950 | [2] | STOPPER | |
| 54 | 4180349 | [20] | O-RING | |
| 55 | M340825 | [16] | BOLT;SOCKET | |
| 56 | 4514388 | [16] | WASHER;SPRING | |
| 57 | 3071500 | [1] | RING;BACK-UP | |
| 58 | 4099290 | [2] | PIN;SPRING | |
| 59 | 4345061 | [1] | O-RING | |
| 60 | M341245 | [10] | BOLT;SOCKET | |
| 61 | M341290 | [2] | BOLT;SOCKET | |
| 64 | 4355012 | [2] | SENSOR;PRES. | |
| 64A. | 4365826 | [1] | O-RING | |
| 67 | 9134110 | [2] | PLUG | |
| 67A. | 957366 | [1] | O-RING | |
| 69 | (9149230) | [2] | REGULATOR<for transportation> | <for transportation> |
| 69 | 9147341 | [2] | REGULATOR | I 9149230 9147341<for assembly of machine> |
| 72 | 4515041 | [4] | PIN;SPRING | |
| 73 | 4343074 | [4] | O-RING | |
| 74 | 4348665 | [2] | O-RING | |
| 82 | 4252767 | [3] | BRACKET | |
| 83 | M340613 | [3] | BOLT;SOCKET | |
| 84 | 4169516 | [3] | WASHER;SPRING |
