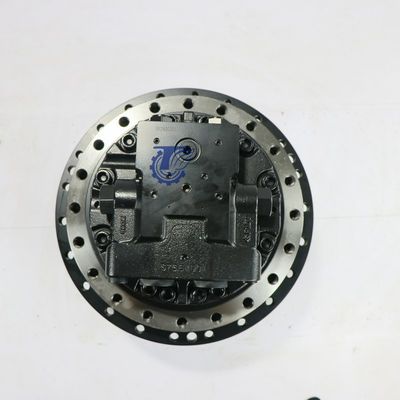

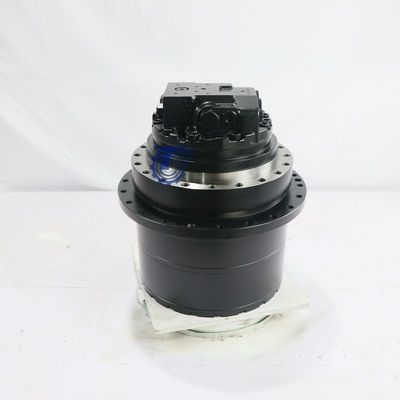

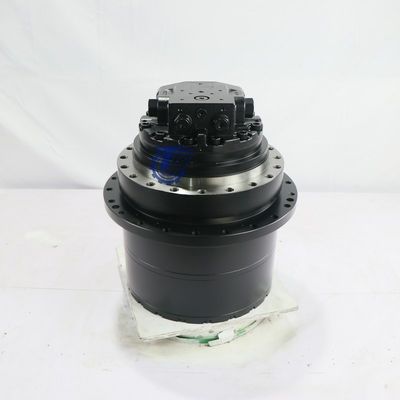

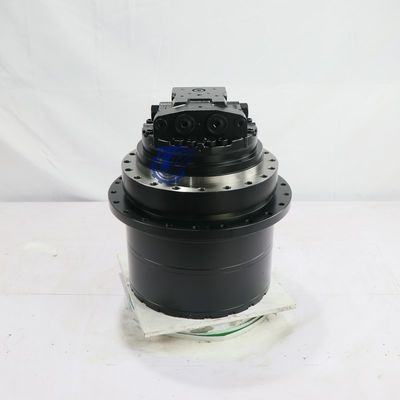

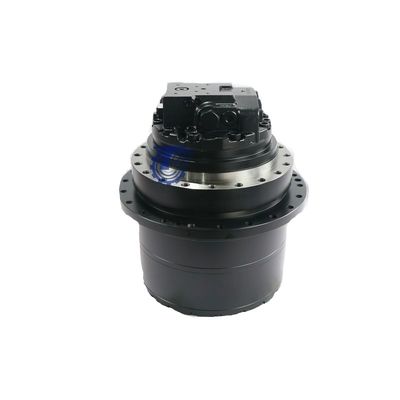

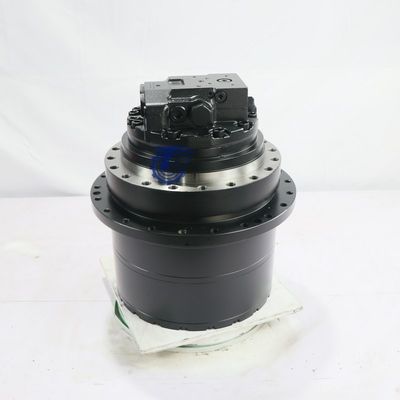

YN15V00037F2 YN15V00037F1 YN15V00037F2R FOR Kobelco SK170-9 SK210DLC-8 SK210-9 200-8 SK210D-8 SK215SRLC EXCAVATOR PARTS TRAVEL ASSEMBLY FINAL DRIVE TRAVEL MOTOR TRAVEL GEARBOX AFTERMARKET ORIGINAL
PRODUCT DESCRIPTION |
||
Model: YN15V00037F2 YN15V00037F1 YN15V00037F2R FOR Kobelco SK170-9 SK210DLC-8 SK210-9 200-8 SK210D-8 SK215SRLC EXCAVATOR PARTS TRAVEL ASSEMBLY FINAL DRIVE TRAVEL MOTOR TRAVEL GEARBOX AFTERMARKET ORIGINAL | Ategory: Final Drive |
|
Brand:TQ |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
Pos. | Part No | Qty | Parts name | Comments |
. . | YN15V00037F1 | [1] | HYDRAULIC MOTOR | SM (propelling) Superseded by part number: YN15V00037F2 |
. . | YN15V00037F2R | [1] | REMAN-HYD MOTOR | KOB 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 -, Reman For New P/N YN15V00037F1 |
. . | YN15V00037F2C | [1] | CORE-MOTOR HYDRAULIC | KOB Return Number |
. . | YN15V00037F2 | [1] | HYDRAULIC MOTOR | KOB Assy (propelling) |
1 | YN15V00037S001 | [1] | HUB | KOB |
3 | YN15V00037S003 | [1] | FLANGE | KOB Carrier |
4 | YN15V00037S004 | [1] | GEAR | KOB Sun |
5 | YN15V00037S005 | [3] | GEAR | KOB Planetary |
6 | YN15V00037S006 | [3] | PIN | KOB |
7 | YN15V00037S007 | [1] | GEAR | KOB Carrier |
8 | YN15V00037S008 | [1] | GEAR | KOB Sun |
9 | YN15V00037S009 | [3] | GEAR | KOB Planetary |
10 | YN15V00037S010 | [3] | PIN | KOB |
11 | YN15V00037S011 | [6] | WASHER | KOB Thrust |
12 | YN15V00037S012 | [6] | WASHER | KOB Thrust |
13 | YN15V00037S013 | [1] | PLATE | KOB |
14 | YN15V00037S014 | [1] | COVER | KOB |
15 | YN15V00037S015 | [1] | COUPLING | KOB |
16 | YN15V00037S016 | [3] | PIN | KOB |
17 | YN15V00037S017 | [3] | PIN | KOB |
22 | YN15V00037S022 | [2] | LOCK WASHER | KOB Lock Washer |
23 | YN15V00037S023 | [1] | SHIM | KOB |
24 | YN15V00037S024 | [2] | BALL BEARING | KOB Ball |
27 | YN15V00037S027 | [3] | ROLLER BEARING | KOB Needle |
28 | YN15V00037S028 | [3] | ROLLER BEARING | KOB Needle |
29 | YN15V00037S029 | [1] | SEAL | KOB Floating |
30 | 2441U995S121 | [3] | PLUG | KOB |
31 | ZD12P01800 | [3] | O-RING | KOB ID 17.8mm x OD 20.2mm |
35 | ZS23C10035 | [18] | SCREW,Hex Socket Head, M10 x 35mm | KOB Cap |
36 | ZR26X03200 | [1] | SNAP RING | KOB Retaining |
101 | YN15V00037S101 | [1] | MANDREL | KOB Spindle |
102 | YN15V00037S102 | [1] | SHAFT | KOB |
103 | NSS | [1] | NOT SOLD SEPARAT | CON Plate, Shoe |
104 | YN15V00037S104 | [1] | CYLINDER | KOB Block |
105 | NSS | [9] | NOT SOLD SEPARAT | CON Piston |
106 | NSS | [9] | NOT SOLD SEPARAT | CON Shoe |
107 | YN15V00037S107 | [1] | PLATE | KOB Retainer (For F1 ONLY) |
. . | YN15V00037S098 | [1] | PLATE | KOB Retainer (For F2 ONLY) |
108 | YN15V00037S108 | [1] | BALL | KOB Joint (For F1 ONLY) |
. . | YN15V00037S099 | [1] | BALL | KOB Ball[ (For F2 ONLY) |
109 | YN15V00037S109 | [1] | PLATE | KOB |
112 | YN15V00037S112 | [1] | PISTON | KOB |
113 | YN15V00037S113 | [8] | SPRING | KOB |
114 | YN15V00037S114 | [9] | SPRING | KOB |
115 | YN15V00037S115 | [3] | PLATE | KOB Friction |
116 | YN15V00037S116 | [4] | PLATE | KOB Separator |
119 | YN15V00037S119 | [1] | SHIM | KOB |
132 | YN15V00009S027 | [1] | OIL SEAL | KOB |
133 | YN15V00009S019 | [1] | RING | KOB Retaining |
135 | YN15V00037S135 | [1] | RING | KOB |
137 | 2436U279S3 | [1] | PLUG | KOB |
138 | 2436U1749S17 | [1] | PLUG | KOB |
139 | YN15V00037S139 | [1] | RING | KOB |
149 | YN15V00037S149 | [1] | ROLLER BEARING | KOB Roller Superseded by part number: 26799950 |
150 | YN15V00037S150 | [1] | ROLLER BEARING | KOB Roller Superseded by part number: YN15V00009S032 |
161 | NSS | [1] | NOT SOLD SEPARAT | CON Piston |
162 | YN15V00037S162 | [1] | BALL | KOB |
163 | NSS | [1] | NOT SOLD SEPARAT | CON Seal |
167 | NSS | [2] | NOT SOLD SEPARAT | CON Pivot |
200 | YN22V00036F1 | [2] | VALVE | KOB Assy, Relief (See HC385) |
301 | YN15V00037S301 | [1] | FLANGE | KOB |
323 | NSS | [1] | NOT SOLD SEPARAT | CON Spool |
324 | YN15V00037S324 | [2] | PLUG | KOB |
325 | YN15V00037S325 | [2] | SEAT | KOB Spring |
326 | NSS | [2] | NOT SOLD SEPARAT | CON Plug |
327 | NSS | [2] | NOT SOLD SEPARAT | CON Valve |
328 | NSS | [2] | NOT SOLD SEPARAT | CON Spring |
329 | YN15V00037S329 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB Superseded by part number: ZD12P03400 |
330 | YN15V00037S330 | [2] | SPRING | KOB |
331 | NSS | [2] | NOT SOLD SEPARAT | CON O-ring |
341 | YN15V00017S033 | [1] | PIN | KOB |
343 | ZS23C16040 | [8] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOB SCREW Cap |
345 | 2436U1427S25 | [15] | PLUG | KOB |
363 | YN15V00037S363 | [1] | SPOOL | KOB |
364 | 2436R874S3 | [1] | FLEXIBLE JOINT | KOB Connector |
365 | 2436R874S6 | [1] | PIN | KOB |
366 | 2436R874S7 | [1] | SPRING | KOB |
367 | 2436R874S5 | [1] | SPRING SEAT | KOB |
368 | 2436U1317S13 | [2] | PLUG | KOB |
369 | ZD12P01100 | [2] | O-RING | KOB ID 10.8mm x OD 13.2mm |
370 | LC15V00023S062 | [1] | PLUG | KOB |
371 | ZD12P01400 | [2] | O-RING | KOB |
372 | LC15V00023S067 | [2] | RESTRICTOR | KOB |
373 | LC15V00023S068 | [2] | SPRING | KOB |
374 | YN15V00017S038 | [5] | PLUG | KOB |
375 | ZD12P00800 | [6] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
376 | GN15V00010S024 | [3] | RESTRICTOR | KOB |
377 | YN15V00017S017 | [3] | CHECK VALVE | KOB |
378 | YN15V00017S026 | [3] | SPRING | KOB |
379 | ZD12P01600 | [1] | O-RING | KOB |
380 | YN15V00037S380 | [1] | O-RING | KOB |
397 | 2483U254S19 | [1] | Name Plate | |
398 | YN15V00037S398 | [4] | Rivet | |
399 | YN15V00037S399 | [1] | Name Plate | |
. . | YN15V00037R400 | [1] | PISTON | KOB Repair Kit Consists Of Ref. 105x9, 106x9 |
. . | YN15V00037R410 | [1] | PISTON | KOB Repair Kit Consists Of Ref. 161x1, 163x1 |
. . | YN15V00037R420 | [1] | PLATE | KOB Repair Kit Consists Of Ref. 103x1, 167x2 |
. . | YN15V00037R430 | [1] | VALVE | KOB Repair Kit Consists Of Ref. 103x1, 323x1, 324x2, 325x2, 326x2, 327x2, 328x2, 329x2, 330x2, 331x2, 341x1, 343x8, 345x15, 363x1, 364x1, 365x1, 366x1, 367x1, 368x2, 369x2, 370x1, 371x2, 372x2, 373x2, 374x5, 375x6, 376x3, 377x3, 378x3, 379x1, 380x1 |
. . | YN15V00037R440 | [1] | VALVE | KOB Repair Kit Consists Of Ref. 323x1, 326x2, 327x2, 328x2, 331x2 |
. . | YN15V00037R450 | [1] | SEAL KIT | KOB Repair Kit Consists Of Ref. 31x3, 132x1, 135x1, 139x1, 329x2, 369x2, 371x2, 375x6, 379x1, 380x1 |
. . | YN15V00037R460 | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 107x1, 108x1 (F2 Only) |
FAQ
1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.
2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.
3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.
4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
Tieqi Construction Machinery is a distributor specializing in the wholesale of excavator hydraulic parts. The company is loTQed in Zhucun Construction Machinery Parts City, Guangzhou City, with convenient transportation and developed logistics. The operating products cover all brands of excavator hydraulic pumps, travel motors, swing motors, multi-way valves and other first-class brand hydraulic components at home and abroad.
The company has a group of professional technical engineers engaged in the sales and maintenance of hydraulic pumps and motors. We have accumulated rich experience in many years of practice, and can provide customers with technical consultation, spare parts supply, and fast and high-quality after-sales service, which has won the trust and praise of customers at home and abroad.
Our products are mainly suitable for Komatsu, Hitachi, Carter, Kato, Kobelco, Sumitomo, Volvo, Doosan, Hyundai, Case, BobTQ, Yanmar, Kubota, Sany, XCMG, Yuchai, Lonking and other models.
Sales agent: KAWASAK, KOMATSU, HITACHI, TQERPILLAR, TOSHIBA, REXROTH, SAUER DANFOSS, EATON, Vickers (VIKERS), NACHI, VOLVO, KYB, LINDE, Nabtesco piston pumps and hydraulic motor series and assembly accessories.
