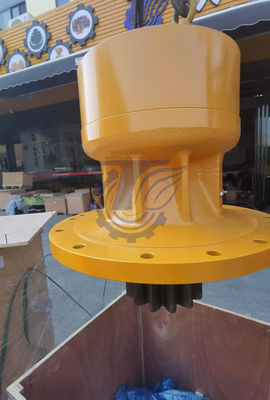

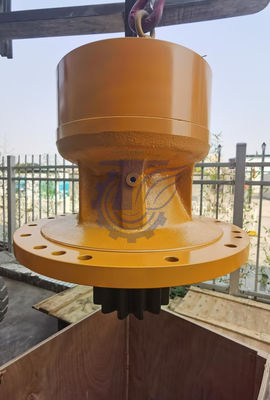

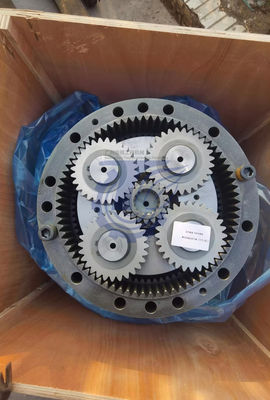

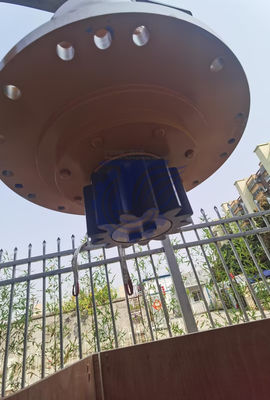

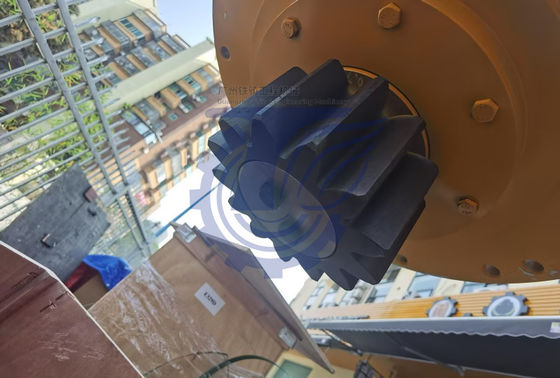

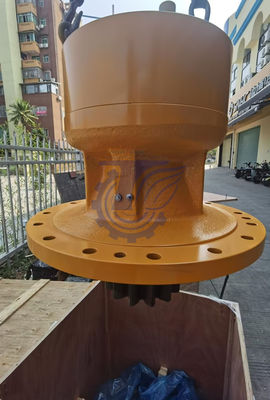

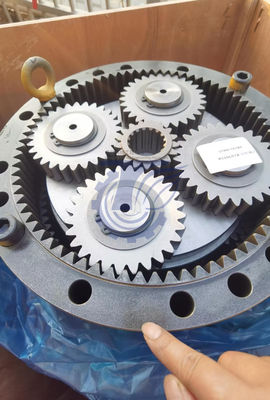

31N9-10180 31N9-10180 For Hyundai R320LC-7 R320LC-7A EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 31N9-10180 31N9-10180 For Hyundai R320LC-7 R320LC-7A EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | category: Hydraulic Pump |
|
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31N9-10180 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31N9-10181 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00427 | [1] | CASING | |
| 2 | XKAQ-00428 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00759 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 4 | XKAQ-00119 | [1] | SEAL-OIL | |
| 5 | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00429 | [1] | CARRIER ASSY-2 | |
| 7 | XKAQ-00430 | [1] | CARRIER-2 | |
| 8 | XKAQ-00431 | [4] | GEAR-PLANET-2 | |
| 9 | XKAQ-00432 | [4] | PIN ASSY-2 | |
| N10. | XKAQ-00433 | [1] | PIN-2 | |
| N11. | XKAQ-00434 | [1] | BUSHING-2 | |
| 12 | XKAQ-00435 | [8] | WASHER-THRUST | |
| 13 | XKAQ-00050 | [4] | PIN-SPRING | |
| 14 | XKAQ-00436 | [1] | GEAR-SUN-2 | |
| 15 | XKAQ-00437 | [1] | CARRIER ASSY-1 | |
| 16 | XKAQ-00438 | [1] | CARRIER-1 | |
| 17 | XKAQ-00439 | [4] | GEAR-PLANET-1 | |
| 18 | XKAQ-00440 | [4] | PIN ASSY 1 | |
| N19. | XKAQ-00441 | [1] | PIN 1 | |
| N20. | XKAQ-00079 | [1] | BUSHING 1 | |
| 21 | XKAQ-00417 | [4] | PLATE 1-SIDE | |
| 22 | XKAQ-00416 | [4] | PLATE 2-SIDE | |
| 23 | XKAQ-00041 | [4] | RING-STOP | |
| 24 | XKAQ-00048 | [4] | PIN-SPRING | |
| 25 | XKAQ-00442 | [1] | GEAR-SUN-1 | |
| 26 | XKAQ-00444 | [1] | GEAR-RING | |
| 27 | XKAQ-00443 | [1] | PLATE-COVER | |
| 28 | XKAQ-00445 | [1] | SPACER | |
| 28 | XKAQ-00758 | [1] | SPACER | |
| 29 | XKAQ-00446 | [1] | RING-SPACER | |
| 30 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31 | XKAQ-00447 | [1] | PLATE 3-THRUST | |
| 32 | XKAQ-00105 | [1] | GEAR-PINION | |
| 33 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 33 | XKAQ-00757 | [1] | PLATE-LOCK | |
| 34 | XKAQ-00064 | [8] | BOLT-HEX | |
| 35 | XKAQ-00042 | [2] | BOLT-HEX | |
| 35 | XKAQ-00756 | [4] | BOLT-HEX | |
| 36 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 37 | XKAQ-00448 | [12] | BOLT-SOCKET | |
| 38 | XKAQ-00049 | [1] | PLUG | |
| 39 | XKAQ-00066 | [2] | PLUG | |
| 40 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 41 | XKAQ-00450 | [1] | BAR-GAGE | |
| 42 | XKAQ-00143 | [1] | POST-AIR BREATHER |
