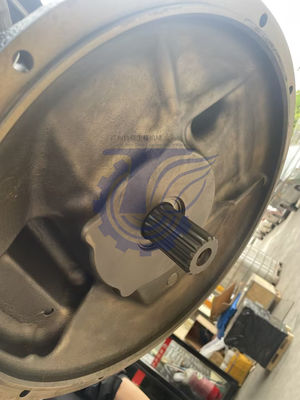

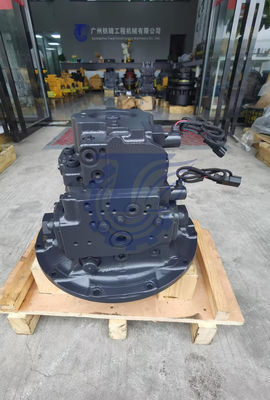

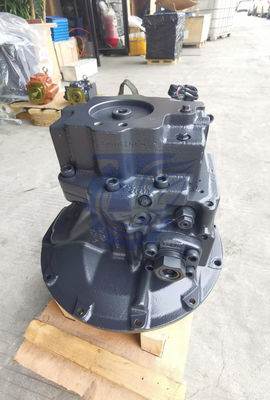

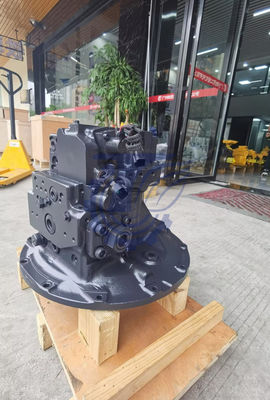

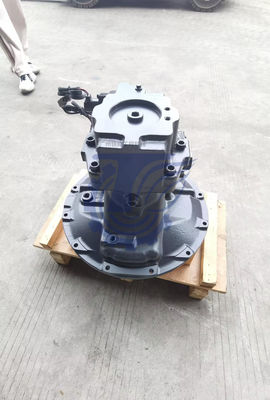

708-1L-00660 7081L00660 708-1L-01660 708-1L-04250 FOR KOMATSU PW140-7 EXCAVATORS PARTS HYDRAULIC PUMP MAIN PUMP Pump assembly AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION |
||
| Model: 708-1L-00660 7081L00660 708-1L-01660 708-1L-04250 FOR KOMATSU PW140-7 EXCAVATORS PARTS HYDRAULIC PUMP MAIN PUMP Pump assembly AFTERMARKET ORIGINAL | category: Hydraulic Pump |
|
| Brand: KOMATSU | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1L-00660 | [1] | PUMP ASSEMBLY Komatsu | 145 kg. | |
| 708-1L-01660 | [1] | PUMP SUB ASSEMBLY Komatsu China | ||
| 1 | 708-2L-32160 | [1] | SHAFT Komatsu | 3.1 kg. |
| 2 | 708-2L-32150 | [1] | BEARING Komatsu | 0.6 kg. |
| analogs:["7082E12152", "7082L22150", "7082512731"] | ||||
| 3 | 708-2E-05040 | [1] | WASHER KIT Komatsu | 0.101 kg. |
| analogs:["7082E12190"] | ||||
| 4 | 708-25-12790 | [1] | RING Komatsu | 0.006 kg. |
| 5 | 708-25-52861 | [1] | SEAL Komatsu China | 0.078 kg. |
| analogs:["7082552860", "7067340920"] | ||||
| 6 | 708-2L-22160 | [1] | SPACER Komatsu | 0.047 kg. |
| 7 | 04065-06825 | [1] | RING Komatsu | 0.018 kg. |
| 708-2L-06470 | [1] | CYLINDER BLOCK ASSEMBLY Komatsu | 5.26 kg. | |
| 10 | 720-68-19610 | [1] | PIN Komatsu | 0.002 kg. |
| 11 | 04065-04818 | [1] | RING Komatsu OEM | 0.007 kg. |
| 12 | 708-2L-23131 | [1] | SEAT Komatsu | 0.073 kg. |
| 13 | 708-2L-33160 | [1] | SPRING Komatsu | 0.12 kg. |
| analogs:["7082L23151"] | ||||
| 14 | 708-7L-13140 | [1] | SEAT Komatsu | 0.02 kg. |
| 15 | 708-2L-23351 | [1] | GUIDE, RETAINER Komatsu OEM | 0.14 kg. |
| 16 | 708-2L-23360 | [3] | PIN Komatsu | 0.003 kg. |
| 18 | 708-2L-33430 | [9] | PISTON SUB ASSEMBLY Komatsu | 0.209 kg. |
| 708-2L-06630 | [1] | CRADLE SUB ASSEMBLY Komatsu | 4.3 kg. | |
| 21 | 04020-01228 | [1] | PIN Komatsu | 0.026 kg. |
| analogs:["21T3016190"] | ||||
| 22 | 07000-B1009 | [1] | O-RING Komatsu China | 0.001 kg. |
| analogs:["7082L23910"] | ||||
| 23 | 01252-61230 | [4] | BOLT Komatsu | 0.044 kg |
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1L-00660 | [1] | PUMP ASSEMBLY Komatsu | 145 kg. | |
| 708-1L-01660 | [1] | PUMP SUB ASSEMBLY Komatsu China | ||
| 1 | 708-2L-34120 | [1] | SLIDER Komatsu | 0.24 kg. |
| 708-1L-04850 | [1] | VALVE ASSEMBLY Komatsu China | ||
| 708-2L-06660 | [1] | PISTON ASSEMBLY Komatsu | 0.000 kg. | |
| 4 | 708-2L-35680 | [2] | SEAL Komatsu | 0.02 kg. |
| 5 | 708-2L-35621 | [1] | PLUG Komatsu | 0.12 kg. |
| 6 | 708-2L-35760 | [1] | BALL Komatsu | 0.001 kg. |
| 7 | 708-2L-35770 | [1] | PLUG Komatsu | 0.005 kg. |
| 8 | 708-2L-35690 | [3] | SEAL Komatsu | 0.003 kg. |
| 9 | 708-2L-35170 | [1] | PIN Komatsu | 0.01 kg. |
| 10 | 708-2L-35860 | [1] | SPOOL Komatsu | 0.03 kg. |
| 11 | 708-2L-35630 | [1] | RETAINER Komatsu | 0.22 kg. |
| 12 | 708-2L-35641 | [1] | SEAT Komatsu | 0.01 kg. |
| 13 | 708-2L-35730 | [1] | SPRING Komatsu China | |
| 14 | 708-1L-34110 | [1] | SPRING Komatsu China | |
| 15 | 708-2L-35650 | [1] | SEAT Komatsu | 0.01 kg. |
| 16 | 708-1L-34120 | [1] | SPRING Komatsu China | |
| 17 | 708-2L-34330 | [1] | SCREW Komatsu China | |
| 18 | 07000-B3034 | [1] | O-RING Komatsu | 0.002 kg. |
| 19 | 708-2L-35210 | [1] | RING Komatsu | 0.001 kg. |
| 20 | 708-2L-35710 | [1] | SEAL Komatsu | 0.001 kg. |
| 21 | 708-2L-35270 | [1] | PIN Komatsu | 0.04 kg. |
| 22 | 07000-B2011 | [1] | O-RING Komatsu | 0.001 kg. |
| 23 | 07000-B3045 | [1] | O-RING Komatsu | 0.002 kg. |
| 24 | 708-2L-35750 | [1] | RING Komatsu | 0.001 kg. |
| 25 | 708-2L-34230 | [1] | COVER Komatsu China | |
| 26 | 01580-10806 | [1] | NUT Komatsu | 0.005 kg. |
| analogs:["801920104"] | ||||
| 27 | 708-2L-35290 | [1] | NUT Komatsu | 0.12 kg. |
| 28 | 708-2L-35670 | [1] | RING Komatsu | 0.01 kg. |
| 29 | 01252-61440 | [4] | BOLT Komatsu China | |
| analogs:["0125231440"] |
