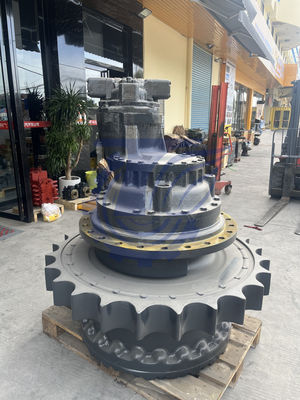

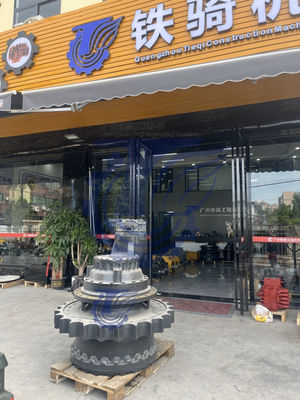

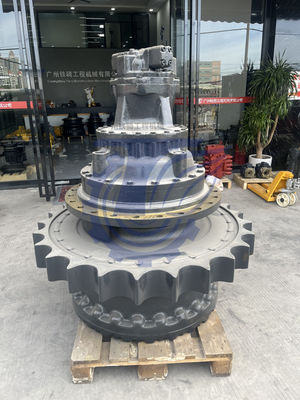

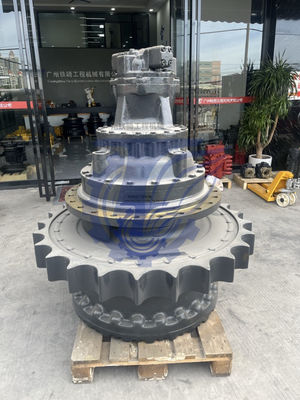

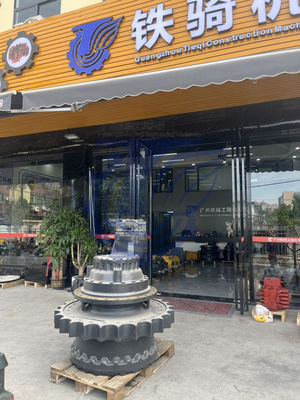

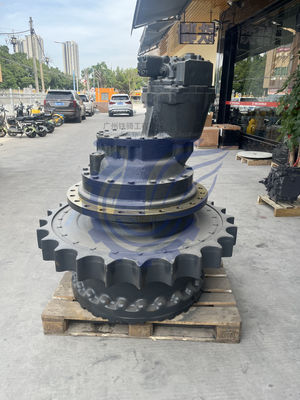

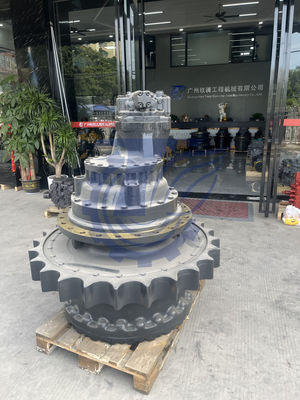

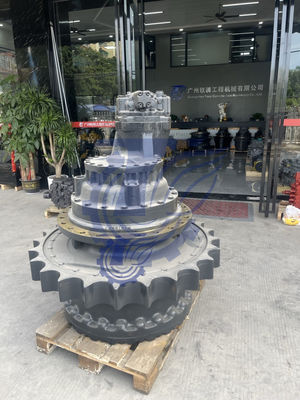

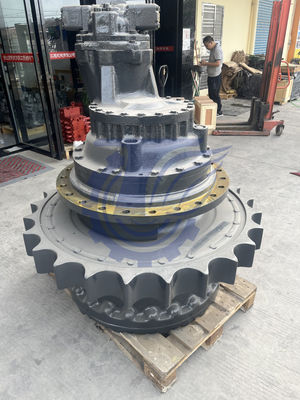

706-7L-01110 21T-27-00300 21T-27-00310 21T-27-00410 21T-27-00400 For KOMATSU PC2000-8 PC2000-11 Excavator Travel Assembly Final Drive Travel Motor DRIVE GP-FINAL -WITH MOTOR Aftermarket Original
PRODUCT DESCRIPTION |
||
Model: 706-7L-01110 21T-27-00300 21T-27-00310 21T-27-00410 21T-27-00400 For KOMATSU PC2000-8 PC2000-11 Excavator Travel Assembly Final Drive Travel Motor DRIVE GP-FINAL -WITH MOTOR Aftermarket Original | Ategory: Final Drive |
|
Brand:TQ |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
Pos. | Part No | Qty | Parts name | Comments |
21T-27-00300 | [1] | Final Drive Assembly Komatsu | 3060 kg. | |
1 | 21T-27-71142 | [1] | Housing Komatsu | 469 kg. |
2 | 21T-27-71421 | [1] | Retainer Komatsu | 16 kg. |
2 | 198-27-00034 | [1] | Floating Seal Assembly Komatsu | 10.5 kg. |
analogs:["1982700031", "1982700033", "1982700032"] | ||||
5 | 21T-27-11330 | [1] | Bearing Komatsu | 70 kg. |
analogs:["5682212940", "5612262970", "5612262990"] | ||||
6 | 21T-27-71151 | [1] | Case Komatsu | 767 kg. |
8 | 21T-27-71311 | [1] | Gear Komatsu | 134 kg. |
9 | 209-27-21270 | [6] | Lock Komatsu China | |
10 | 01010-81230 | [12] | Bolt Komatsu | 0.043 kg. |
analogs:["0101051230", "01010B1230"] | ||||
11 | 01643-31232 | [12] | Washer Komatsu | 0.027 kg. |
analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
12 | 21T-27-71321 | [1] | Housing Komatsu China | |
13 | 21T-27-00070 | [1] | Shim Komatsu | 1.46 kg. |
14 | 21T-27-71330 | [1] | Retainer Komatsu | 21.55 kg. |
15 | 01010-82465 | [10] | Bolt Komatsu | 0.341 kg. |
analogs:["0101062465", "0101032465", "0101052465"] | ||||
16 | 21T-27-71280 | [1] | Shaft Komatsu | 82 kg. |
17 | 21T-27-71164 | [1] | Carrier Komatsu | 292 kg. |
18 | 205-27-71360 | [1] | Button Komatsu | 0.125 kg. |
19 | 21T-27-71290 | [4] | Gear Komatsu | 29 kg. |
20 | 21T-27-71390 | [4] | Bearing Komatsu China | |
21 | 198-27-11420 | [8] | Washer, Thrust Komatsu | 0.875 kg. |
22 | 21T-27-71440 | [4] | Pin Komatsu China | |
23 | 04082-00616 | [4] | Lock Komatsu | 0.88 kg. |
24 | 01010-81640 | [8] | Bolt Komatsu | 0.264 kg. |
analogs:["0101061640", "801015186", "0101031640", "0101051640"] | ||||
25 | 01643-31645 | [8] | Washer Komatsu | 0.072 kg. |
analogs:["802170005", "0164301645"] | ||||
26 | 01010-83080 | [24] | Bolt Komatsu | 0.673 kg. |
analogs:["0101063080"] | ||||
27 | 01643-33080 | [24] | Washer Komatsu China | 0.132 kg. |
28 | 07049-03038 | [2] | Plug, Cork Komatsu | 0.214 kg. |
29 | 07040-11007 | [1] | Plug Komatsu | 0.014 kg. |
30 | 07002-11023 | [1] | O-ring Komatsu China | 0.025 kg. |
analogs:["0700201023"] | ||||
31 | 07044-13620 | [2] | Plug Komatsu | 0.496 kg. |
analogs:["0704403620"] | ||||
32 | 07002-13634 | [2] | O-ring Komatsu China | 0.013 kg. |
analogs:["0700203634"] | ||||
33 | 21T-27-71175 | [1] | Sprocket Komatsu | 269.4 kg. |
analogs:["21T2771173", "21T2771174"] | ||||
34 | 21T-27-11890 | [25] | Bolt Komatsu | 1.2 kg. |
35 | 01643-33380 | [25] | Washer Komatsu | 0.166 kg |
Pos. | Part No | Qty | Parts name | Comments |
21T-27-00300 | [1] | Final Drive Assembly Komatsu | 3060 kg. | |
1 | 21T-27-71270 | [1] | Carrier Komatsu | 65 kg. |
2 | 21T-27-71250 | [3] | Gear Komatsu | 16 kg. |
3 | 21T-27-71380 | [3] | Bearing Komatsu | 6.9 kg. |
4 | 21T-27-71430 | [3] | Pin Komatsu | 4.767 kg. |
5 | 209-27-51450 | [3] | Lock Komatsu China | |
6 | 01010-81230 | [6] | Bolt Komatsu | 0.043 kg. |
analogs:["0101051230", "01010B1230"] | ||||
7 | 01643-31232 | [6] | Washer Komatsu | 0.027 kg. |
analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
8 | 21T-27-72260 | [1] | Gear Komatsu | 127.8 kg. |
9 | 21T-27-71241 | [1] | Shaft Komatsu | 10.9 kg. |
10 | 21T-27-71230 | [1] | Spacer Komatsu | 2.5 kg. |
11 | 21T-27-72130 | [1] | Case Komatsu China | |
12 | 04020-00616 | [1] | Pin, Dowel Komatsu | 0.004 kg. |
13 | 21T-27-11540 | [1] | Washer Komatsu | 1.6 kg. |
14 | 01011-82015 | [16] | Bolt Komatsu | 0.346 kg. |
analogs:["0101183015", "0101162015", "0101152015", "0104142015", "0101163015"] | ||||
15 | 01643-32060 | [16] | Washer Komatsu China | 0.044 kg. |
analogs:["802170007", "0164322045", "0164302045"] | ||||
16 | 07049-02025 | [2] | Plug Komatsu | 0.002 kg. |
17 | 07044-13620 | [1] | Plug Komatsu | 0.496 kg. |
analogs:["0704403620"] | ||||
18 | 07002-13634 | [1] | O-ring Komatsu China | 0.013 kg. |
analogs:["0700203634"] | ||||
19 | 04020-01638 | [2] | Pin, Dowel Komatsu | 0.064 kg. |
20 | 21T-27-72210 | [1] | Gear Komatsu | 38.1 kg. |
21 | 06044-00221 | [2] | Bearing Komatsu | 4.62 kg. |
22 | 21T-27-71220 | [1] | Holder Komatsu | 0.43 kg. |
23 | 01010-81650 | [1] | Bolt Komatsu China | 0.113 kg. |
analogs:["0101061650", "0101051650", "0101031650"] | ||||
24 | 21T-27-72190 | [1] | Shaft Komatsu | 4.3 kg. |
25 | 21T-27-72180 | [2] | Bearing Komatsu | 1.7 kg. |
26 | 209-27-51470 | [1] | Nipple Komatsu China | |
27 | 01643-31032 | [1] | Washer Komatsu | 0.054 kg. |
analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
28 | 21T-27-72120 | [1] | Case Komatsu China | |
29 | 01010-81665 | [21] | Bolt Komatsu | 0.134 kg. |
analogs:["0101051665", "0101031665", "0101061665", "R0101081665"] | ||||
30 | 01643-31645 | [21] | Washer Komatsu | 0.072 kg. |
analogs:["802170005", "0164301645"] | ||||
31 | 07049-01620 | [2] | Plug Komatsu | 0.002 kg. |
32 | 21T-27-72530 | [1] | Plate Komatsu China | |
33 | 01010-81025 | [2] | Bolt Komatsu | 0.36 kg. |
analogs:["0101051025", "0101651025", "801015109"] | ||||
35 | 21N-27-31320 | [1] | Cover Komatsu China | |
36 | 21N-27-31330 | [1] | Gasket Komatsu | 0.5 kg. |
37 | 01010-81845 | [4] | Bolt Komatsu | 0.14 kg. |
analogs:["0101061845", "0101031845", "0101051845", "R0101081845"] | ||||
38 | 01643-31845 | [4] | Washer Komatsu China | 0.02 kg. |
analogs:["0164321845", "R0164331845"] |
Pos. | Part No | Qty | Parts name | Comments |

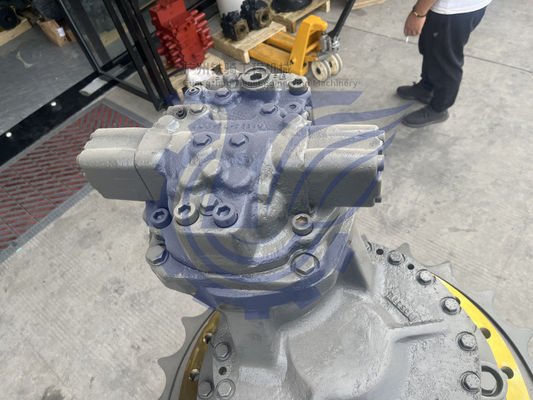

706-7L-01110 | [1] | MOTOR ASSY Komatsu | 148 kg. | |
analogs:["7067L01111"] | ||||
[-1] | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0. | |||
1 | 706-8L-41120 | [1] | O-RING Komatsu | 1.292 kg. |
2 | 07000-B2012 | [1] | O-RING Komatsu | 0.001 kg. |
3 | 04020-01024 | [2] | PIN Komatsu | 0.015 kg. |
analogs:["PZF890001197"] | ||||
4 | 01252-62055 | [8] | BOLT Komatsu | 0.222 kg. |
5 | 01253-62040 | [4] | BOLT Komatsu China | |
6 | 706-8L-41510 | [1] | SHAFT,DRIVE Komatsu China | |
7 | 706-8J-41010 | [1] | BEARING Komatsu | 8.22 kg. |
8 | 706-8L-41890 | [1] | BEARING Komatsu | 1.3 kg. |
9 | 706-8L-41810 | [1] | RETAINER Komatsu | 0.54 kg. |
10 | 706-8L-05010 | [1] | SPACER KIT Komatsu China | |
11 | 04064-07025 | [1] | RING,SNAP Komatsu | 0.023 kg. |
12 | 706-8J-41620 | [1] | SEAL,OIL Komatsu | 0.15 kg. |
analogs:["7068J42330"] | ||||
13 | 706-8J-41820 | [1] | SPACER Komatsu | 0.12 kg. |
14 | 04065-09030 | [1] | RING,SNAP Komatsu | 0.03 kg. |
analogs:["2324013250", "R0406509030"] | ||||
15 | 706-8L-41280 | [1] | SHAFT,CENTER Komatsu | 0.75 kg. |
16 | 706-8L-41270 | [1] | RING,CENTER Komatsu China | |
17 | 706-8L-41290 | [1] | SPRING Komatsu | 0.22 kg. |
18 | 706-8L-41260 | [1] | RETAINER Komatsu China | |
19 | 708-23-12350 | [7] | SCREW Komatsu | 0.008 kg. |
706-7L-00120 | [1] | BLOCK ASSY,CYLINDER Komatsu | 7.17 kg. | |
22 | 706-8L-41160 | [7] | PISTON SUB ASSY Komatsu | 0.6 kg. |
23 | 706-8L-91340 | [5] | PLATE Komatsu China | |
24 | 706-8L-91370 | [4] | DISC Komatsu | 0.27 kg. |
25 | 706-8L-91110 | [1] | PISTON,BRAKE Komatsu China | |
26 | 07000-B5220 | [1] | O-RING Komatsu | 0.022 kg. |
27 | 07001-05220 | [1] | RING,BACK-UP Komatsu | 0.033 kg. |
28 | 07000-B5250 | [1] | O-RING Komatsu | 0.03 kg. |
29 | 07001-05250 | [1] | RING,BACK-UP Komatsu | 0.025 kg. |
30 | 706-8L-91360 | [6] | SPRING Komatsu | 0.19 kg |
FAQ
1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.
2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.
3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.
4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
