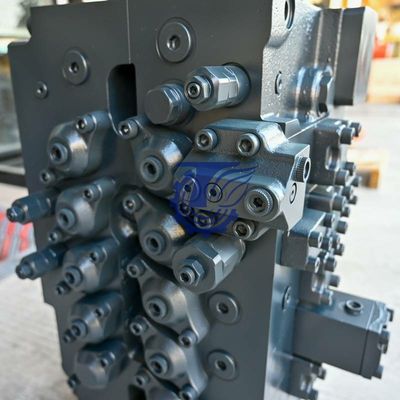

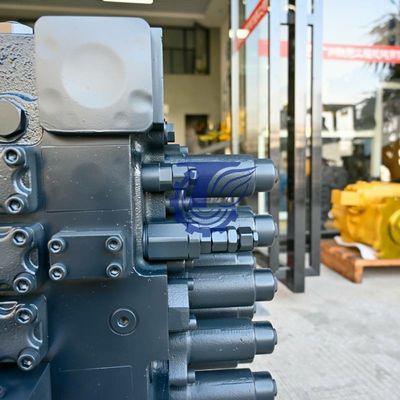

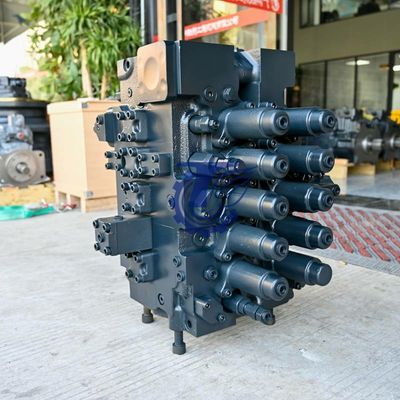

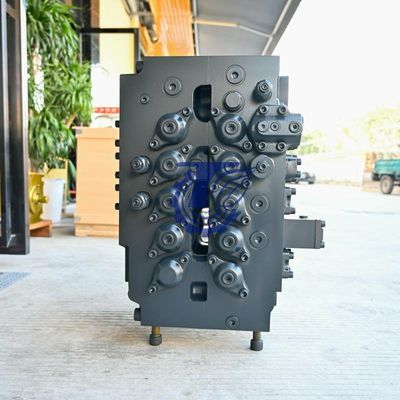

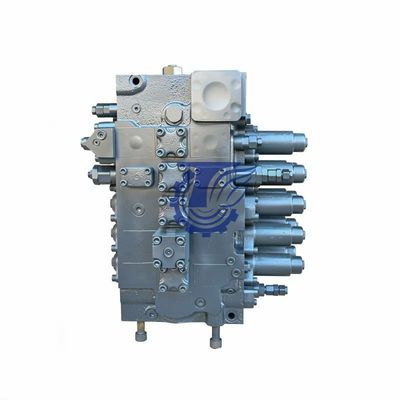

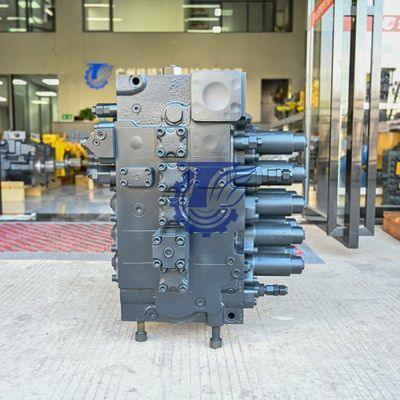

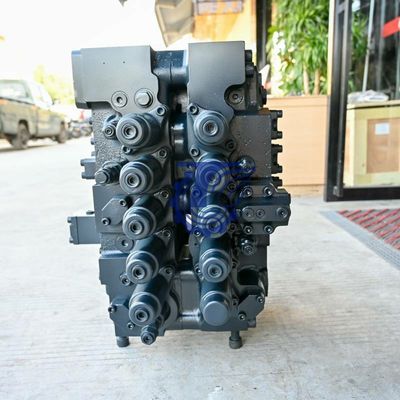

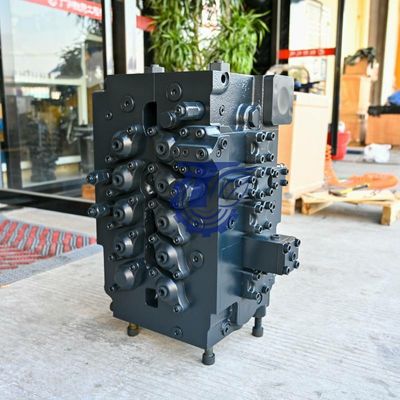

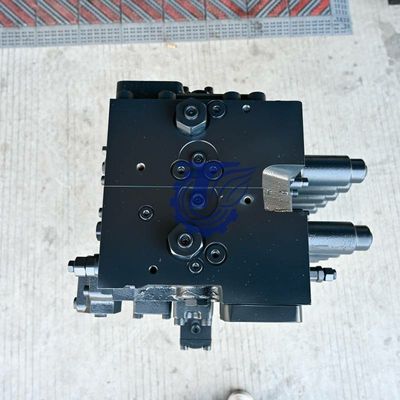

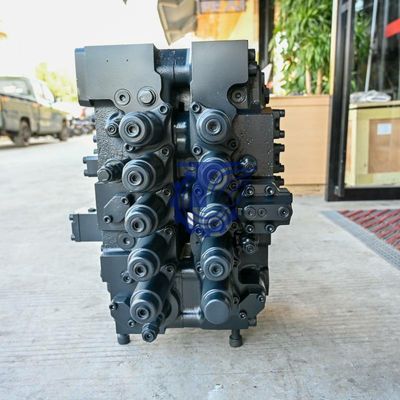

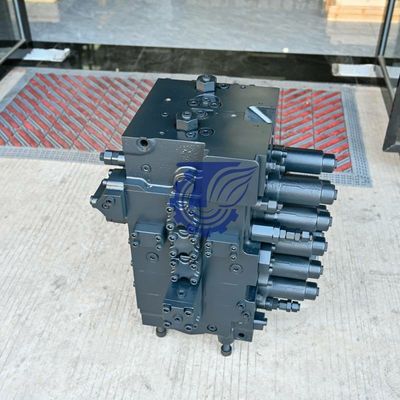

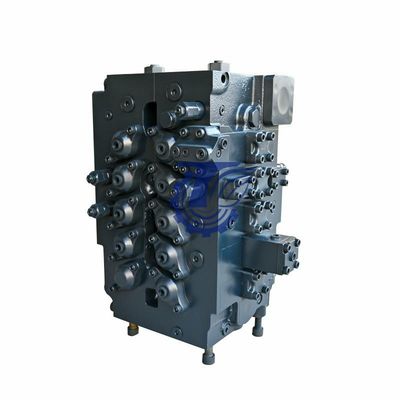

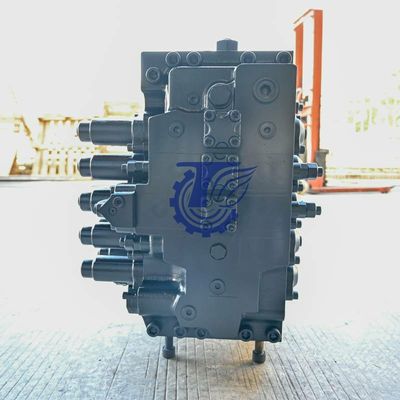

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original | category: Hydraulic Pump |
|
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31QB-17000 | [1] | MAIN CONTROL VALVE | TYPE 2 |
| *. | 31QB-17100 | [1] | MAIN CONTROL VALVE | TYPE 3 |
| 12 | 31QB-17720 | [1] | SPOOL KIT-BYPASS CUT1 | |
| 15 | 31QB-17810 | [1] | ARM REGEN CUT ASSY | TYPE 2 |
| 15 | 31QA-17811 | [1] | ARM REGEN CUT ASSY | TYPE 3 |
| 17 | 31QB-17740 | [1] | PORT RELIEF VALVE | |
| 17 | 31QB-17740K | [1] | PORT RELIEF VALVE | |
| 18 | 31QB-17750 | [1] | PORT RELIEF VALVE | |
| 18 | 31QB-17750K | [1] | PORT RELIEF VALVE | |
| 19 | 31QB-17760 | [4] | PORT RELIEF VALVE | |
| 19 | 31QB-17760K | [4] | PORT RELIEF VALVE | |
| 20 | 31QB-17780 | [1] | PORT RELIEF VALVE | |
| 20 | 31QB-17780K | [1] | PORT RELIEF VALVE ASSY | |
| 21 | 31QB-17790 | [1] | PORT RELIEF VALVE | |
| 22 | 31QB-17800 | [2] | RELIEF VALVE-NEGACON | |
| 24 | 31QB-17930 | [2] | PLUG ASSY-BY PASS | |
| 25 | 31QB-17940 | [1] | PLUG | |
| 26 | 31QB-17920 | [1] | PLUG | |
| 27 | 31N8-17550 | [1] | PLUG | |
| 28 | 31N4-18090 | [5] | PLUG | |
| 29 | 31N8-17500 | [11] | PLUG | |
| 30 | 31N4-18080 | [5] | PLUG | |
| 31 | 31N8-17540 | [1] | PLUG | |
| 41 | 31QB-18660 | [1] | POPPET | |
| 43 | 31QB-18680 | [1] | POPPET | |
| 46 | 31QB-18240 | [2] | SPRING | |
| 49 | 31QB-18720 | [1] | SPRING | |
| 50 | 31QB-18730 | [1] | SPRING | |
| 51 | 31N8-18680 | [1] | PLUG | |
| 55 | S631-022004 | [4] | O-RING | |
| 56 | S631-010004 | [3] | O-RING | |
| 57 | S631-030004 | [10] | O-RING | |
| 61 | S109-201806 | [10] | BOLT-SOCKET | |
| 65 | S109-120206 | [4] | BOLT-SOCKET | |
| 66 | S107-120154 | [16] | BOLT-SOCKET | |
| 67 | S107-100154 | [12] | BOLT-SOCKET | |
| 68 | 31QB-18360 | [2] | SPRING SEAT-BC | |
| 70 | 31N8-19460 | [5] | CAP-DUST | |
| 73 | 31QB-19620 | [4] | COVER 1-1/4 | |
| 74 | 31QB-19630 | [4] | GASKET 1-1/4 | |
| 75 | 31QB-19640 | [3] | COVER 1 | |
| 76 | 31QB-19650 | [3] | GASKET 1 |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | MAIN CONTROL VALVE | SEE 4050 |
| N2. | XKAY-01322 | [1] | HOSING-VALVE,RH | |
| 3 | XKAY-01502 | [1] | SPOOL ASSY-ARM 2 | |
| 4 | XKAY-01381 | [1] | SPOOL ASSY-BUCKET | |
| 5 | XKAY-01503 | [1] | SPOOL ASSY-BOOM 1 | |
| 6 | XKAY-01326 | [1] | SPOOL ASSY-TRAVEL | |
| 7 | XKAY-01327 | [1] | SPOOL ASSY-TS | |
| 12A. | XKAY-01332 | [4] | SPOOL CAP-A | |
| 12B. | XKAY-01333 | [1] | SPOOL CAP-B | |
| 13A. | XKAY-01334 | [4] | SPOOL FLANGE-A | |
| 13B. | XKAY-01335 | [1] | SPOOL FLANGE-B | |
| 14 | XKAY-01336 | [10] | O-RING | |
| 15 | XKAY-01337 | [1] | POPPET | |
| 16 | XKAY-01338 | [1] | SPRING | |
| 17 | XKAY-01339 | [1] | SPACER | |
| 18 | XKAY-01340 | [1] | O-RING | |
| 19 | XKAY-01371 | [1] | RING-BACK UP | |
| 26 | XKAY-01348 | [2] | POPPET | |
| 27 | XKAY-01349 | [2] | SPRNG | |
| 29 | XKAY-01351 | [3] | POPPET | |
| 31 | XKAY-01353 | [4] | SPRING | |
| 32 | XKAY-01354 | [3] | FLANGE | |
| 33 | XKAY-01355 | [4] | O-RING | |
| 35 | XKAY-01357 | [1] | H/D VALVE ASSY | |
| 44 | XKAY-01367 | [2] | FLANGE | |
| N49. | XKAY-01485 | [2] | PLUG ASSY | |
| N51. | XKAY-01497 | [24] | BOLT-SOCKET HEAD | |
| N52. | XKAY-01498 | [2] | BOLT-SOCKET HEAD | |
| 60 | XKAY-01375 | [1] | O-RING | |
| 63 | XKAY-00065 | [1] | PLUG | |
| N65. | XKAY-01499 | [12] | BOLT-SOCKET HEAD | |
| N. | @ | [1] | NOT INDIVIDUALLY SUPPLIED |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | MAIN CONTROL VALVE | SEE 4055 |
| 2 | 31QB-17620 | [1] | HOUSING-P2 | |
| 3 | 31QB-17630 | [1] | SPOOL KIT-TRAVEL | |
| 4 | 31QB-17640 | [1] | SPOOL KIT - ARM1 | TYPE 2 |
| 4 | 31QB-17641 | [1] | SPOOL KIT - ARM 1 | TYPE 3 |
| 7 | 31QB-17670 | [1] | SPOOL KIT - SWING | |
| 9 | 31QB-17690 | [1] | SPOOL KIT - BOOM 2 | TYPE 2 |
| 9 | 31QB-17691 | [1] | SPOOL KIT - BOOM2 | TYPE 3 |
| 10 | 31QB-17700 | [1] | SPOOL KIT - OPTION | |
| N13. | 31QB-17960 | [1] | LOGIC VALVE-SWING | |
| 13 | 31QB-17960K | [1] | LOGIC VALVE-SWING | |
| 14 | 31QB-17980 | [1] | HOLDING VALVE | |
| 16 | 31QB-17730 | [1] | MAIN RELIEF VALVE | |
| 16 | 31QB-17730K | [1] | MAIN RELIEF VALVE | |
| 23 | 31QB-17910 | [1] | PLUG ASSY-SIGNAL | |
| 28 | 31N4-18090 | [1] | PLUG | |
| 29 | 31N8-17500 | [1] | PLUG | |
| 32 | 31QB-17840 | [5] | PILOT CAP-LARGE | |
| 33 | 31QB-17850 | [5] | PILOT CAP-SMALL | |
| 34 | 31QB-17880 | [4] | FLANGE-LOAD CHECK | |
| 35 | 31QB-17890 | [2] | FLANGE-MR | |
| 36 | 31QB-17900 | [2] | FLANGE-OPTION | |
| 37 | 31QB-18620 | [1] | POPPET-MR | |
| 38 | 31QB-18630 | [3] | POPPET-LOAD CHECK | |
| 39 | 31QB-18640 | [1] | POPPET-LOAD CHECK | |
| 40 | 31QB-18650 | [1] | POPPET-MAIN H/D | |
| 45 | 31QB-17990 | [1] | SPACER ASSY-MR | |
| 47 | 31QB-18700 | [1] | SPRING-MR | |
| 48 | 31QB-18710 | [5] | SPRING-LOAD CHECK | |
| 52 | S632-055004 | [10] | O-RING | |
| 53 | S631-041004 | [6] | O-RING | |
| 54 | S631-026004 | [4] | O-RING | |
| 56 | S631-010004 | [1] | O-RING | |
| 58 | Y171-024001 | [2] | O-RING | TYPE 2 |
| 58 | Y171-024004 | [2] | O-RING | TYPE 3 |
| 59 | S109-120556 | [4] | BOLT-SOCKET | |
| 60 | S109-100406 | [4] | BOLT-SOCKET | |
| 62 | S109-121206 | [4] | BOLT-SOCKET | |
| 63 | S109-120456 | [36] | BOLT-SOCKET | |
| 64 | S109-100456 | [8] | BOLT-SOCKET | |
| 66 | S107-120154 | [12] | BOLT-SOCKET | |
| 67 | S107-100154 | [20] | BOLT-SOCKET | |
| 69 | 31N8-19450 | [10] | CAP-DUST | |
| 70 | 31N8-19460 | [7] | CAP-DUST | |
| 71 | 31QB-19600 | [1] | COVER 2-1/2 | |
| 72 | 31QB-19610 | [1] | GASKET 2-1/2 | |
| 73 | 31QB-19620 | [2] | COVER 1-1/4 | |
| 74 | 31QB-19630 | [2] | GASKET 1-1/4 | |
| 75 | 31QB-19640 | [5] | COVER 1 | |
| 76 | 31QB-19650 | [5] | GASKET 1 | |
| 77 | 31N8-19410 | [1] | NAME PLATE | |
| 78 | 31N8-19490 | [2] | RIVET-SCREW TYPE |
