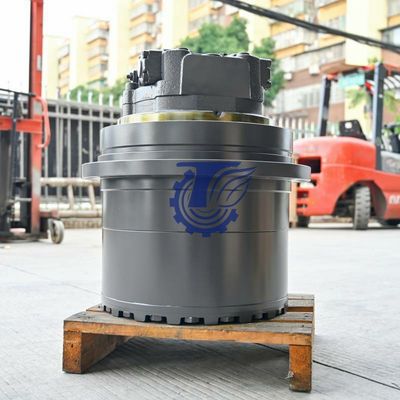

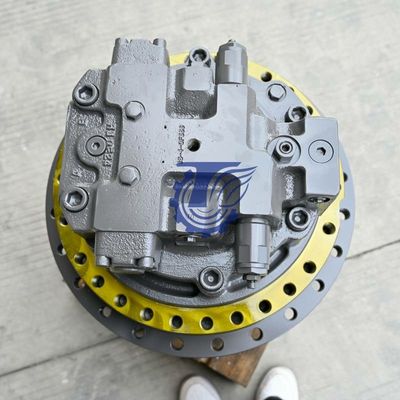

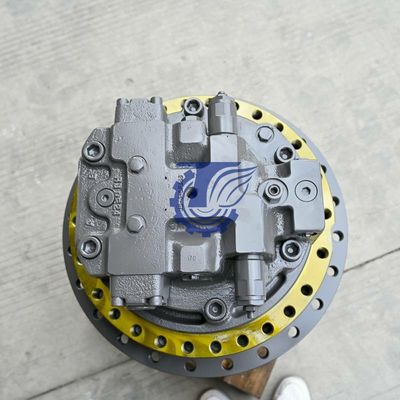

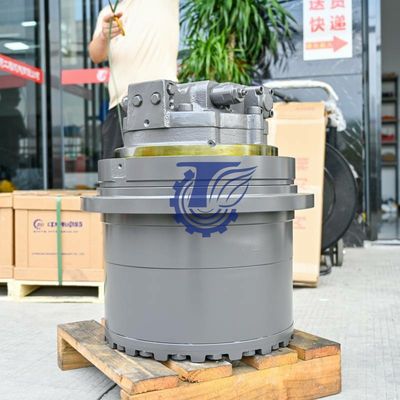

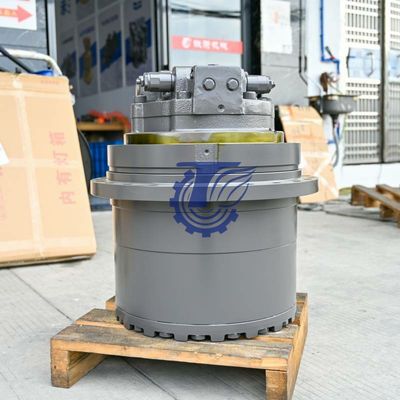

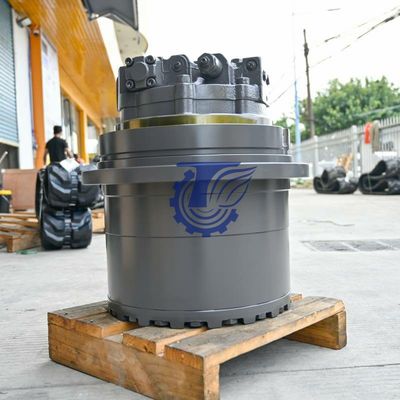

VOE14603461 VOE14713848 VOE14723003 VOE14566401 For VOLVO EC340D EC350D EC380D EC380DHR Travel Assembly Final Drive Travel Motor DRIVE GP-FINAL -WITH MOTOR Aftermarket Original
PRODUCT DESCRIPTION |
||
Model: VOE14603461 VOE14713848 VOE14723003 VOE14566401 For VOLVO EC340D EC350D EC380D EC380DHR Travel Assembly Final Drive Travel Motor DRIVE GP-FINAL -WITH MOTOR Aftermarket Original | Ategory: Final Drive |
|
Brand:TQ |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
Pos. | Part No | Qty | Parts name | Comments |
VOE14566401 | [1] | Transfer gearbox | ||
1 | VOE14566402 | [1] | Housing | |
2 | VOE14566409 | [1] | Gear | |
3 | SA7117-38230 | [2] | Bearing | |
4 | VOE14566404 | [1] | Shim | |
VOE14566405 | [1] | Shim | ||
VOE14566406 | [1] | Shim | ||
VOE14566407 | [1] | Shim | ||
VOE14566408 | [1] | Shim | ||
5 | VOE14566403 | [1] | Retainer | |
6 | VOE14566410 | [1] | Planet carrier | |
7 | [1] | Carrier | ||
8 | VOE14566415 | [4] | Pin | |
9 | VOE14566413 | [4] | Planetary gear | |
10 | VOE14566414 | [8] | Washer | |
11 | SA9325-06012 | [4] | Spring pin | |
12 | SA8230-21020 | [1] | Thrust ring | |
13 | VOE14566412 | [4] | Needle bearing | |
14 | VOE983919 | [20] | Hex. socket screw | |
15 | VOE14566416 | [1] | Gear | |
16 | VOE14566418 | [1] | Planet carrier | |
17 | VOE14566423 | [3] | Pin | |
18 | [1] | Carrier | ||
19 | VOE14566421 | [3] | Planetary gear | |
20 | VOE14566422 | [6] | Washer | |
21 | SA9325-06012 | [3] | Spring pin | |
22 | VOE14566420 | [3] | Needle bearing | |
23 | VOE14566433 | [1] | Thrust washer | |
24 | VOE14566424 | [1] | Gear | |
25 | VOE14566425 | [1] | Planet carrier | |
26 | [1] | Carrier | ||
27 | VOE14566428 | [3] | Planetary gear | |
28 | VOE14566429 | [6] | Washer | |
29 | VOE14566430 | [3] | Pin | |
30 | SA9325-06012 | [3] | Spring pin | |
31 | VOE14566427 | [3] | Needle bearing | |
32 | VOE14569232 | [1] | Ring | |
33 | VOE14566417 | [1] | Ring | |
34 | VOE14566431 | [1] | Gear | |
35 | VOE914467 | [1] | Retaining ring | |
36 | VOE14566432 | [1] | Cover | |
37 | VOE60110006 | [18] | Hexagon screw | |
38 | SA9213-20000 | [18] | Spring washer | |
39 | VOE14883847 | [2] | Plug | |
40 | VOE990557 | [2] | O-ring | |
41 | VOE9324-21617 | [4] | Pin | |
42 | VOE14667679 | [1] | Seal |
Pos. | Part No | Qty | Parts name | Comments |
VOE14606699 | [1] | Travel motor | ||
1 | VOE14552647 | [1] | Casing | |
2 | VOE14565337 | [1] | Rod | |
3 | VOE14565336 | [1] | Pin | |
4 | VOE983507 | [1] | O-ring | |
5 | VOE983501 | [1] | O-ring | |
6 | VOE14528296 | [1] | Screw | |
7 | VOE997410 | [1] | Hexagon nut | |
8 | VOE14551525 | [1] | Pin | |
9 | VOE990585 | [2] | O-ring | |
10 | SA7242-10540 | [2] | Cover | |
11 | SA7242-10750 | [1] | Screw | |
12 | VOE983497 | [1] | O-ring | |
13 | SA9415-31021 | [7] | Plug | |
14 | VOE993320 | [7] | O-ring | |
15 | VOE14568912 | [2] | Relief valve | |
16 | SA9016-22019 | [2] | Hex. socket screw | |
17 | VOE14560637 | [9] | Plug | |
18 | SA9016-11209 | [8] | Hex. socket screw | |
19 | [2] | Plug | ||
20 | VOE993322 | [2] | O-ring | |
21 | VOE984229 | [4] | Hex. socket screw | |
22 | SA7242-10710 | [2] | Clamping plate | |
23 | SA7242-10720 | [2] | Guard | |
24 | VOE14880998 | [2] | Ball | |
25 | VOE14880006 | [1] | Name plate | |
26 | SA1010-11360 | [2] | Screw | |
27 | SA7242-10520 | [2] | Washer | |
28 | SA7242-10530 | [2] | Spring | |
29 | SA7242-11560 | [1] | Spring | |
30 | VOE14507000 | [1] | Spacer | |
31 | SA7242-11290 | [1] | Plug | |
32 | VOE983509 | [1] | O-ring | |
33 | VOE14509997 | [1] | Spool | |
34 | VOE14506994 | [1] | Spring | |
35 | VOE14506995 | [1] | Plug | |
36 | VOE983505 | [1] | O-ring | |
37 | VOE14579610 | Control plunger | ||
38 | VOE14565331 | [1] | Shaft | |
39 | VOE14640025 | [1] | Roller bearing | |
40 | VOE14506955 | [1] | Bearing | |
41 | VOE914472 | [1] | Snap ring | |
42 | [1] | Casing | ||
43 | SA7242-10590 | [1] | Seal | |
44 | SA8320-01810 | [1] | Retaining ring | |
45 | VOE14506958 | [2] | Pivot | |
46 | VOE14506959 | [1] | Piston | |
47 | VOE14551526 | [5] | Pin | |
48 | VOE14506982 | [3] | Plate | |
49 | VOE14506984 | [2] | Plate | |
50 | VOE14565332 | [1] | Piston | |
51 | VOE960262 | [1] | O-ring | |
52 | VOE990849 | [2] | O-ring | |
53 | VOE14568004 | [10] | Spring | |
54 | VOE14604842 | [1] | Plate | |
55 | [1] | Cylinder Block | ||
56 | VOE14506967 | [9] | Spring | |
57 | VOE14506968 | [1] | Spacer | |
58 | VOE14506970 | [1] | Guide | |
59 | VOE14506972 | [1] | Plate | |
60 | [9] | Pad | ||
61 | VOE14551797 | [9] | Piston | |
62 | VOE14506978 | [1] | Plate | |
63 | VOE14506950 | [1] | Spool | |
64 | VOE14880996 | [2] | Ball | |
100 | VOE14596398 | [1] | Seal |
FAQ
1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.
2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.
3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.
4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
Tieqi Construction Machinery is a distributor specializing in the wholesale of excavator hydraulic parts. The company is loTQed in Zhucun Construction Machinery Parts City, Guangzhou City, with convenient transportation and developed logistics. The operating products cover all brands of excavator hydraulic pumps, travel motors, swing motors, multi-way valves and other first-class brand hydraulic components at home and abroad.
The company has a group of professional technical engineers engaged in the sales and maintenance of hydraulic pumps and motors. We have accumulated rich experience in many years of practice, and can provide customers with technical consultation, spare parts supply, and fast and high-quality after-sales service, which has won the trust and praise of customers at home and abroad.
Our products are mainly suitable for Komatsu, Hitachi, Carter, Kato, Kobelco, Sumitomo, Volvo, Doosan, Hyundai, Case, BobTQ, Yanmar, Kubota, Sany, XCMG, Yuchai, Lonking and other models.
Sales agent: KAWASAK, KOMATSU, HITACHI, TQERPILLAR, TOSHIBA, REXROTH, SAUER DANFOSS, EATON, Vickers (VIKERS), NACHI, VOLVO, KYB, LINDE, Nabtesco piston pumps and hydraulic motor series and assembly accessories.
