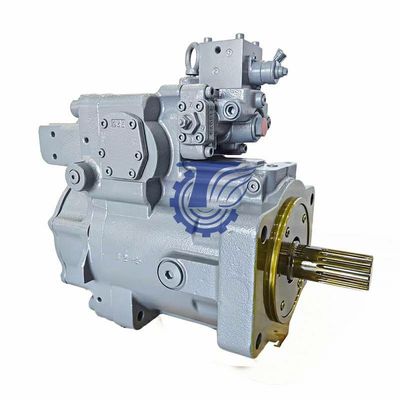

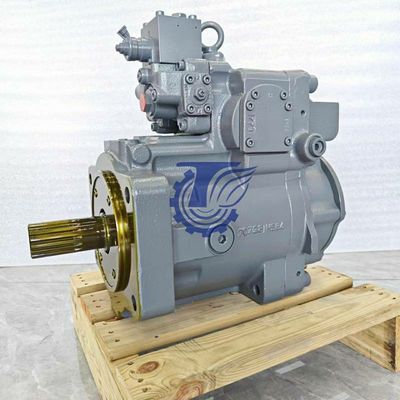

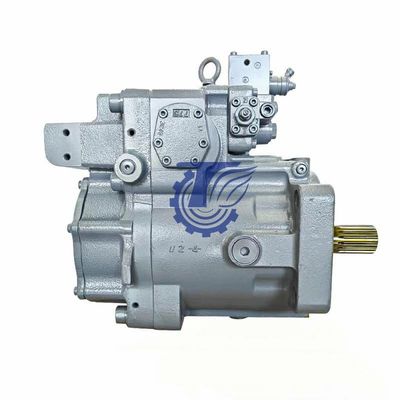

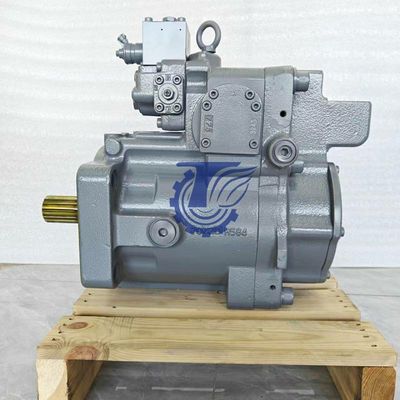

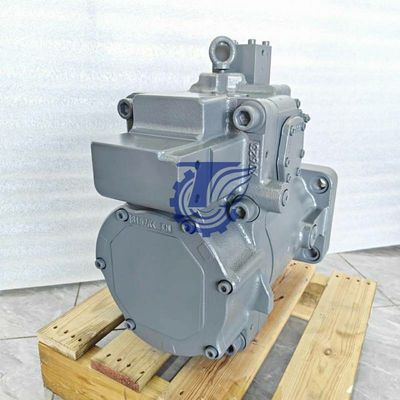

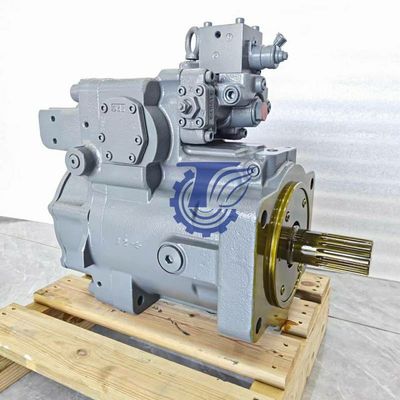

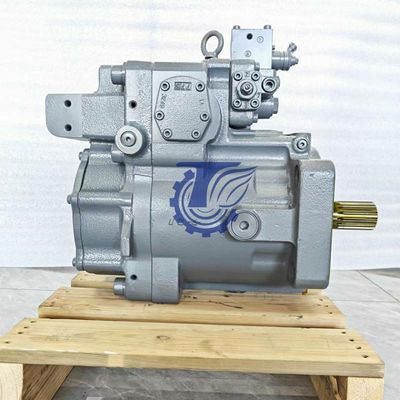

9298855 YB60000246 YB60000245 YB60000230 For HITACHI ZX670-5B ZX670-5G ZX870-5G ZX870-5B Excavator Parts Hydraulic Piston Pump HPK300 Hydraulic Pump MAIN PUMP PUMP DEVICE Aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 9298855 YB60000246 YB60000245 YB60000230 For HITACHI ZX670-5B ZX670-5G ZX870-5G ZX870-5B Excavator Parts Hydraulic Piston Pump HPK300 Hydraulic Pump MAIN PUMP PUMP DEVICE Aftermarket Original | category: Hydraulic Pump |
|
| Brand: HITACHI |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 9298855 | [1] | PUMP;UNIT | ||
| 1 | 0004541 | [1] | CASING;PUMP | |
| 3 | 2048195 | [1] | SHAFT;DRIVE | |
| 4 | 488075 | [2] | RING;RETAINING | |
| 5 | 4645955 | [1] | SPACER | |
| 6 | 4440264 | [1] | BRG.;ROL. | |
| 8 | 4472903 | [1] | RING;RETAINING | |
| 10 | 1030551 | [1] | PLATE | |
| 11 | 4343074 | [2] | O-RING | |
| 12 | 4212842 | [1] | PIN;KNOCK | |
| 13 | 4427347 | [2] | PLUG | |
| 14 | M341025 | [4] | BOLT;SOCKET | |
| 16 | 3095197 | [1] | PISTON;SERVO | |
| 18 | 1030456 | [1] | PLATE;SWASH | |
| 19 | 4198956 | [1] | PIN | |
| 20 | 4481827 | [1] | PLATE;CAM | |
| 22 | 4473215 | [1] | BUSHING;GUIDE | |
| 24 | 2050591 | [1] | COVER | |
| 25 | 4632389 | [1] | SEAL;OIL | |
| 26 | 4153552 | [1] | O-RING | |
| 27 | M340825 | [4] | BOLT;SOCKET | |
| 29 | 8106487 | [1] | ROTOR;GROUP | |
| 29A. | +++++++ | [1] | ROTOR | |
| 29B. | +++++++ | [1] | PLATE;VALVE | |
| 31 | 4452970 | [1] | SPRING;DISC | |
| 32 | 3090660 | [1] | BUSHING | |
| 34 | 3090648 | [1] | RETAINER | |
| 36 | 8088402 | [9] | PISTON | |
| 39 | 0007287 | [1] | BLOCK;PORT | |
| 41 | 4645945 | [1] | RING | |
| 42 | 4472907 | [1] | PIN;KNOCK | |
| 43 | 4472905 | [1] | BRG.;NEEDLE | |
| 45 | 4409640 | [1] | PIN;KNOCK | |
| 46 | 4626259 | [1] | PIN | |
| 47 | 4436322 | [2] | RING;BACK-UP | |
| 48 | 4180349 | [2] | O-RING | |
| 50 | 4473983 | [1] | O-RING | |
| 51 | M342080 | [6] | BOLT;SOCKET | |
| 52 | J222020 | [6] | WASHER | |
| 54 | 4473248 | [1] | STOPPER | |
| 55 | 4196265 | [1] | O-RING | |
| 56 | 4473249 | [1] | STOPPER | |
| 57 | 4292386 | [1] | O-RING | |
| 58 | 4427347 | [2] | PLUG | |
| 59 | M340825 | [12] | BOLT;SOCKET | |
| 61 | 1030458 | [1] | IMPELLER | |
| 62 | 2048157 | [1] | COVER | |
| 63 | 4633509 | [1] | O-RING | |
| 64 | M341025 | [6] | BOLT;SOCKET | |
| 66 | 3095201 | [1] | LINK | |
| 67 | 4610111 | [1] | LEVER | |
| 68 | 4116304 | [1] | PIN;SPRING | |
| 69 | 4472909 | [1] | PIN | |
| 70 | 4146370 | [2] | RING;RETAINING | |
| 71 | 4200227 | [1] | PIN | |
| 75 | 4515041 | [2] | PIN;SPRING | |
| 76 | 4153537 | [1] | O-RING | |
| 77 | 4180349 | [3] | O-RING | |
| 80 | 4703324 | [1] | SENSOR;PRES. | |
| 80A. | 4365826 | [1] | O-RING | |
| 81 | 4336165 | [3] | PLUG | |
| 82 | 4366517 | [3] | O-RING | |
| 84 | 4336166 | [1] | PLUG | |
| 85 | 4297379 | [1] | O-RING | |
| 87 | 4336169 | [4] | PLUG | |
| 88 | 4153103 | [4] | O-RING | |
| 90 | 4085511 | [1] | PLUG | |
| 91 | 4297379 | [1] | O-RING | |
| 100 | YB00000857 | [1] | KIT;SEAL |
| Pos. | Part No | Qty | Parts name | Comments |
| 9298854 | [1] | PUMP;PISTON | ||
| 1 | 9298855 | [1] | PUMP;UNIT | |
| 3 | 9298856 | [1] | REGULATOR;PUMP | I YB60000395 (for assembly of machine) |
| 3 | YB60000395 | [1] | REGULATOR;PUMP | (for transportation) |
| 5 | +++++++ | [1] | NAME-PLATE | |
| 6 | M492564 | [2] | SCREW;DRIVE |
