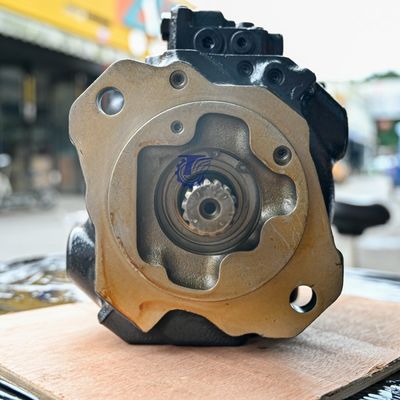

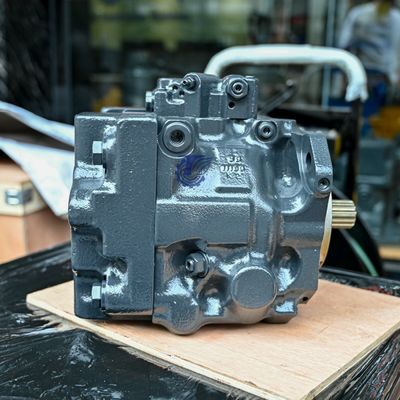

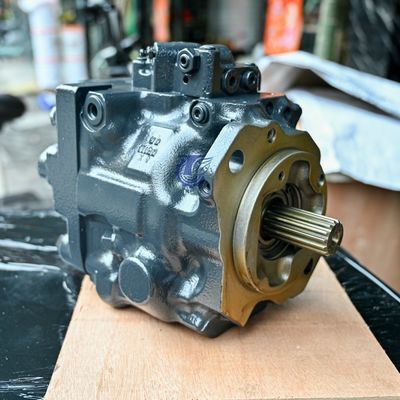

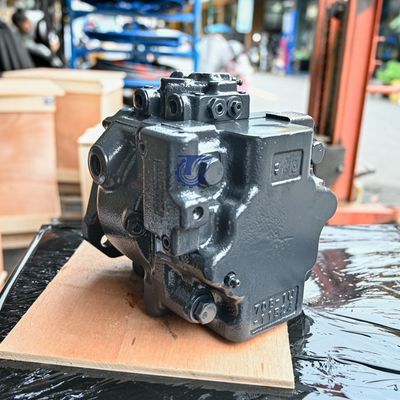

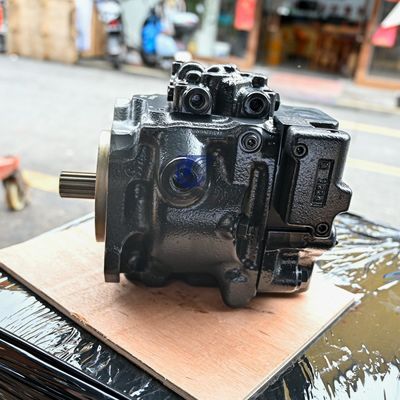

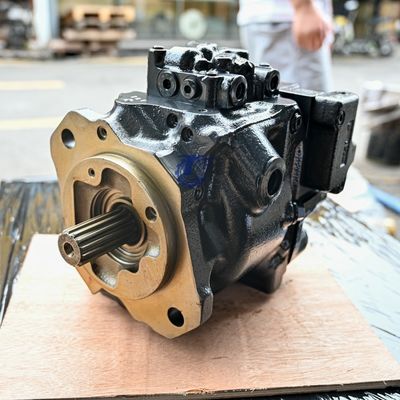

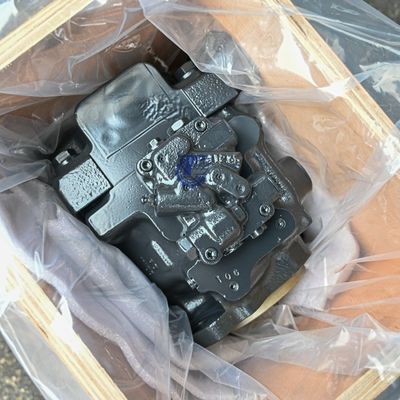

708-1W-00151 708-1W-00152 708-1W-00150 For Komatsu GD555-5 GD675-5 GD655-5 GRADERS Hydraulic Piston Pump WORK EQUIPMENT AND STEERING PUMP PUMP ASSY Pump Assembly Aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 708-1W-00151 708-1W-00152 708-1W-00150 For Komatsu GD555-5 GD675-5 GD655-5 GRADERS Hydraulic Piston Pump WORK EQUIPMENT AND STEERING PUMP PUMP ASSY Pump Assembly Aftermarket Original | category: Hydraulic Pump |
|
| Brand: KOMATSU |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1W-00153 | [1] | Pump Assembly Komatsu China | ||
| 708-1W-01153 | [1] | Pump Subassembly Komatsu China | ||
| 1 | 708-1W-43110 | [1] | Block, Cylinder Komatsu China | |
| 1 | 708-1W-43310 | [1] | Cylinder Block Komatsu | 3.6 kg. |
| 2 | 708-1W-43120 | [1] | Plate, Valve Komatsu China | |
| 2 | 708-1W-43620 | [1] | Plate, Valve Komatsu China | |
| 3 | 720-68-19610 | [1] | Pin Komatsu | 0.002 kg. |
| 4 | 708-1W-43130 | [2] | Seat Komatsu China | |
| 5 | 708-1W-43140 | [1] | Spring Komatsu | 0.15 kg. |
| 6 | 04065-04818 | [1] | Ring, Snap Komatsu OEM | 0.007 kg. |
| 7 | 708-1W-43320 | [1] | Guide, Retainer Komatsu | 0.08 kg. |
| 7 | 708-1W-43350 | [1] | Guide, Retainer Komatsu | 0.08 kg. |
| 8 | 708-3T-13360 | [3] | Pin Komatsu | 0.006 kg. |
| 9 | 708-1W-43341 | [1] | Retainer, Shoe Komatsu | 0.25 kg. |
| 10 | 708-1U-13310 | [9] | Piston Subassembly Komatsu | 0.2 kg. |
| 11 | 708-1W-44170 | [1] | Piston Komatsu China | |
| 11 | 708-1W-44130 | [1] | Piston Komatsu | 0.095 kg. |
| analogs:["7081W44120", "7081W44110"] | ||||
| 11 | 708-1W-44120 | [1] | Piston Komatsu | 0.095 kg. |
| analogs:["7081W44110", "7081W44130"] | ||||
| 12 | 708-1W-44140 | [1] | Spring Komatsu China | |
| 12 | 708-3T-14120 | [1] | Spring Komatsu | 0.002 kg. |
| 13 | 708-1U-14240 | [2] | Screw Komatsu | 0.000 kg. |
| 14 | 07000-B2011 | [2] | O-ring Komatsu | 0.001 kg. |
| 14 | 07000-12011 | [2] | O-ring Komatsu | 0.001 kg. |
| analogs:["YM24315000110", "0700002011"] | ||||
| 15 | 01643-31232 | [2] | Washer Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 16 | 01582-11210 | [2] | Nut Komatsu | 0.015 kg |
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1W-00152 | [1] | Pump Assembly Komatsu China | ||
| 708-1W-00151 | [1] | Pump Assembly Komatsu China | ||
| 708-1W-00150 | [1] | Pump Assembly Komatsu China | ||
| 708-1W-01152 | [1] | Pump Subassembly Komatsu China | ||
| 708-1W-01151 | [1] | Pump Subassembly Komatsu China | ||
| 708-1W-01150 | [1] | Pump Subassembly Komatsu China | ||
| 708-1W-04120 | [1] | Case Assembly Komatsu China | ||
| 5 | 708-8E-16160 | [2] | Plug Komatsu | 0.01 kg. |
| 6 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| analogs:["0700201023"] | ||||
| 7 | 07040-11409 | [1] | Plug Komatsu | 0.033 kg. |
| 8 | 07002-11423 | [1] | O-ring Komatsu China | 0.001 kg. |
| analogs:["0700201423"] | ||||
| 9 | 706-73-42370 | [1] | O-ring Komatsu | 0.005 kg. |
| 10 | 07000-B1009 | [1] | O-ring Komatsu China | 0.001 kg. |
| analogs:["7082L23910"] | ||||
| 11 | 708-1L-29340 | [1] | Orifice Komatsu | 0.001 kg. |
| 12 | 04020-01024 | [1] | Pin, Dowel Komatsu | 0.015 kg. |
| analogs:["PZF890001197"] | ||||
| 13 | 01010-61470 | [4] | Bolt Komatsu | 0.109 kg. |
| analogs:["0101031470", "0101081470", "0101051470"] | ||||
| 14 | 01643-31445 | [4] | Washer, Flat Komatsu | 0.019 kg. |
| analogs:["0164301432"] | ||||
| 15 | 708-1W-41621 | [1] | Cap, End Komatsu China | |
| 16 | 708-1W-42120 | [1] | Bearing Komatsu | 0.2 kg. |
| 17 | 708-1U-13461 | [2] | Ball, Retainer Komatsu | 0.000 kg. |
| 18 | 708-1W-43450 | [1] | Cam, Rocker Komatsu | 0.000 kg. |
| 19 | 04260-01270 | [1] | Ball Komatsu OEM | 0.009 kg. |
| 20 | 708-1U-12110 | [1] | Shaft Komatsu | 1.612 kg. |
| 21 | 708-1W-42110 | [1] | Bearing Komatsu | 0.23 kg. |
| 22 | 708-1W-42140 | [1] | Case, Seal Komatsu | 0.2 kg. |
| 23 | 708-1W-42130 | [1] | Seal, Oil Komatsu | 0.032 kg. |
| 24 | 07000-B2060 | [1] | O-ring Komatsu | 0.002 kg. |
| 25 | 708-1W-05821 | [1] | Spacer Kit Komatsu | 0.000 kg. |
| analogs:["7081W05820"] | ||||
| 26 | 04065-06825 | [1] | Ring, Snap Komatsu | 0.018 kg. |
