31N6-18000 31N6-18001 31N6-18002 For Hyundai R210LC7 R210LC7H R215LC7 RD210-7 RD220-7 Excavator Hydraulic Main Control Valve Construction Machinery Parts Aftermarket High quality Original
| PRODUCT DESCRIPTION |
||
| Model: 31N6-18000 31N6-18001 31N6-18002 For Hyundai R210LC7 R210LC7H R215LC7 RD210-7 RD220-7 Excavator Hydraulic Main Control Valve Construction Machinery Parts Aftermarket High quality Original | Ategory: Control valve |
|
| Brand:Hyundai |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmatio | ||

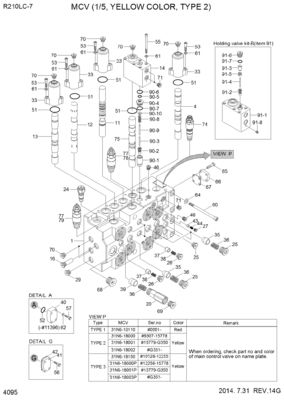

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N6-18000 | [1] | MAIN CONTROL VALVE | |
| *. | 31N6-18001 | [1] | MAIN CONTROL VALVE | |
| *. | 31N6-18002 | [1] | MAIN CONTROL VALVE | |
| *. | 31N6-18001 | [1] | MAIN CONTROL VALVE | |
| *. | 31N6-18002 | [1] | MAIN CONTROL VALVE | |
| N1. | 31N8-17601 | [1] | HOUSING-P1 | |
| 4 | 31N6-17620 | [1] | SPOOL-TRAVEL | |
| 11 | 31Q8-17680 | [1] | SPOOL ASSY-ARM 2 | |
| 11 | 31N6-17690 | [1] | SPOOL ASSY-ARM 2 | |
| 11 | 31Q8-17680 | [1] | SPOOL KIT- ARM 2 | |
| 14 | 31N8-17320 | [1] | VALVE ASSY-HOLDING | |
| 12 | 31N6-17700 | [1] | SPOOL ASSY-ARM REGEN | |
| 13 | 31N6-17540 | [1] | SPOOL ASSY-BUCKET | |
| 14 | 31N8-17320 | [1] | VALVE ASSY-HOLDING | |
| N90. | 31N8-17330 | [1] | HOLDING VALVE KIT-A | SEE ILLUST |
| 90-1. | 31N8-18380 | [1] | POPPET-MAIN | |
| 90-2. | 31N8-18400 | [1] | RESTRICTOR | |
| 90-3. | 31N8-18480 | [1] | C-RING | |
| 90-4. | 31N8-18430 | [1] | POPPET-SEAT | |
| 90-5. | S641-010102 | [1] | RING-BACK UP | |
| 90-6. | S631-10A004 | [1] | O-RING | |
| 90-7. | 31N8-19650 | [1] | O-RING | |
| 90-8. | 31N8-18390 | [1] | SPRING-PILOT | |
| 90-9. | 31N8-18420 | [1] | PILOT POPPET-H/D | |
| 90-10. | 31N8-18450 | [1] | GUIDE-POPPET | |
| N91. | 31N8-17340 | [1] | HOLDING VALVE KIT-B | SEE ILLUST |
| 91-1. | 31N8-18160 | [1] | BLOCK-HOLDING | |
| 91-2. | 31N8-18410 | [1] | GUIDE-PISTON | |
| 44 | 31N8-18540 | [1] | SPRING-SIGNAL | |
| 91-3. | 31N8-18470 | [1] | PISTON 2-MAIN | |
| 91-4. | 31N8-18440 | [1] | PISTON-PILOT | |
| 91-5. | 31N8-18460 | [1] | SPRING 1 | |
| 91-6. | 31N8-18620 | [1] | PLUG-PF1/2 | |
| 91-7. | S631-018004 | [1] | O-RING | |
| 91-8. | 31N8-18680 | [1] | PLUG | |
| 16 | 31N6-17750 | [1] | PLUG-ORIFICE | |
| 20 | 31N8-17420 | [1] | VALVE-CHECK | |
| 24 | 31N6-17740 | [1] | VALVE ASSY-NEGACON | |
| 25 | 31N8-17510 | [5] | PLUG-LOAD CHECK | |
| 26 | 31N8-17520 | [4] | PLUG-LOAD CHECK | |
| 27 | 31N4-17900 | [1] | PLUG KIT | |
| 29 | 31N8-17550 | [1] | PLUG | |
| 33 | 31N8-18140 | [4] | COVER B1-PILOT | |
| 35 | 31N8-18190 | [4] | POPPET 1-L/C | |
| 36 | 31N8-18200 | [5] | SPRING 1-L/C | |
| 37 | 31N8-18220 | [4] | POPPET 2-L/C | |
| 38 | 31N8-18230 | [4] | SPRING 2-L/C | |
| 39 | 31N8-18370 | [1] | POPPET-BKT L/C | |
| 40 | 31Q6-17910 | [1] | FLANGE-PORT PLUG | |
| 41 | 31N8-18980 | [6] | COVER 1 | |
| 75 | 31N6-17681 | [1] | SPOOL ASSY-BOOM 1 | |
| 42 | 31N8-18990 | [6] | GASKET 1 | |
| 43 | 31N8-18530 | [1] | POPPET-SIGNAL | |
| 44 | 31N8-18540 | [1] | SPRING-SIGNAL | |
| 45 | 31N8-18650 | [1] | SPRING-BC SPOOL | |
| 46 | 31N8-18680 | [2] | PLUG | |
| 51 | 31N8-19630 | [5] | O-RING | |
| 52 | S632-030004 | [1] | O-RING | |
| 53 | S107-080454 | [8] | BOLT-SOCKET | |
| 55 | S107-081054 | [5] | BOLT-SOCKET | |
| 56 | S017-100156 | [24] | BOLT-HEX | |
| 57 | S107-100204 | [4] | BOLT-SOCKET | |
| 60 | S107-161704 | [4] | BOLT-SOCKET | |
| 61 | S411-080006 | [13] | WASHER-SPRING | |
| 62 | S411-100006 | [4] | WASHER-SPRING | |
| N64. | S411-160006 | [4] | WASHER-SPRING | |
| N65. | S017-120156 | [4] | BOLT-HEX | |
| 66 | 31N8-19260 | [1] | COVER-TANK PORT | |
| 67 | 31N8-19270 | [1] | GASKET-TANK PORT | |
| 68 | 31N8-19430 | [1] | CAP-DUST | |
| 69 | 31N8-19440 | [1] | CAP-DUST | |
| 70 | 31N8-19450 | [7] | CAP-DUST | |
| 71 | 31N8-19460 | [3] | CAP-DUST | |
| 74 | 31N6-17400 | [1] | MAIN RELIEF VALVE | |
| 75 | 31N6-17720 | [1] | SPOOL ASSY-BOOM 1 | |
| 75 | 31N6-17681 | [1] | SPOOL ASSY-BOOM 1 | |
| 77 | 31N8-17430 | [2] | OVERLOAD RELIEF VALVE | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
