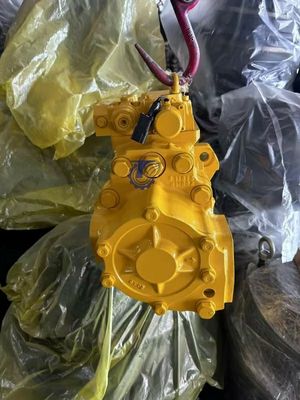

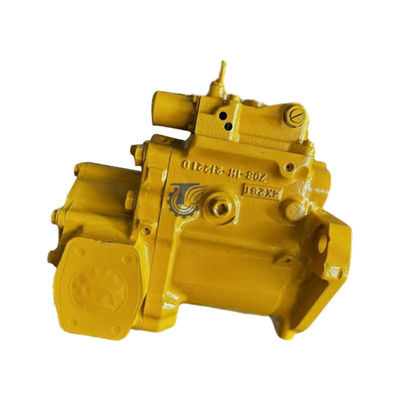

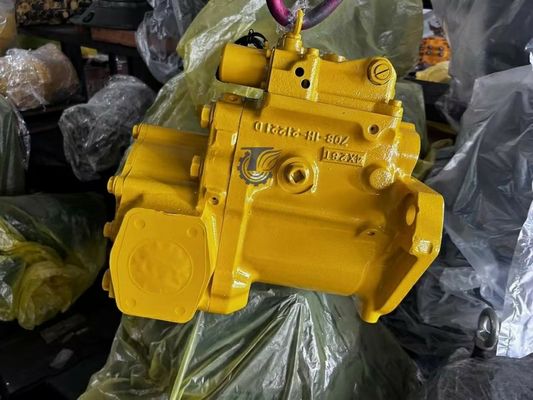

708-1H-00231 708-1H-01233 FOR KOMATSU D85EX-15 D85MS-15 D85PX BULLDOZERS HYDRAULIC MAIN PUMP HSS PUMP AFTERMARKET HIGH QUALITY HYDRAULIC PARTS
| PRODUCT DESCRIPTION |
||
| Model:708-1H-00231 708-1H-01233 FOR KOMATSU D85EX-15 D85MS-15 D85PX BULLDOZERS HYDRAULIC MAIN PUMP HSS PUMP AFTERMARKET HIGH QUALITY HYDRAULIC PARTS | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1H-00231 | [1] | PUMP ASSY Komatsu | 106 kg. | |
| 708-1H-01234 | [1] | PUMP SUB ASSY Komatsu China | ||
| 708-2H-04770 | [1] | BLOCK ASSY,REAR Komatsu China | ||
| 3 | 708-18-13230 | [1] | PIN Komatsu | 0.01 kg. |
| 4 | 708-2H-23350 | [1] | GUIDE,RETAINER Komatsu | 0.24 kg. |
| analogs:["R7082H23350"] | ||||
| 5 | 708-2H-23360 | [3] | PIN Komatsu | 0.006 kg. |
| 6 | 708-2H-33343 | [1] | RETAINER,SHOE Komatsu | 0.45 kg. |
| 7 | 708-2H-33150 | [1] | SPRING Komatsu | 0.29 kg. |
| 8 | 708-2H-33140 | [1] | SEAT Komatsu | 0.1 kg. |
| 9 | 708-2H-23141 | [1] | SEAT Komatsu | 0.03 kg. |
| 10 | 04065-05820 | [1] | RING Komatsu | 0.01 kg. |
| 11 | 708-2H-33311 | [9] | PISTON SUB ASSY Komatsu | 0.36 kg. |
| 708-1H-04460 | [1] | CRADLE ASSY Komatsu China | ||
| 14 | 04020-01434 | [1] | PIN,DOWEL Komatsu | 0.044 kg. |
| 15 | 07000-B1009 | [1] | O-RING Komatsu China | 0.001 kg. |
| analogs:["7082L23910"] | ||||
| 16 | 01252-61235 | [6] | BOLT Komatsu | 0.048 kg. |
| analogs:["801105554", "0125231235"] |
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1H-00231 | [1] | PUMP ASSY Komatsu | 106 kg. | |
| 708-1H-01234 | [1] | PUMP SUB ASSY Komatsu China | ||
| 1 | 708-1H-34110 | [1] | PISTON Komatsu China | |
| 2 | 708-2H-24220 | [1] | ROD Komatsu China | |
| 3 | 708-2H-24160 | [1] | STOPPER Komatsu China | |
| 4 | 07000-B3028 | [1] | O-RING Komatsu | 0.001 kg. |
| 5 | 07001-03028 | [1] | RING Komatsu | 0.01 kg. |
| 6 | 708-2H-24320 | [1] | SCREW Komatsu China | |
| 7 | 01583-12414 | [1] | NUT Komatsu | 0.074 kg. |
| 8 | 01643-32460 | [1] | WASHER Komatsu China | 0.063 kg. |
| analogs:["R0164332460"] | ||||
| 9 | 708-1H-24210 | [1] | SCREW Komatsu China | |
| 10 | 07002-62434 | [1] | O-RING Komatsu | 0.001 kg. |
| analogs:["7081W28910"] | ||||
| 11 | 708-2H-24140 | [2] | SPRING Komatsu | 0.123 kg. |
| 12 | 708-2H-24130 | [2] | PLUG Komatsu China | |
| 13 | 07002-63634 | [2] | O-RING Komatsu | 0.001 kg. |
| analogs:["7082L24620"] | ||||
| 14 | 04020-00514 | [2] | PIN Komatsu | 0.002 kg. |
| 15 | 708-2H-25870 | [1] | CAM Komatsu | 0.12 kg. |
| 16 | 01010-80825 | [1] | BOLT Komatsu | 0.015 kg. |
| analogs:["0101050825", "01010D0825", "801015087"] | ||||
| 17 | 01643-30823 | [1] | WASHER Komatsu | 0.004 kg. |
| analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 18 | 708-1H-21660 | [1] | IMPELLER Komatsu China | |
| 19 | 708-1E-05010 | [1] | WASHER KIT Komatsu | 0.056 kg. |
| 20 | 04010-00522 | [1] | KEY Komatsu China | |
| analogs:["UD0092652200", "0401010522"] | ||||
| 21 | 708-1E-11640 | [1] | WASHER Komatsu China | |
| 23 | 708-1H-31620 | [1] | COVER Komatsu China | |
| 24 | 708-1H-32530 | [1] | O-RING Komatsu | 0.01 kg. |
| 25 | 01010-81230 | [6] | BOLT Komatsu | 0.043 kg. |
| analogs:["0101051230", "01010B1230"] | ||||
| 26 | 01643-31232 | [6] | WASHER Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
