2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket

1 PCS
MOQ
Negotiable price
Price
2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name:: 2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket
Applicable Machine Model:: DOOSAN Excavator 400 450-3-5
Applicable Industries:: Mechanical Repair Shops, Retail, Construction, Energy, Mining
Category:: Final Drive
Condition:: NEW/REBUILT
Brand: TQ
Basic Infomation
Place of Origin: China
Brand Name: TQ
Certification: CE,ISO
Model Number: 2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket
Payment & Shipping Terms
Packaging Details: Wooden case or as required
Delivery Time: 5-8 Weekdays
Payment Terms: Western Union, T/T
Supply Ability: 300pcs /Month
Product Description

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket



PRODUCT DESCRIPTION
Model: 2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket Ategory: Final Drive
Brand:TQ Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation



2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 0









Pos. Part No Qty Parts name Comments
-. 2401-9167A [2] MOTOR;TRAVEL
100 20460-62304 [1] MOTOR;PISTON
101 20461-63215 [1] CASE
102 20463-61307 [1] PLATE ASSY;BASE
102-1. 20461-67901 [1] PLATE;BASE
102-13. 20461-61308 [1] SPRING
102-14. 20461-52406 [1] PLUG
102-15. 95113-01800 [2] O-RING 1BP-18
102-16. 20461-61402 [1] GUIDE;SPRING
102-17. 20461-62401 [1] PLUG
102-18. 94341-06162 [2] WASHER
102-19. 97123-02111 [3] PLUG
102-2. 21963-50222 [1] PLUNGER ASSY
102-20. 21961-40804 [2] ORIFICE
102-21. 97123-03111 [1] PLUG
102-22. 21961-50801 [2] ORIFICE
102-3. 21961-50502 [2] SEAT;SPRING
102-4. 21961-50421 [2] SPRING
102-5. 21961-50518 [2] SEAT;SPRING
102-6. 21963-50615 [2] CAP ASSY
102-7. 21963-40190 [2] RELIEF VALVE ASSY
102-8. 15096-01010 [12] PLUG
102-9. 20463-60908 [1] VALVE ASSY
103 20461-60212 [1] SHAFT
104 20461-61512 [1] BLOCK;CYLINDER
105 20461-62307 [1] PISTON;VALVE
106 20462-60112 [9] PISTON ASSY
107 20461-61105 [1] PLATE;RETAINER
108 20461-67705 [1] HOLDER;RETAINER
109 20461-67411 [1] PLATE;WASHER
110 20461-69206 [2] BALL;STEEL
111 20462-60113 [2] PISTON ASSY
112 20461-56901 [1] BEARING;ROLLER
113 20461-66903 [1] BEARING;ROLLER
114 20461-68603 [1] RING;SNAP
115 20461-61403 [1] SEAT;SPRING
116 20461-61309 [1] SPRING
117 20461-61404 [1] SEAT;SPRING
118 20461-50801 [1] PIN
119 20461-60801 [3] PIN
120 92703-14450 [10] BOLT M14X45
121 20461-52101 [1] SEAL;OIL
122 20461-65205 [1] O-RING
123 20461-66701 [1] O-RING
125 20461-69408 [1] PISTON;BRAKE
126 20461-69604 [3] PLATE;FRICTION
127 20461-69504 [4] DISC
128 20361-40845 [4] PIN
129 20461-51302 [8] SPRING
130 20461-66703 [1] O-RING
131 20381-19807 [1] O-RING
133 95113-01000 [4] O-RING 1BP-10
134 15096-01010 [6] PLUG
135 21961-40807 [1] ORIFICE
136 95113-01800 [2] O-RING 1BP-18
137 20461-52406 [2] PLUG
140 20461-61310 [2] SPRING
141 20461-51310 [4] SPRING
142 91511-05050 [1] SCREW;DRIVE
2-1. 21961-50214 [1] PLUNGER
2-2. 21961-50306 [2] VALVE;CHECK
2-3. 21961-50403 [2] SPRING
2-4. 21961-50627 [2] PLUG
2-5. 95113-02100 [2] O-RING 1BP-21
200 20940-65420 [1] BOX;GEAR
201 20943-60143 [1] HOLDER A S/A
201-1. 20941-61063 [1] HOLDER A
201-2. 20941-61653 [3] GEAR;PLANETARY A
201-3. 20941-60427 [3] BEARING;NEEDLE
201-4. 20941-63912 [3] RACE;INNER
201-5. 20941-62223 [3] WASHER;THRUST
201-6. 20941-63307 [3] SCREW
201-7. 20941-62382 [1] PLATE;THRUST
202 20943-60144 [1] HOLDER B S/A
202-1. 20941-61109 [1] HOLDER B
202-2. 20941-61720 [4] GEAR;PLANETARY B
202-3. 20941-60428 [4] BEARING;NEEDLE
202-4. 20941-63911 [4] RACE;INNER
202-5. 20941-62222 [4] WASHER;THRUST
202-6. 20941-63307 [4] SCREW
202-7. 20941-62380 [1] PLATE;THRUST
203 20943-60145 [1] HOLDER C S/A
203-1. 20941-61207 [1] HOLDER C
203-2. 20941-61803 [4] GEAR;PLANETARY C
203-3. 20941-60429 [4] BEARING;NEEDLE
203-4. 20941-61925 [4] SHAFT;GEAR C
203-5. 20941-64001 [4] RACE;OUTER
203-7. 20941-62224 [8] WASHER;THRUST
203-8. 93711-80501 [4] PIN;SPRING
204 20941-61365 [1] GEAR;DRIVE
205 20941-62381 [1] PLATE;THRUST
206 20941-61421 [1] GEAR;SUN B
207 20946-89723 [1] RING;SNAP
208 20941-61503 [1] GEAR;SUN C
209 20941-63005 [1] RING;SNAP
210 20941-60180 [1] FLANGE
211 20366-99838 [1] SEAL;FLOATING
212 20367-99011 [2] BEARING;ANGULAR
213 20941-63542 [1] HOUSING
214 20946-92625 [1] SHIM 1.0T
214 20946-92626 [1] SHIM 0.5T
214 20941-62724 [1] SHIM 0.3T
214 20941-62725 [1] SHIM 0.1T
214 20941-62726 [1] SHIM 0.05T
215 20941-62609 [4] PIN
216 92703-20110 [4] BOLT M20X110
217 92703-18500 [16] BOLT M18X50
218 20946-92631 [4] PLATE
219 20941-64211 [1] GEAR;RING
221 92703-14110 [26] BOLT M14X110
222 20941-62610 [3] PIN
223 20941-62376 [1] PLATE;THRUST 2.3T
223 20941-62377 [1] PLATE;THRUST 2.8T
223 20941-62379 [1] PLATE;THRUST 3.2T
224 20941-64129 [1] COVER
225 92703-10200 [13] BOLT M10X20
226 20941-64901 [3] PLUG
228 20461-42401 [4] PLUG
229 20943-60201 [1] COUPLING ASSY
229-1. 20941-60901 [1] COUPLING
229-2. 93711-60631 [1] PIN;SPRING
23 95113-01100 [1] O-RING 1BP-10
231 94101-20511 [4] WASHER;SPRING
232 95113-02400 [3] O-RING
233 95113-01400 [4] O-RING
300 92703-14110 [3] BOLT M14X110
400 20631-33836 [1] PLATE;NAME
500 91911-01489 [2] SCREW;DRIVE
6-1. 21961-50718 [1] CAP
6-2. 21963-50701 [1] PISTON S/A
6-2A. 21961-51405 [1] PISTON
6-2B. 21961-41502 [1] GUIDE;SPRING
6-2C. 96311-04760 [1] BALL;STEEL
6-2D. 21961-40405 [1] SPRING
6-3. 21961-50422 [1] SPRING
6-4. 95123-04500 [1] O-RING
6-5. 92703-12400 [4] BOLT M12X40
7-1. 21961-40919 [1] HOUSING;RELIEF
7-10. 95113-02100 [1] O-RING 1BP-21
7-11. 95713-02100 [2] RING;BACK-UP
7-13. 21961-41509 [1] GUIDE;SPRING
7-14. 95113-01250 [1] O-RING 1BP-12.5
7-15. 21961-99032 [1] SCREW;SET
7-16. 93367-12072 [1] NUT M12
7-17. 95113-01500 [1] O-RING 1BP-15
7-18. 95712-01500 [2] RING;BACK-UP
7-2. 21961-41014 [1] POPPET
7-3. 21961-41605 [1] SEAL;POPPET
7-4. 21961-40525 [1] SEAT;SPRING
7-5. 21961-40444 [1] SPRING
7-6. 21961-40636 [1] PLUG
7-7. 21001-00182 [1] O-RING
7-9. 21961-41412 [1] PISTON;FREE
700 30521-90102 [1] PLUG;SHIPPING
800 30521-90106 [2] PLUG;SHIPPING
9-1. 20461-55804 [1] SPOOL A
9-3. 20461-59102 [1] FILTER
9-4. 95113-00600 [1] O-RING
9-5. 95113-00500 [1] O-RING 1BP-5
9-6. 95712-00600 [1] RING;BACK UP
9-7. 95712-00500 [1] RING;BACK UP
9-8. 94721-11101 [1] RING;SNAP
A1. 2046A-65123 [1] SEAL KIT(MOTOR) 2401-9167AKT
A1. 2401-9167AKT [1] SEAL KIT(MOTOR)
A2. 2094A-65140 [1] SEAL KIT(GEAR BOX)
B14. 2046B-62107 [1] CAP KIT
B15. 2046B-62302 [1] PLATE BASE KIT
B4. 150102-00685 [1]
B5. 2046B-61005 [1] PLATE RETAINER KIT
B6. 2094B-62708 [1] SHIM KIT
B7. 2094B-62319 [1] PLATE THRUST KIT

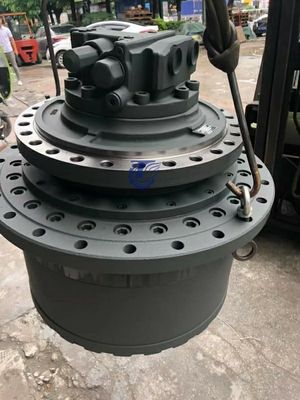

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 1

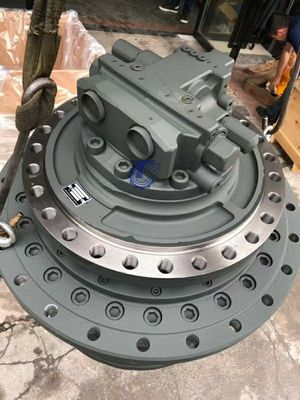

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 2

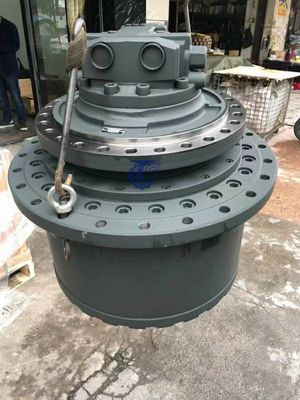

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 3

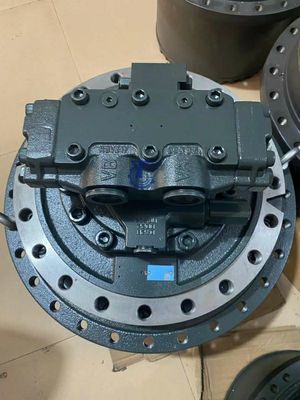

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 4

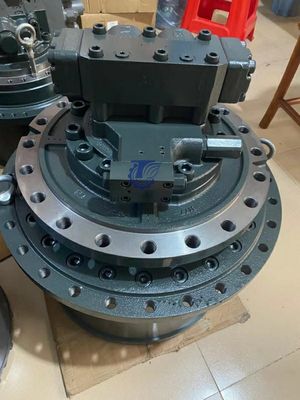

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 5

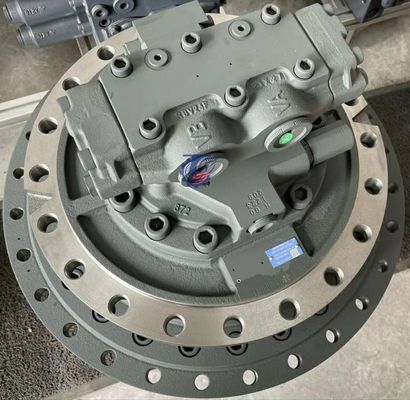

2401-9167A 2401-9167 For DOOSAN Excavator 400 450-3-5 GM70 Travel Assembly Final Drive Original Travel Motor Aftermarket 6

FAQ

1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.

2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.

3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.

4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)






Tieqi Construction Machinery is a distributor specializing in the wholesale of excavator hydraulic parts. The company is loTQed in Zhucun Construction Machinery Parts City, Guangzhou City, with convenient transportation and developed logistics. The operating products cover all brands of excavator hydraulic pumps, travel motors, swing motors, multi-way valves and other first-class brand hydraulic components at home and abroad.
The company has a group of professional technical engineers engaged in the sales and maintenance of hydraulic pumps and motors. We have accumulated rich experience in many years of practice, and can provide customers with technical consultation, spare parts supply, and fast and high-quality after-sales service, which has won the trust and praise of customers at home and abroad.
Our products are mainly suitable for Komatsu, Hitachi, Carter, Kato, Kobelco, Sumitomo, Volvo, Doosan, Hyundai, Case, BobTQ, Yanmar, Kubota, Sany, XCMG, Yuchai, Lonking and other models.
Sales agent: KAWASAK, KOMATSU, HITACHI, TQERPILLAR, TOSHIBA, REXROTH, SAUER DANFOSS, EATON, Vickers (VIKERS), NACHI, VOLVO, KYB, LINDE, Nabtesco piston pumps and hydraulic motor series and assembly accessories.





Why choose us?

1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?

2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?

3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?

4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.

5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
