VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor

1 PCS
MOQ
Negotiable price
Price
VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name:: VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor
Applicable Machine Model:: Volvo Excavator EC300D 350D 380D
Applicable Industries:: Mechanical Repair Shops, Retail, Construction, Energy, Mining
Category:: Final Drive
Condition:: NEW/REBUILT
Brand: TQ
Basic Infomation
Place of Origin: China
Brand Name: TQ
Certification: CE,ISO
Model Number: VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor
Payment & Shipping Terms
Packaging Details: Wooden case or as required
Delivery Time: 5-8 Weekdays
Payment Terms: Western Union, T/T
Supply Ability: 300pcs /Month
Product Description

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor



PRODUCT DESCRIPTION
Model: VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor Ategory: Final Drive
Brand:TQ Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

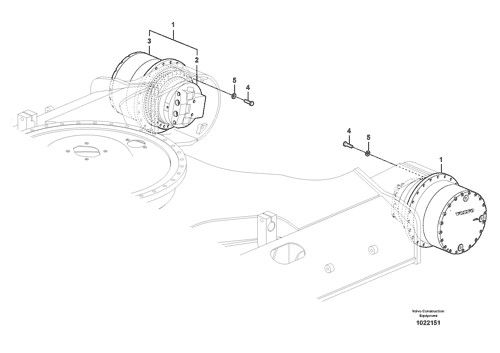

EC300D volvo part scheme

EC300D volvo part scheme

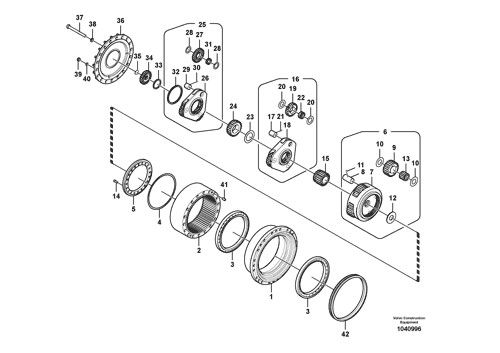

Pos. Part No Qty Parts name Comments
  VOE14667677 [1] Travel gearbox
1 VOE14566402 [1] Housing
2 VOE14566409 [1] Gear
3 SA7117-38230 [2] Bearing
4 VOE14566404 [1] Shim
  VOE14566405 [1] Shim
  VOE14566406 [1] Shim
  VOE14566407 [1] Shim
  VOE14566408 [1] Shim
5 VOE14566403 [1] Retainer
6 VOE14566410 [1] Planet carrier
7   [1] Carrier
8 VOE14566415 [4] Pin
9 VOE14566413 [4] Planetary gear
10 VOE14566414 [8] Washer
11 SA9325-06012 [4] Spring pin
12 SA8230-21020 [1] Thrust ring
13 VOE14566412 [4] Needle bearing
14 VOE983919 [20] Hex. socket screw
15 VOE14566416 [1] Gear
16 VOE14566418 [1] Planet carrier
17 VOE14566423 [3] Pin
18   [1] Carrier
19 VOE14566421 [3] Planetary gear
20 VOE14566422 [6] Washer
21 SA9325-06012 [3] Spring pin
22 VOE14566420 [3] Needle bearing
23 VOE14566433 [1] Thrust washer
24 VOE14566424 [1] Gear
25 VOE14566425 [1] Planet carrier
26   [1] Carrier
27 VOE14566428 [3] Planetary gear
28 VOE14566429 [6] Washer
29 VOE14566430 [3] Pin
30 SA9325-06012 [3] Spring pin
31 VOE14566427 [3] Needle bearing
32 VOE14569232 [1] Ring
33 VOE14566417 [1] Ring
34 VOE14566431 [1] Gear
35 VOE914467 [1] Retaining ring
36 VOE14566432 [1] Cover
37 VOE60110006 [18] Hexagon screw
38 SA9213-20000 [18] Spring washer
39 VOE14883847 [2] Plug
40 VOE990557 [2] O-ring
41 VOE9324-21617 [4] Pin
42 VOE14667679 [1] Seal

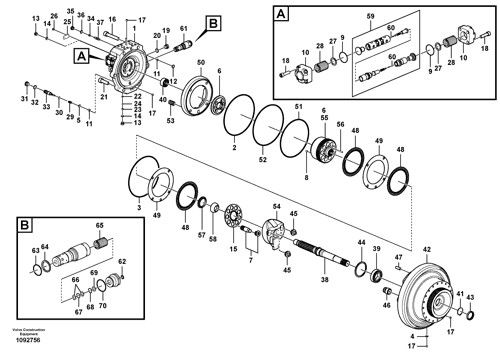

Pos. Part No Qty Parts name Comments
  VOE14604840 [1] Travel motor
1 VOE14604828 [1] Casing
2 VOE14604841 [1] O-ring
3 VOE960260 [1] O-ring
4 VOE983507 [1] O-ring
5 VOE983501 [1] O-ring
6 VOE14552644 [1] Cylinder
7 VOE14551797 [9] Piston
8 VOE14551525 [1] Pin
9 VOE990585 [2] O-ring
10 SA7242-10540 [2] Cover
11 SA7242-10750 [2] Screw
12 VOE983497 [3] O-ring
13 SA9415-31021 [7] Plug
14 VOE993320 [7] O-ring
15 VOE14506972 [1] Plate
16 VOE984848 [2] Hex. socket screw
17 VOE14560637 [10] Plug
18 VOE968131 [8] Hex. socket screw
19 SA9415-31041 [2] Plug
20 VOE993322 [2] O-ring
21 VOE984229 [4] Hex. socket screw
22 SA7242-10710 [2] Clamping plate
23 SA7242-10720 [2] Guard
24 VOE14880998 [2] Ball
25 VOE14880006 [1] Name plate
26 SA1010-11360 [2] Screw
27 SA7242-10520 [2] Washer
28 SA7242-10530 [2] Spring
29 SA7242-11560 [1] Spring
30 VOE14507000 [1] Spacer
31 SA7242-11290 [1] Plug
32 VOE983509 [1] O-ring
33 VOE14509997 [1] Spool
34 VOE14506994 [1] Spring
35 VOE14506995 [1] Plug
36 VOE983505 [1] O-ring
37 VOE14579610 [1] Control plunger
38 VOE14604829 [1] Shaft
39 VOE14640025 [1] Roller bearing
40 VOE14506955 [1] Bearing
41 VOE914472 [1] Snap ring
42 VOE14604826 [1] Casing
43 SA7242-10590 [1] Seal
44 SA9541-02090 [1] Retaining ring
45 VOE14506958 [2] Pivot
46 VOE14604837 [1] Piston
47 VOE14551526 [1] Pin
48 VOE14604834 [3] Plate
49 VOE14604835 [2] Plate
50 VOE14604833 [1] Piston
51 VOE960262 [1] O-ring
52 VOE990849 [2] O-ring
53 VOE14568004 [10] Spring
54 VOE14604831 [1] Plate
55 VOE14552644 [1] Cylinder
56 VOE14506967 [9] Spring
57 VOE14506968 [1] Spacer
58 VOE14506970 [1] Guide
59 VOE14568912 [2] Relief valve
60 SA8240-03680 [2] Snap ring
61 VOE990582 [2] O-ring
62 VOE14880837 [2] Back-up ring
63 VOE14548120 [2] Spring
64 SA7273-30540 [4] Ring
65 VOE983542 [2] O-ring
66 VOE983501 [2] O-ring
67 VOE14625244 [2] Ring
68 VOE983527 [2] O-ring
69 VOE14506950 [1] Spool
70 VOE14880996 [2] Ball
100 VOE14596398 [1] Seal

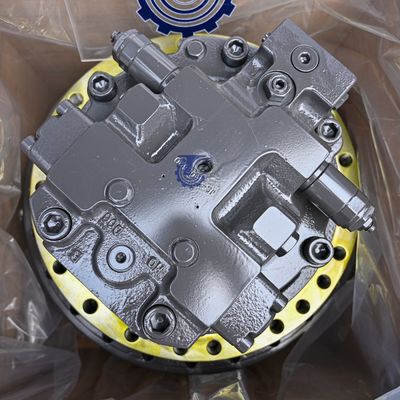

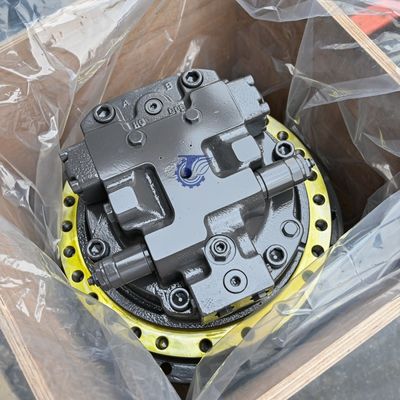

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 2

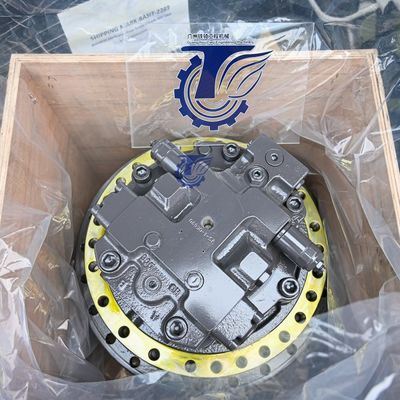

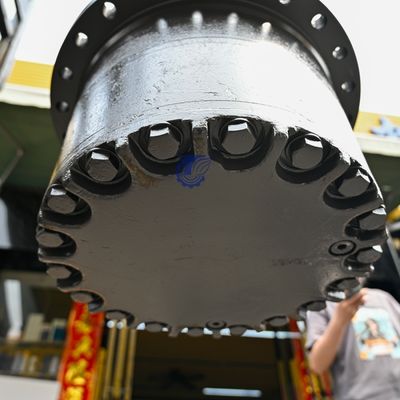

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 3

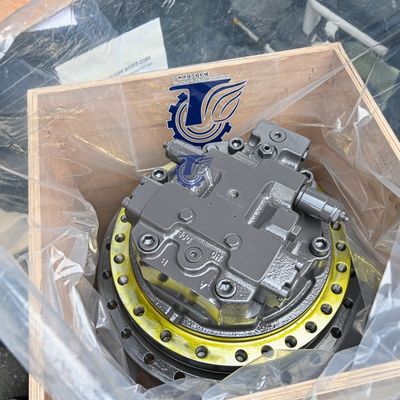

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 4


VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 5

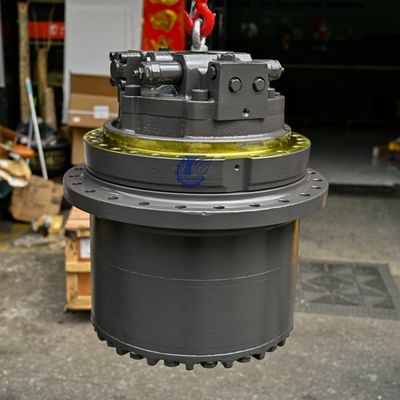

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 6

VOE14599921 VOE14599920 VOE14604840For Volvo Excavator EC300D 350D 380DTravel Assembly Final Drive Original Travel Motor 7

FAQ

1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.

2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.

3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.

4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)






Tieqi Construction Machinery is a distributor specializing in the wholesale of excavator hydraulic parts. The company is loTQed in Zhucun Construction Machinery Parts City, Guangzhou City, with convenient transportation and developed logistics. The operating products cover all brands of excavator hydraulic pumps, travel motors, swing motors, multi-way valves and other first-class brand hydraulic components at home and abroad.
The company has a group of professional technical engineers engaged in the sales and maintenance of hydraulic pumps and motors. We have accumulated rich experience in many years of practice, and can provide customers with technical consultation, spare parts supply, and fast and high-quality after-sales service, which has won the trust and praise of customers at home and abroad.
Our products are mainly suitable for Komatsu, Hitachi, Carter, Kato, Kobelco, Sumitomo, Volvo, Doosan, Hyundai, Case, BobTQ, Yanmar, Kubota, Sany, XCMG, Yuchai, Lonking and other models.
Sales agent: KAWASAK, KOMATSU, HITACHI, TQERPILLAR, TOSHIBA, REXROTH, SAUER DANFOSS, EATON, Vickers (VIKERS), NACHI, VOLVO, KYB, LINDE, Nabtesco piston pumps and hydraulic motor series and assembly accessories.





Why choose us?

1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?

2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?

3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?

4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.

5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
