PV15V00002F1 For Kobelco SK025-2 SK030-2 Excavator Travel Assembly Final Drive Original Travel Motor Aftermarket
PRODUCT DESCRIPTION |
||
Model: PV15V00002F1 For Kobelco SK025-2 SK030-2 Excavator Travel Assembly Final Drive Original Travel Motor Aftermarket | Ategory: Final Drive |
|
Brand:TQ |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |

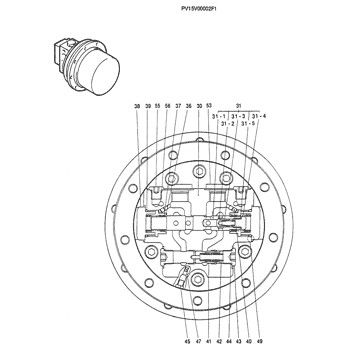

Pos. | Part No | Qty | Parts name | Comments |
. . | PV15V00002F1 | [1] | HYDRAULIC MOTOR | KOB (PROPELLING) |
1 | PV15V00005F1 | [1] | HYDRAULIC MOTOR | KOB SEE FIG. 07-023 |
2 | PV15V00002S002 | [1] | SHAFT | KOB SEE FIG. 07-023 |
3 | PV15V00002S003 | [1] | BEARING, BALL | KOB Superseded by part number: E5NN3517AA |
4 | PV15V00002S004 | [1] | OIL SEAL | KOB |
5 | PV15V00002S005 | [1] | SWASH PLATE | KOB |
6 | PV15V00002S006 | [2] | BALL | KOB |
7 | PV15V00002S007 | [1] | CYLINDER | KOB BLOCK CYLINDER |
8 | PV15V00002S008 | [1] | SPRING SEAT | KOB WASHER |
9 | PV15V00002S009 | [1] | SPRING | KOB SPRING |
10 | PV15V00002S010 | [1] | WASHER | KOB SEAT, SPRING |
11 | 2441U901S16 | [1] | RING, SNAP | KOB SNAP RING |
12 | PV15V00002S012 | [3] | SPLIT PIN/SAFETY PIN | KOB Superseded by part number: S19031-10212 |
13 | PV15V00002S013 | [1] | BALL JOINT | KOB BOLDER RETAINER |
14 | PV15V00002S014 | [1] | RETAINING PLATE | KOB |
15 | PV15V00002S015 | [9] | PISTON ASSY. | KOB PISTON ASSY |
16 | PV15V00002S016 | [1] | DISC | KOB |
17 | PV15V00002S017 | [1] | PISTON BREAKE | |
18 | PV15V00002S018 | [10] | SPRING | KOB SPRING |
19 | NSS | [2] | NOT SOLD SEPARAT | CON PISTON ASSY |
20 | PV15V00002S020 | [2] | SPRING | KOB Superseded by part number: S19031-10220 |
21 | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
22 | ZD85G09500 | [1] | BACK-UP RING | KOB |
23 | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB ID 14.80 ± 0.20 x OD 19mm |
24 | ZD85G10500 | [1] | O-RING | KOB |
25 | PV15V00002S025 | [1] | PILOT VALVE | KOB |
26 | 2441U901S19 | [1] | PIN | KOB |
27 | PV15V00002S027 | [1] | BEARING, BALL | KOB Superseded by part number: 25Z377D3 |
28 | ZD11G12000 | [1] | O-RING,119.40mm ID x 125.60mm OD x 3.10mm | KOB G120 1A |
29 | ZD12P00700 | [4] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOB O-Ring -- ID 06.80 ± 0.16 x OD 10mm |
30 | PV15V00002S030 | [1] | PLATE | |
31 | PV15V00006F1 | [1] | PLUNGER ASSY | |
31-1. | PV15V00006S001 | [1] | PLUNGER | |
31-2. | 2441U942S53 | [2] | VALVE CHECK | |
31-3. | 2441U942S54 | [2] | SPRING | |
31-4. | 2441U942S55 | [2] | PLUG | |
31-5. | ZD12P01000 | [2] | O-RING | KOB ID 09.80 ± 0.17 x OD 13mm |
36 | 2441U942S57 | [2] | SEAT SPRING | |
37 | PV15V00002S037 | [2] | SPRING | |
38 | 2441U942S59 | [2] | CAP | |
39 | ZD12P02900 | [2] | O-RING | KOB ID 28.70 ± 0.29 x OD 35mm |
40 | PV15V00002S040 | [4] | ORIFICE | KOB |
41 | 2441U942S62 | [1] | SPOOL | |
42 | PV15V00002S042 | [1] | SPRING | |
43 | 2441U802S58 | [2] | PLUG | KOB |
44 | ZD12P01400 | [2] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
45 | 2441U802S47 | [5] | PLUG | KOB |
46 | PV15V00002S046 | [2] | SPLIT PIN/SAFETY PIN | KOB |
47 | PV15V00002S040 | [5] | ORIFICE | KOB |
48 | ZS23C10025 | [6] | SCREW,Hex Socket Head, M10 x 25mm | KOB M10x1.50x25mm Superseded by part number: ZS28C10025 |
49 | 2441U942S70 | [2] | PIN | |
50 | PV15V00007F1 | [1] | VALVE ASSY, BLOCK RELIEF, SEE FIG. 07-024 | |
51 | NSS | [1] | NOT SOLD SEPARAT | CON SEE FIG. 07-024 |
52 | NSS | [2] | NOT SOLD SEPARAT | CON SCREW |
53 | NSS | [2] | NOT SOLD SEPARAT | CON PLUG |
54 | NSS | [1] | NOT SOLD SEPARAT | CON PLUG |
55 | 2441U984S35 | [2] | PLUG | KOB |
56 | ZD12P01100 | [2] | O-RING | KOB ID 10.8mm x OD 13.2mm |
60 | ZE82T04000 | [1] | PLUG | KOB 1/4" PT |
AR. | PV15V00002R100 | [1] | HYD PUMP REPAIR KIT | KOB CONSISTS OF REF. 4, 21-24, 28, 29, 31-5, 39, 44, 56 |
AR. | PV15V00002R200 | [1] | REPAIR KIT CONSISTS OF REF. 30, 31, 41 | REPAIR KIT CONSISTS OF REF. 30, 31, 41 |
AR. | PV15V00002R300 | [1] | REPAIR KIT | KOB CONSISTS OF REF. 7, 15 |
FAQ
1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself . We mainly sell standard and original motor.
2.What are your After-sales service?
Before shipment, Each individual product will be strictly inspected on our factory. In addition. We have a customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problem is always our goal.
3.How long can an order delivery?
If the order less than 10pcs, we will shipping the goods within 7days, more than 10pcs, we will shipping the goods within 15days. Arrival date depends on shipping company.
4.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers. For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
Tieqi Construction Machinery is a distributor specializing in the wholesale of excavator hydraulic parts. The company is loTQed in Zhucun Construction Machinery Parts City, Guangzhou City, with convenient transportation and developed logistics. The operating products cover all brands of excavator hydraulic pumps, travel motors, swing motors, multi-way valves and other first-class brand hydraulic components at home and abroad.
The company has a group of professional technical engineers engaged in the sales and maintenance of hydraulic pumps and motors. We have accumulated rich experience in many years of practice, and can provide customers with technical consultation, spare parts supply, and fast and high-quality after-sales service, which has won the trust and praise of customers at home and abroad.
Our products are mainly suitable for Komatsu, Hitachi, Carter, Kato, Kobelco, Sumitomo, Volvo, Doosan, Hyundai, Case, BobTQ, Yanmar, Kubota, Sany, XCMG, Yuchai, Lonking and other models.
Sales agent: KAWASAK, KOMATSU, HITACHI, TQERPILLAR, TOSHIBA, REXROTH, SAUER DANFOSS, EATON, Vickers (VIKERS), NACHI, VOLVO, KYB, LINDE, Nabtesco piston pumps and hydraulic motor series and assembly accessories.
