| PRODUCT DESCRIPTION |
||
| Model:706-86-01571 706-86-01581 For Komatsu D39EX-21 D39PX-21 Bulldozer hydraulic TRAVEL MOTOR Original High quality | Ategory: Walking motor assembly |
|
| Brand:TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

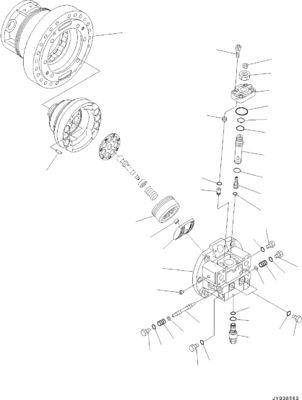

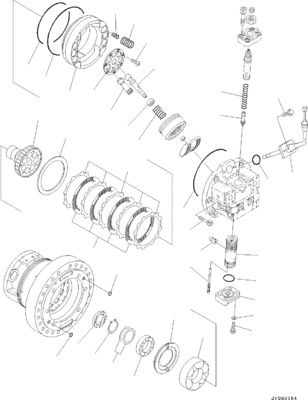

| Pos. | Part No | Qty | Parts name | Comments |
| 706-86-01550 | [1] | MOTOR ASSY Komatsu | 143.201 kg. | |
| 1 | 01252-61035 | [2] | BOLT Komatsu | 0.034 kg. |
| 2 | 01252-61055 | [2] | BOLT Komatsu China | |
| analogs:["0125211055", "0125201055", "0125231055", "0125241055"] | ||||
| 3 | 706-86-43370 | [1] | O-RING Komatsu | 0.009 kg. |
| 4 | 07000-B2012 | [4] | O-RING Komatsu China | 0.001 kg. |
| 5 | 01252-61850 | [6] | BOLT Komatsu China | |
| 6 | 706-86-43560 | [1] | SHAFT,DRIVE Komatsu China | |
| 7 | 706-86-43880 | [1] | BEARING Komatsu China | |
| 8 | 20T-26-71221 | [1] | BEARING Komatsu China | |
| 9 | 706-86-43710 | [1] | PLATE Komatsu China | |
| 10 | 706-86-05010 | [1] | SPACER KIT Komatsu | 0.112 kg. |
| 11 | 04064-05020 | [1] | RING,SNAP Komatsu | 0.01 kg. |
| 12 | 706-7G-11291 | [1] | SEAL Komatsu OEM | 0.08 kg. |
| analogs:["7067G11290"] | ||||
| 13 | 706-86-43280 | [1] | SHAFT,CENTER Komatsu China | |
| 14 | 706-86-43310 | [1] | RING,CENTER Komatsu China | |
| 15 | 706-86-43320 | [1] | SPRING Komatsu China | |
| 16 | 706-86-43271 | [1] | RETAINER Komatsu | 0.235 kg. |
| 17 | 706-75-42270 | [7] | SCREW Komatsu | 0.003 kg. |
| 18 | 706-86-43160 | [7] | PISTON SUB ASSY Komatsu | 0.27 kg. |
| 19 | 706-86-90260 | [1] | PLATE Komatsu | 0.4 kg. |
| 20 | 706-86-90240 | [5] | PLATE Komatsu China | |
| 21 | 706-86-90250 | [4] | DISC Komatsu | 0.125 kg. |
| 22 | 706-86-90281 | [1] | PISTON,BRAKE Komatsu China | |
| 23 | 07000-B5180 | [1] | O-RING Komatsu | 0.019 kg. |
| 24 | 706-86-90290 | [1] | O-RING Komatsu | 0.038 kg. |
| 25 | 706-86-90510 | [6] | SPRING Komatsu China | |
| 26 | 706-86-90521 | [6] | SPRING Komatsu China |
| Pos. | Part No | Qty | Parts name | Comments |
| 706-86-01550 | [1] | MOTOR ASSY Komatsu | 143.201 kg. | |
| 706-86-04115 | [1] | VALVE ASSY Komatsu China | ||
| analogs:["7068604112"] | ||||
| 706-86-00180 | [1] | VALVE SUB ASSY Komatsu China | ||
| 706-86-53103 | [1] | VALVE ASSY,RELIEF Komatsu China | ||
| 34 | 07000-B1010 | [12] | O-RING Komatsu | 0.001 kg. |
| 35 | 07000-B2012 | [2] | O-RING Komatsu China | 0.001 kg |
| Pos. | Part No | Qty | Parts name | Comments |
| 706-86-01531 | [1] | MOTOR ASSY Komatsu | 135 kg. | |
| 706-86-01530 | [1] | MOTOR ASSY Komatsu | 135 kg. | |
| analogs:["7068601531"] | ||||
| 706-86-04115 | [1] | VALVE ASSY Komatsu China | ||
| analogs:["7068604112"] | ||||
| 706-86-00180 | [1] | VALVE SUB ASSY Komatsu China | ||
| 706-86-53103 | [1] | VALVE ASSY,RELIEF Komatsu China | ||
| 34 | 07000-B1010 | [12] | O-RING Komatsu | 0.001 kg. |
| 35 | 07000-B2012 | [2] | O-RING Komatsu China | 0.001 kg. |
| Pos. | Part No | Qty | Parts name | Comments |
| 706-86-01541 | [1] | MOTOR ASSY Komatsu China | ||
| analogs:["7068601540"] | ||||
| 706-86-01540 | [1] | MOTOR ASSY Komatsu China | ||
| analogs:["7068601541"] | ||||
| 1 | 706-86-43210 | [1] | CASE Komatsu China | |
| 706-86-00160 | [1] | END COVER SUB ASSY Komatsu China | ||
| analogs:["7068600162", "7068600161", "7068643850", "7068643830"] | ||||
| 8 | 706-86-71310 | [1] | PIN,DOWEL Komatsu | 0.022 kg. |
| 9 | 706-86-53031 | [1] | PISTON Komatsu China | |
| 10 | 706-86-53010 | [1] | PIN Komatsu China | |
| 11 | 706-86-51110 | [1] | SCREW Komatsu China | |
| 706-86-00170 | [1] | COVER SUB ASSY Komatsu China | ||
| analogs:["7068600210", "7068600220"] |12. | ||||
| 14 | 07000-B3045 | [1] | O-RING Komatsu | 0.002 kg. |
| 15 | 07000-B1010 | [1] | O-RING Komatsu | 0.001 kg. |
| 16 | 706-86-53132 | [1] | SCREW Komatsu China | |
| 17 | 07000-B3028 | [1] | O-RING Komatsu | 0.001 kg. |
| 18 | 706-86-53540 | [1] | RING Komatsu China | |
| 19 | 01583-13018 | [1] | NUT Komatsu | 0.17 kg. |
| analogs:["0158303018"] | ||||
| 20 | 706-86-53141 | [1] | PISTON Komatsu China | |
| 21 | 706-86-53150 | [1] | SEAL Komatsu China | |
| 22 | 706-86-53122 | [1] | SCREW Komatsu China | |
| 23 | 07000-B2020 | [1] | O-RING Komatsu China | |
| 24 | 706-86-53620 | [1] | RING,BACK-UP Komatsu China | |
| 25 | 01582-01815 | [1] | NUT Komatsu | 0.043 kg. |
| analogs:["0150031816"] | ||||
| 26 | 01252-61260 | [4] | BOLT Komatsu China | |
| analogs:["0125211260", "0125201260", "0125231260", "0125241260", "0125221255", "7051702680"] | ||||
| 27 | 706-86-53211 | [1] | COVER Komatsu China | |
| 28 | 706-86-53230 | [1] | SEAL Komatsu China | |
| 30 | 706-86-53222 | [1] | SCREW Komatsu China | |
| 31 | 07000-B2014 | [1] | O-RING Komatsu China | 0.001 kg. |
| 32 | 706-86-53630 | [1] | RING Komatsu China | |
| 33 | 01582-01613 | [1] | NUT Komatsu | 0.029 kg. |
| analogs:["0150031613"] | ||||
| 34 | 07372-21245 | [4] | BOLT Komatsu | 0.056 kg. |
| 35 | 01643-31232 | [4] | WASHER Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
