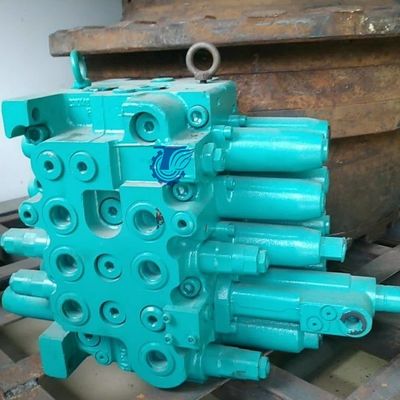

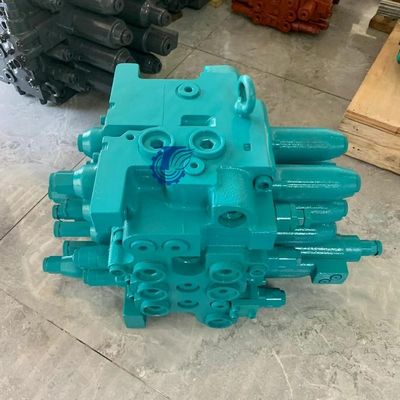

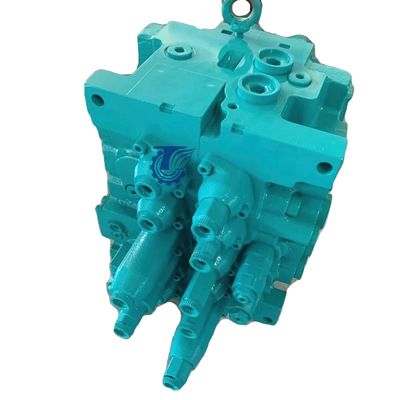

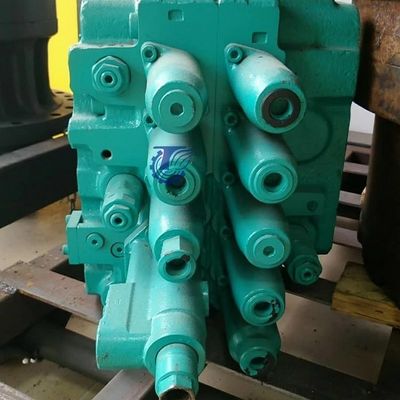

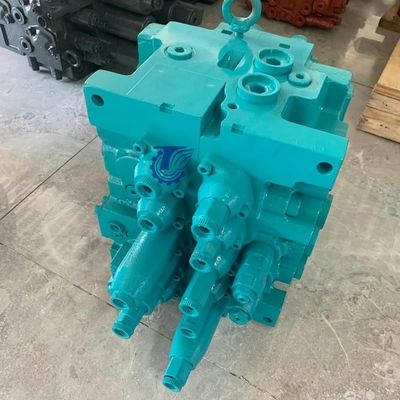

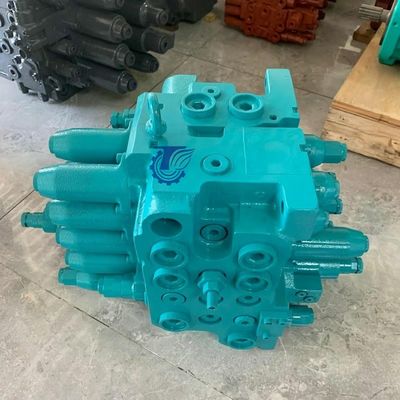

2436U2635F1 Kobelco SK120-5 SK120-3 SK120 Excavator Control Valve Mini Excavator Parts
| PRODUCT DESCRIPTION |
||
| Model:2436U2635F1 Kobelco SK120-5 SK120-3 SK120 Excavator Control Valve Mini Excavator Parts | category: Main Control Valve |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 300pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 3-7 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 2436U2635F1 | [1] | CONTROL VALVE | KOB Remarks: Consists of the following parts |
| 151 | 2436U1219S153 | [1] | PLUG | KOB |
| 152 | 2436U1165S152 | [19] | PLUG | KOB |
| 153 | 2436U368S151 | [5] | PLUG | KOB |
| 154 | 2436U1165S154 | [8] | PLUG | KOB |
| 155 | 2436U1207S851 | [3] | PLUG | KOB |
| 156 | 2436U1265S156 | [1] | Plug | |
| 157 | 2436U1165S157 | [1] | PLUG | KOB Superseded by part number: 2436U1265S157 |
| 158 | 2436U1207S155 | [7] | PLUG | KOB |
| 159 | 2436R885S13 | [4] | ORIFICE | KOB |
| 161 | ZD12G03000 | [7] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29.4 ± 0.29 x OD 35mm |
| 162 | ZD12P01000 | [27] | O-RING | KOB ID 09.80 ± 0.17 x OD 13mm |
| 164 | ZD12P01400 | [8] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 165 | ZD12P02400 | [4] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 166 | ZD12P01100 | [6] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 167 | ZD12P01800 | [1] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 168 | ZD12P00800 | [7] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 201 | 2436U1265S201 | [2] | COVER | KOB Superseded by part number: 2436U2631S201 |
| 202 | 2436U1439S202 | [2] | COVER | KOB |
| 203 | 2436U1265S203 | [5] | COVER | KOB |
| 206 | 2436U1439S206 | [1] | Cover | |
| 251 | 2436U1165S251 | [3] | PLUG | KOB |
| 252 | 2420U235F2 | [1] | PLUG | KOB Remarks: See. P. 2420U235-1 |
| 253 | 2420U235F1 | [1] | PLUG | KOB Remarks: See. P. 2420U235-1 |
| 261 | 2436U1457S162 | [5] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 263 | ZD12G03500 | [5] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
| 265 | ZD12G02500 | [5] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB ID 24.4 ± 0.25 x OD 30mm |
| 273 | ZS23C08025 | [20] | SCREW,Hex Socket Head, M8 x 25mm | KOB M08x1.25x25mm |
| 301 | 2436U2634S301 | [2] | Spool | |
| 302 | 2436U2634S302 | [1] | SPOOL | SPOOL |
| 303 | 2436U2634S303 | [1] | SPOOL | KOB |
| 304 | 2436U1271S304 | [1] | SPOOL | KOB |
| 305 | 2436U1454S305 | [1] | SPOOL | KOB |
| 306 | 2436U1454S306 | [2] | SPOOL | KOB |
| 307 | 2436U1265S307 | [2] | SPOOL | KOB |
| 308 | 2436U2529F1 | [1] | VALVE PRESSURE RELIE | KOB Sequence, Remarks: See. P. 2436U2529-1 |
| 320 | 2436U2634S320 | [2] | Spring | |
| 321 | 2436U2634S321 | [2] | SPRING | KOB |
| 322 | 2436U1265S322 | [3] | SPRING | KOB |
| 323 | 2436U1265S327 | [3] | SPRING | KOB |
| 324 | 2436U2634S324 | [1] | Spring | |
| 326 | 2436U1265S326 | [2] | SPRING | KOB |
| 327 | 2436U1454S327 | [1] | SPRING | KOB |
| 328 | 2436U1265S328 | [2] | SPRING | KOB |
| 329 | 2436U1454S329 | [1] | Spring | |
| 332 | 2436U1265S332 | [8] | SPRING SEAT | KOB |
| 335 | 2436U1265S335 | [3] | STOP | KOB |
| 336 | 2436U1265S336 | [3] | BOLT | KOB |
| 337 | 2436U1265S337 | [1] | ROD | KOB |
| 338 | 2436U1265S338 | [2] | ROD | KOB |
| 339 | 2436U1439S339 | [1] | Rod | |
| 340 | 2436U1454S340 | [1] | Rod | |
| 341 | 2436U1439S341 | [2] | SPRING SEAT | KOB |
| 345 | 2413U181S335 | [2] | STOP | KOB |
| 346 | 2436U1439S346 | [2] | BOLT | KOB |
| 351 | 2436U1165S351 | [1] | ORIFICE | KOB |
| 355 | 2436U1165S355 | [1] | PISTON | KOB Superseded by part number: 2436U1265S355 |
| 511 | 2436U1265S511 | [8] | POPPET | KOB |
| 512 | 2483U172S19 | [6] | BALL | KOB |
| 513 | 2436U2634S513 | [1] | POPPET | KOB |
| 521 | 2436U1265S521 | [9] | SPRING | KOB |
| 542 | 2436U1265S542 | [3] | SEAT/SLOT | KOB |
| 543 | 2436U1265S543 | [1] | SEAT/SLOT | KOB |
| 544 | 2436U1439S544 | [2] | SEAT | KOB |
| 551 | 2436U1454S551 | [10] | PLUG | KOB Superseded by part number: 2436U1265S551 |
| 552 | 2436U585S651 | [14] | PLUG | KOB Superseded by part number: YT30V00009S153 |
| 553 | 2436U1928S554 | [1] | PLUG | KOB Superseded by part number: YN30V00001S551 |
| 561 | ZD12P02000 | [10] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB ID 19.80 ± 0.22 x OD 24mm |
| 601 | 2436R839F4 | [2] | VALVE | KOB Main Relief, Remarks: See. P. 2436R839-1 |
| 602 | 2436R683F3 | [2] | VALVE | KOB Remarks: See. P. 2436R683-1 |
| 604 | 2436R768F3 | [6] | VALVE PRESSURE RELIE | KOB Port Relief, Remarks: See. P. 2436R768-1,2 Superseded by part number: 2436R837F3 |
| 611 | 2436R769F1 | [2] | VALVE | KOB Relief, Remarks: See. P. 2436R769-1 |
| 612 | 2436U1454S612 | [1] | POPPET | KOB |
| 701 | 2436U2584F1 | [1] | X | KOB Bypass, Remarks: See. P. 2436U2584-1,2 |
| 957 | 2436U1170S14 | [2] | PIN | KOB |
| 971 | 2436U1265S971 | [1] | Capscrew | |
| 972 | 2436U1265S972 | [1] | Capscrew | |
| 973 | 2436U1265S973 | [2] | Capscrew | |
| 974 | 2436U1265S974 | [1] | Capscrew | |
| 975 | 2436U1265S975 | [1] | Capscrew | |
| 976 | 2436U1454S976 | [1] | Capscrew | |
| 991 | NSS | [1] | NOT SOLD SEPARAT | CON Name-Plate |
| . . | 2436U2635R100 | [1] | Remarks: Boom, Bucket, Travel Right Block | |
| . . | 2436U2635R200 | [1] | Remarks: Arm, Travel Left Block |
