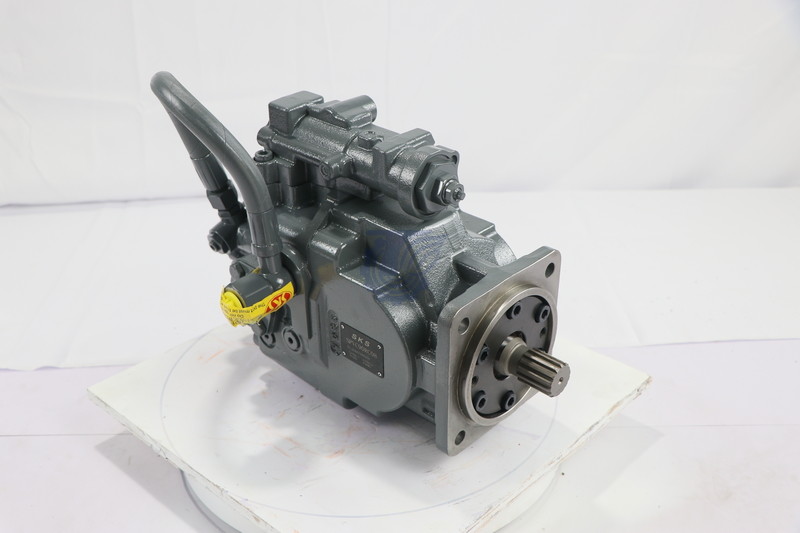

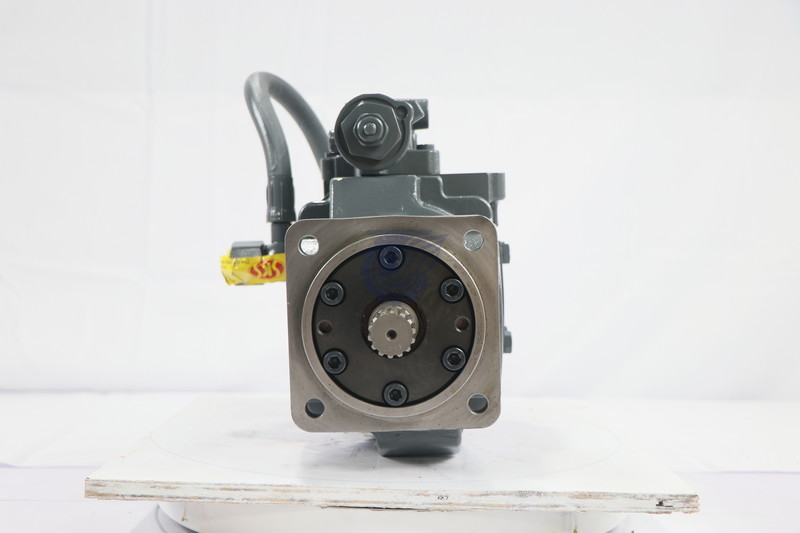

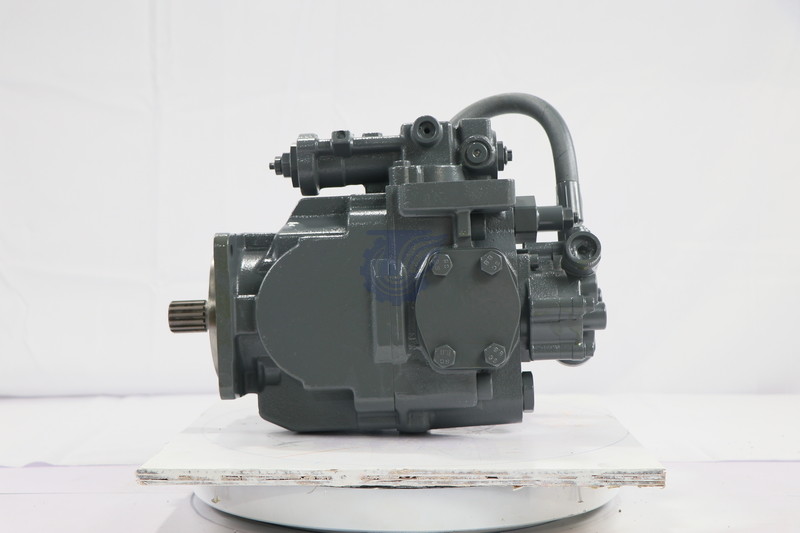

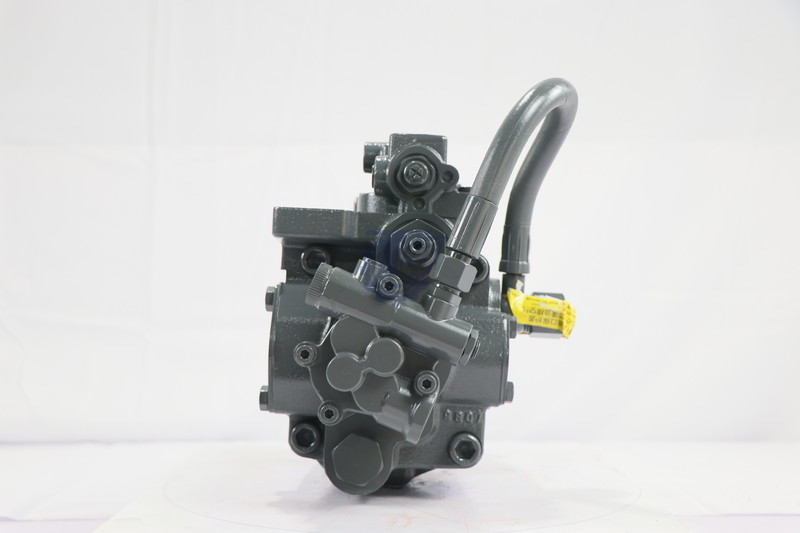

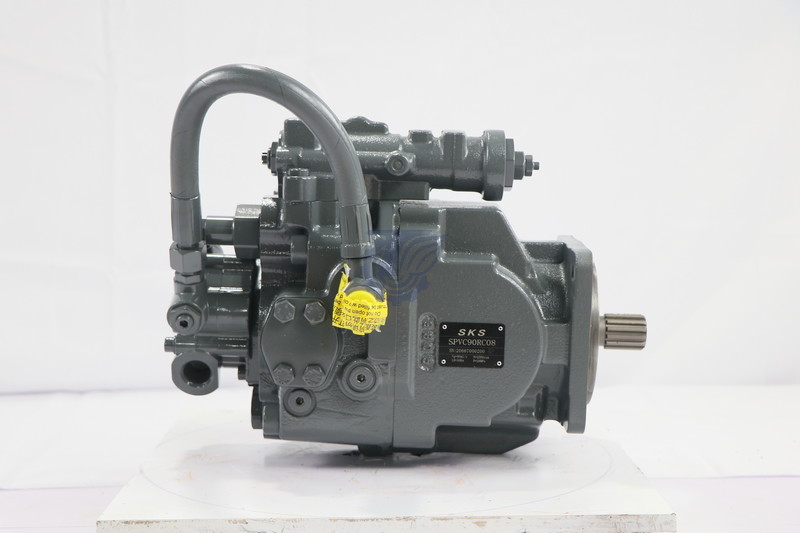

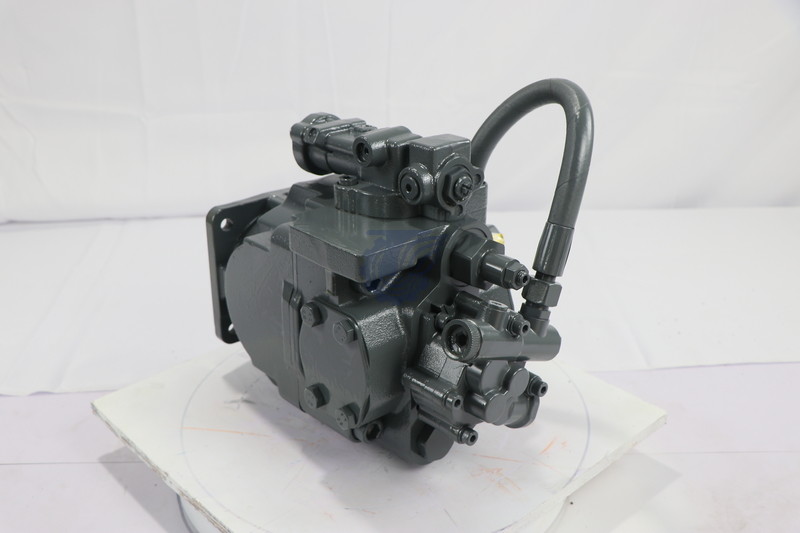

PVC90 PVC90R hydraulic pump main pump suitable for excavator E307 E307D 1020783
| PRODUCT DESCRIPTION |
||
| Model:PVC90 PVC90R hydraulic pump main pump suitable for excavator E307 E307D 1020783 | category: Hydraulic Pump |
|
| Brand:TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

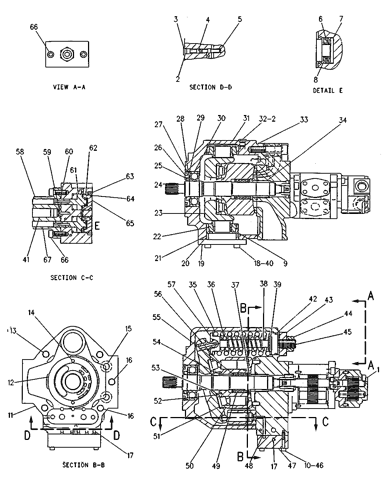

| Pos. | Part No | Qty | Parts name |
| 1 | 111-9971 Y | [1] | PUMP GP-GEAR |
| 2 | 095-1579 | [2] | SEAL-O-RING (10.8MM ID) |
| 3 | 085-5564 | [1] | PLUG |
| 4 | 107-6885 | [1] | SPOOL |
| 5 | 107-6886 | [1] | SPRING |
| 6 | 107-6901 | [8] | SPRING-DISC |
| 7 | 107-6902 | [2] | SEAT-SPRING |
| 8 | 107-6906 B | [2] | SHIM (1.1MM) |
| 107-6907 B | [2] | SHIM (1.2MM) | |
| 107-6908 B | [2] | SHIM (1.3MM) | |
| 9 | 111-2415 | [2] | CUP-ROLLER BEARING |
| 10 | 9X-8256 | [4] | WASHER (2MM THK) |
| 11 | 107-6881 | [1] | COVER |
| 12 | 107-6882 | [1] | PLATE-CONTROL |
| 13 | 095-9805 M | [3] | BOLT-SOCKET HEAD |
| 14 | 2Y-5578 | [2] | PIN |
| 15 | 099-5845 | [2] | PLUG-HEX |
| 16 | 111-5154 M | [2] | BOLT-HEX |
| 17 | 9T-3940 | [7] | PLUG-BREAKOFF |
| 18 | 5A-3604 M | [4] | BOLT-SOCKET HEAD (M8X1.25X25MM) |
| 19 | 107-6663 | [1] | COVER |
| 20 | 6V-7659 | [1] | SEAL-O-RING |
| 21 | 107-6664 | [1] | COLLAR |
| 22 | 111-2414 | [2] | CONE-ROLLER BEARING |
| 23 | 107-6662 | [1] | SWASHPLATE |
| 24 | 111-9964 | [1] | SHAFT |
| 25 | 107-6661 | [1] | SEAL-LIP TYPE |
| 26 | 107-6659 | [1] | CASE |
| 27 | 2W-1145 | [1] | RING-RETAINING |
| 28 | 8T-9597 | [2] | RING-RETAINING |
| 29 | 7R-8872 | [1] | SEAL-O-RING (75.84MM ID) |
| 30 | 111-3239 | [1] | BALL BEARING |
| 31 | 107-6657 | [1] | HOUSING |
| 32 | 085-5584 | [1] | PLUG |
| 33 | 107-6884 | [1] | PACKING |
| 34 | 111-2412 | [1] | BEARING-NEEDLE |
| 35 | 107-6892 | [1] | SPRING |
| 36 | 107-6891 | [1] | SPRING |
| 37 | 7X-2908 | [1] | CASE AS |
| 38 | 107-6888 | [1] | SEAT-SPRING |
| 39 | 107-6893 B | [1] | SHIM (0.3MM) |
| 107-6894 B | [1] | SHIM (0.5MM) | |
| 3C-7095 B | [1] | SHIM (1.0MM) | |
| 40 | 8T-4224 | [4] | WASHER-HARD (2MM THK) |
| 41 | 107-6899 | [1] | PISTON |
| 42 | 6V-7657 | [1] | SEAL-O-RING |
| 43 | 107-6889 | [1] | COVER |
| 44 | 8T-4131 M | [1] | NUT (M20X2.50 THD) |
| 45 | 107-6890 | [1] | SETSCREW |
| 46 | 6V-8653 M | [4] | BOLT-SOCKET HEAD |
| 47 | 107-6909 | [1] | PLATE |
| 48 | 095-1574 | [4] | SEAL-O-RING |
| 49 | 107-6879 | [1] | SPRING |
| 50 | 107-6667 | [1] | BARREL |
| 51 | 107-6877 | [1] | PLATE |
| 52 | 107-6668 | [1] | RETAINER |
| 53 | 107-6878 | [1] | GUIDE |
| 54 | 099-3065 | [3] | PIN |
| 55 | 107-6880 | [2] | SEAT-SPRING |
| 56 | 107-6666 | [1] | PISTON AS |
| 57 | 107-6887 | [1] | SEAT-SPRING |
| 58 | 107-6896 | [1] | CYLINDER |
| 59 | 107-6905 | [1] | ORIFICE |
| 60 | 095-1584 | [3] | SEAL-O-RING |
| 61 | 107-6897 | [2] | PISTON |
| 62 | 095-1597 | [2] | SEAL-O-RING |
| 63 | 107-6903 | [2] | RING-SPRING (38.9MM OD) |
| 64 | 107-6904 | [2] | RING-SPRING (22.0MM OD) |
| 65 | 107-6900 | [2] | PLUG |
| 66 | 9X-6032 M | [4] | BOLT-SOCKET HEAD (M10X1.5X30 MM) |
| 67 | 107-6898 | [2] | PISTON |
KAWASAK:
K3V: K3V63DT/BDT , K3V112DT/BDT , K3V140DT , K3V180DT..
MX: MX50 , MX150 , MX170 , MX173
M2X: M2X55 , M2X63 , M2X96 , M2X120 , M2X146 , M2X150 , M2X170 , M2X210
M5X: M5X130 , M5X160 , M5X180
KOMATSU:
HPV35(PC200-3/5 , PC120-3/5)
HPV55(PC100-3/5 , PC120-3/5)
HPV90(PC200-3/5 , PC220-3/5)
HPV160(PC300-3/5 , PC400-3/5)
KPV90(PC200-1/2)
KPV100(PC300-1/2 , PC400-1/2)
HPV95(PC200-6/7 , PC220-6/7)
KMF90(PC200-3/5 , PC220-3/5)
KMF160(PC300-3/5 , PC400-3/5)
HITACHI :
HPV125B(UH07-7 , UH083)
HPV125A(UH09-7 , UH10-1/2)
HPV116(EX200-1 , EX220-1)
HPV091(EX200-2/3 , EX220-2/3)
HPV102(EX200-5 , EX220-5)
HPV105(ZAXIS200/220)
HPV145(EX300-1/2/3/5)
ER PILLAR:
SPK10/10(E180 , E200B)
SPV10/10(MS180-3 , MS180-8 , EL240)
VRD63(E110B , E120B)
AP12(320 , E315)
A8VO107(320B , E300L , E325L)
A8VO160(E330B , E345L)
12G , 14G , 15G , 16G
REXROTH:
A8VO :A8VO55 , A8VO80 , A8VO107 , A8VO160
A4VSO :A4VSO40 , A4VSO45 , A4VSO56 , A4VSO71 , A4VSO125 , A4VSO180 , A4VSO250 , A4VSO355
A4VG :A4VG28 , A4VG45 , A4VG50 , A4VG56 , A4VG71 , A4VG125 , A4VG180
A6V :A6V55 , A6V80 , A6V107 , A6V160 , A6V225 , A6V250
A7V:A7V16 , A7V28 , A7V55 , A7V80 , A7V107 , A7V160 , A7V200 , A7V250
A8V :A8V55 , A8V80 , A8V107 , A8V115 , A8V172
A10VSO:A10VSO28 , A10VSO43 , A10VSO45 , A10VSO71 , A10VSO100 , A10VSO140
A10VD series:A10VD17 , A10VD21 , A10VD28 , A10VD43 , A10VD71
A11V series:A11V130 , A11V160 , A11V190 , A11V250
Others: AP2D21 , AP2D25 , AP2D36 , AP2D38
