PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R

  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
  • PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
Place of Origin China
Brand Name TQ
Model Number PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R
Minimum Order Quantity 1 PCS
Price Negotiable price
Packaging Details Wooden case or as required
Delivery Time 5-8 Weekdays
Payment Terms Western Union, T/T
Supply Ability 300pcs /Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PUMP GROUP-PISTON - 9T8346 For Models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R Applicable Machine Model： TQ D8N D8R D8R II
Applicable Industries： Mechanical Repair Shops, Retail, Construction, Energy, Mining Category Hydraulic Pump
Condition： New Brand TQ
Leave a Message
Product Description

PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R



PRODUCT DESCRIPTION
Model:PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R category: Hydraulic Pump
Brand: TQ Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

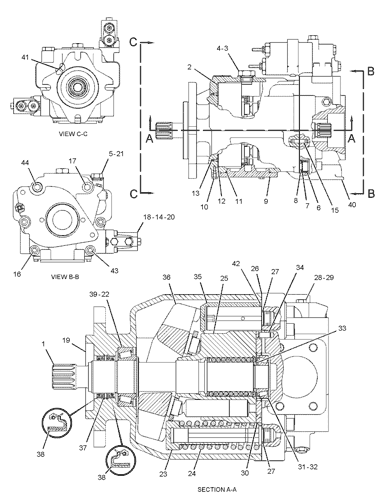

9T8346 泵 GP-PISTON 零件图













Alternative (cross code) number:
CA9T8346
9T-8346
9T8346
Weight: 147 pounds 66 kg.





































TQERPILLAR SIS
Pos. Part No Qty Parts name
1 6E-4248 [1] SHAFT
2 6E-4237 [1] BEARING
3 6E-4224 [1] PLUG-SWASHPLATE
4 033-6036 [1] SEAL-O-RING
5 9S-4190 [1] PLUG-O-RING (7/8-14-THD)
6 9T-1699 [1] SPRING
7 9T-1710 [1] POPPET
8 9T-1636 [1] SEAT
9 6E-4227 [1] COVER
10 6V-8837 M [3] BOLT (M6X1X16-MM)
11 4F-4097 [1] SEAL-O-RING
12 6E-4236 [1] BEARING
13 3E-4302 M [2] SCREW-FLAT HEAD (M4X0.7X10-MM)
14 8T-5039 [3] SEAL-O-RING
15 4H-1440 [2] PIN-SPRING
16 8T-0343 M [3] BOLT-SOCKET HEAD (M12X1.75X55-MM)
17 3E-8008 M [1] BOLT-SOCKET HEAD (M16X2X90-MM)
18 6E-6044 Y [1] VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)(IMPLEMENT PUMP OUTLET CONTROL)
19 6E-4245 [1] HOUSING
20 6V-8337 M [4] BOLT-SOCKET HEAD (M8X1.25X35-MM)
21 033-6027 [1] SEAL-O-RING
22 7K-8876 [1] CUP-BEARING
23 6E-4213 [1] KIT-BIAS PISTON (PUMP)
      (INCLUDES SPRING, ROD, PISTON & PACKING)
24 6E-4214 [1] SPRING-BIAS
25 6E-4216 Y [1] ROTATING GP-PUMP (IMPLEMENT)
26 6E-4225 [1] GASKET
27 7L-9061 [2] SEAL-O-RING
28 3E-7417 [4] PLUG
29 8T-7876 [4] SEAL-O-RING
30 6E-4234 [1] PLATE-VALVE
31 005-0471 [1] CONE-BEARING
32 005-0469 [1] CUP-BEARING
33 103-6282 B [1] SHIM PACK (INCLUDES 17-SHIMS)
34 9T-1652 [1] PIN
35 6E-4215 [1] KIT-PISTON (PUMP)
      (INCLUDES PACKING, ROD & PISTON)
36 6E-4221 Y [1] SWASHPLATE GP
37 6L-8797 [2] RING-RETAINING
38 9X-7547 [2] SEAL-LIP TYPE
39 7K-8877 [1] CONE-BEARING
40 6E-4247 [1] HEAD
41 6E-2943 [1] PLUG
42 6E-4321 [1] SPACER (36X48X2.5-MM THK)
43 3E-8007 M [1] BOLT-SOCKET HEAD (M12X1.75X90-MM)
44 219-6915 [1] BOLT (M16X2X95-MM)























PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R 1

PUMP GROUP-PISTON - 9T8346 for models 3406 3406B 3406C 3406E 8A 8SU 8U 8 D8N D8R 2
