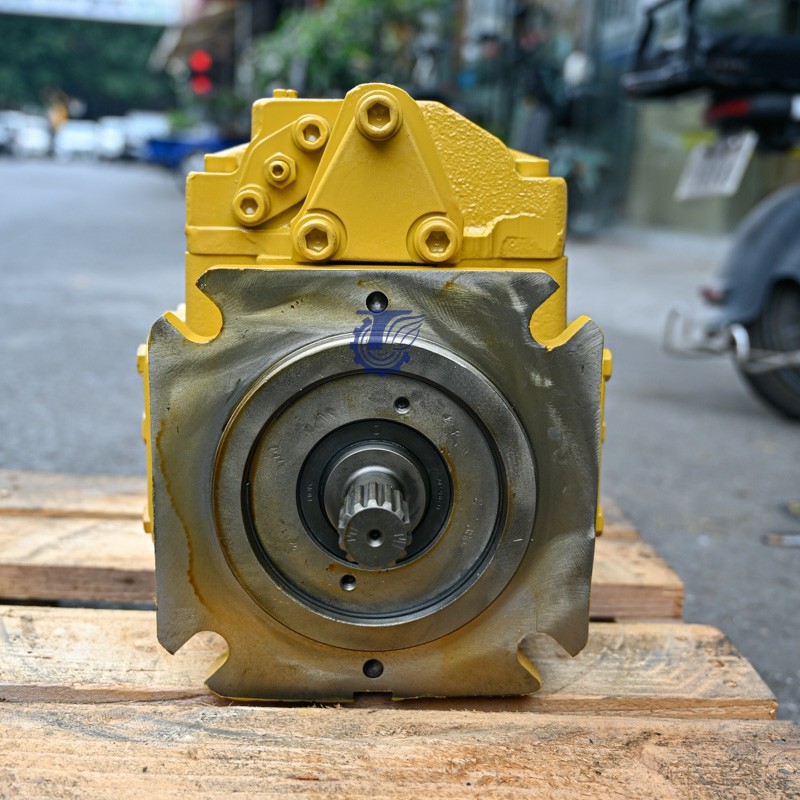

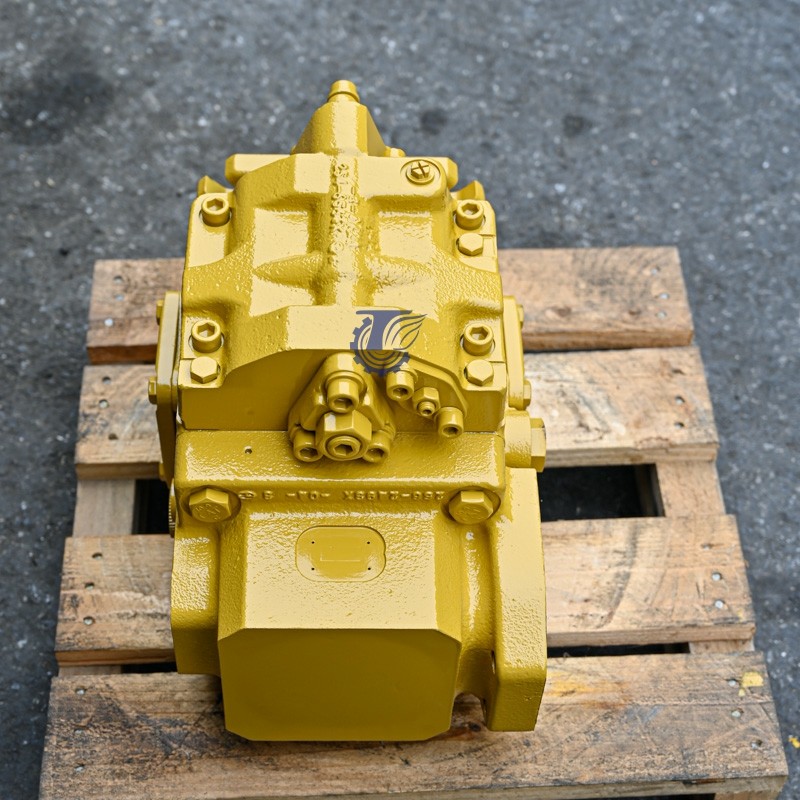

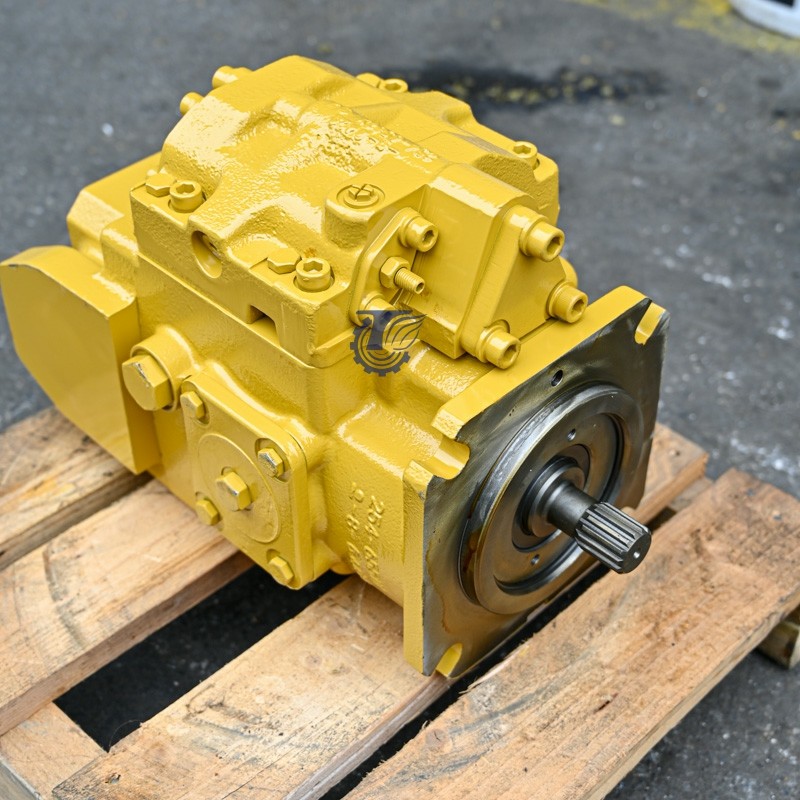

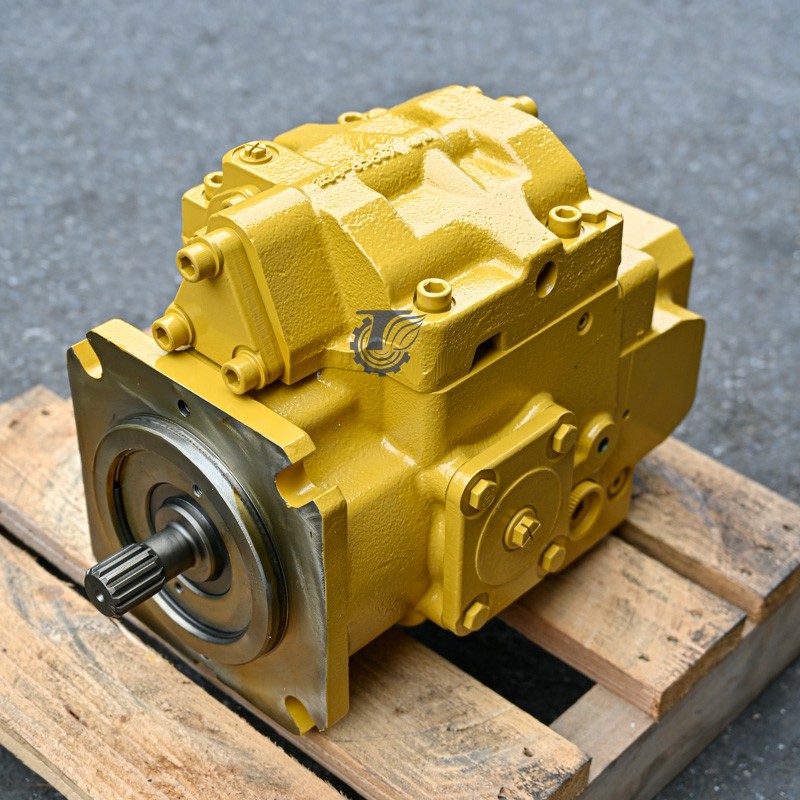

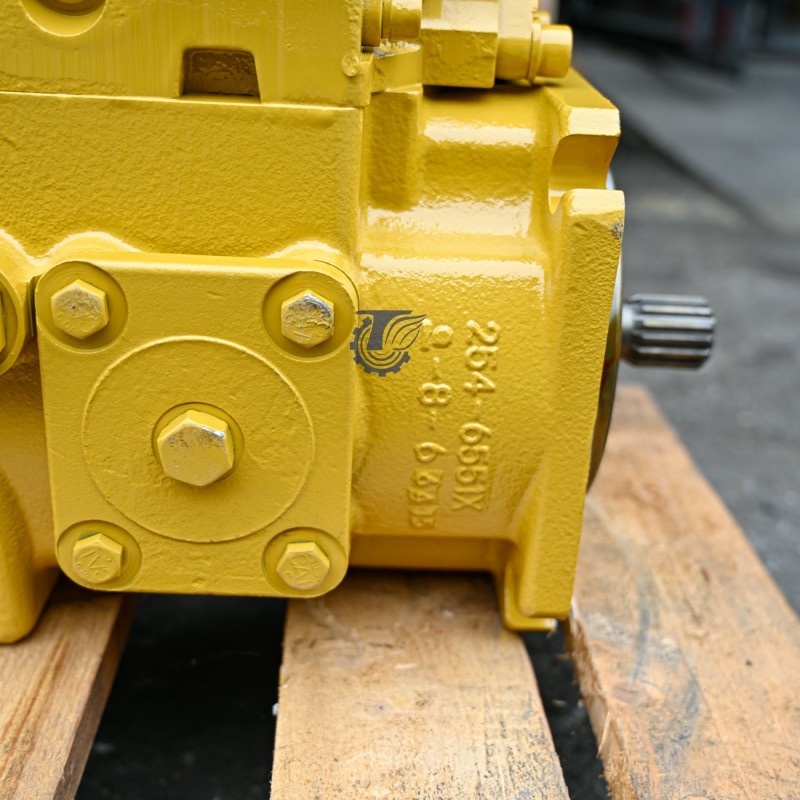

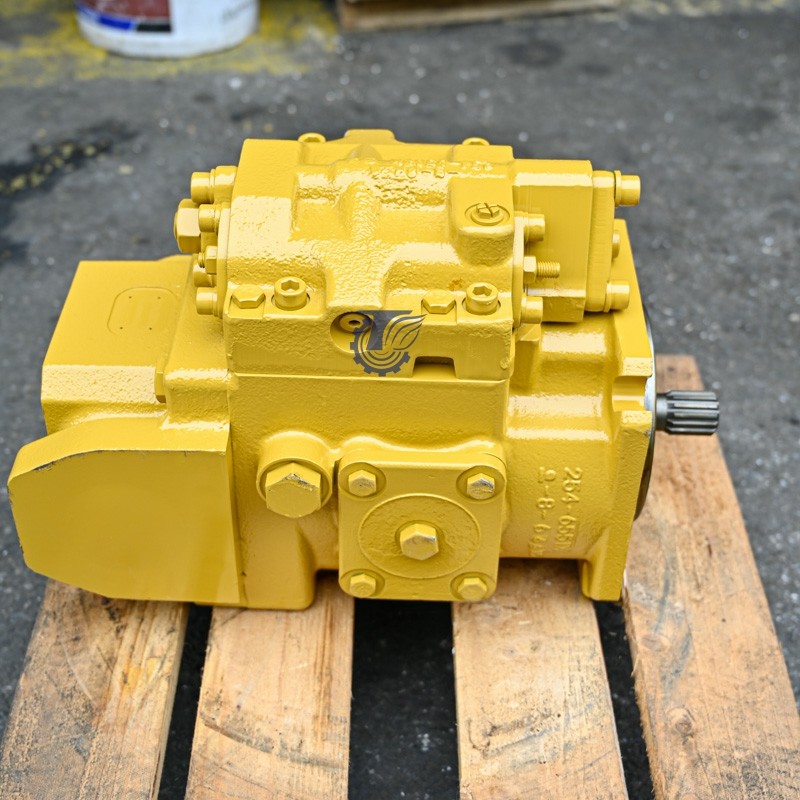

TQ 966H 972H wheel loader piston pump 292-8768 2928768
| PRODUCT DESCRIPTION |
||
| Model:TQ 966H 972H wheel loader piston pump 292-8768 2928768 | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
Alternative (cross code) number:
CA2928768
292-8768
2928768
Weight: 209 pounds 95 kg.

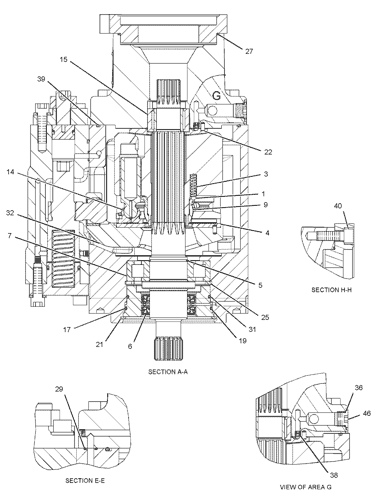

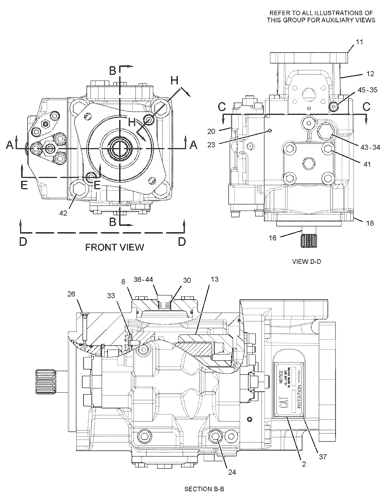

| TQERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 7Y-4215 | [1] | SPACER |
| 2 | 8J-0101 | [1] | PLATE-NOTICE (HYDRAULIC OIL FILL) |
| 3 | 096-4389 | [9] | SPRING |
| 4 | 129-7853 | [1] | PLATE |
| 5 | 129-7921 | [1] | RING-RETAINING |
| 6 | 341-2862 | [2] | SEAL-LIP TYPE |
| 7 | 129-7927 | [1] | BEARING |
| 8 | 150-5782 | [2] | COVER |
| 9 | 173-3427 | [1] | GUIDE-BALL |
| 11 | 245-8095 | [1] | PLATE-ADAPTER |
| 12 | 254-6555 | [1] | BLOCK |
| 13 | 256-0083 | [1] | BARREL AS-PUMP |
| 14 | 256-7485 | [1] | PISTON AS |
| 15 | 263-7474 | [1] | SET-BEARING |
| 16 | 273-3591 | [1] | SHAFT-PUMP (17-TEETH) |
| 17 | 292-3264 | [1] | SEAL-O-RING |

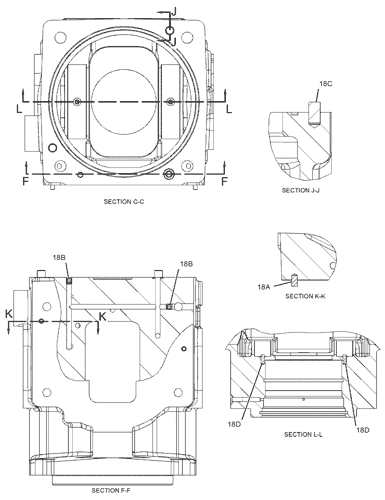

| 18 | 358-2556 | [1] | BODY AS |
| 18A. | 094-1875 | [2] | DOWEL |
| 18B. | 124-1555 | [2] | PLUG |
| 18C. | 129-7979 | [2] | DOWEL |
| 18D. | 192-0573 | [2] | PIN-DOWEL |
| 19 | 292-8771 | [1] | CASE |
| 20 | 366-6195 Y | [1] | HEAD GP-PUMP |
| 21 | 067-3161 | [1] | RING-RETAINING |
| 22 | 094-1875 | [1] | DOWEL |
| 23 | 094-1883 | [1] | PLUG |
| 24 | 095-0673 M | [4] | BOLT-SOCKET HEAD (M12X1.75X60-MM) |
| 25 | 095-0946 | [1] | RING-RETAINING |
| 26 | 094-1882 | [1] | PLUG |
| 27 | 117-8801 | [1] | SEAL-O-RING |
| 29 | 189-9763 | [1] | SEAL-O-RING |
| 30 | 193-1736 | [2] | SEAL-O-RING |
| 31 | 236-6919 | [1] | SEAL-O-RING |
| 32 | 373-9516 C | [1] | SWASHPLATE AS |
| 094-1875 | [1] | DOWEL | |
| 173-3428 | [1] | BUSHING | |
| 242-6803 | [2] | PIN-DOWEL | |
| 33 | 373-9518 C | [2] | BEARING AS (ROCKER) |
| 34 | 3D-2824 | [2] | SEAL-O-RING |
| 35 | 3J-1907 | [1] | SEAL-O-RING |
| 36 | 3K-0360 | [3] | SEAL-O-RING |
| 37 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) |
| 38 | 4I-1022 | [1] | ORIFICE |
| 39 | 6V-3907 | [1] | SEAL-O-RING (FUEL FILTER) |
| 40 | 6V-8200 M | [2] | BOLT-SOCKET HEAD (M12X1.75X35-MM) |
| 41 | 8T-4136 M | [8] | BOLT (M10X1.5X25-MM) |
| 42 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 43 | 9S-4183 | [2] | PLUG (1-1/16-12-THD) |
| 44 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
| 45 | 9S-8004 | [1] | PLUG (9/16-18-THD) |
| 46 | 9S-8005 | [1] | PLUG (3/4-16-THD) |
