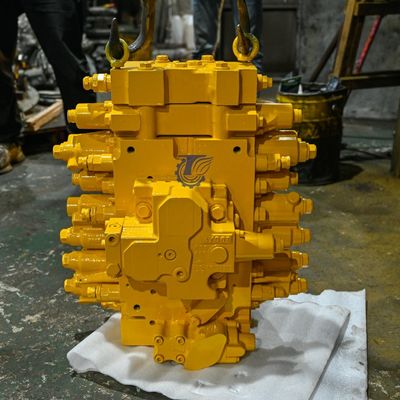

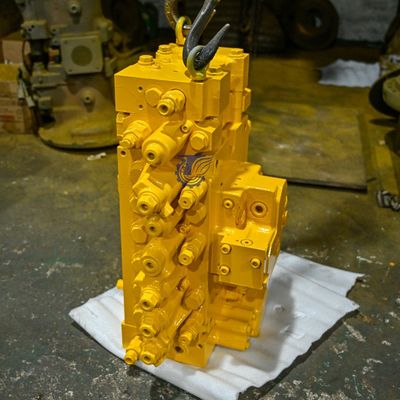

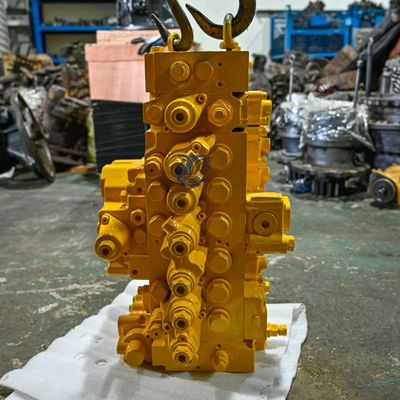

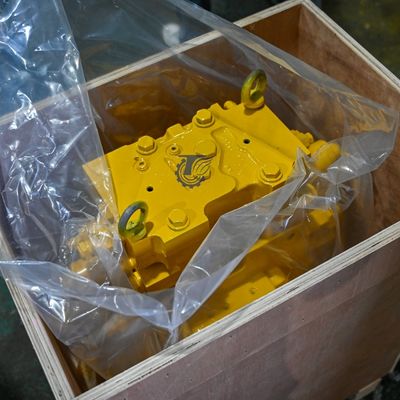

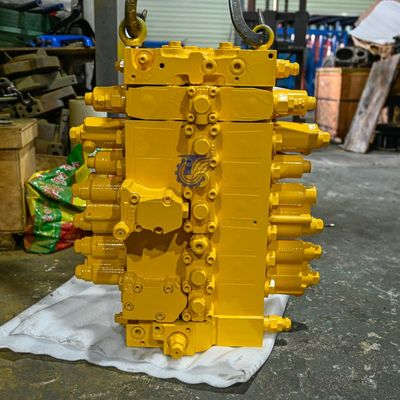

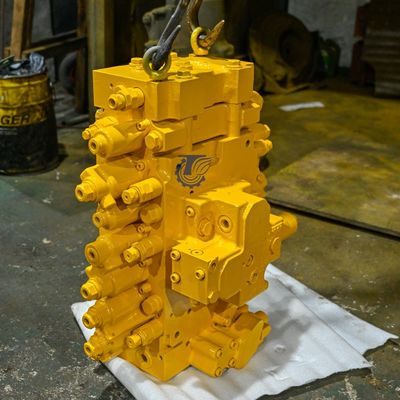

Komatsu pc200-7 control valve 723-46-20401 723-46-20402 723-46-20403 723-46-20404
| PRODUCT DESCRIPTION |
||
| Model:Komatsu pc200-7 control valve 723-46-20401 723-46-20402 723-46-20403 723-46-20404 | ategory: Control valve |
|
| Brand:Komatsu |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Komatsu Quick Reference List | ||
| Komatsu model: PW200-7 | ||
| Engine model: SAA6D102E-2 | ||
| describe | Komatsu Part Number | Quantity |
| | ||
| Main ingredients | ||
| Cylinder head assembly | 6731-11-1370 | 1 |
| Turbocharger assembly | 6738-82-8020 | 1 |
| Oil pump assembly | 6731-51-1111 | 1 |
| Fuel injection pump | 6738-71-1140 | 1 |
| Water Pump Assembly | RM6736-61-1402 | 1 |
| Alternator assembly 40A | RM6731-81-6150 | 1 |
| Starter motor assembly 5,5kW | RM6736-81-4210 | 1 |
| Main hydraulic pump assembly | RM708-2L-00203 | 1 |
| | ||
| Key components (engine) | ||
| | ||
| Intake valve assembly | 6736-41-4110 | 6 |
| Exhaust valve assembly | 6736-41-4210 | 6 |
| cylinder head gasket | 6735-11-1821 | 1 |
| Gasket, valve cover | 6732-11-8181 | 6 |
| Nozzle and piston cooling | 6731-21-1190 | 6 |
| Main metal components | 6735-21-8100 | 1 |
| Thrust metal components | 6731-21-8610 | 1 |
| Connecting rod assembly | 6732-31-3101 | 6 |
| Piston kit (includes ring assembly) | 6738-32-2010 | 6 |
| Piston ring assembly | 6738-31-2031 | 6 |
| nozzle, fuel injection | CU4863321 | 6 |
| exhaust manifold gasket | 6736-11-5820 | 6 |
| fuel filler cap | 6130-12-8610 | 1 |
| dipstick, oil level | 6732-21-5642 | 1 |
| water pump drive belt | 6732-81-3340 | 1 |
| V-belt, air conditioner | 04120-21748 | 1 |
| Thermostat | 6735-61-6471 | 1 |
| sensor, water temperature | 7861-93-3320 | 1 |
| switch, oil pressure | 6738-71-3120 | 1 |
| oil level sensor | 7861-93-4210 | 1 |
| sensor, revolution | 7861-93-2310 | 1 |
| | ||
| filter | ||
| Engine oil filter element | 6736-51-5142 | 1 |
| fuel filter element | 6732-71-6112 | 1 |
| Air filter element assembly | 600-185-3100 | 1 |
| Hydraulic filter element | 207-60-71180 | 1 |
| water separator components | YM121850-55710 | 1 |
| | ||
| Power train | ||
| Rear drive shaft assembly | 20K-20-31122 | 1 |
| Driveshaft assembly, front | 20K-20-31112XC | 1 |
| | ||
| Engine related parts | ||
| scarf | 20K-01-31610 | 1 |
| | ||
| cooling system | ||
| cooling fan | 20K-03-31490 | 1 |
| heat sink | 20K-03-31251 | 1 |
| Oil cooler | 20K-03-31261 | 1 |
| | ||
| Fuel tanks and related parts | ||
| sensor, fuel level | 7861-92-5810 | 1 |
| filter assembly | 22U-04-21241 | 1 |
| water separator | 22U-04-21131 | 1 |
| Fuel tank cap | 20Y-04-11160 | 1 |
| | ||
| electronic system | ||
| Battery | KBATT-60527 | 2 |
| Cables, batteries | 08028-62175 | 1 |
| Switch, starter (battery) | 08088-30000 | 1 |
| relay | 600-815-8941 | 1 |
| Rear work light assembly | 207-06-K1520NK | 1 |
| Work light assembly LH. | 20G-06-31170 | 1 |
| Work light assembly RH. | 20G-06-31270 | 1 |
| Tail light assembly, rear | 20K-06-31740 | 2 |
| Additional work light assembly | 22B-54-17511 | 2 |
| | ||
| Main slewing frame - related parts | ||
| Boom foot pin | 20K-70-31720 | 1 |
| pin,rotary lock | 20K-54-31272 | 1 |
| | ||
| Operator room and control system | ||
| operator seat | 20K-57-31151 | 1 |
| Operator seat (air suspension, heated) | 20K-57-31161 | 1 |
| monitor | 7835-14-1004 | 1 |
| Right rear glass | 20Y-54-51842 | 1 |
| left rear glass | 20Y-54-51241 | 1 |
| glass, front | 20Y-54-51522 | 1 |
| rear glass | 20Y-54-51272 | 1 |
| Glass front and bottom | 20Y-54-51812 | 1 |
| PPC stem LH | 20K-43-11601 | 1 |
| PPC stem RH | 20K-43-11501 | 1 |
| Sensor (air conditioner) | ND170400-4310 | 1 |
| Switch, selection (except A, D) | 20K-06-31442 | 1 |
| Switch selection (for A and D) | 20K-06-32210 | 1 |
| Wiper motor assembly | 20Y-54-52211 | 1 |
| Wiper assembly | 20Y-54-52221 | 1 |
| Steering column switch | 20E-06-K1240 | 1 |
| | ||
| guard | ||
| left rear mirror | 08174-13118 | 1 |
| Mirror right | 205-54-K1130 | 2 |
| | ||
| swing circle | ||
| Seals (swivel ring) | 205-25-71152 | 2 |
| Slewing circle assembly | 20K-25-31140 | 1 |
| | ||
| work equipment | ||
| Boom Bushing (2PCE, 1st) | 20Y-70-K3620 | 2 |
| Boom Bushing (2PCE, 2nd) | 20K-70-31181 | 2 |
| Boom Bushing (1PCE) | 20Y-70-K3620 | 2 |
| Bushings, bucket connecting rods | 205-70-73180 | 2 |
| Bushings, bucket connecting rods | 205-70-67150 | 2 |
| Pin, bucket connecting rod | 205-70-73270 | 2 |
| Pin, bucket connecting rod | 22U-70-21191 | 2 |
| | ||
| Service kits and parts | ||
| Rotary joints, seals | 20K-62-31650 | 16 |
| Repair kit, outrigger cylinder | 20K-61-31570 | 1 |
| Repair kit, suspension lock cylinder | 20K-61-31880 | 1 |
| Repair kit, blade cylinder | 20K-61-31210 | 1 |
| Repair kit arm cylinder | 707-99-57160 | 1 |
| Repair Kit Bucket Cylinder | 707-99-45230 | 1 |
