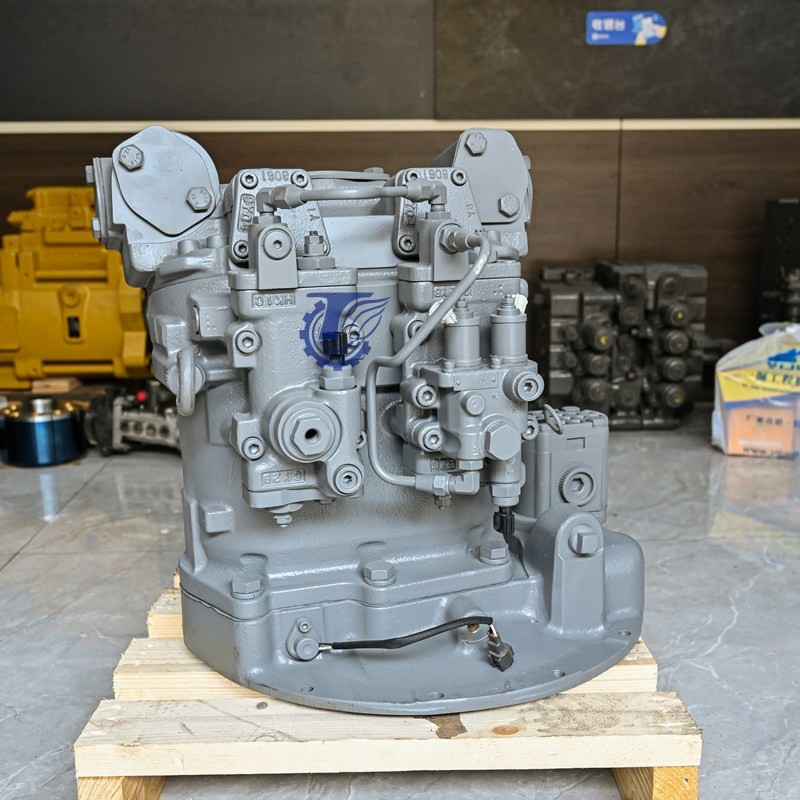

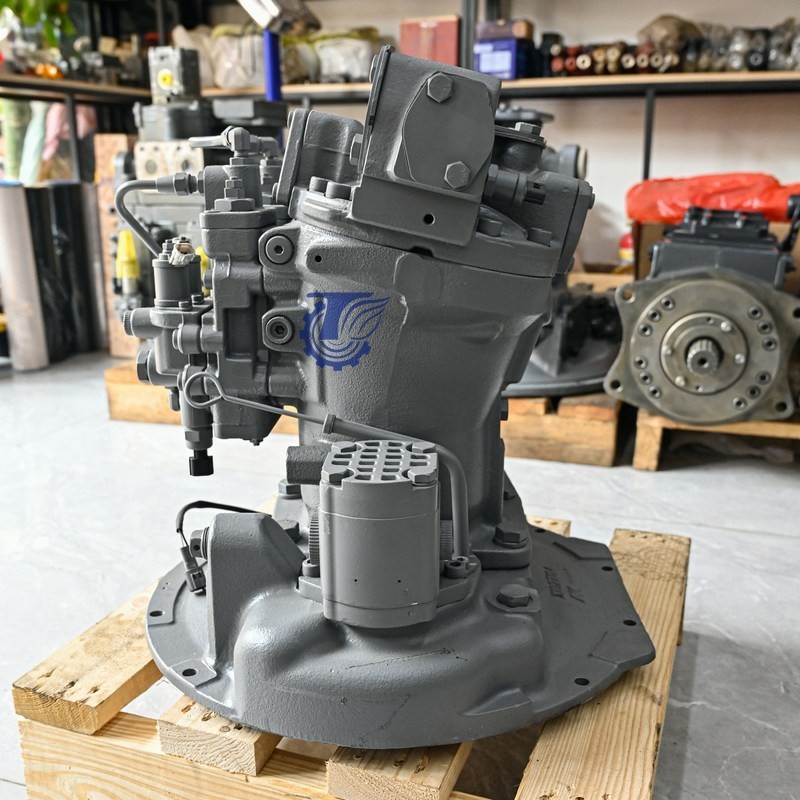

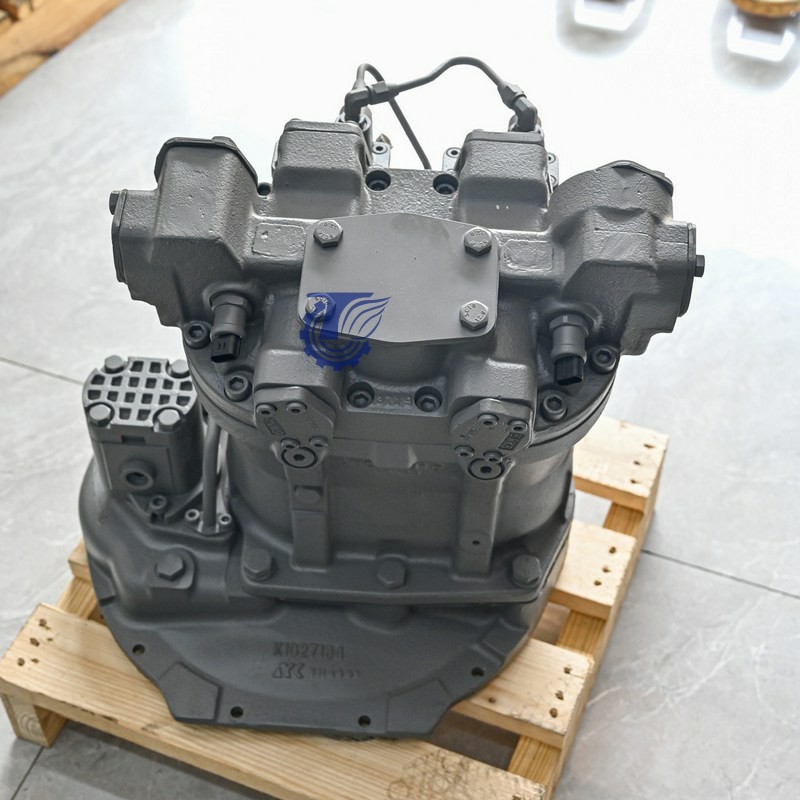

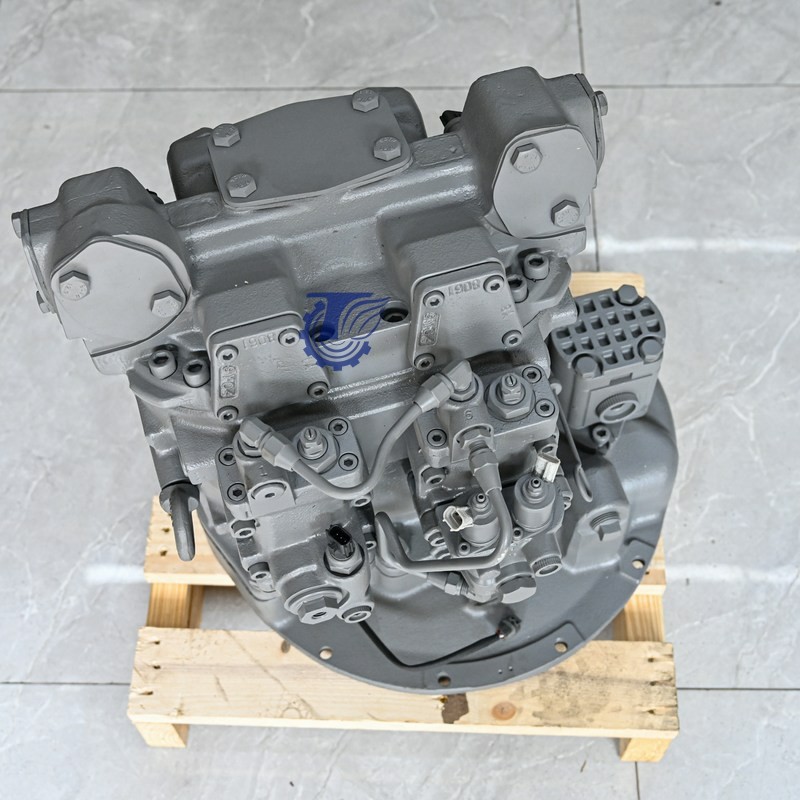

Hitachi 200-6-3G HPV102 9191164 (direct injection) hydraulic pump
| PRODUCT DESCRIPTION |
||
| Model:Hitachi 200-6-3G HPV102 9191164 (direct injection) hydraulic pump | category: Hydraulic Pump |
|
| Brand: Hitachi |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

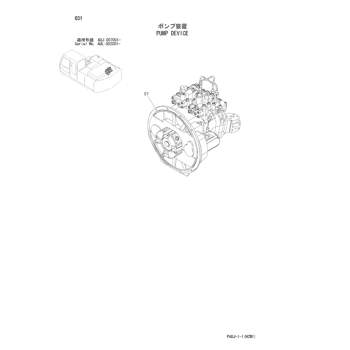

| Parts on group PUMP DEVICE: | |||
| Pos. | Part No | Qty | Parts name |
| 9191164 | [1] | PUMP DEVICE | |
| -9195235 | [1] | PUMP DEVICE | |
| 1 | 1027184 | [1] | CASING;GEAR |
| 3 | 3063840 | [1] | GEAR;PILOT |
| 4 | 3055594 | [1] | SHAFT;GEAR |
| 8 | 958740 | [2] | BRG.;BALL |
| 9 | 962002 | [1] | RING;RETAINING |
| 10 | 991725 | [1] | RING;RETAINING |
| 30 | 3063842 | [1] | GEAR |
| 31 | 3063843 | [1] | GEAR |
| 32 | 4274552 | [2] | RING;RETAINING |
| 34 | 4099290 | [2] | PIN;SPRING |
| 43 | 4310055 | [1] | SEAL;OIL |
| 44 | 991725 | [1] | RING;RETAINING |
| 61 | 4438059 | [1] | GAUGE;LEVEL |
| 62 | 9743977 | [1] | PIPE |
| 63 | 9742779 | [1] | PACKING |
| 64 | M340816 | [2] | BOLT;SOCKET |
| 68 | 4265372 | [1] | SENSOR;REVOL. |
| 69 | 4306888 | [1] | O-RING |
| 70 | A590106 | [1] | WASHER;PLANE |
| 71 | M340616 | [1] | BOLT;SOCKET |
| 86 | 4234782 | [1] | PLUG |
| 87 | 4092534 | [1] | PLUG |
| 87A. | 4509180 | [1] | O-RING |
| 103 | [1] | PUMP;UNIT | |
| 112 | [1] | NAME-PLATE | |
| 113 | M492564 | [2] | SCREW;DRIVE |
| 120 | 4276918 | [1] | PUMP;GEAR |
| 121 | M341030 | [2] | BOLT;SOCKET |
| 122 | 984054 | [2] | WASHER;SPRING |
| 123 | 4114402 | [2] | WASHER |
| 127 | 4369148 | [1] | PIPE;E |
| 130 | 4293950 | [2] | ELBOW;S |
| 130A. | 957366 | [1] | O-RING |
| 133 | 4416605 | [1] | COUPLING |
| 133A. | 4463992 | [1] | HUB |
| 133B. | 4334899 | [2] | SCREW;SET |
| 133C. | 4101345 | [4] | PIN;SPRING |
| 133D. | 4463993 | [4] | INSERT |
| 133E. | 4334894 | [4] | BOLT;SOCKET |
| 133F. | 4463994 | [1] | ELEMENT |
| 136 | 8058352 | [1] | PACKING |
| 137 | J901645 | [6] | BOLT |
| 138 | A590916 | [6] | WASHER;SPRING |
| 200 | 4451036 | [1] | KIT;SEAL |
Routine maintenance of an excavator is essential to ensure its safety, performance, and longevity. Here are some recommendations for the daily maintenance of an excavator:
Clean the Machine: Regularly clean the exterior of the excavator, including the machine's surface, hydraulic lines, and radiator. Ensure that mud and dirt do not accumulate on the machine, especially around the engine and radiator.
Check Fluid Levels: Periodically check the levels of hydraulic oil, coolant, and engine oil, and ensure they are within the appropriate markings.
Replace Filters: Regularly replace filters in the hydraulic system, air filters, and fuel filters to prevent impurities from entering the system.
LubriTQe Grease Points: LubriTQe various grease points on the excavator as per the manufacturer's recommendations to ensure smooth operation.
Inspect Tracks or Tires: If the excavator uses tracks, inspect the tension and wear of the tracks. If it uses tires, check tire pressure and wear.
Inspect the Hydraulic System: Regularly inspect the hydraulic system's pipes, fittings, and seals to ensure there are no leaks.
Check the Braking System: Ensure the braking system is functioning properly, including brake pads and brake fluid.
Inspect the Electrical System: Check the battery, wiring, and electrical connections for signs of wear or looseness.
Monitor Hydraulic Oil Temperature: Monitor the temperature of the hydraulic oil to ensure it stays within the normal working range to avoid overheating.
Maintain Turbochargers and Engine: If the excavator is equipped with a turbocharger, ensure it remains clean and undergoes regular maintenance. Also, change engine oil and filters according to the engine maintenance schedule.
Record Maintenance Activities: Keep a record of the date and details of each maintenance activity to track the machine's maintenance history.
Follow Manufacturer Recommendations: Follow the maintenance manual and recommendations provided by the manufacturer to ensure the excavator's maintenance is done correctly.
Please note that different excavator models may have varying maintenance requirements, so it's best to follow the specific maintenance manual for your model. Additionally, regular maintenance and inspections can help identify potential issues early, reduce the risk of machine breakdowns, and ensure the excavator remains efficient and safe during operation.
