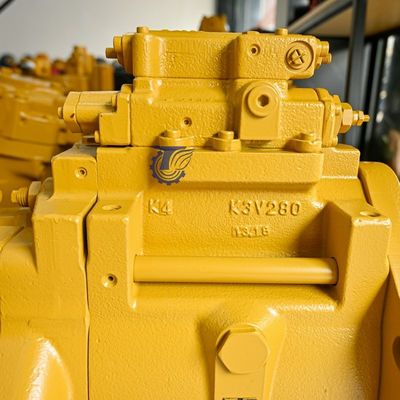

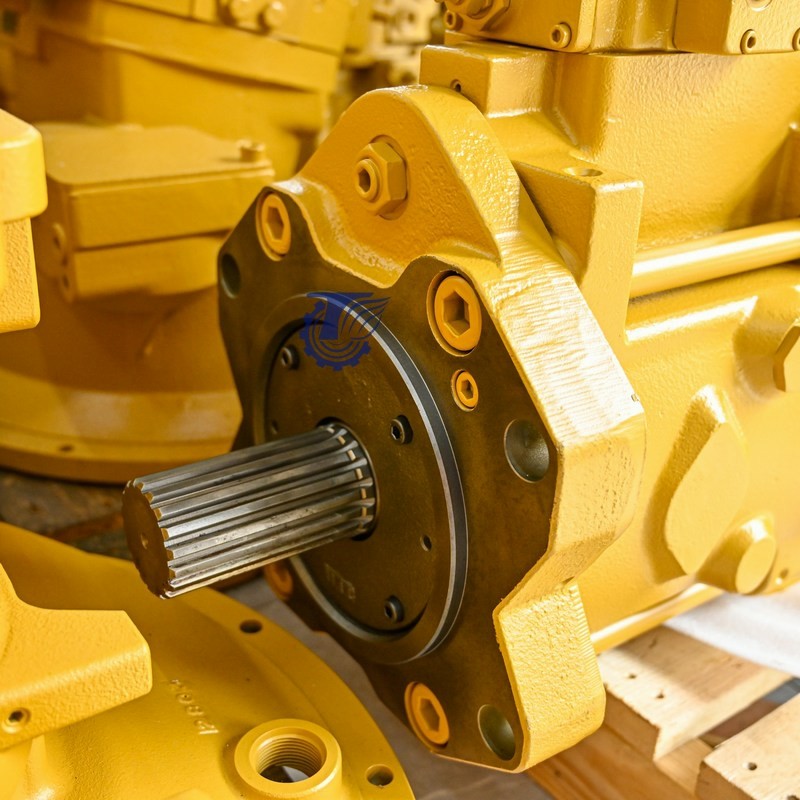

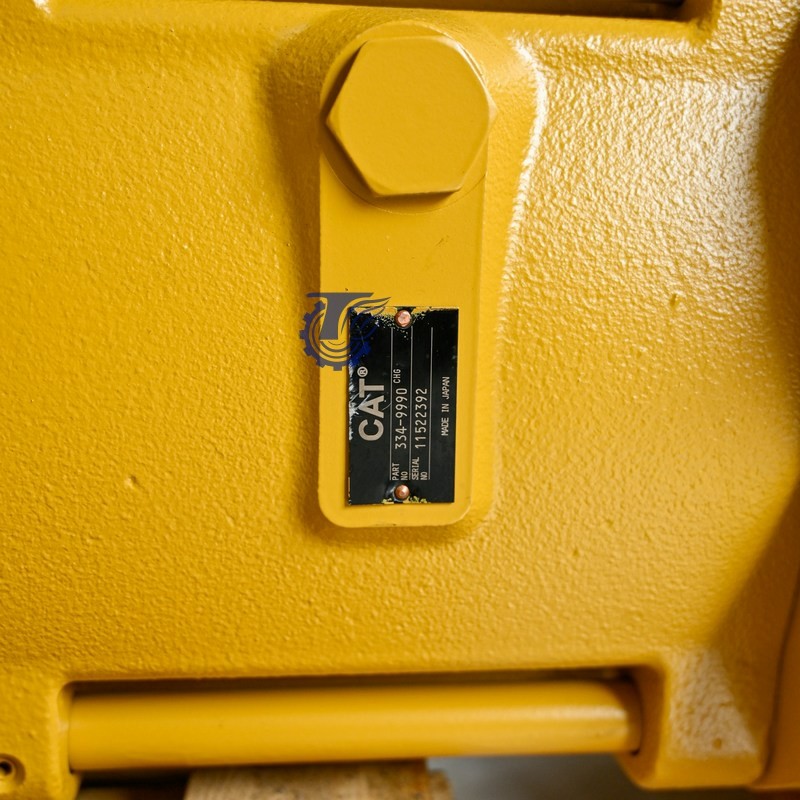

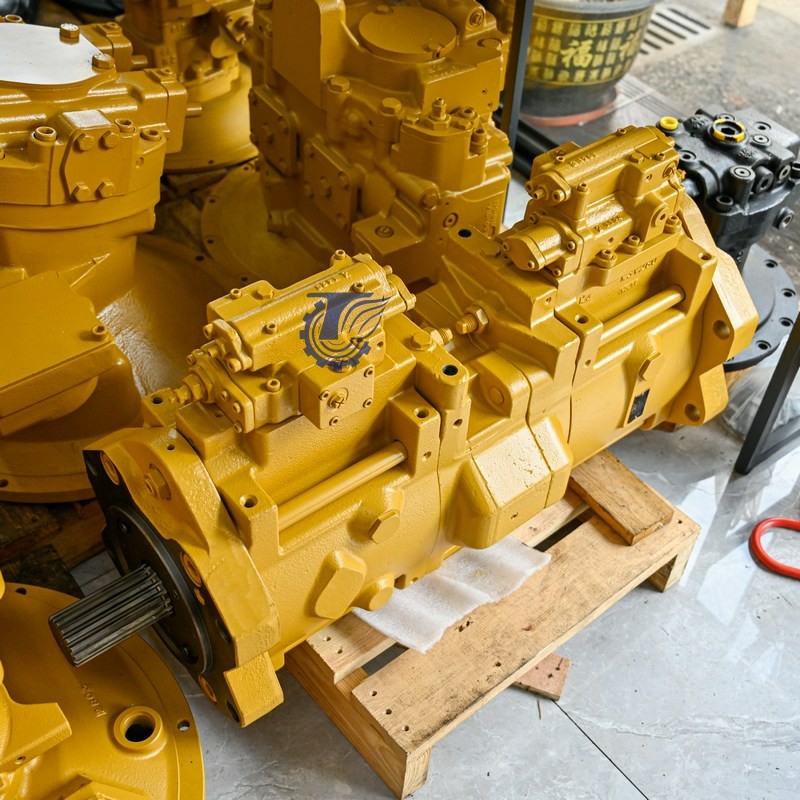

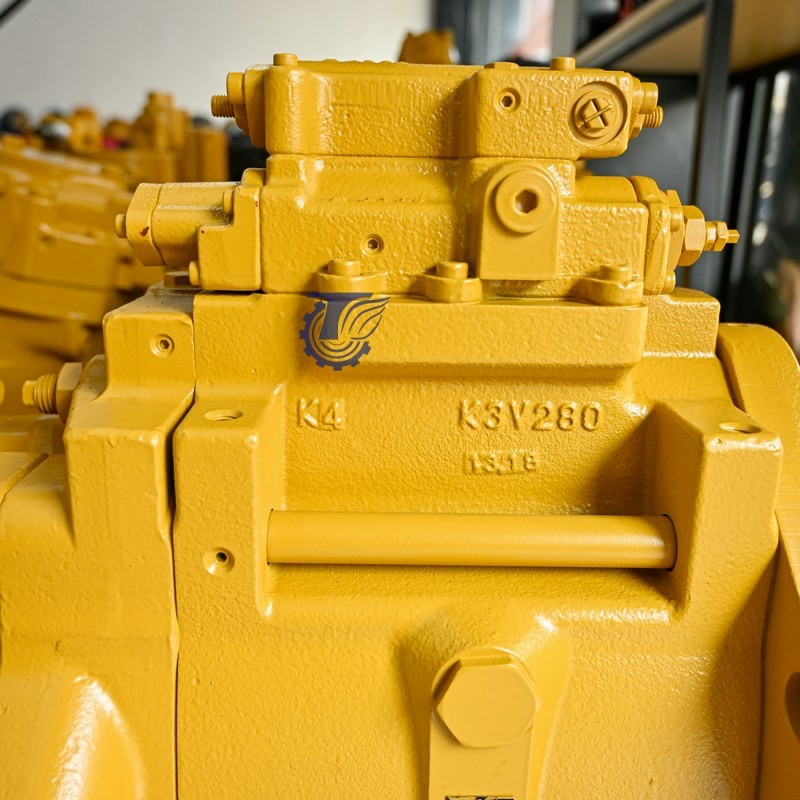

334-9990 K3V280 Hydraulic Main Pump 3349990 For TQ 385 390 Excavator
| PRODUCT DESCRIPTION |
||
| Model:334-9990 K3V280 Hydraulic Main Pump 3349990 For TQ 385 390Excavator | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

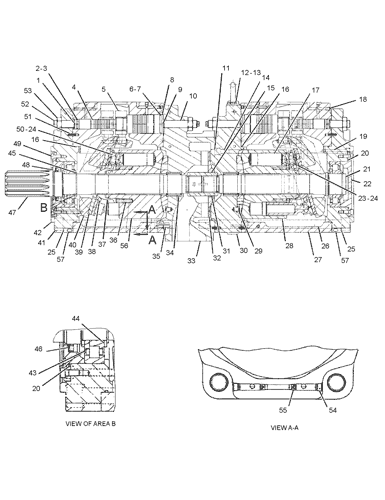

| Parts for your 385C L MH EXCAVATOR: | |||
| TQERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 200-3291 | [2] | STOP |
| 2 | 095-1787 | [2] | RING-BACKUP |
| 3 | 206-9297 | [2] | SEAL-O-RING |
| 4 | 200-3289 | [2] | PISTON |
| 5 | 200-3297 | [2] | PIN AS |
| 6 | 206-9285 | [2] | SEAL-O-RING |
| 7 | 095-1795 | [2] | RING-BACKUP |
| 8 | 200-3290 | [2] | STOP |
| 9 | 206-9290 | [19] | SEAL-O-RING |
| 10 | 200-3292 M | [2] | SETSCREW (M20X2.5X90-MM) |
| 11 | 210-0834 | [1] | SEAL-O-RING |
| 12 | 7Y-4274 | [2] | PLUG |
| 13 | 206-9292 | [2] | SEAL-O-RING |
| 14 | 197-0226 M | [2] | BOLT-SOCKET HEAD (M10X1.5X75-MM) |
| 15 | 206-9286 | [1] | SEAL-O-RING |
| 16 | 210-0835 | [4] | SEAL-O-RING |
| 17 | 295-9692 | [2] | PISTON AS |
| 18 | 7I-8084 | [23] | PLUG |
| 19 | 160-8758 M | [4] | BOLT-SOCKET HEAD (M10X1.5X55-MM) |
| 20 | 206-9287 | [2] | SEAL-O-RING |
| 21 | 200-3272 | [1] | SHAFT |
| 22 | 200-3285 | [1] | COVER |
| 23 | 7I-8177 | [2] | ADAPTER |
| 24 | 190-7674 | [4] | SEAL-O-RING |
| 25 | 200-3283 | [8] | WASHER |
| 26 | 210-9434 M | [4] | BOLT-SOCKET HEAD (M22X2.5X300-MM) |
| 27 | 200-3286 | [2] | HOUSING |
| 28 | 335-0009 | [1] | BARREL AS |
| 29 | 234-4539 | [2] | DOWEL |
| 30 | 200-3288 | [1] | COVER |
| 31 | 200-3273 | [1] | COUPLING |
| 32 | 200-3277 | [1] | PLATE |
| 33 | 200-3287 | [1] | COVER |
| 34 | 200-3275 | [2] | BEARING-NEEDLE |
| 35 | 209-5875 | [8] | SETSCREW |
| 36 | 200-3280 | [18] | SPRING |
| 37 | 200-3279 | [2] | GUIDE |
| 38 | 200-3278 | [2] | PLATE |
| 39 | 200-3281 | [2] | PLATE |
| 40 | 200-3296 | [2] | SWASHPLATE AS |
| 41 | 210-9435 M | [4] | BOLT-SOCKET HEAD (M22X2.5X370-MM) |
| 42 | 364-1035 | [2] | PLATE |
| 43 | 200-3274 | [2] | BEARING-ROLLER |
| 44 | 200-3276 | [4] | SPACER |
| 45 | 096-5516 | [2] | RING-RETAINING (EXTERNAL) |
| 46 | 200-3298 | [1] | SEAL |
| 47 | 200-3271 | [1] | SHAFT |
| 48 | 200-3284 | [1] | COVER |
| 49 | 8T-1158 M | [8] | BOLT-SOCKET HEAD (M8X1.25X20-MM) |
| 50 | 093-1323 | [2] | PLUG |
| 51 | 8C-3347 | [5] | PIN-ROLL |
| 52 | 096-5400 M | [2] | SETSCREW-SOCKET (M20X2.5X50-MM) |
| 53 | 8T-4131 M | [4] | NUT (M20X2.5-THD) |
| 54 | 095-0965 | [5] | PLUG |
| 55 | 7I-8164 | [4] | ORIFICE (1/16-NPTF) |
| 56 | 335-0008 | [1] | BARREL AS |
| 57 | 371-7201 | [8] | PLUG |
