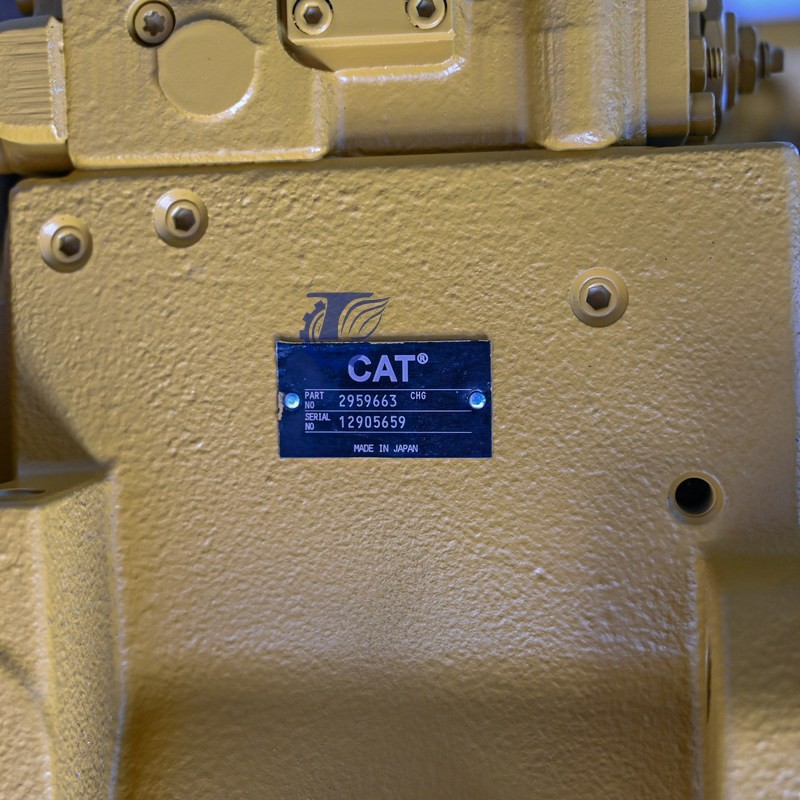

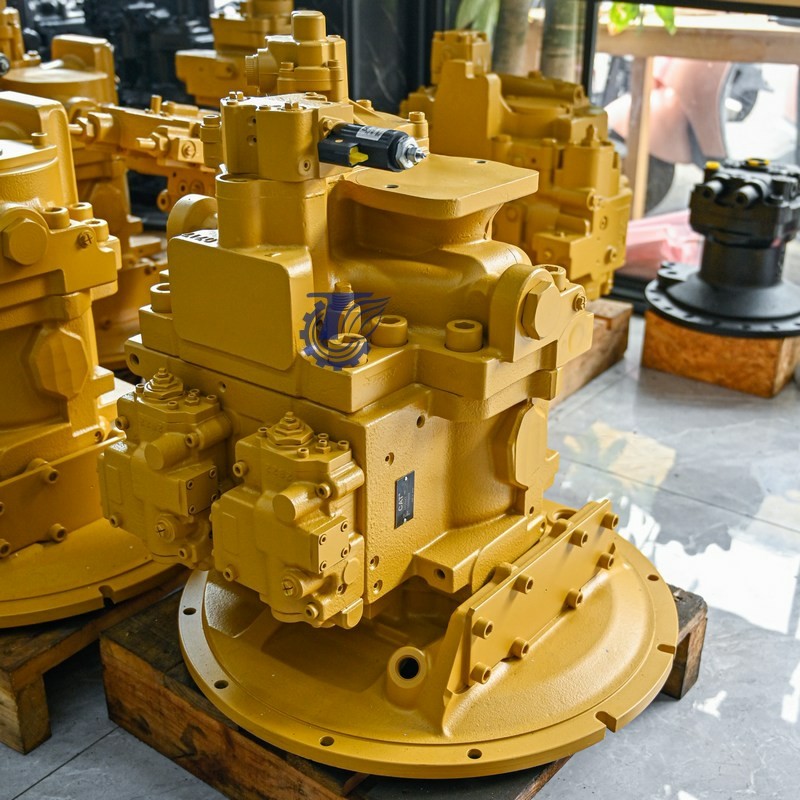

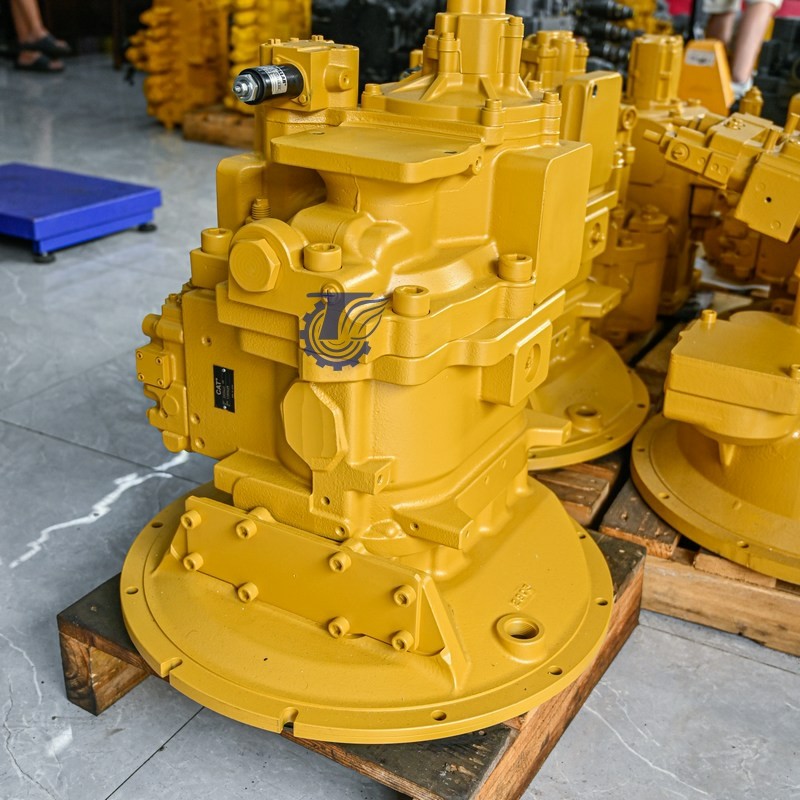

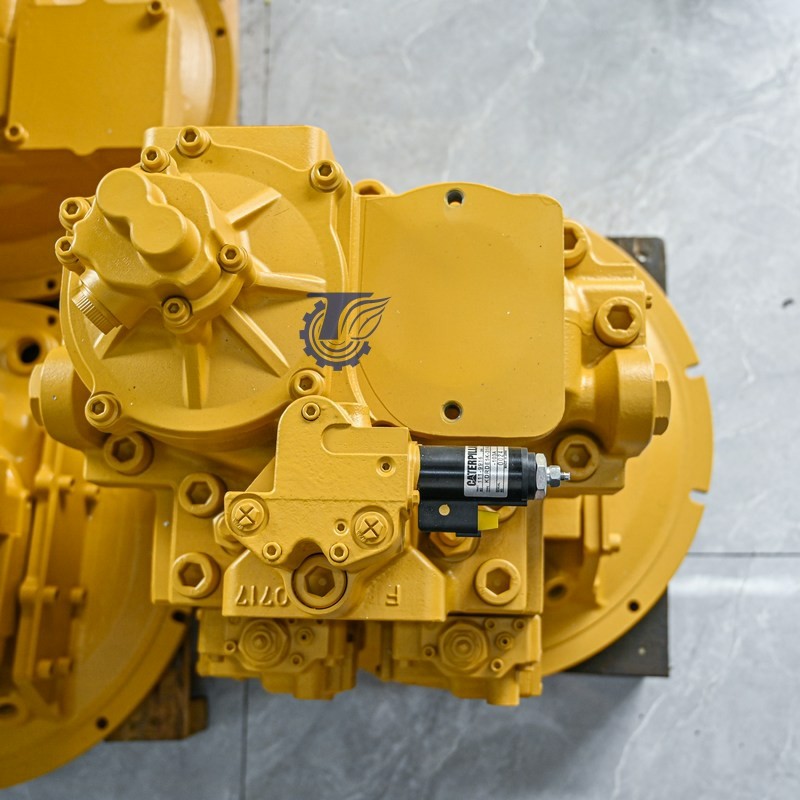

TQ excavator hydraulic motor 2959663 suitable for TQ 345D L 349D 345D L VG 349D L 345D 349D
| PRODUCT DESCRIPTION |
||
| Model:TQ excavator hydraulic motor 2959663 suitable for TQ 345D L 349D 345D L VG 349D L 345D 349D | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

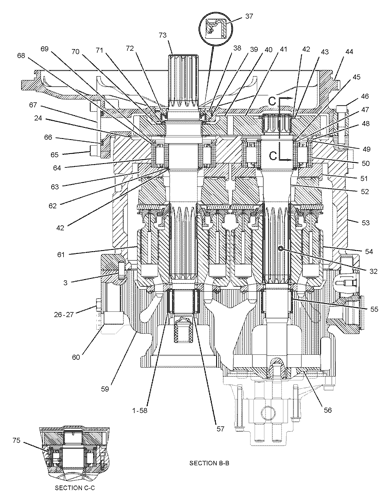

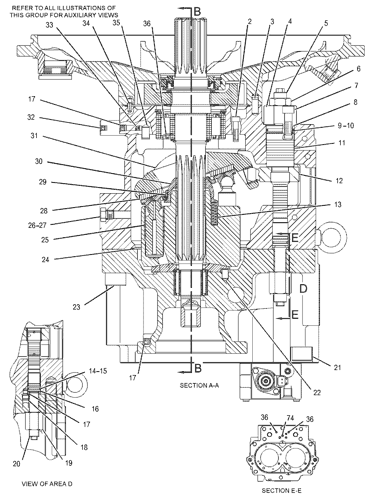

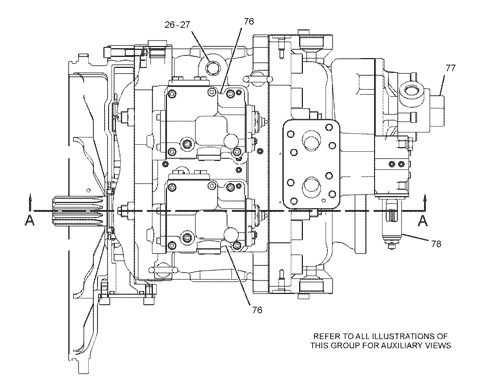

| Parts for your 345D EXCAVATOR: | |||
| TQERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 295-9693 | [1] | BEARING-NEEDLE |
| 2 | 252-9167 M | [8] | BOLT-SOCKET HEAD (M8X1.25X30-MM) |
| 3 | 247-8985 | [4] | DOWEL |
| 4 | 247-8729 | [2] | COVER |
| 5 | 242-6919 M | [2] | SETSCREW (M20X2.5X56-MM) |
| 6 | 451-2184 M | [2] | NUT (M20X2.5-THD) |
| 7 | 6V-8200 M | [8] | BOLT-SOCKET HEAD (M12X1.75X35-MM) |
| 8 | 7I-8166 | [2] | STOPPER |
| 9 | 109-1296 | [2] | SEAL-O-RING |
| 10 | 7I-8172 | [2] | RING-BACKUP |
| 11 | 242-6914 | [2] | PISTON-SERVO |
| 12 | 247-8712 | [2] | PIN AS |
| 13 | 295-9506 | [18] | SPRING |
| 14 | 109-1294 | [2] | SEAL-O-RING |
| 15 | 7I-8171 | [2] | RING-BACKUP |
| 16 | 242-6915 | [2] | STOPPER |
| 17 | 095-0965 | [12] | PLUG |
| 18 | 095-0966 | [2] | PLUG |
| 19 | 242-6918 M | [2] | NUT (M20X2.5-THD) |
| 20 | 200-3292 M | [2] | SETSCREW (M20X2.5X90-MM) |
| 21 | 249-1308 M | [1] | BOLT-SOCKET HEAD (M22X2.5X180-MM) |
| 22 | 234-4539 | [2] | DOWEL |
| 23 | 249-1306 M | [9] | BOLT-SOCKET HEAD (M22X2.5X60-MM) |
| 24 | 326-4415 | [2] | GASKET |
| 25 | 295-9518 | [2] | PISTON AS |
| 26 | 110-5525 | [4] | PLUG |
| 27 | 214-7568 | [4] | SEAL-O-RING |
| 28 | 295-9510 | [2] | PLATE |
| 29 | 295-9504 | [2] | PLATE |
| 30 | 295-9505 | [2] | RETAINER-BALL |
| 31 | 295-9521 | [2] | SWASHPLATE AS |
| 32 | 7I-8084 | [21] | PLUG |
| 33 | 7I-8164 | [4] | ORIFICE (1/16-NPTF) |
| 34 | 095-0882 | [4] | PIN-SPRING |
| 35 | 247-8786 | [2] | DOWEL |
| 36 | 347-6530 | [9] | SEAL-RECTANGULAR |
| 37 | 295-9695 | [1] | SEAL-LIP TYPE |
| 38 | 095-0944 | [1] | RING-RETAINING |
| 39 | 249-6657 | [1] | SEAL-O-RING |
| 40 | 295-9508 | [1] | GEAR-DRIVE (31-TEETH) |
| 41 | 295-9509 | [1] | GEAR-DRIVEN (31-TEETH) |
| 42 | 8T-4241 | [2] | RING-RETAINING |
| 43 | 295-9501 | [1] | SPACER (49.5X73X3-MM THK) |
| 44 | 295-9507 | [1] | FLANGE |
| 45 | 096-5516 | [2] | RING-RETAINING (EXTERNAL) |
| 46 | 8T-0343 M | [11] | BOLT-SOCKET HEAD (M12X1.75X55-MM) |
| 47 | 295-9502 | [2] | SPACER (55X69X3-MM THK) |
| 48 | 295-9516 | [1] | RING |
| 49 | 295-9503 | [1] | SPACER (104X120X3.2-MM THK) |
| 50 | 295-9500 | [1] | BEARING-ROLLER |
| 51 | 295-9511 | [1] | PLATE |
| 52 | 295-9499 | [1] | SHAFT-DRIVEN |
| 53 | 322-8736 | [1] | BODY |
| 54 | 311-9506 | [1] | BARREL AS-PUMP |
| 55 | 247-8715 | [1] | BEARING-NEEDLE |
| 56 | 247-8721 | [1] | IMPELLER |
| 57 | 247-8730 | [1] | RING-RETAINING |
| 58 | 247-8944 | [1] | BUSHING |
| 59 | 295-9694 | [1] | BLOCK-PORT |
| 60 | 249-1307 M | [2] | BOLT-SOCKET HEAD (M22X2.5X95-MM) |
| 61 | 311-9505 | [1] | BARREL AS-PUMP |
| 62 | 247-8719 | [1] | SPACER (50X64X3-MM THK) |
| 63 | 247-8725 | [1] | PLATE |
| 64 | 247-8713 | [1] | BEARING-ROLLER |
| 65 | 8T-9080 M | [8] | BOLT-SOCKET HEAD (M12X1.75X20-MM) |
| 66 | 249-6670 | [1] | SEAL-O-RING |
| 67 | 295-9512 | [1] | COVER |
| 68 | 247-8720 | [1] | SPACER (95X110X3.2-MM THK) |
| 69 | 247-8787 | [1] | RING-RETAINING |
| 70 | 247-8717 | [2] | SPACER (65X90X1-MM THK) |
| 71 | 095-0929 | [2] | RING-RETAINING |
| 72 | 247-8726 | [1] | COVER |
| 73 | 295-9498 | [1] | SHAFT-DRIVE |
| 74 | 206-9291 | [2] | SEAL-O-RING |
| 75 | 295-9517 | [1] | DOWEL |
| 76 | 295-9497 Y | [2] | HEAD GP-PUMP |
| 77 | 289-7912 Y | [1] | PUMP GP-GEAR (PILOT) |
| 78 | 225-4518 Y | [1] | VALVE GP-SOLENOID (PUMP CONTROL) |
