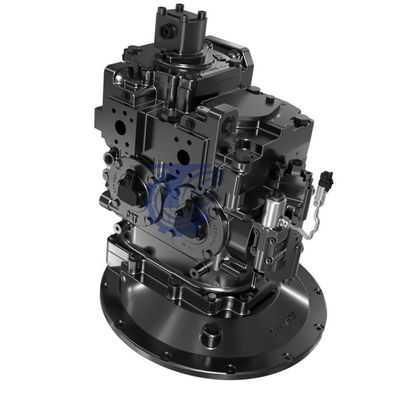

377-4950 3774950 369-9641 FOR CATERPILLAR 336F 340F 336E 336D2 XE EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 377-4950 3774950 369-9641 FOR CATERPILLAR 336F 340F 336E 336D2 XE EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL | category: Hydraulic Pump | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name |
| 1 | 4D-6695 | [2] | SEAL-O-RING |
| 2 | 006-0136 | [1] | KEY (SQUARE) |
| 3 | 109-4496 | [4] | BEARING-SPECIAL ROLLER |
| 4 | 118-4057 | [18] | SPRING |
| 5 | 146-8991 | [1] | SPACER (29X38X1.57-MM THK) |
| 6 | 167-3863 | [2] | BALL |
| 7 | 173-4066 | [2] | SPACER (63.05X79.8X7-MM THK) |
| 8 | 175-7887 | [4] | DOWEL |
| 9 | 236-6919 | [2] | SEAL-O-RING |
| 10 | 246-3393 | [2] | BARREL AS-PUMP |
| 11 | 435-5276 | [2] | PLATE-PORT |
| 12 | 273-8315 | [1] | SEAL-O-RING |
| 13 | 282-2429 | [2] | SENSOR GP-POSITION |
| 14 | 356-0857 | [2] | PLATE-SENSOR |
| 15 | 377-4951 | [1] | BODY |
| 16 | 377-4952 | [1] | COVER |
| 17 | 377-4953 | [2] | COVER |
| 18 | 377-4955 | [1] | SEAL-LIP TYPE |
| 19 | 377-4956 | [1] | CASE |
| 20 | 377-4957 | [1] | SHAFT-DRIVE |
| 21 | 377-4958 | [1] | SHAFT-DRIVEN |
| 22 | 377-4959 | [2] | GEAR |
| 23 | 377-4960 Y | [2] | HEAD GP-PUMP |
| 24 | 377-4965 | [1] | SWASHPLATE AS |
| 8T-4956 M | [2] | BOLT (M12X1.75X35-MM) | |
| 398-8911 | [1] | BEARING | |
| 398-8918 | [1] | BLOCK | |
| 25 | 377-4968 | [1] | FLANGE |
| 26 | 377-4969 | [2] | BEARING |
| 27 | 377-4970 | [2] | BEARING |
| 28 | 377-4971 | [1] | IMPELLER |
| 29 | 377-9067 Y | [1] | PUMP GP-GEAR |
| 30 | 378-2268 | [2] | PISTON AS |
| (EACH INCLUDES) | |||
| 108-6503 | [9] | PISTON AS | |
| 167-3862 | [1] | PLATE-RETAINER | |
| 32 | 389-8872 | [4] | LINK |
| 33 | 390-9470 | [1] | BLOCK-PORT |
| 34 | 392-1856 | [1] | SWASHPLATE AS |
| 8T-4956 M | [2] | BOLT (M12X1.75X35-MM) | |
| 398-8911 | [1] | BEARING | |
| 398-8918 | [1] | BLOCK | |
| 35 | 399-2640 | [1] | COVER |
| 36 | 094-1875 | [6] | DOWEL |
| 37 | 094-1882 | [6] | PLUG |
| 38 | 095-0929 | [2] | RING-RETAINING |
| 39 | 095-0946 | [2] | RING-RETAINING |
| 41 | 129-7979 | [6] | DOWEL |
| 42 | 189-9763 | [2] | SEAL-O-RING |
| 43 | 308-0042 | [4] | DOWEL-BUSHING |
| 44 | 3J-1907 | [1] | SEAL-O-RING |
| 45 | 5D-5958 | [2] | SEAL-O-RING |
| 46 | 6F-7061 | [4] | DOWEL |
| 47 | 6V-3907 | [1] | SEAL-O-RING |
| 48 | 6V-5200 | [2] | RING-RETAINING |
| 49 | 6V-8243 | [1] | RING-RETAINING |
| 50 | 6V-8757 | [2] | RING-RETAINING |
| 51 | 7M-8485 | [2] | SEAL-O-RING |
| 52 | 7X-2488 M | [1] | BOLT (M20X2.5X160-MM) |
| 53 | 7X-2564 M | [2] | BOLT (M20X2.5X90-MM) |
| 54 | 7X-2566 M | [3] | BOLT (M20X2.5X110-MM) |
| 55 | 7Y-5219 | [2] | SEAL-O-RING |
| 56 | 8C-8545 M | [12] | BOLT-SOCKET HEAD (M5X0.8X20-MM) |
| 57 | 8M-1279 | [1] | COVER-PROTECTION |
| 58 | 8T-0267 M | [5] | BOLT-SOCKET HEAD (M6X1X12-MM) |
| 59 | 8T-3016 | [4] | WASHER (5.3X10X1-MM THK) |
| 60 | 8T-4137 M | [10] | BOLT (M10X1.5X20-MM) |
| 61 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 62 | 8T-4184 M | [11] | BOLT (M12X1.75X45-MM) |
| 63 | 8T-7338 M | [5] | BOLT (M16X2X45-MM) |
| 64 | 9S-4181 | [2] | PLUG (1-5/16-12-THD) |
| 65 | 9S-4191 | [1] | PLUG (9/16-18-THD) |
| 66 | 9T-2584 | [1] | RING-RETAINING (INTERNAL) |
| M | METRIC PART | ||
| Y | SEPARATE ILLUSTRATION |
