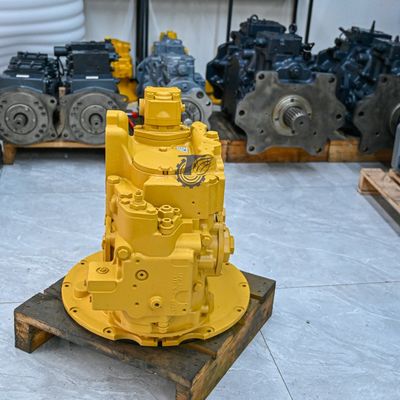

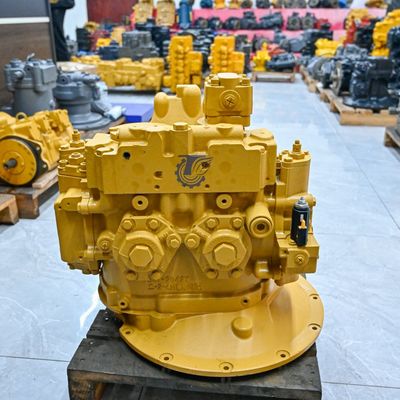

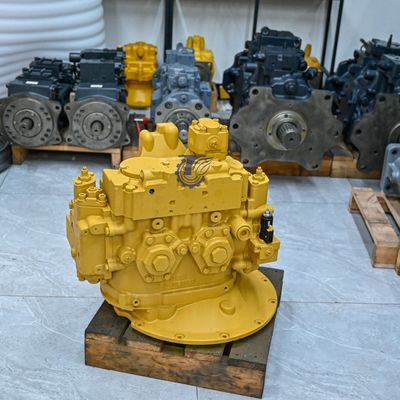

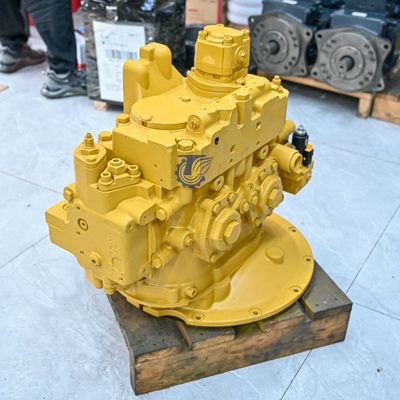

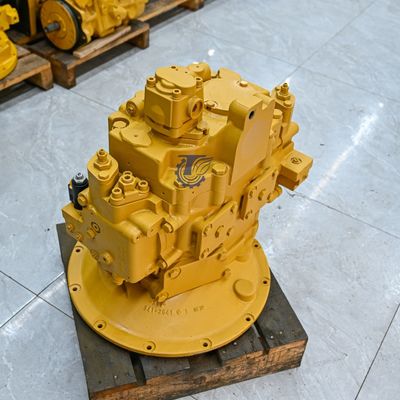

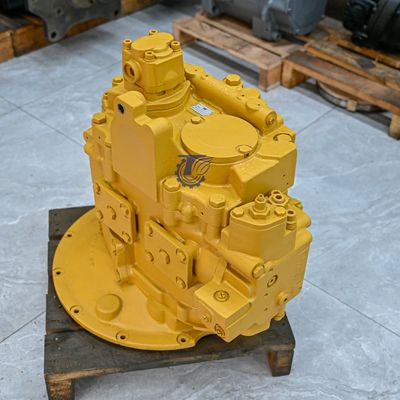

194-8383 FOR CATERPILLAR 330C 330CL EXCAVATOR C-9 ENGINE EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 194-8383 FOR CATERPILLAR 330C 330CL EXCAVATOR C-9 ENGINE EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL | category: Hydraulic Pump | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name |
| 2 | 242-6920 M | [8] | BOLT (M8X30-MM) |
| 3 | 247-8985 | [4] | DOWEL |
| 4 | 247-8729 | [2] | COVER |
| 5 | 242-6919 M | [2] | SETSCREW (M20X2.5X56-MM) |
| 6 | 8T-4131 M | [2] | NUT (M20X2.5-THD) |
| 7 | 6V-8200 M | [8] | BOLT-SOCKET HEAD (M12X1.75X35-MM) |
| 8 | 7I-8166 | [2] | STOPPER |
| 9 | 109-1296 | [2] | SEAL-O-RING |
| 10 | 7I-8172 | [2] | RING-BACKUP |
| 11 | 242-6914 | [2] | PISTON-SERVO |
| 12 | 247-8712 | [2] | PIN AS |
| 13 | 7I-8152 | [18] | SPRING-CYLINDER |
| 14 | 109-1294 | [2] | SEAL-O-RING |
| 15 | 7I-8171 | [2] | RING-BACKUP |
| 16 | 242-6915 | [2] | STOPPER |
| 17 | 095-0965 | [11] | PLUG |
| 18 | 095-0966 | [2] | PLUG |
| 19 | 242-6918 M | [2] | NUT (M20X2.5-THD) |
| 20 | 200-3292 M | [2] | SETSCREW (M20X2.5X90-MM) |
| 21 | 264-8266 M | [1] | BOLT-SOCKET HEAD (M22X2.5X130-MM) |
| 22 | 234-4539 | [2] | DOWEL |
| 23 | 249-1306 M | [10] | BOLT-SOCKET HEAD (M22X2.5X60-MM) |
| 24 | 242-6916 | [2] | GASKET |
| 25 | 110-5525 | [4] | PLUG |
| 26 | 153-4906 | [4] | SEAL-O-RING |
| 27 | 295-9691 | [2] | PISTON AS |
| 28 | 7I-8154 | [2] | PLATE |
| 29 | 242-6912 | [2] | PLATE |
| 30 | 242-6913 | [2] | RETAINER-BALL |
| 31 | 247-8927 | [2] | SWASHPLATE AS |
| 32 | 7I-8084 | [20] | PLUG |
| 33 | 7I-8164 | [4] | ORIFICE |
| 34 | 247-8725 | [2] | PLATE |
| 35 | 095-0882 | [4] | PIN-SPRING |
| 36 | 247-8786 | [2] | DOWEL |
| 37 | 206-9290 | [9] | SEAL-O-RING |
| 38 | 295-9695 | [1] | SEAL-LIP TYPE |
| 39 | 095-0944 | [1] | RING-RETAINING |
| 40 | 249-6657 | [1] | SEAL-O-RING |
| 41 | 259-0833 | [1] | GEAR-DRIVE |
| 42 | 259-0834 | [1] | GEAR-DRIVEN |
| 43 | 6V-5204 | [1] | RING-RETAINING |
| 44 | 247-8718 | [1] | SPACER (44.5X68X3-MM THK) |
| 45 | 247-8982 | [1] | FLANGE |
| 46 | 8T-0343 M | [11] | BOLT-SOCKET HEAD (M12X1.75X55-MM) |
| 47 | 8T-4241 | [3] | RING-RETAINING (EXTERNAL) |
| 48 | 247-8787 | [2] | RING-RETAINING |
| 49 | 247-8719 | [3] | SPACER (50X64X3-MM THK) |
| 50 | 259-0835 | [1] | BODY |
| 51 | 247-8710 | [1] | BARREL AS |
| 52 | 259-0832 | [1] | SHAFT-DRIVEN |
| 53 | 247-8715 | [2] | BEARING-NEEDLE |
| 54 | 266-7955 | [1] | BLOCK-PORT |
| 55 | 247-8709 | [1] | BARREL AS |
| 56 | 249-1307 M | [2] | BOLT-SOCKET HEAD (M22X2.5X95-MM) |
| 57 | 247-8713 | [2] | BEARING-ROLLER |
| 58 | 8T-9080 M | [8] | BOLT-SOCKET HEAD (M12X1.75X20-MM) |
| 59 | 225-4516 | [1] | PLATE |
| 60 | 249-6670 | [1] | SEAL-O-RING |
| 61 | 247-8720 | [2] | SPACER (95X110X3.2-MM THK) |
| 62 | 247-8717 | [2] | SPACER (65X90X1-MM THK) |
| 63 | 095-0929 | [2] | RING-RETAINING (EXTERNAL) |
| 64 | 247-8726 | [1] | COVER |
| 65 | 259-0831 | [1] | SHAFT-DRIVE |
| 66 | 206-9291 | [2] | SEAL-O-RING |
| 68 | 225-4518 Y | [1] | VALVE GP-SOLENOID (PUMP CONTROL) |
| 69 | 259-0830 Y | [2] | HEAD GP-PUMP |
| 70 | 274-2490 | [1] | PUMP GP-GEAR |
| 246-9867 | [1] | SEAL-O-RING | |
| 247-8841 M | [2] | BOLT (M10X1.5X30-MM) | |
| M | METRIC PART | ||
| Y | SEPARATE ILLUSTRATION |
