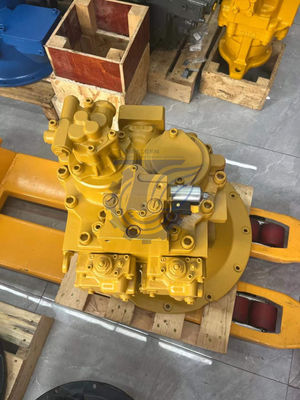

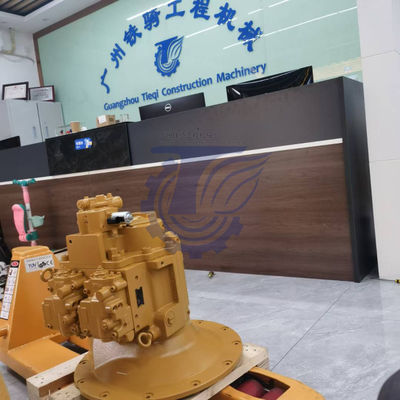

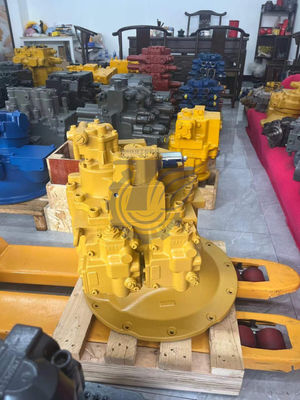

548-8317 5488317 CA5248317 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 548-8317 5488317 CA5248317 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original | category: Hydraulic PUMP | |
| Brand: Caterpillar | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4195 M | [11] | BOLT (M10X1.5X30-MM) | |
| 2 | 7X-7729 | [11] | WASHER (11X25X3-MM THK) | |
| 3 | 339-6855 Y | [1] | COUPLING GP-PUMP | |
| 4 | 524-8317 Y | [1] | PUMP GP-MAIN HYDRAULIC (DOUBLE PISTON) |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5I-8774 M | [2] | SETSCREW (M16X2X39-MM) | |
| 2 | 098-5747 M | [2] | NUT (M16X2-THD) | |
| 3 | 8T-1158 M | [8] | BOLT-SOCKET HEAD (M8X1.25X20-MM) | |
| 4 | 541-3306 | [2] | COVER | |
| 5 | 541-3308 | [2] | STOPPER | |
| 6 | 232-4114 | [2] | RING | |
| 7 | 249-6659 | [2] | SEAL-O-RING | |
| 8 | 541-3309 | [2] | PISTON | |
| 9 | 541-3326 | [2] | PIN AS | |
| 10 | 5I-8772 | [2] | EYEBOLT | |
| 11 | 206-9295 | [2] | SEAL-O-RING | |
| 12 | 095-1784 | [2] | RING-BACKUP | |
| 13 | 541-3307 | [2] | STOPPER | |
| 14 | 541-3303 M | [2] | NUT (M16X2-THD) | |
| 15 | 541-3300 M | [2] | SETSCREW (M16X2X55-MM) | |
| 16 | 219-6915 M | [1] | BOLT (M16X2X95-MM) | |
| 17 | 8T-0273 M | [12] | BOLT-SOCKET HEAD (M12X1.75X40-MM) | |
| 18 | 295-9517 | [2] | DOWEL | |
| 19 | 541-3327 | [1] | VALVE AS-SOLENOID (PISTON PUMP) | |
| 20 | 169-7978 | [1] | COVER | |
| 21 | 105-3488 M | [2] | BOLT-SOCKET HEAD (M10X1.5X16-MM) | |
| 22 | 246-9867 | [1] | SEAL-O-RING | |
| 23 | 110-5525 | [6] | PLUG | |
| 24 | 214-7568 | [6] | SEAL-O-RING | |
| 25 | 541-3316 | [18] | SPRING | |
| 26 | 541-3333 | [2] | PISTON AS | |
| 27 | 541-3318 | [2] | PLATE-RETAINER | |
| 28 | 541-3312 | [2] | PLATE | |
| 29 | 541-3328 | [2] | SWASHPLATE AS | |
| 30 | 541-3317 | [2] | GUIDE-BALL | |
| 31 | 541-3311 | [2] | PLATE | |
| 32 | 541-3310 M | [8] | BOLT-HEAD (M8X1.25X20-MM) | |
| 33 | 247-8786 | [2] | DOWEL | |
| 34 | 095-0674 M | [10] | BOLT-SOCKET HEAD (M12X1.75X65-MM) | |
| 35 | 6V-5203 | [2] | RING-RETAINING | |
| 36 | 541-3322 | [1] | BEARING-ROLLER | |
| 37 | 347-6530 | [5] | SEAL-RECTANGULAR | |
| 38 | 7I-8148 | [2] | SPACER-BEARING | |
| 39 | 6V-5204 | [2] | RING-RETAINING | |
| 40 | 541-3330 | [1] | BODY AS-PUMP | |
| 41 | 541-3331 | [1] | BARREL AS | |
| 42 | 541-3321 | [2] | BEARING-NEEDLE | |
| 43 | 541-3334 | [1] | PUMP GP-GEAR | |
| 44 | 541-3329 | [1] | BLOCK AS | |
| 45 | 541-3302 | [2] | DOWEL | |
| 46 | 541-3332 | [1] | BARREL AS | |
| 47 | 541-3304 | [1] | GASKET | |
| 48 | 096-5516 | [1] | RING-RETAINING (EXTERNAL) | |
| 49 | 541-3319 | [1] | SPACER-BEARING | |
| 50 | 541-3323 | [1] | BEARING-ROLLER | |
| 51 | 541-3301 | [2] | DOWEL | |
| 52 | 541-3305 | [1] | GASKET | |
| 53 | 541-3314 | [1] | GEAR-DRIVE | |
| 54 | 247-8717 | [2] | SPACER (65X90X1-MM THK) | |
| 55 | 095-0929 | [2] | RING-RETAINING | |
| 56 | 247-8726 | [1] | COVER | |
| 57 | 541-3325 | [1] | SHAFT-DRIVE | |
| 58 | 295-9695 | [1] | SEAL-LIP TYPE | |
| 59 | 095-0944 | [1] | RING-RETAINING | |
| 60 | 249-6657 | [1] | SEAL-O-RING | |
| 61 | 541-3313 | [1] | GEAR-DRIVEN | |
| 62 | 541-3324 | [1] | SHAFT-DRIVEN | |
| 63 | 8T-4240 | [1] | RING-RETAINING | |
| 64 | 541-3320 | [1] | SPACER-BEARING | |
| 65 | 541-3315 | [1] | FLANGE | |
| 66 | 247-8966 | [4] | VALVE AS-CHECK | |
| (EACH INCLUDES) | ||||
| 5H-1472 | [1] | BALL | ||
| 7I-7448 | [1] | STOP | ||
| 67 | 206-9292 | [4] | SEAL-O-RING | |
| 68 | 189-9763 | [2] | SEAL-O-RING | |
| 69 | 541-3356 Y | [2] | HEAD GP-PUMP |
