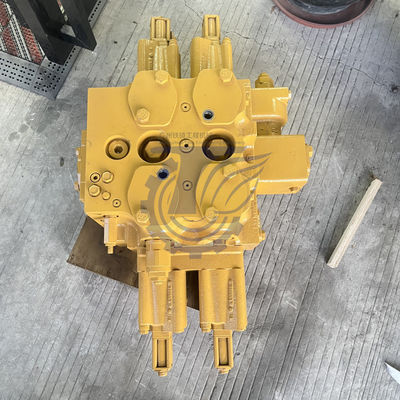

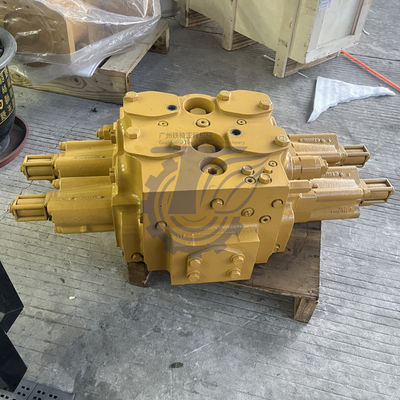

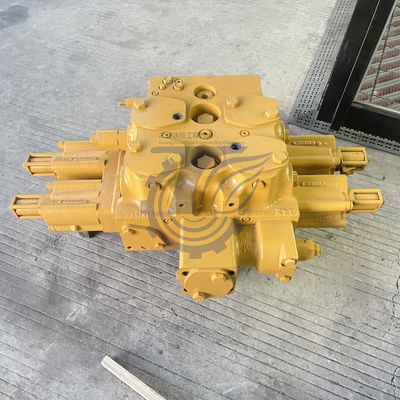

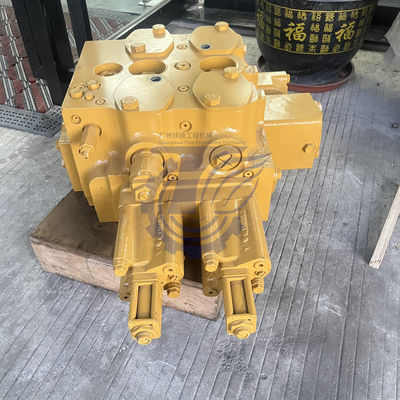

2846630 CA2846630 284-6630 2846631 284-6631 CA2846631 FOR CAT 992K WHEEL LOADER PARTS HYDRAULIC MAIN CONTROL VALVE VALVE GP-CONTROL AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 2846630 CA2846630 284-6630 2846631 284-6631 CA2846631 FOR CAT 992K WHEEL LOADER PARTS HYDRAULIC MAIN CONTROL VALVE VALVE GP-CONTROL AFTERMARKET ORIGINAL | category: Hydraulic MAIN CONTROL VALVE | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 2 | 4T-1860 Y | [1] | VALVE GP-SHUTTLE (BALL RESOLVER) | |
| 3 | 6E-1291 | [1] | VALVE-CONTROL | |
| 4 | 7J-7852 | [1] | SPRING | |
| 5 | 8L-6565 | [4] | PIN-SPRING | |
| 6 | 9L-9188 | [2] | SPRING-VALVE | |
| 7 | 9R-5008 | [8] | SPACER (11X20X6-MM THK) | |
| 8 | 102-4156 | [2] | VALVE-CONTROL (LOAD CHECK) | |
| 9 | 112-8244 | [1] | HOUSING | |
| 10 | 113-8263 | [2] | PISTON | |
| 11 | 117-0159 Y | [1] | VALVE GP-RELIEF (MAIN, LH/FIXED DISPL PUMP) | |
| 12 | 117-0160 Y | [1] | VALVE GP-RELIEF (LINE, TILT) | |
| 13 | 125-9349 Y | [1] | VALVE GP-RELIEF (LINE, LIFT) | |
| 14 | 370-0438 CY | [1] | VALVE GP-PRESSURE REDUCING (DEAD ENGINE, LIFT ARM LOWER) | |
| 15 | 217-6719 Y | [2] | ACTUATOR GP-PILOT CONTROL (REGENERATION VALVE) | |
| 16 | 217-6720 Y | [2] | ACTUATOR GP-PILOT CONTROL (HOIST CONTROL VALVE) | |
| 17 | 222-4737 | [3] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 4J-7533 | [1] | SEAL-O-RING | ||
| 9S-4180 | [1] | PLUG | ||
| 18 | 262-4157 | [1] | VALVE AS-RELIEF (LINE, TILT DUAL SET) | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 19 | 354-9164 | [1] | VALVE GP-CONTROL | |
| 20 | 1P-3705 | [1] | SEAL-RECTANGULAR | |
| 22 | 285-7940 | [1] | MANIFOLD | |
| 23 | 102-4158 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3G-5003 | [1] | BUSHING | ||
| 102-4157 | [1] | PLUG | ||
| 24 | 129-8293 Y | [1] | VALVE GP-RELIEF (LINE, LIFT) | |
| 25 | 148-8406 | [1] | PLUG AS | |
| 7M-8485 | [1] | SEAL-O-RING | ||
| 9S-9334 | [1] | PLUG (1-5/16-12-THD) | ||
| 26 | 148-8407 | [12] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG (9/16-18-THD) | ||
| 27 | 155-3624 | [3] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-7354 | [1] | SEAL-O-RING | ||
| 9S-4182 | [1] | PLUG (7/16-20-THD) | ||
| 28 | 162-0177 | [3] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-8004 | [1] | PLUG (9/16-18-THD) | ||
| 29 | 173-3993 | [1] | PLUG AS | |
| 4J-7533 | [1] | SEAL-O-RING | ||
| 9S-8001 | [1] | PLUG | ||
| 30 | 183-7263 | [1] | PLUG AS | |
| 3J-7354 | [1] | SEAL-O-RING | ||
| 9S-8002 | [1] | PLUG (7/16-20-THD) | ||
| 31 | 1H-5728 | [6] | SEAL-O-RING | |
| 32 | 1H-8171 | [2] | SEAL-O-RING | |
| 33 | 1P-3703 | [2] | SEAL-RECTANGULAR | |
| 34 | 1P-3704 | [1] | SEAL-RECTANGULAR | |
| 35 | 1P-4579 | [2] | FLANGE-HALF | |
| 36 | 2J-2668 | [1] | COVER-FLANGE | |
| 37 | 2J-6274 | [4] | SEAL-O-RING | |
| 38 | 2S-4078 | [2] | SEAL-O-RING | |
| 39 | 3J-2903 | [1] | COVER | |
| 40 | 4J-0523 | [1] | SEAL-O-RING | |
| 41 | 4J-0524 | [1] | SEAL-O-RING | |
| 42 | 4J-0527 | [1] | SEAL-O-RING | |
| 43 | 4J-5573 | [1] | SEAL-O-RING | |
| 44 | 4T-5896 Y | [1] | VALVE GP-CHECK | |
| 45 | 5H-6005 | [1] | SEAL-O-RING | |
| 46 | 5P-8077 | [8] | FLANGE-HALF | |
| 47 | 7X-2546 M | [4] | BOLT (M10X1.5X180-MM) | |
| 48 | 7X-2549 M | [6] | BOLT (M12X1.75X100-MM) | |
| 49 | 7X-2607 M | [6] | BOLT (M12X1.75X130-MM) | |
| 50 | 8T-4121 | [12] | WASHER-HARD (11X21X2.5-MM THK) | |
| 51 | 9X-8257 | [16] | WASHER (17.5X30X3.5-MM THK) | |
| 52 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 53 | 8T-4140 M | [16] | BOLT (M16X2X60-MM) | |
| 54 | 8T-4184 M | [4] | BOLT (M12X1.75X45-MM) | |
| 55 | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 56 | 8T-5436 M | [4] | BOLT (M10X1.5X130-MM) | |
| 57 | 8T-6757 | [1] | PLUG-PIPE (1/8-27 NPTF-THD) |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 2 | 6E-1291 | [1] | VALVE-CONTROL | |
| 3 | 6E-3993 | [1] | PLUG AS | |
| 2M-9780 | [1] | SEAL-O-RING | ||
| 2S-4078 | [1] | SEAL-O-RING | ||
| 148-0767 | [1] | RING-SPLIT | ||
| 4 | 7J-7852 | [1] | SPRING | |
| 5 | 9L-9188 | [2] | SPRING-VALVE | |
| 6 | 9R-5008 | [8] | SPACER (11X20X6-MM THK) | |
| 7 | 102-4156 | [2] | VALVE-CONTROL | |
| 8 | 112-8244 | [1] | HOUSING | |
| 9 | 113-8263 | [2] | PISTON | |
| 10 | 117-0159 Y | [1] | VALVE GP-RELIEF (MAIN) | |
| 11 | 423-7704 Y | [1] | VALVE GP-RELIEF (LINE, TILT) | |
| 12 | 160-7439 Y | [1] | VALVE GP-MAKEUP | |
| 13 | 217-6719 Y | [2] | ACTUATOR GP-PILOT CONTROL (LIFT, LOWER) | |
| 14 | 217-6720 Y | [2] | ACTUATOR GP-PILOT CONTROL (HOIST CONTROL VALVE) | |
| 15 | 423-7712 | [1] | VALVE GP-RELIEF (LINE, TILT DUAL SET) | |
| 16 | 354-9163 | [1] | VALVE GP-CONTROL | |
| 17 | 1P-3705 | [1] | SEAL-RECTANGULAR | |
| 19 | 285-7940 | [1] | MANIFOLD | |
| 20 | 102-4158 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 20A. | 3G-5003 | [1] | BUSHING | |
| 102-4157 | [1] | PLUG | ||
| 21 | 148-8406 | [1] | PLUG AS | |
| 7M-8485 | [1] | SEAL-O-RING | ||
| 9S-9334 | [1] | PLUG (1-5/16-12-THD) | ||
| 22 | 148-8407 | [9] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG (9/16-18-THD) | ||
| 23 | 162-0177 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-8004 | [1] | PLUG (9/16-18-THD) | ||
| 24 | 1H-5728 | [6] | SEAL-O-RING | |
| 25 | 1H-8171 | [2] | SEAL-O-RING | |
| 26 | 1P-3703 | [2] | SEAL-RECTANGULAR | |
| 27 | 1P-3704 | [1] | SEAL-RECTANGULAR | |
| 28 | 1P-4579 | [2] | FLANGE-HALF | |
| 29 | 2J-2668 | [1] | COVER-FLANGE | |
| 30 | 2J-6274 | [4] | SEAL-O-RING | |
| 31 | 2S-4078 | [2] | SEAL-O-RING | |
| 32 | 3J-2903 | [1] | COVER | |
| 33 | 4J-0523 | [1] | SEAL-O-RING | |
| 34 | 4J-0524 | [1] | SEAL-O-RING | |
| 35 | 4J-0527 | [1] | SEAL-O-RING | |
| 36 | 4J-5573 | [1] | SEAL-O-RING | |
| 37 | 5P-8077 | [8] | FLANGE-HALF | |
| 38 | 7X-2546 M | [4] | BOLT (M10X1.5X180-MM) | |
| 39 | 7X-2549 M | [6] | BOLT (M12X1.75X100-MM) | |
| 40 | 7X-2607 M | [6] | BOLT (M12X1.75X130-MM) | |
| 41 | 8L-6565 | [4] | PIN-SPRING | |
| 42 | 8T-4121 | [12] | WASHER-HARD (11X21X2.5-MM THK) | |
| 43 | 9X-8257 | [16] | WASHER (17.5X30X3.5-MM THK) | |
| 44 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 45 | 8T-4140 M | [16] | BOLT (M16X2X60-MM) | |
| 46 | 8T-4184 M | [4] | BOLT (M12X1.75X45-MM) | |
| 47 | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 48 | 8T-5436 M | [4] | BOLT (M10X1.5X130-MM) | |
| 49 | 8T-6757 | [1] | PLUG-PIPE |
