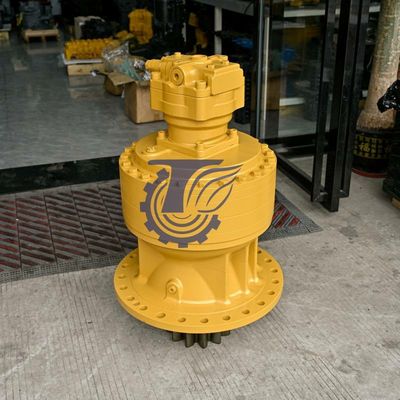

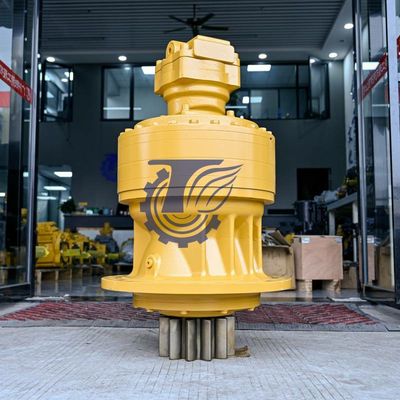

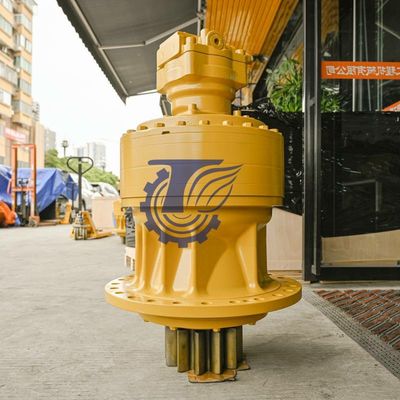

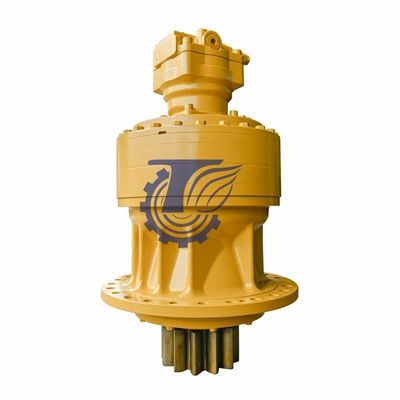

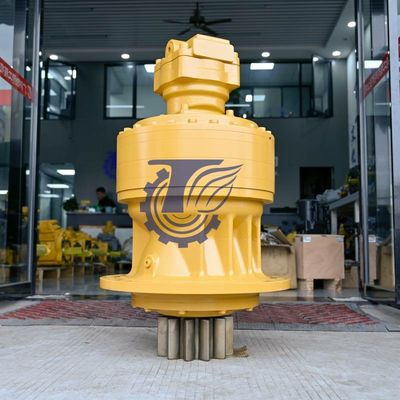

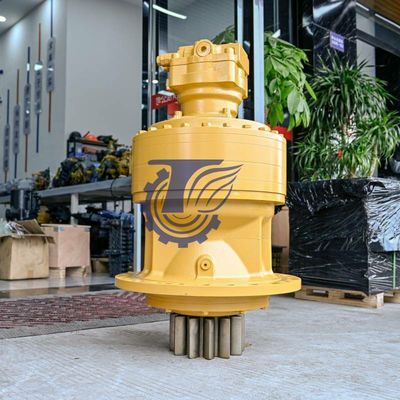

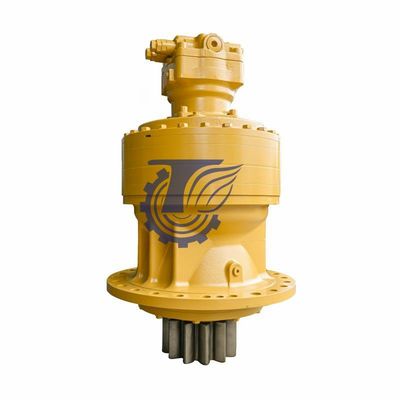

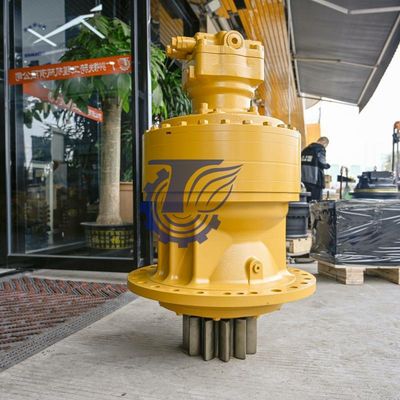

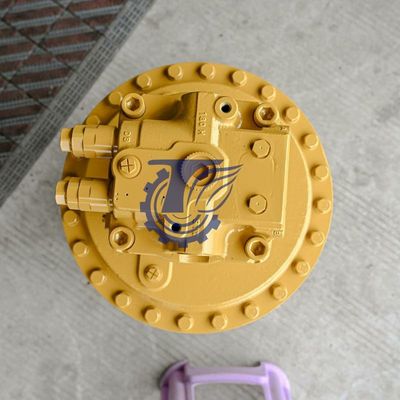

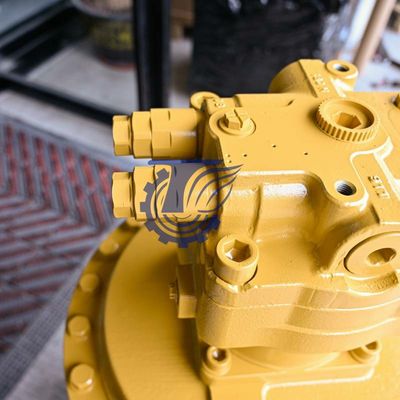

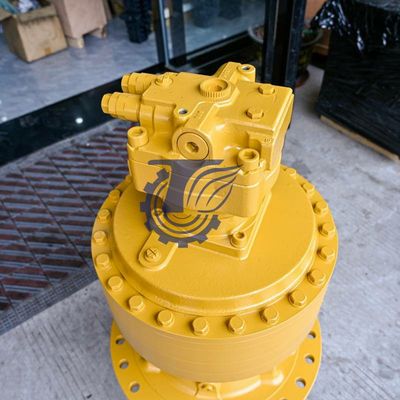

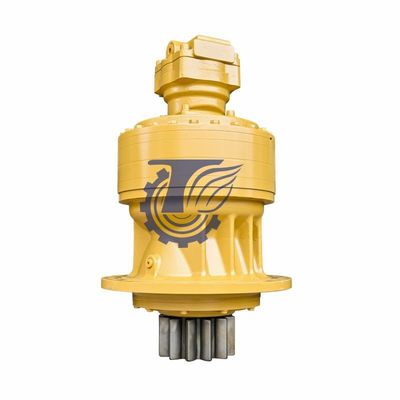

486-5236 4865236 20R-9301 20R9301 For CAT 349D2 L 349D2 352F 352F 568 FM 349E 349F EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 486-5236 4865236 20R-9301 20R9301 For CAT 349D2 L 349D2 352F 352F 568 FM 349E 349F EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | category: Hydraulic MOTOR | |
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 209-6063 | [1] | SHAFT | |
| 2 | 7Y-5267 | [1] | RING-RETAINING | |
| 3 | 168-7319 | [1] | SEAL-SHAFT | |
| 4 | 9T-9529 | [2] | PIN | |
| 5 | 295-9551 | [1] | SWASHPLATE | |
| 6 | 295-9547 Y | [1] | ROTATING GP-PUMP | |
| 7 | 192-7470 | [1] | SEAL-O-RING | |
| 8 | 095-0690 M | [4] | BOLT-SOCKET HEAD (M14X2X60-MM) | |
| 9 | 242-6844 | [1] | COVER | |
| 10 | 185-0296 | [1] | BEARING | |
| 11 | 9X-8979 | [1] | DOWEL | |
| 12 | 168-2203 | [1] | SHIM-SHAFT (3-MM THK) | |
| 13 | 295-9550 | [1] | HOUSING | |
| 14 | 185-0295 | [1] | BEARING | |
| 15 | 185-0280 | [1] | PLATE | |
| 16 | 197-2471 | [1] | PLUG AS | |
| 197-2472 | [1] | SEAL | ||
| 17 | 9S-8006 | [1] | PLUG (7/8-14-THD) | |
| 18 | 2M-9780 | [1] | SEAL-O-RING | |
| 19 | 242-3374 | [1] | SLEEVE | |
| 20 | 197-2474 | [1] | VALVE AS |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4H-6112 | [1] | BREATHER (SWING DRIVE) | |
| 2 | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 3 | 7Y-0597 | [1] | SPACER-SPECIAL | |
| 4 | 094-0611 | [14] | WASHER (47.3X76X1-MM THK) | |
| 5 | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) | |
| 6 | 114-1399 | [1] | PIPE-GAUGE | |
| 7 | 114-1403 | [1] | CAGE | |

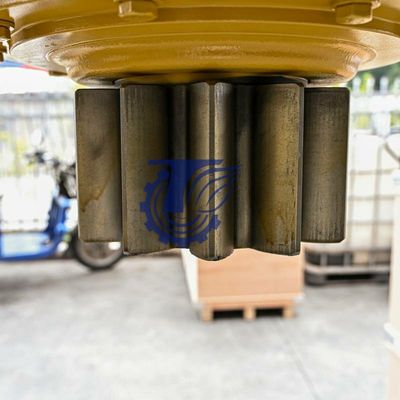

| 8 | 227-6108 | [1] | SHAFT-PINION | |
| 9 | 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 10 | 296-6268 | [3] | BEARING AS-ROLLER | |
| 11 | 418-7160 | [1] | GEAR-SUN (13-TEETH, 18-TEETH) | |
| 12 | 418-7161 | [1] | GEAR-SUN (23-TEETH) | |
| 13 | 418-7162 | [3] | GEAR-PLANETARY (25-TEETH) | |
| 14 | 418-7163 | [4] | GEAR-PLANETARY (22-TEETH) | |
| 15 | 418-7164 | [1] | GEAR-RING (69-TEETH) | |
| 16 | 418-7167 | [4] | SHAFT | |
| 17 | 418-7232 | [1] | COVER-HOUSING | |
| 18 | 418-7233 | [8] | BEARING AS-ROLLER | |
| 19 | 418-7234 | [1] | CARRIER AS | |
| 20 | 418-7235 | [1] | CARRIER-PLANETARY | |
| 21 | 422-1352 | [2] | SPACER (49.6X69.5X6-MM THK) | |
| 22 | 422-4054 | [3] | RING-RETAINING | |
| 23 | 451-2182 | [52] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 24 | 453-3446 M | [1] | BOLT (M12X1.75X35-MM) | |
| 25 | 453-3447 M | [20] | BOLT (M12X1.75X40-MM) | |
| 26 | 456-0784 | [1] | HOUSING | |
| 27 | 486-7828 | [1] | HOSE AS | |
| 28 | 093-1730 | [2] | RING-RETAINING | |
| 29 | 095-0670 M | [30] | BOLT (M12X1.75X45-MM) | |
| 30 | 509-6676 | [4] | PIN-SPRING | |
| 31 | 095-1806 | [1] | BEARING-ROLLER | |
| 32 | 096-2653 | [1] | RING-RETAINING | |
| 33 | 096-4339 | [1] | BEARING AS-ROLLER | |
| 34 | 135-9044 | [2] | SEAL-LIP TYPE | |
| 35 | 136-2803 | [2] | CLIP | |
| 36 | 3K-0360 | [1] | SEAL-O-RING | |
| 37 | 5P-2235 | [1] | SEAL-O-RING | |
| 38 | 7D-5363 | [2] | CONNECTOR (9/16-18-THD) | |
| 39 | 8T-4244 M | [1] | NUT (M12X1.75-THD) | |
| 1U-8846 BF | SEALANT-GASKET |
