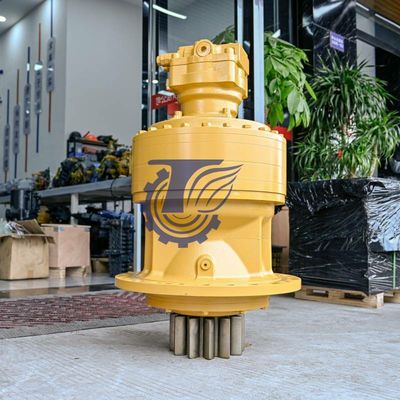

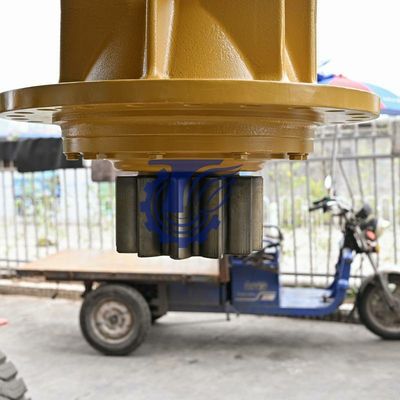

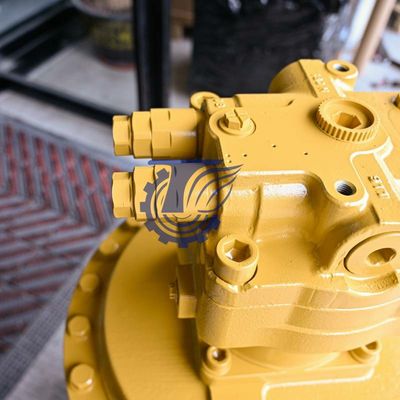

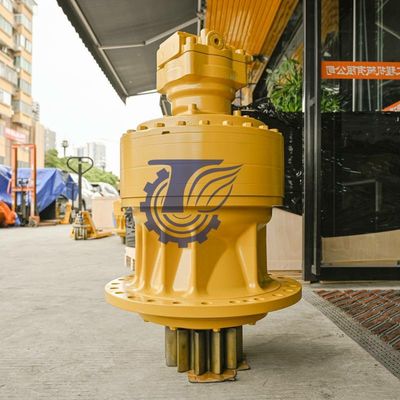

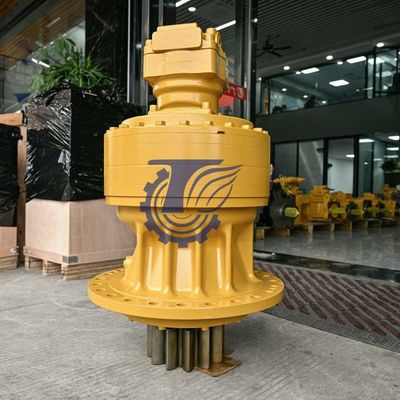

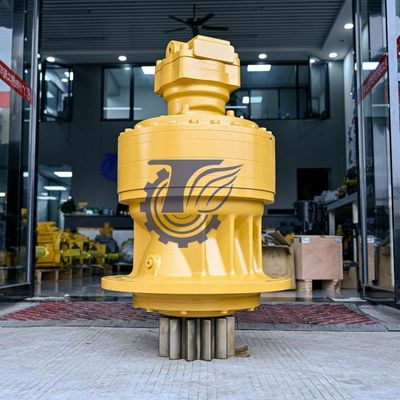

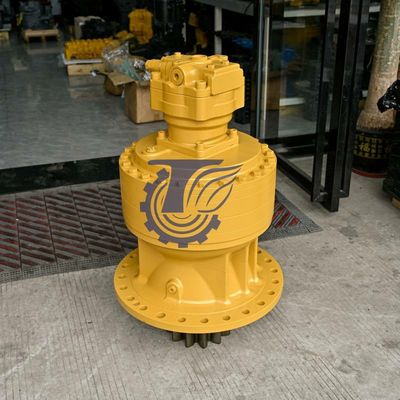

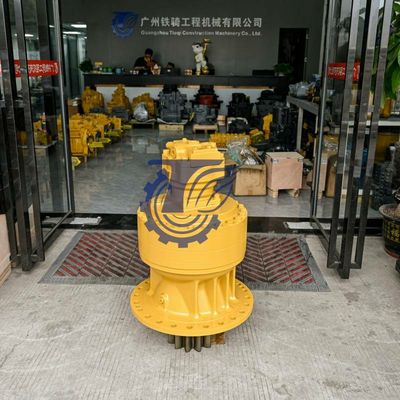

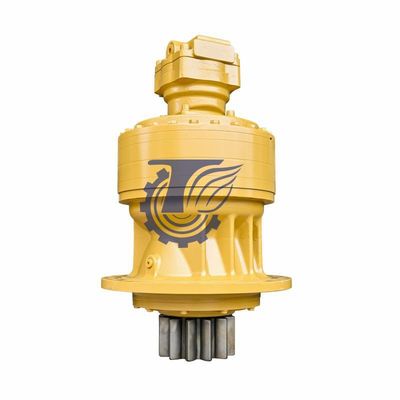

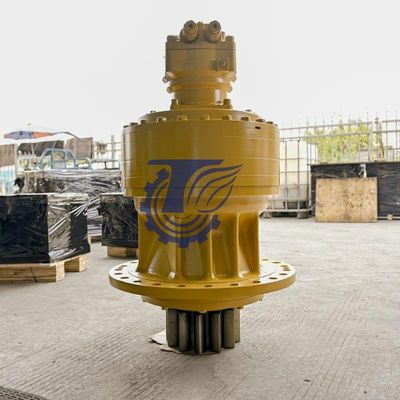

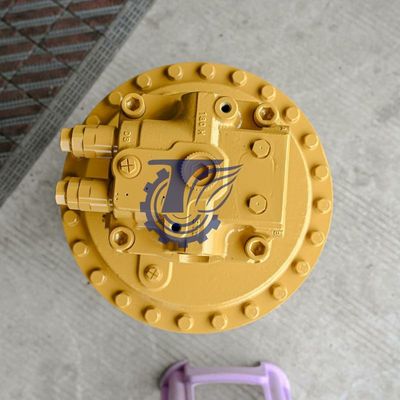

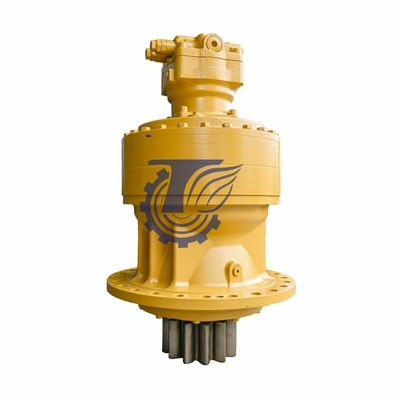

333-2958 CA3332958 3332958 1994538 199-4538 CA1994538 For CAT 330C 330D 336D 340D L EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 333-2958 CA3332958 3332958 1994538 199-4538 CA1994538 For CAT 330C 330D 336D 340D L EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | category: Hydraulic MOTOR | |
| Brand: TQ | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4H-6112 | [1] | BREATHER (SWING DRIVE) | |
| 2 | 6V-7238 | [1] | VALVE-SHUTOFF (SWING DRIVE) | |
| 3 | 7I-7611 | [1] | CAGE | |
| 4 | 7I-7619 | [1] | BEARING-ROLLER | |
| 5 | 7I-7684 M | [2] | SPACER (50X79.6X6-MM THK) | |
| 6 | 9U-8693 | [1] | BEARING-ROLLER | |
| 7 | 093-1730 | [1] | RING-RETAINING | |
| 8 | 094-1528 | [8] | WASHER (53X84X1-MM THK) | |
| 9 | 096-1441 | [1] | RING-RETAINING | |
| 10 | 110-7149 | [1] | RING-RETAINING | |
| 11 | 114-1322 | [1] | RING-RETAINING | |
| 12 | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) | |
| 13 | 114-1399 | [1] | PIPE-GAUGE | |
| 14 | 127-3872 I | [1] | HOSE AS | |
| 15 | 136-2802 | [2] | CONNECTOR | |
| 16 | 136-2803 | [2] | CLIP | |
| 17 | 148-4600 | [1] | GEAR-SUN (17-TEETH) | |
| 18 | 148-4601 | [1] | GEAR-SUN (17-TEETH) | |
| 19 | 148-4602 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 20 | 148-4603 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 21 | 148-4604 | [1] | GEAR-RING (67-TEETH) | |
| 22 | 148-4605 | [1] | SHAFT-PINION | |
| 23 | 418-6218 | [1] | CARRIER-PLANETARY | |
| 24 | 148-4608 | [4] | SHAFT-PLANETARY | |
| 25 | 148-4609 | [4] | SHAFT-PLANETARY | |
| 26 | 148-4611 | [8] | WASHER (71.3X112X1-MM THK) | |
| 27 | 171-9413 | [1] | SPACER (140.5X160X103.2-MM THK) | |
| 28 | 191-2511 | [1] | CARRIER-PLANETARY | |
| 29 | 191-2513 | [4] | BEARING AS-ROLLER | |
| 30 | 191-2514 | [8] | BEARING AS | |
| 31 | 191-2524 | [1] | HOUSING | |
| 32 | 199-4540 | [1] | COVER-HOUSING | |
| 33 | 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 34 | 099-5194 | [8] | PIN-SPRING | |
| 35 | 128-9170 | [2] | SEAL-LIP TYPE | |
| 36 | 3K-0360 | [1] | SEAL-O-RING | |
| 37 | 5M-4454 | [1] | SEAL-O-RING | |
| 38 | 453-3447 M | [10] | BOLT (M12X1.75X40-MM) | |
| 39 | 451-2182 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 40 | 8T-4244 M | [1] | NUT (M12X1.75-THD) | |
| 41 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| 42 | 453-4169 M | [24] | BOLT (M16X2X200-MM) | |
| 43 | 451-2175 | [24] | WASHER-HARD (17.5X30X3.5-MM THK) | |
| 1U-8846 BF | SEALANT-GASKET |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 188-4163 | [1] | SHAFT | |
| 2 | 096-1533 J | [1] | SEAL-LIP TYPE | |
| 3 | 188-4170 | [1] | BEARING | |
| 4 | 204-2676 | [1] | BODY | |
| 5 | 188-4165 | [1] | PLATE | |
| 6 | 188-4167 | [1] | PLATE | |
| 7 | 295-9686 | [1] | PISTON AS | |
| 8 | 188-4166 | [1] | PLATE | |
| 9 | 188-4164 | [1] | BARREL | |
| 10 | 188-4172 | [3] | PLATE-FRICTION | |
| 11 | 188-4173 | [4] | PLATE-SEPARATOR | |
| 12 | 184-3835 | [1] | PISTON | |
| 13 | 5J-2383 J | [1] | SEAL-O-RING | |
| 14 | 7Y-4294 J | [1] | SEAL-O-RING | |
| 15 | 4I-5849 J | [1] | SEAL-O-RING | |
| 16 | 123-2139 | [20] | SPRING | |
| 17 | 188-4162 | [1] | HEAD GP-MOTOR | |
| 17A. | 099-8111 | [2] | PIN-SPRING | |
| 18 | 3J-1907 J | [2] | SEAL-O-RING | |
| 19 | 110-5525 | [2] | PLUG | |
| 20 | 204-2677 | [1] | PLATE-VALVE | |
| 21 | 188-4171 | [1] | BEARING | |
| 22 | 170-9996 | [2] | PLUG | |
| 23 | 170-9985 | [2] | VALVE-PISTON | |
| 24 | 7Y-5221 M | [4] | BOLT-SOCKET HEAD (M20X2.5X45-MM) | |
| 25 | 170-9986 | [2] | SPRING | |
| 26 | 095-1600 J | [2] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 188-4176 J | KIT-SEAL (SWING MOTOR) |
