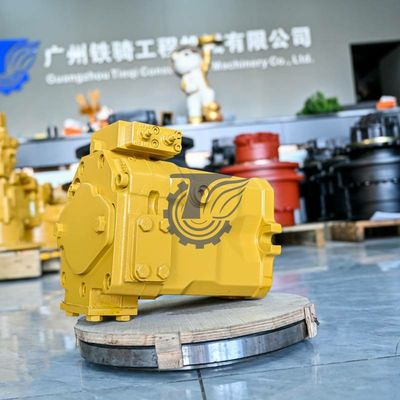

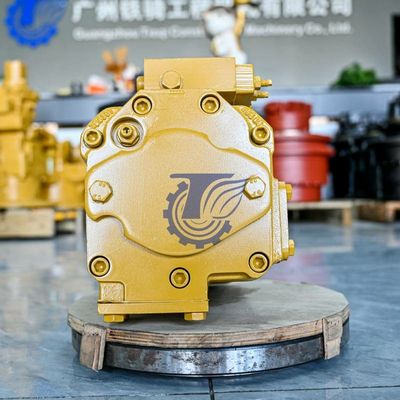

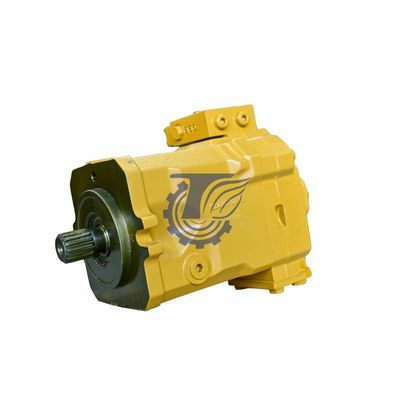

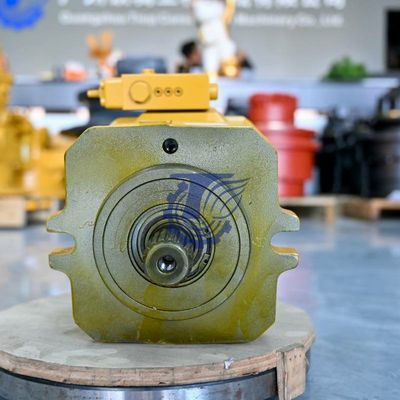

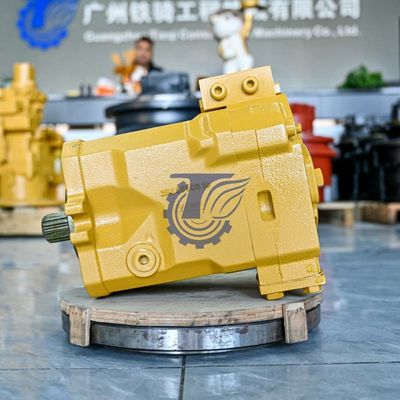

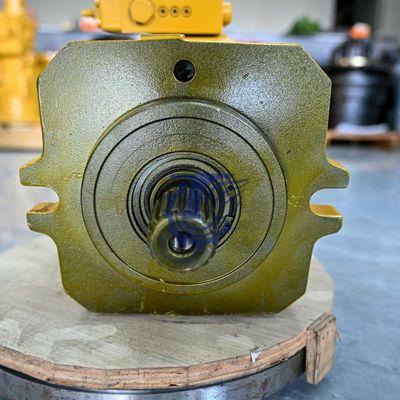

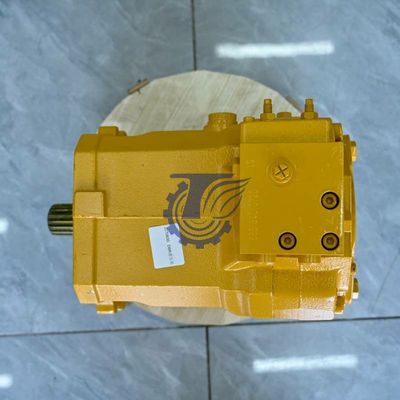

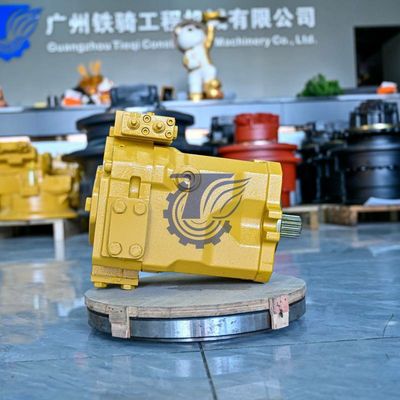

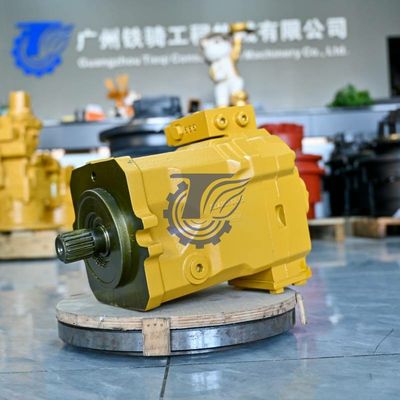

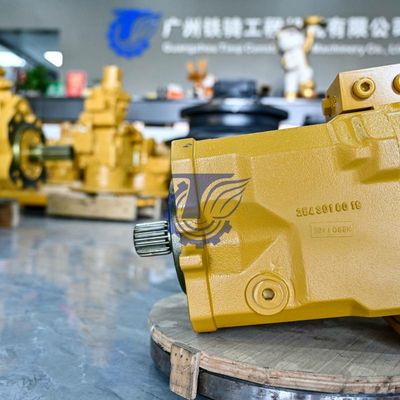

2270830 CA2270830 227-0830 20R1850 For Cat D6R II TRACK-TYPE TRACTOR Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original
| PRODUCT DESCRIPTION |
||
| Model: 2270830 CA2270830 227-0830 20R1850 For Cat D6R II TRACK-TYPE TRACTOR Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original | category: Hydraulic Pump |
|
| Brand: CAT | Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 095-0940 | [1] | RING-RETAINING (INTERNAL) | |
| 2 | 7X-1553 | [1] | SEAL-LIP TYPE | |
| 3 | 197-0074 | [1] | HOUSING | |
| 4 | 9S-8006 | [2] | PLUG (7/8-14-THD) | |
| 5 | 2M-9780 | [2] | SEAL-O-RING | |
| 6 | 197-0075 | [1] | RACE | |
| 7 | 197-0076 | [1] | BEARING | |
| 8 | 197-0077 | [1] | SHAFT | |
| 9 | 8U-9480 | [2] | PIN | |
| 10 | 197-0078 | [2] | BEARING | |
| 11 | 131-4647 | [1] | CRADLE | |
| 12 | 121-9915 | [3] | SLEEVE | |
| 13 | 197-0079 | [9] | PISTON AS | |
| 14 | 131-4649 | [1] | WASHER (61X123X5.5-MM THK) | |
| 15 | 197-0080 | [1] | PLATE | |
| 16 | 131-4657 | [1] | PLATE | |
| 17 | 8U-3297 M | [4] | BOLT (M10X1.5X25-MM) | |
| 18 | 286-1674 | [1] | BARREL GP-PUMP | |
| 19 | 197-0082 | [1] | WASHER (39.2X53.8X4-MM THK) | |
| 20 | 197-0083 | [1] | SPRING | |
| 21 | 197-0084 | [1] | RING | |
| 22 | 197-0085 | [1] | SPACER (41X46X19.2-MM THK) | |
| 23 | 195-6882 | [1] | RING | |
| 24 | 121-9943 | [1] | RING | |
| 25 | 197-0086 | [1] | SPACER (47X54X38-MM THK) | |
| 26 | 197-0087 | [1] | RING | |
| 27 | 197-0090 | [1] | PLATE | |
| 28 | 101-2862 | [2] | DOWEL | |
| 29 | 197-0088 | [1] | RING | |
| 30 | 197-0089 | [1] | BEARING | |
| 31 | 199-4193 B | [1] | KIT-SHIM (INCLUDES 21-SHIMS) | |
| 32 | 8C-3131 | [2] | SEAL-O-RING | |
| 33 | 121-9941 | [2] | RING | |
| 34 | 131-4674 | [2] | PIPE | |
| 35 | 131-4675 | [1] | RING | |
| 36 | 131-4676 | [1] | PISTON | |
| 37 | 284-3781 | [1] | PISTON | |
| 38 | 197-0093 | [1] | RETAINER | |
| 39 | 197-0094 | [1] | SPRING | |
| 40 | 288-1199 | [1] | RETAINER | |
| 41 | 284-3782 | [1] | PISTON | |
| 42 | 9T-4901 M | [2] | NUT (M12X1-THD) | |
| 43 | 121-9946 | [2] | PIN | |
| 44 | 3E-6910 M | [9] | BOLT-SOCKET HEAD (M12X1.75X70-MM) | |
| 45 | 117-8765 | [1] | SEAL-O-RING | |
| 46 | 8T-9384 | [2] | BOLT (1/2-13X0.875-IN) | |
| 47 | 195-6932 | [1] | COVER | |
| 48 | 227-3021 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR) | |
| 49 | 285-8226 | [1] | HOUSING | |
| 50 | 8U-3875 | [1] | PLUG | |
| 51 | 5W-7461 B | [1] | SHIM (1.05-MM THK) | |
| 52 | 5W-7462 B | [1] | SHIM (1.1-MM THK) | |
| 53 | 5W-7463 B | [1] | SHIM (1.15-MM THK) | |
| 54 | 5W-7464 B | [1] | SHIM (1.25-MM THK) | |
| 55 | 5W-7465 B | [1] | SHIM (1.5-MM THK) | |
| 56 | 5W-7466 B | [1] | SHIM (1.75-MM THK) | |
| 57 | 131-4654 B | [1] | PLATE (0.05-MM THK) | |
| 58 | 131-4655 B | [1] | PLATE (0.075-MM THK) | |
| 59 | 131-4656 B | [1] | PLATE (0.1-MM THK) | |
| 60 | 131-4650 B | [1] | PLATE (0.05-MM THK) | |
| 61 | 131-4651 B | [1] | PLATE (0.075-MM THK) | |
| 62 | 131-4652 B | [1] | PLATE (0.1-MM THK) | |
| 63 | 6V-5192 M | [3] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 64 | 285-5644 | [1] | RING-RETAINING | |
| 65 | 333-8366 | [1] | SEAL-SHAFT | |
| 66 | 333-8564 J | [2] | PLUG AS |
