299-5790 20R3400 For CAT Track D7R II D7R XR HPR135 PUMP GP-PISTON IMPLEMENT STEERING hydraulic MAIN PUMP Aftermarket
| PRODUCT DESCRIPTION |
||
| Model:299-5790 20R3400 For CAT Track D7R II D7R XR HPR135 PUMP GP-PISTON IMPLEMENT STEERING hydraulic MAIN PUMP Aftermarket | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

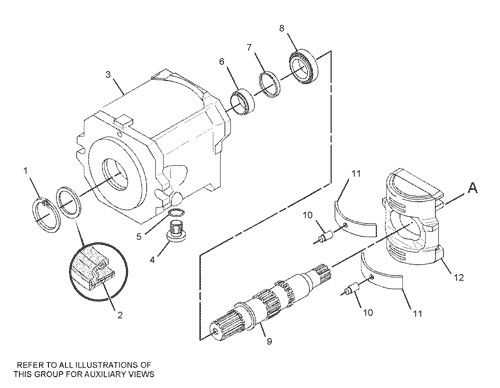

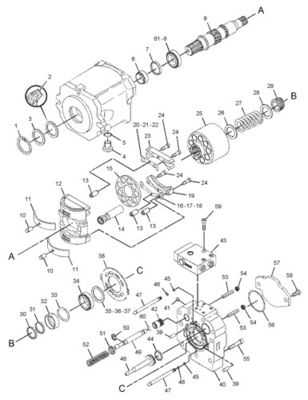

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-9599 | [1] | RING-RETAINING | |
| 2 | 9T-4912 | [1] | SEAL-LIP TYPE | |
| 3 | [1] | HOUSING | ||
| 4 | 9S-8008 | [1] | PLUG (1-1/16-12-THD)(IMPLEMENT PUMP) | |
| 5 | 3D-2824 | [1] | SEAL-O-RING | |
| 6 | 121-9910 | [1] | RING | |
| 7 | 8Q-6071 | [1] | SPACER (45.5X55X3-MM THK) | |
| 8 | 5W-5069 | [1] | BEARING | |
| 9 | 192-8866 | [1] | SHAFT | |
| 10 | 8U-9480 | [2] | PIN | |
| 11 | 121-9913 | [2] | BEARING | |
| 12 | 190-7684 | [1] | SWASHPLATE | |
| 13 | 121-9915 | [3] | SLEEVE | |
| 14 | 191-2156 J | [9] | PISTON AS | |
| 15 | 121-9917 | [1] | WASHER (66.5X133X5.5-MM THK) | |
| 16 | 121-9918 B | [1] | PLATE | |
| 17 | 121-9919 B | [1] | PLATE | |
| 18 | 121-9920 B | [1] | PLATE | |
| 19 | 121-9921 | [1] | PLATE | |
| 20 | 121-9922 B | [1] | PLATE | |
| 21 | 121-9924 B | [1] | PLATE | |
| 22 | 121-9923 B | [1] | PLATE | |
| 23 | 121-9925 | [1] | PLATE | |
| 24 | 8U-3297 M | [4] | BOLT (M10X1.5X25-MM) | |
| 25 | 190-8368 | [1] | BARREL AS | |
| 26 | 121-9927 | [1] | WASHER (44.4X57.6X5-MM THK) | |
| 27 | 190-8830 | [1] | SPRING | |
| 28 | 191-2127 | [1] | WASHER (44X57.9X4-MM THK) | |
| 29 | 193-2219 | [1] | SPACER (46X50.5X23.2-MM THK) | |
| 30 | 193-2239 | [1] | SEAL | |
| 31 | 195-6882 | [1] | RING | |
| 32 | 195-6890 | [1] | SPACER (51.5X58X23-MM THK) | |
| 33 | 195-6899 | [1] | RING | |
| 34 | 195-6901 | [1] | BEARING | |
| 35 | 8U-5009 B | [1] | SHIM (0.1-MM THK) | |
| 36 | 8U-5010 B | [1] | SHIM (0.3-MM THK) | |
| 37 | 195-6902 B | [1] | SHIM (1-MM THK) | |
| 38 | 195-6903 | [1] | PLATE (HEAD) | |
| 39 | 101-2862 | [2] | DOWEL | |
| 40 | 285-9070 | [1] | HOUSING AS | |
| 41 | 8U-3875 | [1] | PLUG | |
| 42 | 284-3782 | [1] | PISTON | |
| 43 | 227-3021 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR) | |
| 44 | 131-4675 | [1] | RING | |
| 45 | 8C-3131 | [2] | SEAL-O-RING | |
| 46 | 121-9941 | [2] | RING | |
| 47 | 121-9942 | [2] | PIPE | |
| 48 | 195-6913 | [1] | PISTON-ACTUATOR | |
| 49 | 285-9162 | [1] | PISTON-ACTUATOR | |
| 50 | 195-6928 | [1] | RETAINER | |
| 51 | 288-1200 | [1] | RETAINER | |
| 52 | 195-6930 | [1] | SPRING | |
| 53 | 121-9946 | [1] | PIN | |
| 54 | 9T-4901 M | [1] | NUT (M12X1-THD) | |
| 55 | 195-6931 | [9] | BOLT (M14X2X70-MM) | |
| 56 | 117-8765 | [1] | SEAL-O-RING | |
| 57 | 195-6932 | [1] | COVER | |
| 58 | 8T-4192 M | [2] | BOLT (M12X1.75X25-MM) | |
| 59 | 6V-5192 M | [3] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 60 | 285-5644 | [1] | RING-RETAINING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 199-4193 B | [1] | KIT-SHIM (INCLUDES 21-SHIMS)(IMPLEMENT PUMP) |
