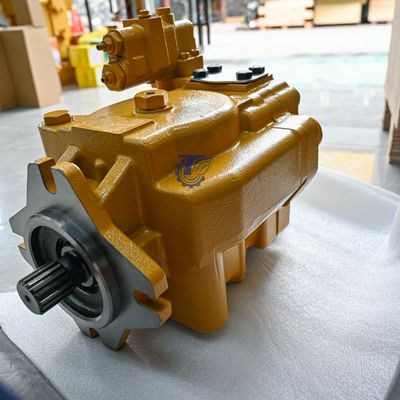

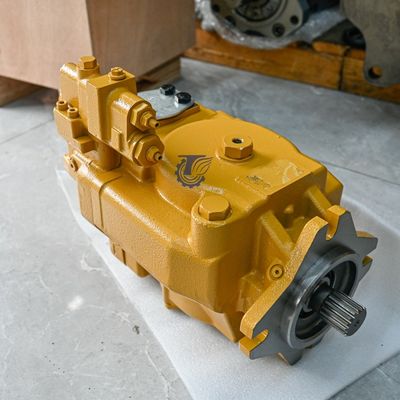

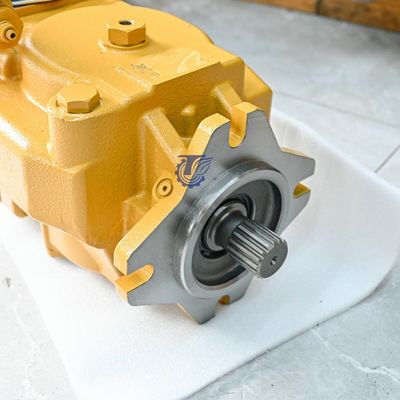

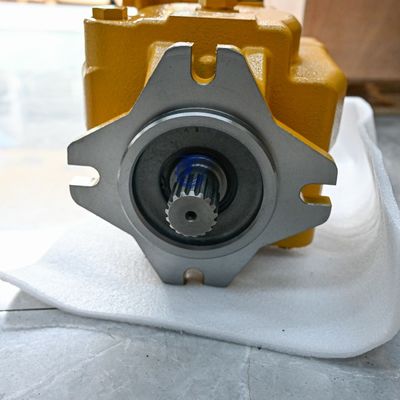

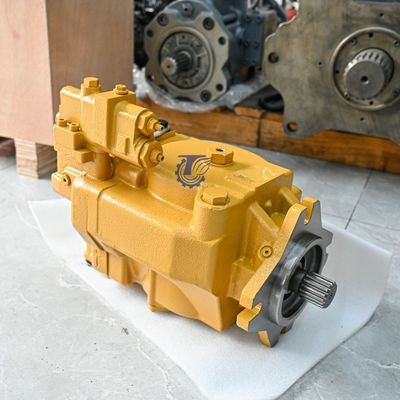

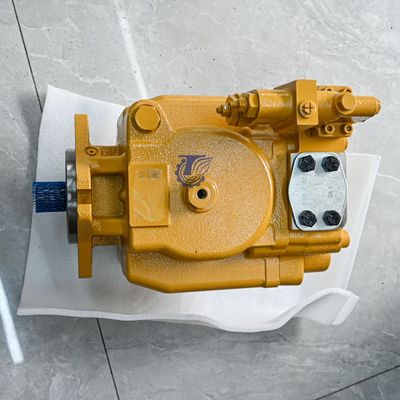

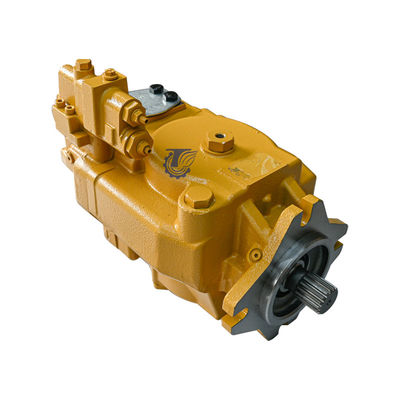

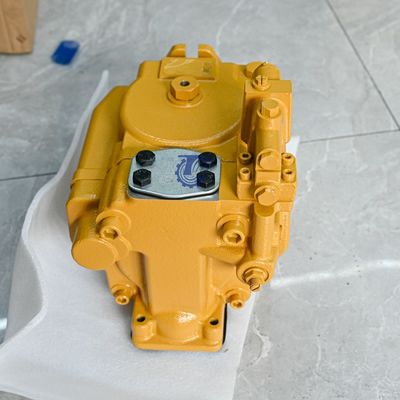

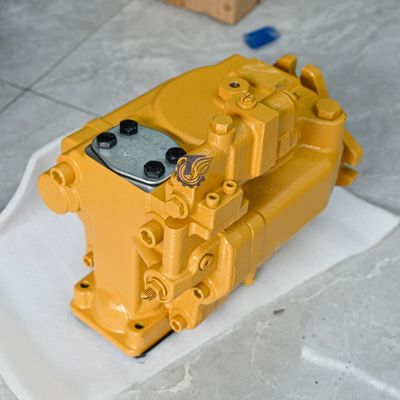

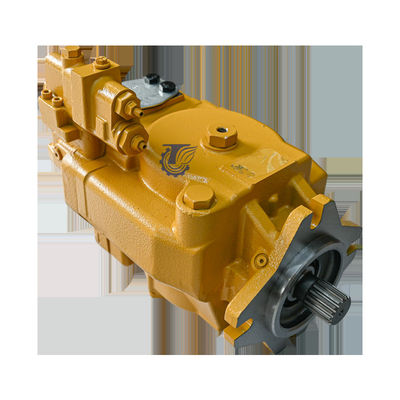

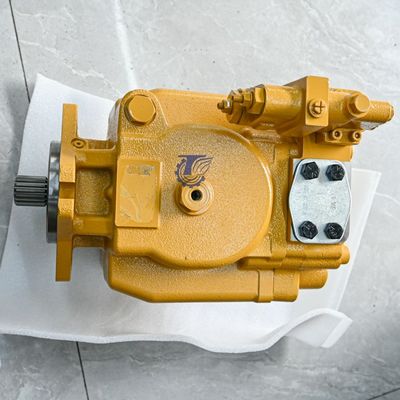

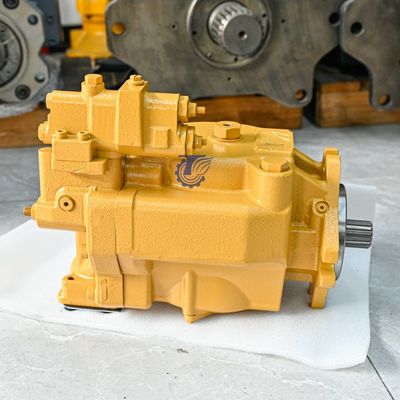

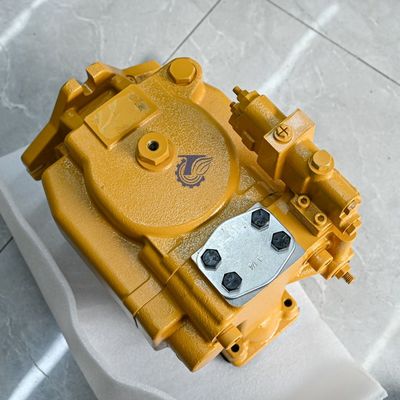

9T8346 9T-8346 0R8503 for CAT Track D8N D8R D8R II PUMP GP-PISTON hydraulic MAIN PUMP Aftermarket High quality
| Place of Origin | China |
|---|---|
| Brand Name | TQ |
| Certification | CE,ISO |
| Model Number | 9T8346 9T-8346 0R8503 for CAT Track D8N D8R D8R II PUMP GP-PISTON hydraulic MAIN PUMP Aftermarket High quality |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable price |
| Packaging Details | Wooden case or as required |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union, T/T |
| Supply Ability | 300pcs /Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 9T8346 9T-8346 0R8503 For CAT Track D8N D8R D8R II PUMP GP-PISTON Hydraulic MAIN PUMP Aftermarket High Quality | Applicable Machine Model： | TQ D8N D8R D8R II |
|---|---|---|---|
| Applicable Industries： | Mechanical Repair Shops, Retail, Construction, Energy, Mining | Category | Hydraulic Pump |
| Condition： | New | Brand | TQ |
Product Description
9T8346 9T-8346 0R8503 for CAT Track D8N D8R D8R II PUMP GP-PISTON hydraulic MAIN PUMP Aftermarket High quality
| PRODUCT DESCRIPTION |
||
| Model:9T8346 9T-8346 0R8503 for CAT Track D8N D8R D8R II PUMP GP-PISTON hydraulic MAIN PUMP Aftermarket High quality | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
Alternative (cross code) number:
CA9T8346

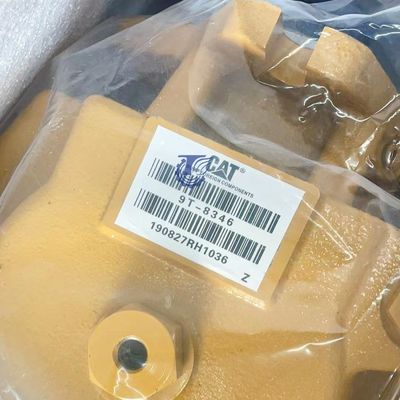

9T-8346
9T8346
Weight: 147 pounds 66 kg.

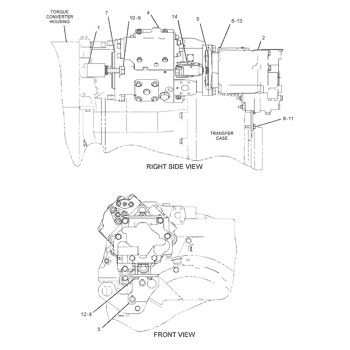

| TQERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 6E-4248 | [1] | SHAFT |
| 2 | 6E-4237 | [1] | BEARING |
| 3 | 6E-4224 | [1] | PLUG-SWASHPLATE |
| 4 | 033-6036 | [1] | SEAL-O-RING |
| 5 | 9S-4190 | [1] | PLUG-O-RING (7/8-14-THD) |
| 6 | 9T-1699 | [1] | SPRING |
| 7 | 9T-1710 | [1] | POPPET |
| 8 | 9T-1636 | [1] | SEAT |
| 9 | 6E-4227 | [1] | COVER |
| 10 | 6V-8837 M | [3] | BOLT (M6X1X16-MM) |
| 11 | 4F-4097 | [1] | SEAL-O-RING |
| 12 | 6E-4236 | [1] | BEARING |
| 13 | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) |
| 14 | 8T-5039 | [3] | SEAL-O-RING |
| 15 | 4H-1440 | [2] | PIN-SPRING |
| 16 | 8T-0343 M | [3] | BOLT-SOCKET HEAD (M12X1.75X55-MM) |
| 17 | 3E-8008 M | [1] | BOLT-SOCKET HEAD (M16X2X90-MM) |
| 18 | 6E-6044 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)(IMPLEMENT PUMP OUTLET CONTROL) |
| 19 | 6E-4245 | [1] | HOUSING |
| 20 | 6V-8337 M | [4] | BOLT-SOCKET HEAD (M8X1.25X35-MM) |
| 21 | 033-6027 | [1] | SEAL-O-RING |
| 22 | 7K-8876 | [1] | CUP-BEARING |
| 23 | 6E-4213 | [1] | KIT-BIAS PISTON (PUMP) |
| (INCLUDES SPRING, ROD, PISTON & PACKING) | |||
| 24 | 6E-4214 | [1] | SPRING-BIAS |
| 25 | 6E-4216 Y | [1] | ROTATING GP-PUMP (IMPLEMENT) |
| 26 | 6E-4225 | [1] | GASKET |
| 27 | 7L-9061 | [2] | SEAL-O-RING |
| 28 | 3E-7417 | [4] | PLUG |
| 29 | 8T-7876 | [4] | SEAL-O-RING |
| 30 | 6E-4234 | [1] | PLATE-VALVE |
| 31 | 005-0471 | [1] | CONE-BEARING |
| 32 | 005-0469 | [1] | CUP-BEARING |
| 33 | 103-6282 B | [1] | SHIM PACK (INCLUDES 17-SHIMS) |
| 34 | 9T-1652 | [1] | PIN |
| 35 | 6E-4215 | [1] | KIT-PISTON (PUMP) |
| (INCLUDES PACKING, ROD & PISTON) | |||
| 36 | 6E-4221 Y | [1] | SWASHPLATE GP |
| 37 | 6L-8797 | [2] | RING-RETAINING |
| 38 | 9X-7547 | [2] | SEAL-LIP TYPE |
| 39 | 7K-8877 | [1] | CONE-BEARING |
| 40 | 6E-4247 | [1] | HEAD |
| 41 | 6E-2943 | [1] | PLUG |
| 42 | 6E-4321 | [1] | SPACER (36X48X2.5-MM THK) |
| 43 | 3E-8007 M | [1] | BOLT-SOCKET HEAD (M12X1.75X90-MM) |
| 44 | 219-6915 | [1] | BOLT (M16X2X95-MM) |
