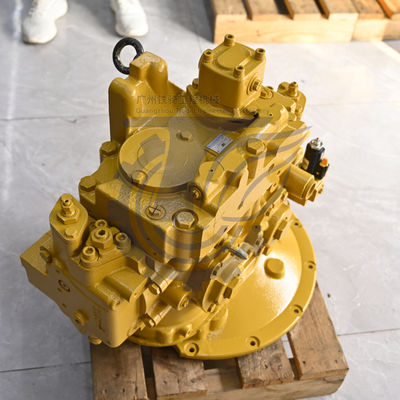

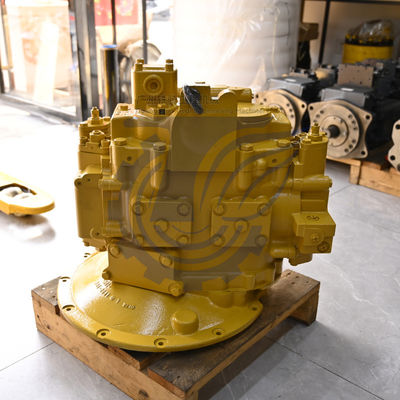

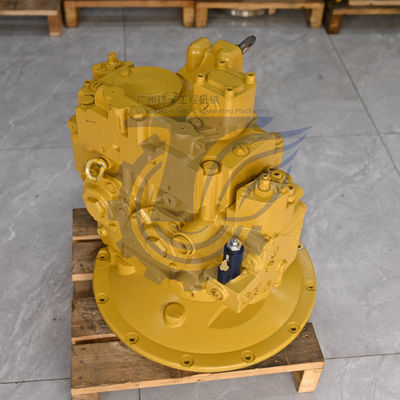

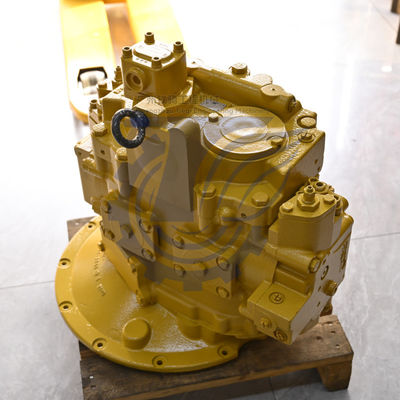

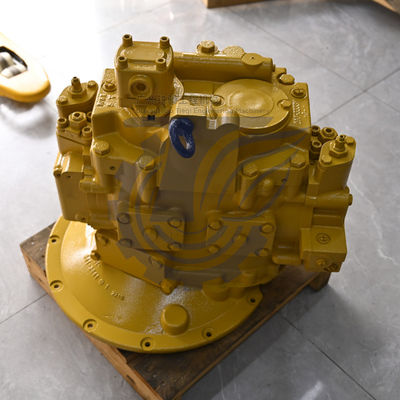

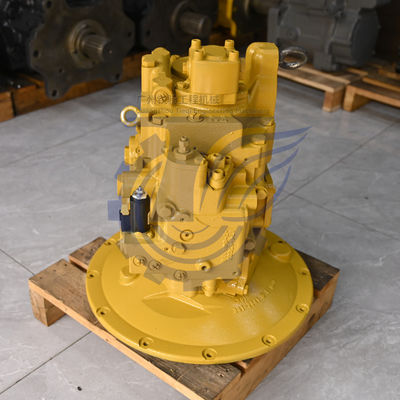

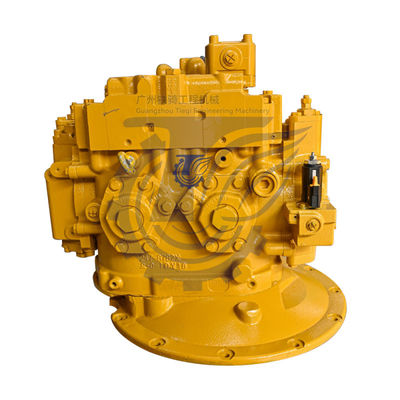

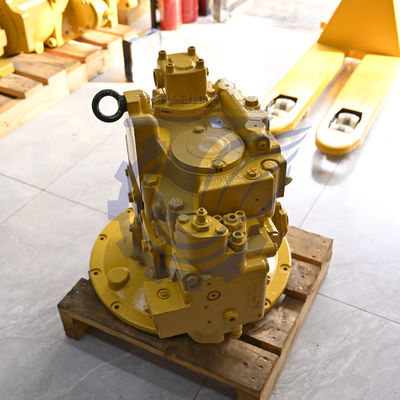

244-8481 173-3519 589-1919 200-3369 For CAT322C SBS120 Excavator hydraulic Main pump Piston pump Original High quality
| PRODUCT DESCRIPTION |
||
|
Model:244-8481 173-3519 589-1919 200-3369 For CAT322C SBS120 Excavator hydraulic Main pump Piston pump Original High quality |
category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4I-1022 | [2] | ORIFICE | |
| 2 | 7Y-4215 | [2] | SPACER | |
| 3 | 096-3983 | [1] | RING-RETAINING | |
| 4 | 096-4389 | [18] | SPRING | |
| 5 | 126-2016 | [1] | PUMP GP-GEAR (PILOT) | |
| 6 | 129-7853 | [2] | PLATE | |
| 7 | 129-7854 | [1] | CASE | |
| 8 | 129-7855 | [1] | GASKET | |
| 9 | 129-7857 | [1] | GASKET | |
| 10 | 129-7863 | [1] | COVER | |
| 11 | 129-7921 | [2] | RING-RETAINING | |
| 12 | 129-7925 | [1] | SEAL-LIP TYPE | |
| 13 | 129-7927 | [2] | BEARING | |
| 14 | 129-7979 | [4] | DOWEL | |
| 15 | 150-5782 | [2] | COVER | |
| 16 | 173-3427 | [2] | GUIDE-BALL | |
| 17 | 177-2470 | [1] | COVER | |
| 18 | 177-2471 | [1] | COVER | |
| 19 | 177-2568 Y | [1] | ACTUATOR GP-PUMP (DRIVE) | |
| 20 | 177-2569 Y | [1] | ACTUATOR GP-PUMP (DRIVEN) | |
| 21 | 177-2583 | [4] | BEARING | |
| 22 | 177-8740 | [1] | SEAL-O-RING | |
| 23 | 179-9763 | [1] | FLANGE | |
| 24 | 188-4210 | [2] | PISTON AS | |
| 25 | 192-0573 | [4] | PIN-DOWEL | |
| 26 | 194-8325 | [2] | SET-BEARING | |
| 27 | 194-8371 | [1] | BARREL AS | |
| 28 | 194-8374 | [1] | BARREL AS | |
| 29 | 242-6801 | [2] | SWASHPLATE AS | |
| (EACH INCLUDES) | ||||
| 094-1875 | [1] | DOWEL | ||
| 173-3428 | [1] | BUSHING | ||
| 242-6803 | [2] | PIN-DOWEL | ||
| 30 | 200-3263 | [1] | SHAFT-DRIVE | |
| 31 | 200-3325 | [1] | SHAFT-DRIVEN | |
| 32 | 200-3333 | [1] | HEAD-PUMP | |
| 33 | 200-3334 | [1] | COVER | |
| 35 | 247-8782 | [1] | BODY | |
| 36 | 247-8920 | [2] | ORIFICE | |
| 37 | 094-1875 | [6] | DOWEL | |
| 38 | 094-1882 | [16] | PLUG | |
| 39 | 095-0946 | [2] | RING-RETAINING | |
| 41 | 096-3944 | [1] | SEAL-O-RING | |
| 42 | 189-9763 | [8] | SEAL-O-RING | |
| 43 | 190-4896 | [2] | PLUG | |
| 44 | 193-1736 | [4] | SEAL-O-RING | |
| 45 | 3K-0360 | [2] | SEAL-O-RING | |
| 46 | 7M-8485 | [2] | SEAL-O-RING | |
| 47 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) | |
| 48 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) | |
| 49 | 8T-3338 | [2] | SEAL-O-RING | |
| 50 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) | |
| 51 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 52 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) | |
| 53 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) | |
| 54 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) | |
| 55 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) | |
| 56 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) | |
| 57 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) | |
| 58 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
