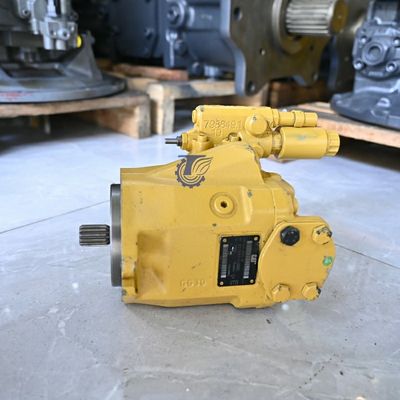

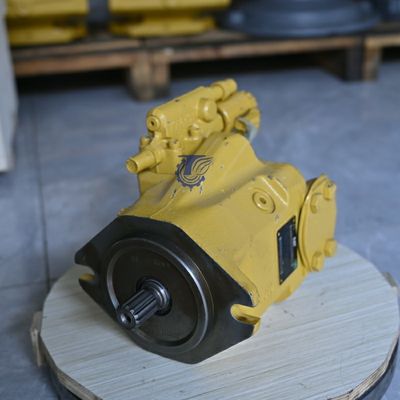

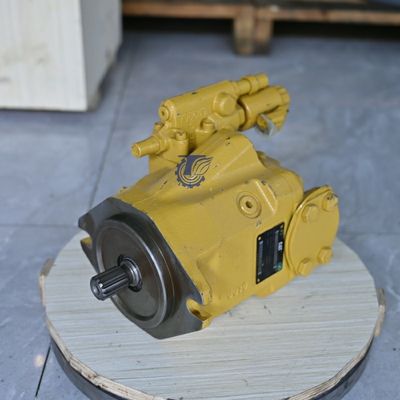

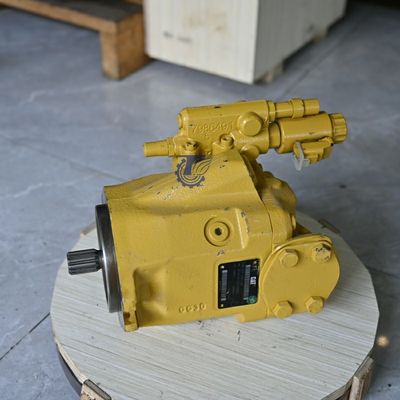

CAT 524-0924 5240924 fan pump piston pump assembly 524-0924 for cat 349gc driven by C9.3B engine
| PRODUCT DESCRIPTION |
||
| Model:CAT 524-0924 5240924 fan pump piston pump assembly 524-0924 for cat 349gc driven by C9.3B engine | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

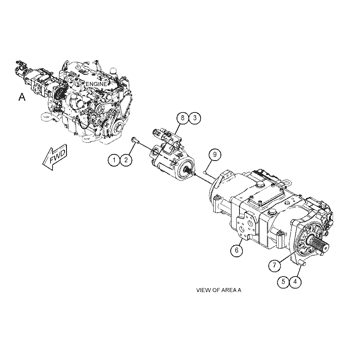

| Pos. | Part No | Qty | Parts name |
| 1 | 8T-9597 | [1] | RING-RETAINING |
| 2 | 185-0303 | [1] | SEAL-OIL |
| 3 | 194-9472 | [1] | SPRING |
| 4 | 155-9125 | [1] | BEARING AS-ROLLER |
| 5 | 351-6662 | [1] | SWASHPLATE |
| 6 | 469-3308 | [1] | ROD |
| 7 | 174-9994 | [1] | PISTON-CONTROL |
| 8 | 355-2417 | [1] | PLUG-CONTROL |
| 9 | 553-7272 | [1] | PIN |
| 10 | 101-7404 M | [4] | BOLT-SOCKET HEAD (M10X1.5X30-MM) |
| 11 | 191-7583 | [1] | BEARING-TAPERED |
| 12 | 553-7278 | [1] | COVER |
| 13 | 231-4707 | [1] | SEAL-O-RING |
| 14 | 449-5139 | [1] | SEAL-O-RING |
| 16 | 553-7277 | [1] | HOUSING |
| 17 | 241-4007 | [1] | SCREW-LOCK |
| 18 | 351-6663 | [2] | BEARING-CRADLE |
| 19 | 543-3718 | [2] | SCREW (M5X16-MM) |
| 20 | 497-6387 | [1] | STOP-RING |
| 21 | 191-7581 | [1] | SHAFT |
| 22 | 120-4394 | [1] | PLUG-BREAK OFF |
| M | METRIC PART |
