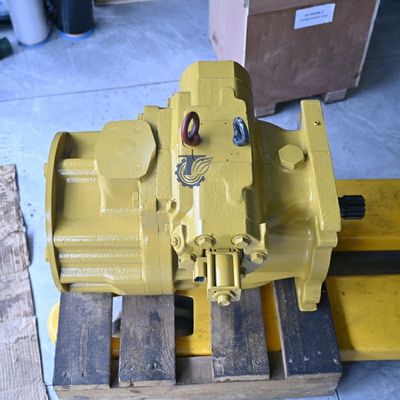

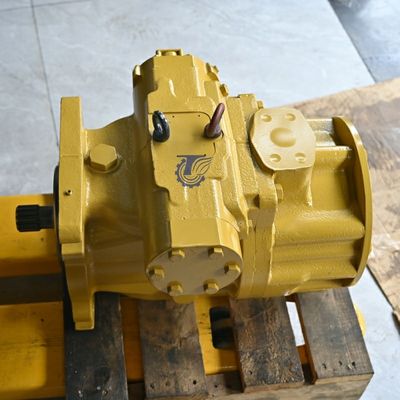

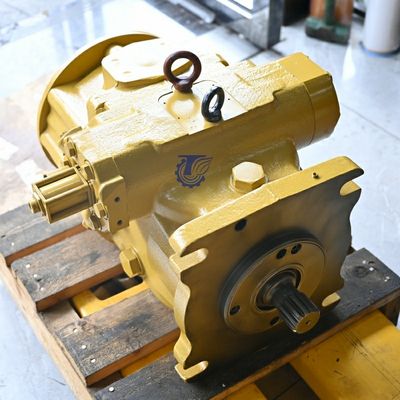

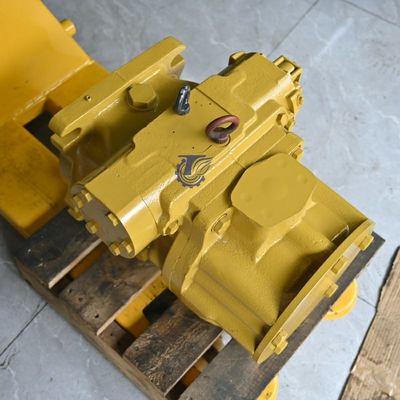

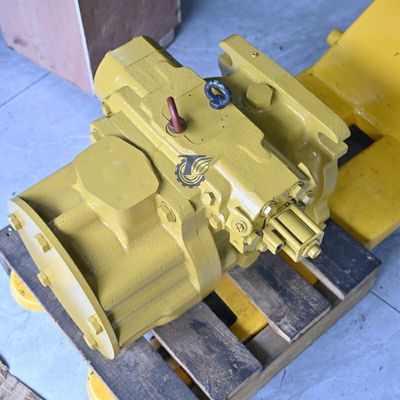

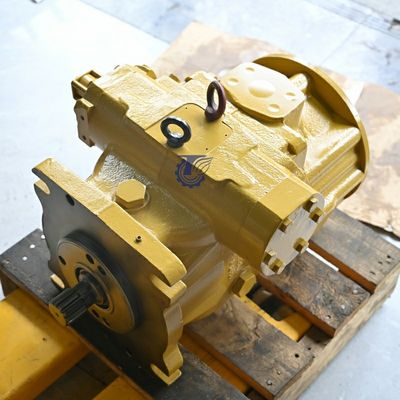

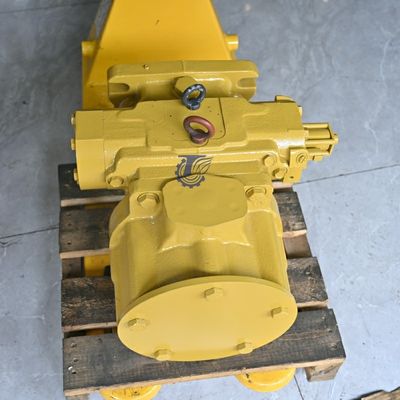

384-9434 384-9431 384-9432 cat wheel loader 993K 988H piston pump hydraulic pump plunger pump driven by C32 engine
| Place of Origin | China |
|---|---|
| Brand Name | TQ |
| Certification | CE， ISO |
| Model Number | 384-9434 384-9431 384-9432 cat wheel loader 993K 988H piston pump hydraulic pump plunger pump driven by C32 engine |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable price |
| Packaging Details | Wooden case or as required |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union, T/T |
| Supply Ability | 300pcs /Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 384-9434 384-9431 384-9432 Cat Wheel Loader 993K 988H Piston Pump Hydraulic Pump Plunger Pump Driven By C32 Engine | Applicable Machine Model： | Cat 993K 988H |
|---|---|---|---|
| Applicable Industries： | Mechanical Repair Shops, Retail, Construction, Energy, Mining | Category | Hydraulic Pump |
| Condition： | NEW/REBUILT | Brand | TQ |
Product Description
384-9434 384-9431 384-9432 cat wheel loader 993K 988H piston pump hydraulic pump plunger pump driven by C32 engine
| PRODUCT DESCRIPTION |
||
| Model:384-9434 384-9431 384-9432 cat wheel loader 993K 988H piston pump hydraulic pump plunger pump driven by C32 engine | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

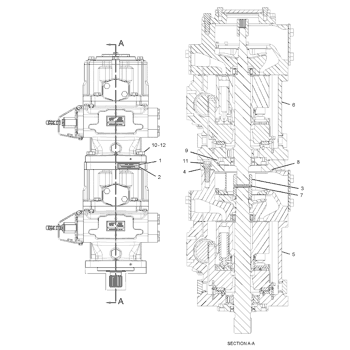

| Parts for your 993K WHEEL LOADER: | |||
| CATERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) |
| 2 | 7Y-4224 | [1] | ORIFICE |
| 3 | 8J-0101 | [1] | PLATE-NOTICE (HYDRAULIC OIL FILL) |
| 4 | 8J-2559 | [1] | PLATE-WARNING (OIL FILL) |
| 5 | 110-2973 | [2] | BEARING-SPECIAL ROLLER |
| 6 | 232-3868 | [4] | WASHER-BELLEVILLE |
| 7 | 137-5646 | [1] | SPACER (70.4X87.5X7.6-MM THK) |
| 8 | 357-1728 | [1] | SPACER (70.4X80X2.3-MM THK) |
| 9 | 148-3548 | [1] | BEARING-SPECIAL RACE |
| 10 | 150-4355 | [9] | PISTON AS |
| 11 | 155-2251 | [1] | PLATE |
| 12 | 158-3504 | [1] | SPOOL-CONTROL |
| 13 | 159-7320 | [1] | PLATE-RETAINER |
| 14 | 165-6062 | [2] | LINK (TIMING) |
| 15 | 175-7887 | [2] | DOWEL |
| 16 | 177-1405 | [1] | SPRING |
| 17 | 187-9116 | [1] | BARREL AS-PUMP |
| 17A. | 120-7508 | [9] | BUSHING |
| 18 | 191-9247 | [1] | WASHER (19.15X31.65X2.36-MM THK) |
| 19 | 198-2914 | [1] | NUT (3/4-32-THD) |
| 20 | 214-2445 | [1] | SPRING |
| 21 | 214-6489 | [1] | BALL (HOLD DOWN) |
| 22 | 247-0661 | [1] | COUPLING |
| 23 | 250-3462 | [1] | BEARING-SPECIAL ROLLER |
| 24 | 250-9320 | [1] | COVER AS-PUMP |
| 25 | 250-9323 | [1] | IMPELLER |
| 26 | 508-0082 | [1] | SPACER AS |
| 27 | 250-9327 | [1] | SHAFT |
| 28 | 250-9328 | [1] | COVER |
| 29 | 250-9459 | [1] | BODY AS-PUMP |
| 124-1555 | [1] | PLUG | |
| 30 | 250-9461 | [1] | HEAD-PUMP |
| 31 | 250-9462 | [1] | PLATE-ADAPTER |
| 32 | 251-7828 | [1] | PLATE-PORT |
| 33 | 264-0010 | [1] | RETAINER |
| 34 | 265-8956 | [1] | HOUSING AS-PUMP |
| 124-1555 | [1] | PLUG | |
| 35 | 267-3741 | [1] | ACTUATOR |
| 36 | 270-7898 L | [1] | SPRING |
| 37 | 313-1286 | [1] | RETAINER AS |
| 124-1555 | [1] | PLUG | |
| 266-6116 | [2] | SEAL-LIP TYPE | |
| 38 | 314-3243 | [1] | SWASHPLATE |
| 39 | 316-1438 | [1] | CARTRIDGE AS |
| 214-7568 | [2] | SEAL-O-RING | |
| 40 | 322-2018 | [1] | SLIDE-ACTUATOR |
| 41 | 373-1585 | [1] | COIL AS |
| 9X-3401 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | |
| 230-4012 | [1] | RECEPTACLE AS-CONNECTOR (2-PIN) | |
| 9X-1813 E | SLEEVE (14-CM) | ||
| 42 | 030-4605 | [1] | SEAL-O-RING |
| 43 | 095-0892 | [1] | PIN-SPRING |
| 44 | 095-0928 | [1] | RING-RETAINING |
| 45 | 096-0008 M | [6] | BOLT-SOCKET HEAD (M16X2X140-MM) |
| 46 | 162-2165 M | [4] | BOLT-SOCKET HEAD (M4X0.7X16-MM) |
| 47 | 189-9763 | [1] | SEAL-O-RING |
| 48 | 1P-3709 | [1] | SEAL-RECTANGULAR |
| 49 | 2R-0239 | [1] | SEAL-O-RING |
| 50 | 3C-8388 | [2] | PIN-ROLL |
| 51 | 3D-4603 | [1] | PLUG-PIPE |
| 52 | 3J-0634 | [1] | SEAL-O-RING |
| 53 | 3J-1907 | [3] | SEAL-O-RING |
| 54 | 3J-7354 | [1] | SEAL-O-RING |
| 55 | 4J-5309 | [3] | SEAL-O-RING |
| 56 | 5A-3604 M | [3] | BOLT-SOCKET HEAD (M8X1.25X25-MM) |
| 57 | 5L-2931 | [2] | RING-RETAINING |
| 58 | 5P-8245 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 59 | 6F-7061 | [2] | DOWEL |
| 60 | 6J-2680 | [1] | SEAL-O-RING |
| 61 | 6S-3002 | [1] | SEAL-O-RING |
| 62 | 6V-3823 M | [6] | BOLT (M12X1.75X60-MM) |
| 63 | 6V-5684 M | [6] | BOLT (M12X1.75X45-MM) |
| 64 | 178-3707 M | [2] | BOLT (M16X2X50-MM) |
| 65 | 7F-8607 | [6] | SEAL-O-RING |
| 66 | 7M-8485 | [4] | SEAL-O-RING |
| 67 | 8T-0267 M | [5] | BOLT-SOCKET HEAD (M6X1X12-MM) |
| 68 | 8T-0348 M | [5] | BOLT-SOCKET HEAD (M16X2X50-MM) |
| 69 | 9S-4181 | [4] | PLUG (1-5/16-12-THD) |
| 70 | 9S-4191 | [3] | PLUG (9/16-18-THD) |
| 71 | 9S-8002 | [1] | PLUG (7/16-20-THD) |
| 72 | 9X-8268 | [2] | WASHER (17.5X30X3.5-MM THK) |
| 73 | 2A-3630 | [2] | PIN |
| AVAILABLE REPAIR KIT(S): | |||
| 338-1105 L | [1] | KIT-SPRING | |
