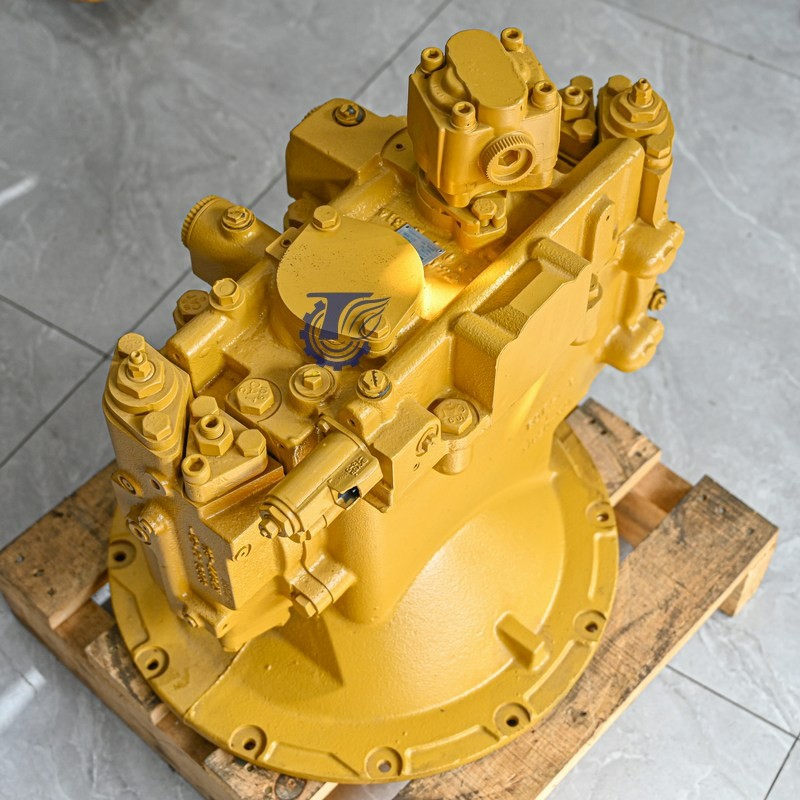

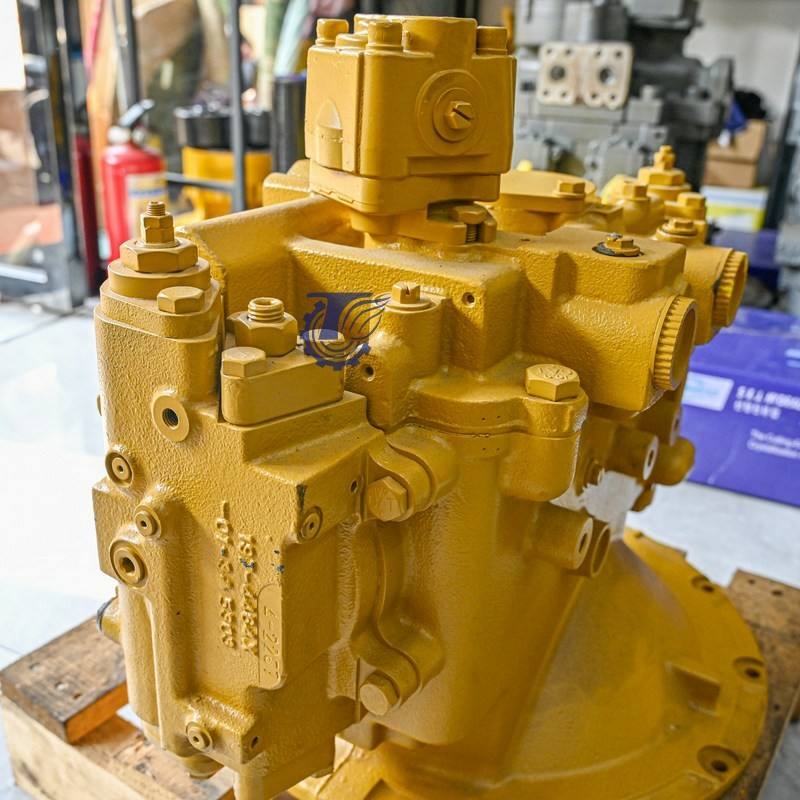

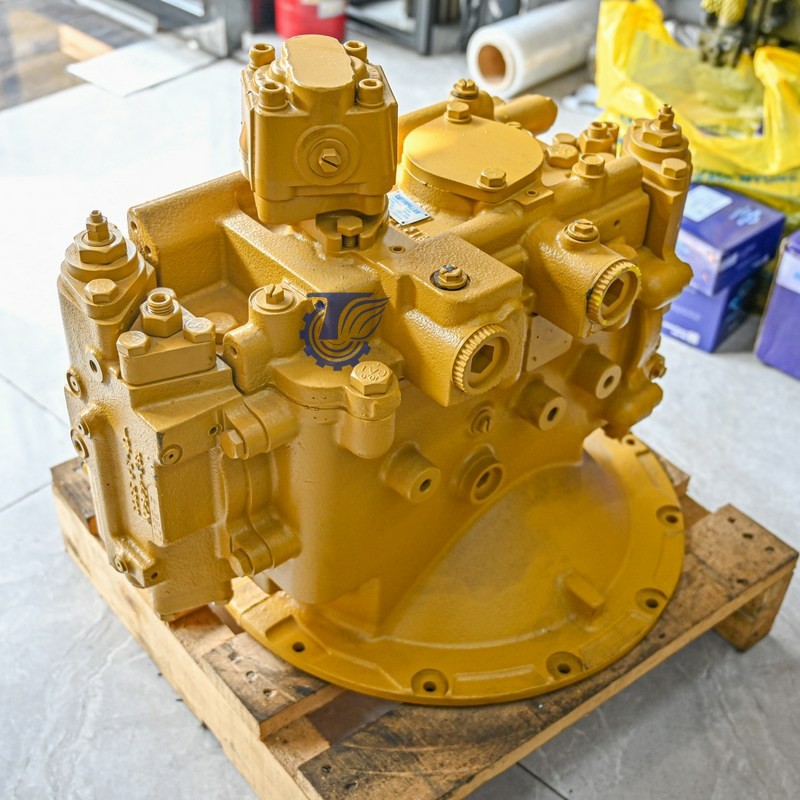

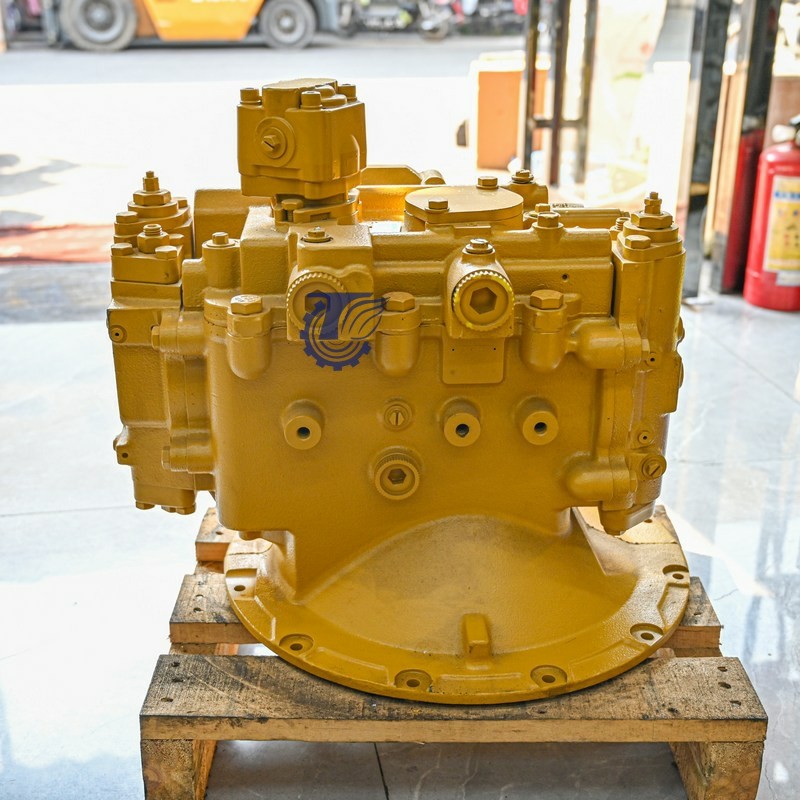

1838289 1730663 3117404 for E312 E313 E315 SBS80 main pump used for TQerpillar
| PRODUCT DESCRIPTION |
||
| Model: 1838289 1730663 3117404 for E312 E313 E315 SBS80 main pump used for TQerpillar | category: Hydraulic Pump |
|
| Brand: TQ |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
|
||||||||
| Grp | 311-7404 | Main hydraulic pump assembly | PUMP GP-MAIN HYDRAULIC 2019-09-05 | |||||
| 1 | 111-9916 | Solenoid valve assembly | 1 | (PRESSURE REDUCING)(PRESSURE REDUCING) | | Y | ||||
| 2 | 165-2793 | retaining ring | 2 | |||||
| 3 | 165-2801 | Roller bearing | 2 | |||||
| 4 | 353-5837 | lip oil seal | 1 | |||||
| 5 | 165-2804 | flange | 1 | |||||
| 6 | 165-2805 | support block | 2 | |||||
| 7 | 165-3838 | Piston barrel assembly | 1 | |||||
| 8 | 165-3839 | Piston barrel assembly | 1 | |||||
| 9 | 165-3847 | Piston assembly | 18 | |||||
| 10 | 165-3853 | cover | 1 | |||||
| 11 | 173-1203 | Gear pump assembly | 1 | (BLADE) | | ||||
| 327-8740 | seal kit | 1 | (GEAR PUMP)(GEAR PUMP) | | |||||
| COMMENT | (INCLUDES RING, GASKET & SEALS) | |||||||
| 12 | 176-8131 | Special spacer set | 2 | |||||
| 13 | 176-8132 | Bearing | 2 | |||||
| 14 | 190-4896 | Screw plug | 2 | |||||
| 15 | 192-0573 | Positioning pin | 4 | |||||
| 16 | 199-0518 | O-ring seal | 2 | |||||
| 17 | 207-2985 | Orifice | 2 | |||||
| 18 | 225-6216 | Gasket | 1 | |||||
| 19 | 267-1628 | drive shaft | 1 | |||||
| 20 | 267-1629 | driven shaft | 1 | |||||
| 21 | 267-8084 | Needle roller bearings | 2 | |||||
| 22 | 268-6263 | cam | 2 | |||||
| 23 | 268-6265 | plate | 1 | |||||
| 24 | 269-2433 | Support bearing | 4 | |||||
| 25 | 282-9155 | Pump head assembly | 2 | | Y | ||||
| 26 | 282-9192 | flange housing | 1 | |||||
| 27 | 298-5732 | Steel ball retainer | 2 | |||||
| 28 | 311-7407 | Hydraulic oil inlet and outlet seat | 1 | |||||
| 30 | 094-1875 | Positioning pin | 6 | |||||
| 31 | 094-1882 | Screw plug | 12 | |||||
| 32 | 095-1663 | O-ring seal | 1 | |||||
| 34 | 165-2799 | spring | 12 | |||||
| 35 | 189-9763 | O-ring seal | 4 | |||||
| 36 | 1H-7339 | O-ring seal | 1 | |||||
| 37 | 1J-6472 | retaining ring | 2 | |||||
| 38 | 273-8320 | O-ring seal | 1 | |||||
| 39 | 3J-1907 | O-ring seal | 3 | |||||
| 40 | 6V-8144 | retaining ring | 2 | |||||
| 41 | 7I-2272 | bolt | 2 | (M5X0.8X12-MM) | | M | ||||
| 42 | 7X-2553 | bolt | 5 | (M16X2X40-MM) | | M | ||||
| 43 | 7X-2556 | bolt | 1 | (M16X2X100-MM) | | M | ||||
| 44 | 8C-3338 | Positioning pin | 4 | |||||
| 45 | 8T-4121 | Hard washer | 2 | (11X21X2.5-MM THK) | | ||||
| 46 | 8T-4136 | bolt | 2 | (M10X1.5X25-MM) | | M | ||||
| 47 | 8T-4137 | bolt | 2 | (M10X1.5X20-MM) | | M | ||||
| 48 | 8T-4139 | bolt | 8 | (M12X1.75X30-MM) | | M | ||||
| 49 | 8T-4140 | bolt | 2 | (M16X2X60-MM) | | M | ||||
| 50 | 8T-4185 | bolt | 4 | (M10X1.5X50-MM) | | M | ||||
| 51 | 8T-7547 | bolt | 4 | (M8X1.25X30-MM) | | M | ||||
| 52 | 8T-9599 | retaining ring | 1 | |||||
| 53 | 9S-4191 | Screw plug | 3 | (9/16-18-THD) | ||||
